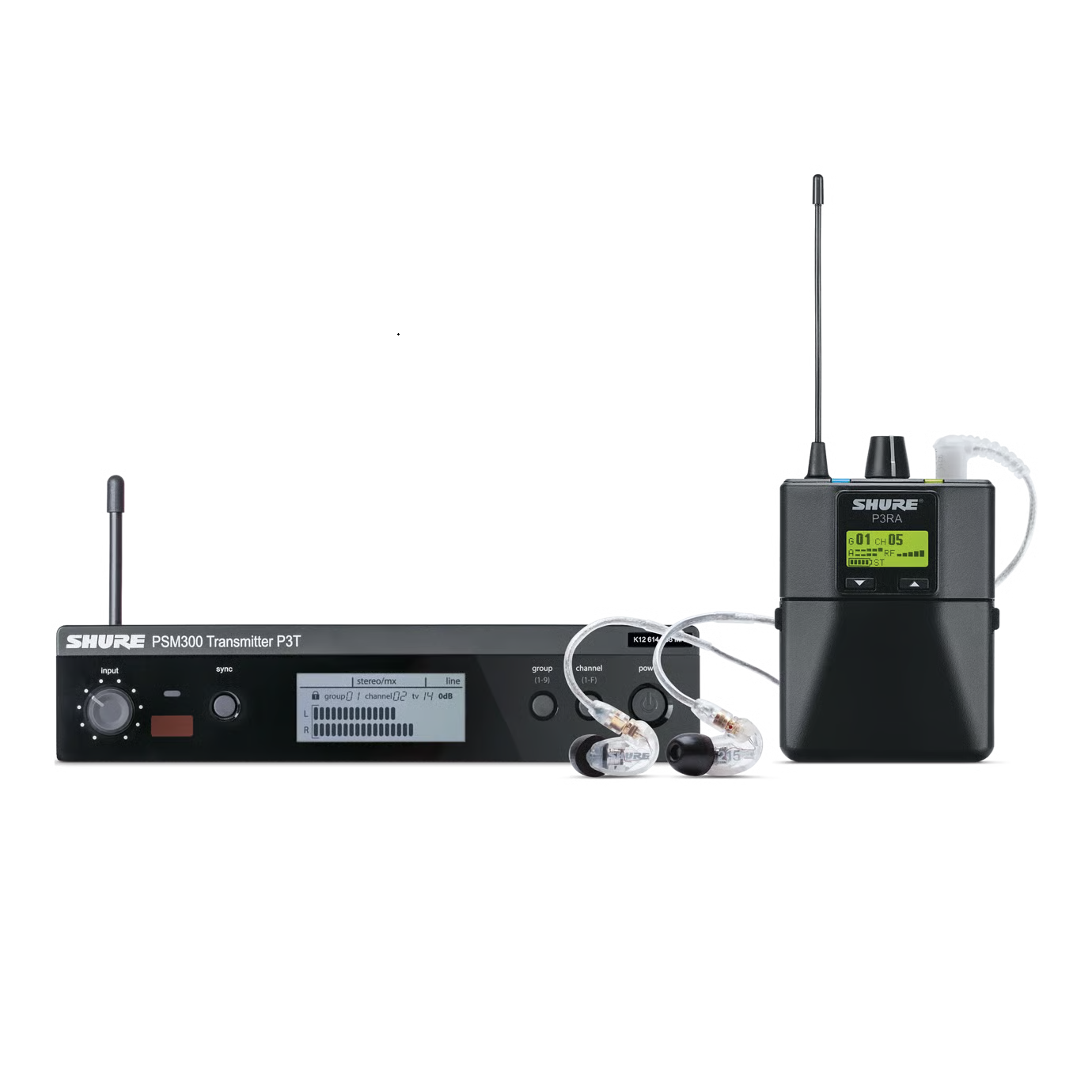

Shure P3TRA215CL Wireless Personal Monitor System Set

P3TRA215CL Wireless Personal Monitor System Set include: P3RA Premium Wireless Bodypack Receiver & P3T PSM®300 Wireless Transmitter & SE215 Sound Isolating Earphones

Up to 30mW output power (region dependent)
1/4″ (6.3mm) TRS balanced inputs and loop outputs
24 MHz tuning range (region dependent)
High-contrast LCD menu with detailed L/R audio output meters
Detachable 1/4 wave antenna
External power supply
Selectable line/aux level
分類: ,
Performance
Frequency Range
G20: 488-512 MHz
RF Output Power
10, 20, 30 mW
Note: varies by region
RF Output Impedance
50 Ohms (typical)
Transmission Range
300′ (90 m)
Audio Input
Connector Type
1/4″ TRS (6.35 mm)
Polarity
Tip positive with respect to ring
Configuration
Electronically balanced
Impedance
40 kOhms (actual)
Nominal Input Level
Switchable, +4 dBu, -10 dBV
Maximum Input Level
+4 dBu: +22 dBu
-10 dBV: +12.2 dBu
Pin Assignments
Tip=hot, Ring=cold, Sleeve=ground
Phantom Power Protection
Up to 60 VDC
Audio Output
Connector Types
1/4″ TRS (6.35 mm)
Configuration
Electronically balanced
Impedance
Connected directly to inputs
General
Antenna
1/4 wave, detachable
Power Requirement
12 to 15 VDC, 260 mA maximum
Dimensions
1.7 x 7.8 x 6.8″ (43 x 198 x 172 mm)
Net Weight
27.6 oz (783 g)
