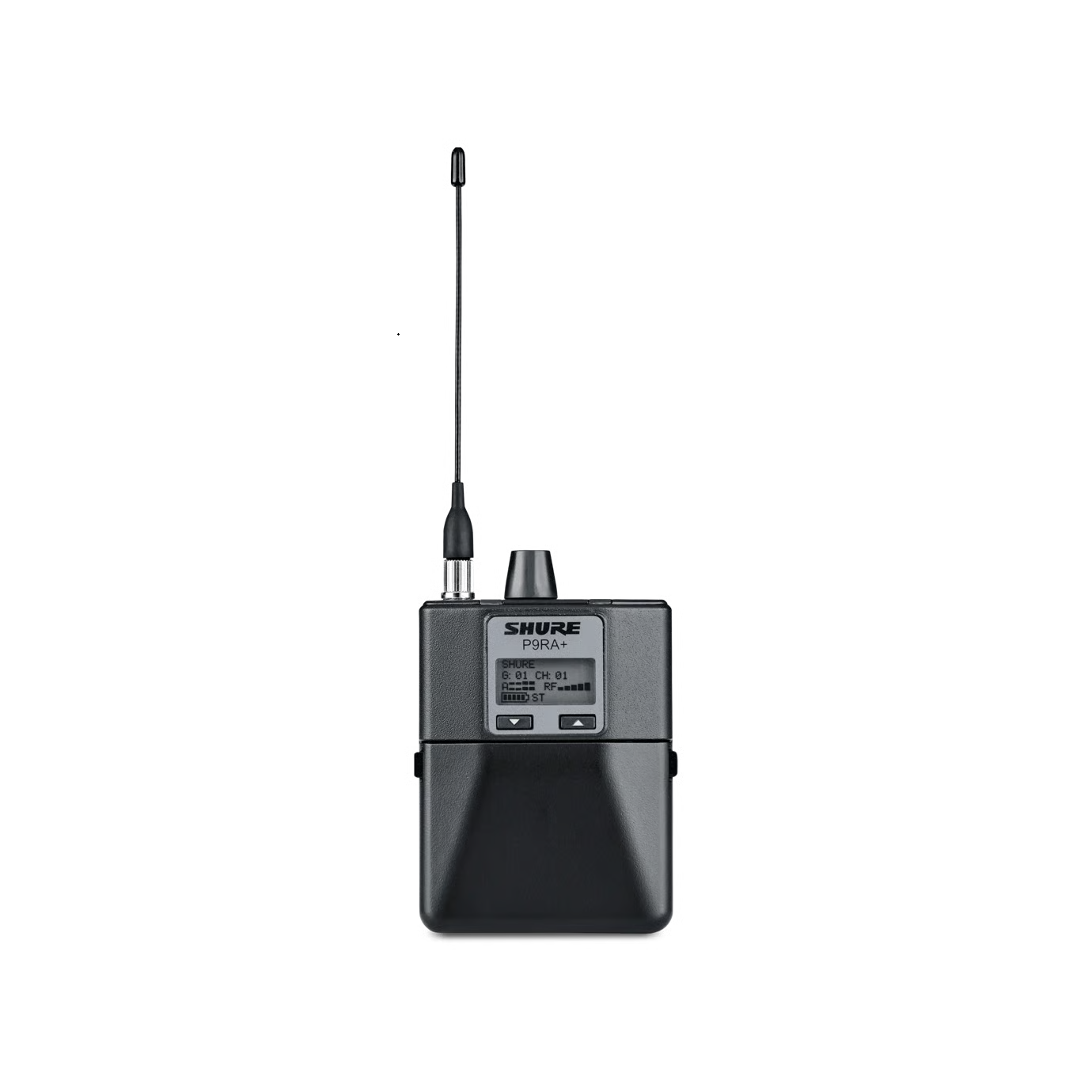

Shure P9RA+ Bodypack Receiver

Shure’s P9RA+ is a compact, stereo bodypack receiver for use with the PSM®900 Wireless Personal Monitor System. With a hybrid analog/digital architecture, the P9RA+ Bodypack Receiver offers unparalleled audio quality with more headroom, better stereo separation, and higher fidelity, along with reliable RF performance for increased RF signal strength to meet the needs of professional audio applications of all sizes, including IEM and IFB applications.

  • For Shure PSM 900 Monitor Systems
  • Slim and Compact Aluminum Body
  • RF Scan
  • Automatic Gain Control
  • Digital Encoder
  • Transmitter IR Link
  • 4-Band Parametric EQ
  • Volume and Balance Controls
  • Indicator LEDs
分類: ,
Frequency Band
G6: 470 to 506 MHz
RF Filter Range
-3 dB at 30.5 MHz from the Center Frequency of Each Band
RF Gain
Active: 31 dB (Adjusts RF Sensitivity to Provide more RF Dynamic Range)
RF Sensitivity
2.2 μV (20 dB SINAD)
Image Rejection
>90 dB
Adjacent Channel Rejection
>70 dB
Squelch Threshold
22 dB SINAD (±3 dB), Default Setting
Intermodulation Attenuation
>70 dB
Blocking
>80 dB
Audio Output Power
100 mW Per Output (1 kHz at <1% Distortion, Peak Power, at 16 Ohms)
4-Band Parametric Equalizer
Low-Shelf Selectable Gain: ±2, ±4, ±6 dB at 100 Hz
Low-Mid Selectable Gain: ±2, ±4, ±6 dB at 160, 250, 400, 500, 630 Hz
Selectable Q: 0.7, 1.4, 2.9, 5.0, 11.5
High-Mid Selectable Gain: ±2, ±4, ±6 dB at 1, 1.6, 2.5, 4, 6.3 kHz
Selectable Q: 0.7, 1.4, 2.9, 5.0, 11.5
High-Shelf Selectable Gain: ±2, ±4, ±6 dB at 10 kHz
Volume Limiter
Selectable: 0 to -48 dB in 3 dB Steps
Volume Lock
Selectable: 0 to -70 dB
Limits Volume Adjustment Knob
Selected Value Analogous to Volume Knob Increment
Audio Connector
1/8″ / 3.5 mm
Battery Life
4-6 Hours (Continuous Use) with 2 x AA Batteries
Dimensions
3.3 x 2.6 x 0.9″ / 8.3 x 6.5 x 2.2 cm
Weight
5.4 oz / 154 g without Batteries
