System
| Frequency response (-3 dB) ¹ | 55 Hz – 20 kHz |
| Frequency response (-10 dB) ¹ | 39 Hz – 20 kHz |
| Nominal dispersion | 40-100 degrees asymmetrical (H) x 30 degrees (V) |
| Power handling (IEC) | LF: 500 W continuous
MHF: 190 W continuous FR: 690 W continuous |
| Sensitivity | LF: 101 dB (1 W @ 1 m) ²
MHF: 114.5 dB (1 W @ 1 m) ²
|
| MaximumSPL | 138 dB (passive mode) /140 dB (bi-amp mode) ³ |
| Impedance | LF: 8 Ω / MHF: 12 Ω
FR: 8 Ω |
| Crossover type | External bi-amp and internal passive |
| Components | 1 x 12″ (315 mm) LF driver
1 x 1.4″ (35 mm) exit, large format dual compression driver |
| IP Rating | 54 |
| UV Rating | 6 |
Enclosure

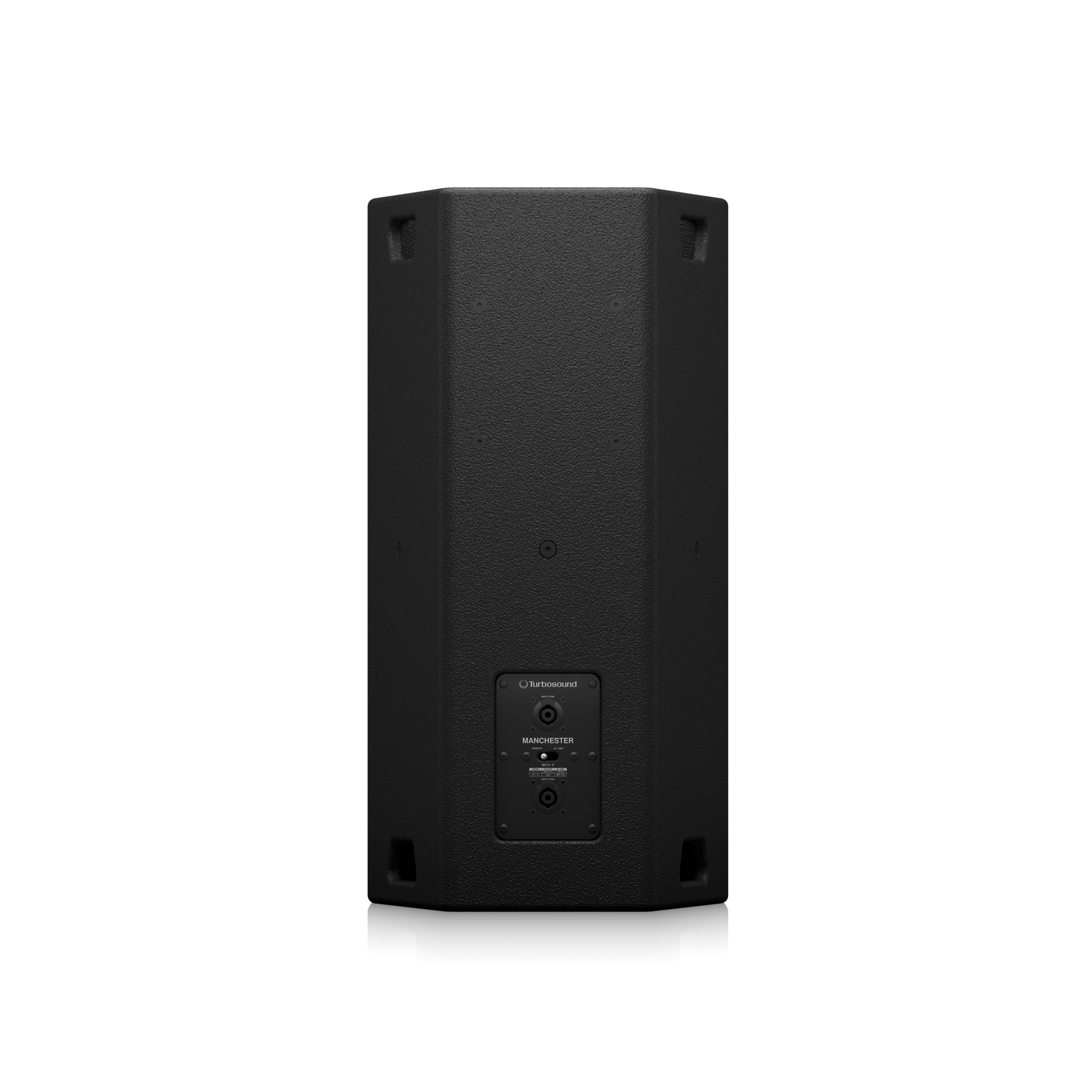

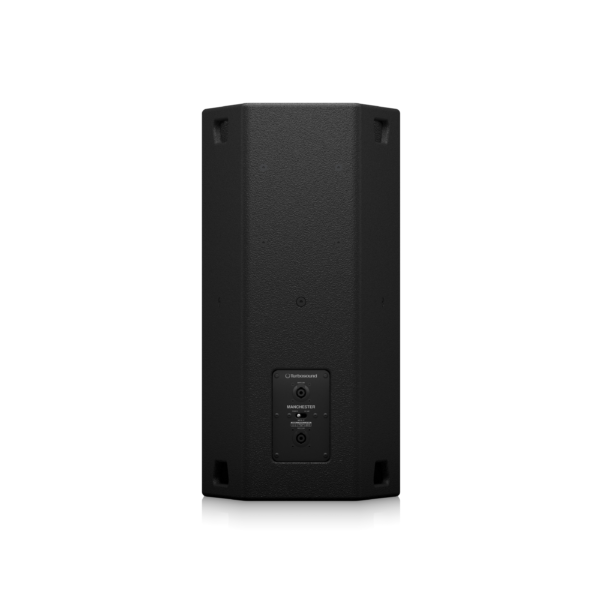

| Connectors | 2 x twist-lock NLT4MP STX connector |
| Wiring | Bi-amp mode: Pins 1+ / 1- LF, pins 2+ / 2- HF
Passive mode: Pins 1+ / 1- input, pins 2+ / 2- link |
| Dimensions H x W x D | 700 x 358 x 460 mm (27.6 x 24 x 18.1″) |
| Net weight | 28.5 kg (62.8 lbs) |
| Construction | 15 mm (enclosure) and 18 mm (front) marine birch plywood, vented and internally braced |
| Finish | Polyurethane black, with custom colours on request |
| Grille | Powder coated perforated steel |
| Flying hardware | Integral suspension system and M10 x 12 points with dedicated yoke, swivel and fly-bar accessories |
