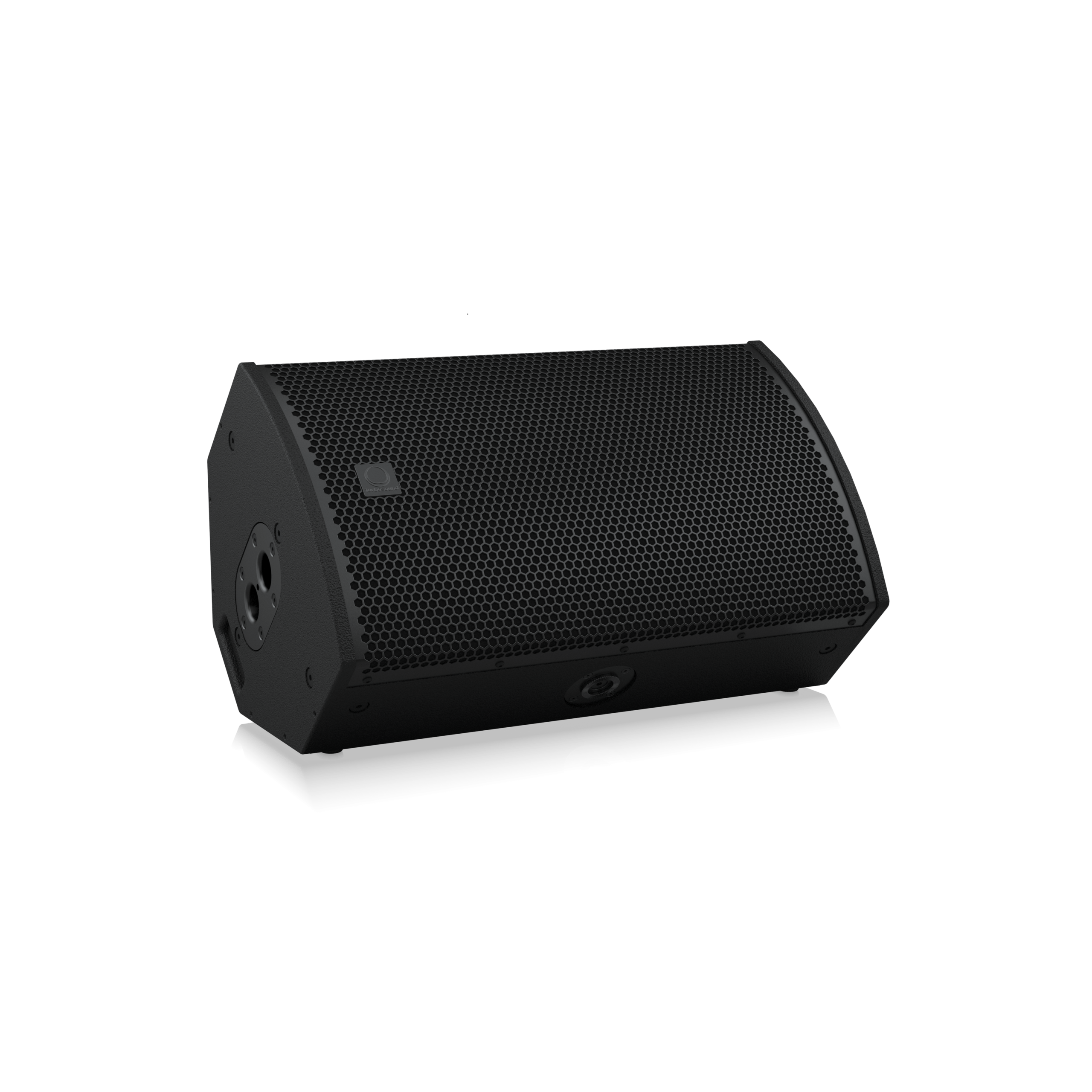

TURBOSOUND PQ12 Full Range Loudspeaker

2 Way 12″ Full Range Loudspeaker for Tour and Live Sound Applications

2 way full range loudspeaker for Tour and Live Sound applications
500 Watts continuous, 2,000 Watts peak power
Ideal for FOH, side fill and monitor applications
12″ low frequency driver with low mass voice coil for improved transient response
1.7″ Voice Coil, Polyimide Diaphragm Neodymium Compression driver
Rotatable Catenary Horn provides 80° H x 50° V dispersion
15 mm (5/8″) plywood enclosure with hard wearing semi matt black PU paint finish
Rugged powder coated perforated steel mesh grille
Integral 35 mm dual angle pole mount and handles
Multiple internal rigging points allow bracket mount and suspension in any orientation
2 x NL4M connectors for reliable long life operation

分類: TurboSound, TurboSound

Frequency response (±3 dB)¹	74 Hz – 20 kHz
Frequency response (-10 dB)¹	49 Hz – 20 kHz
Nominal dispersion (@ -6 dB points)	80° H x 50° V
Power handling (IEC) PASSIVE	LF: 500 W continuous HF: 50 W continuous FR: 550 W continuous
Peak	LF: 2000 W peak HF: 200 W peak FR: 2200 W peak
Sensitivity (1 W @ 1 m)¹	98 dB
Maximum SPL (FR)³	131 dB (137 dB peak)
Impedance	8 Ω
Crossover type	Passive
Components	1 x 12″ (315 mm) Ferrite LF driver
	1 x 1.75″(44.4 mm) voice coil Polymide diaphragm, Neo Motor HF compression driver
