System
| Frequency Response | 85 Hz – 20 kHz ±3 dB 70 Hz – 20 kHz -10 dB |
| Nominal Dispersion | 120° H x 10° V @ -6 dB points |
| Power Handling (IEC) | LF: 150 W continuous, 600 W peak HF: 30 W continuous, 120 W peak |
| Sensitivity | LF: 87 dB (1 W @ 1 m) HF: 99 dB (1 W @ 1 m) |
| Maximum SPL | LF: 109 dB continuous, 115 dB peak HF: 114 dB continuous, 120 dB peak |
| Impedance | LF: 16 O HF: 16 O |
| Crossover Type | External bi-amp |
| Components | 2 x 4″” (102 mm) LF driver 1 x 1″” (25.4 mm) HF compression driver |
Enclosure

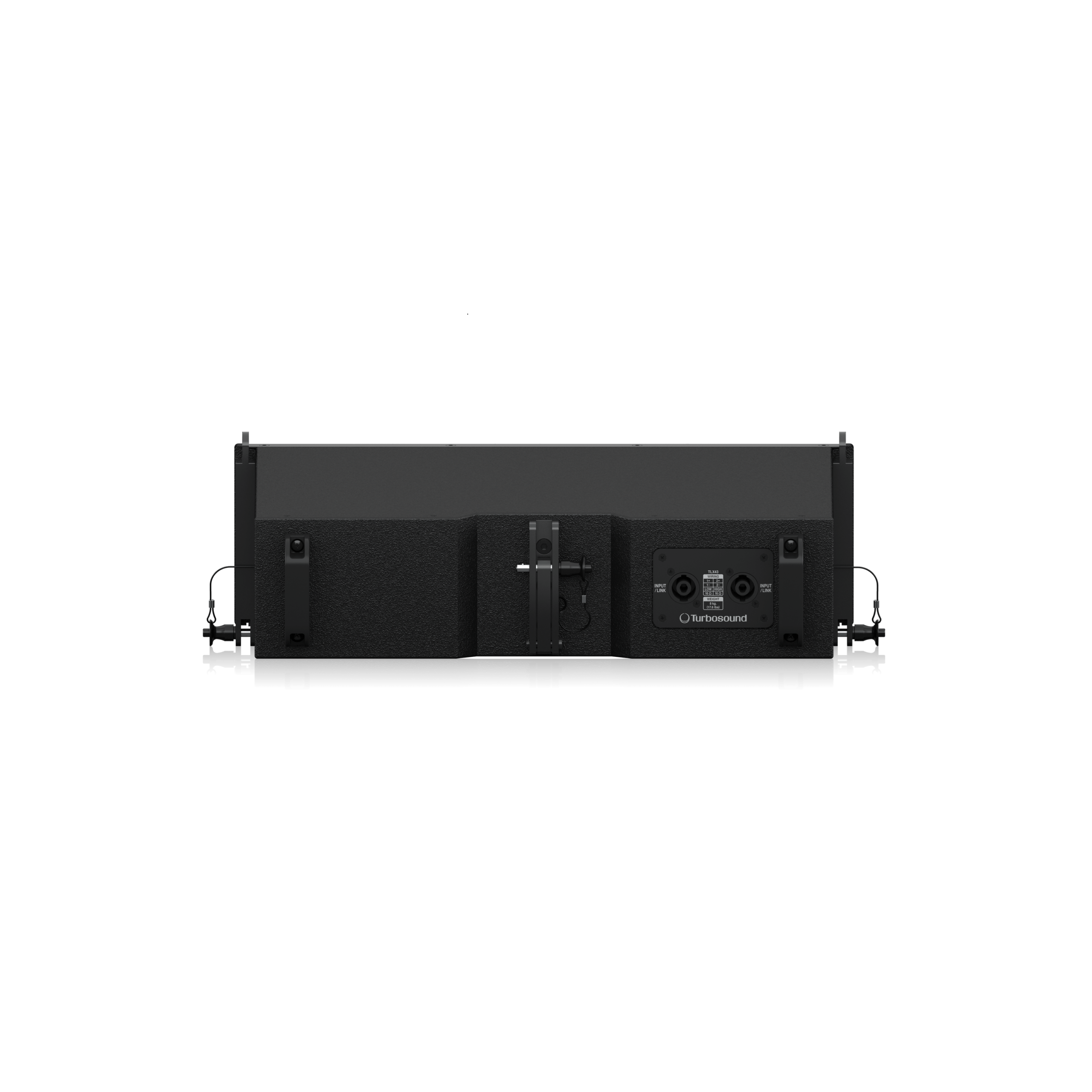

| Connectors | 2 x Industry-standard 4-pole twist-lock speaker connectors |
| Wiring | Pins 1+ / 1- LF, pins 2+ / 2- HF |
| Dimensions H x W x D | 163 x 512 x 290 mm (6.4 x 20.2 x 11.4″) |
| Net Weight | 8.0 kg (17.6 lbs) |
| Construction | 12 mm (½”) plywood |
| Finish | Semi matt black paint |
| Grille | Powder coated perforated steel |
| Suspension Hardware | Integral variable curvature |
Accessories
| TLX43-FLB fly bar TLX43-RC4 road case |
