Specifications
| SOURCE | |
| Light Source | 100W COB (Chip On Board) UV LED engine (Advanced COB Technology) |
| LED Life Rating | Long Life LEDs (Rated at approximately 25,000 hrs.) |
| Wavelength | 395 – 405nm |
| Beam Angle | 56-degrees |
| EFFECTS | |
| Dimming & Strobe | Electronic Dimming: 0 – 100% LED pulse and strobe effect |
| Dim Curves | 5 selectable Dim Curves (Standard, Stage, TV, Architectural, Theatre) |
| Refresh Rate & Camera | Refresh Rate: 1KHz Flicker Free operation (No flickering on camera) |
| Performance Features | Super high output UV light cannon; produces powerful, smooth UV color. Great for performance stages, theatrical productions and special effects productions. |
| CONTROL | |
| Operational Modes | 3 Operation modes: Sound Active, Manual, DMX |
| DMX Channel Modes | 3 DMX Channel modes: 1, 2 or 3 channel |

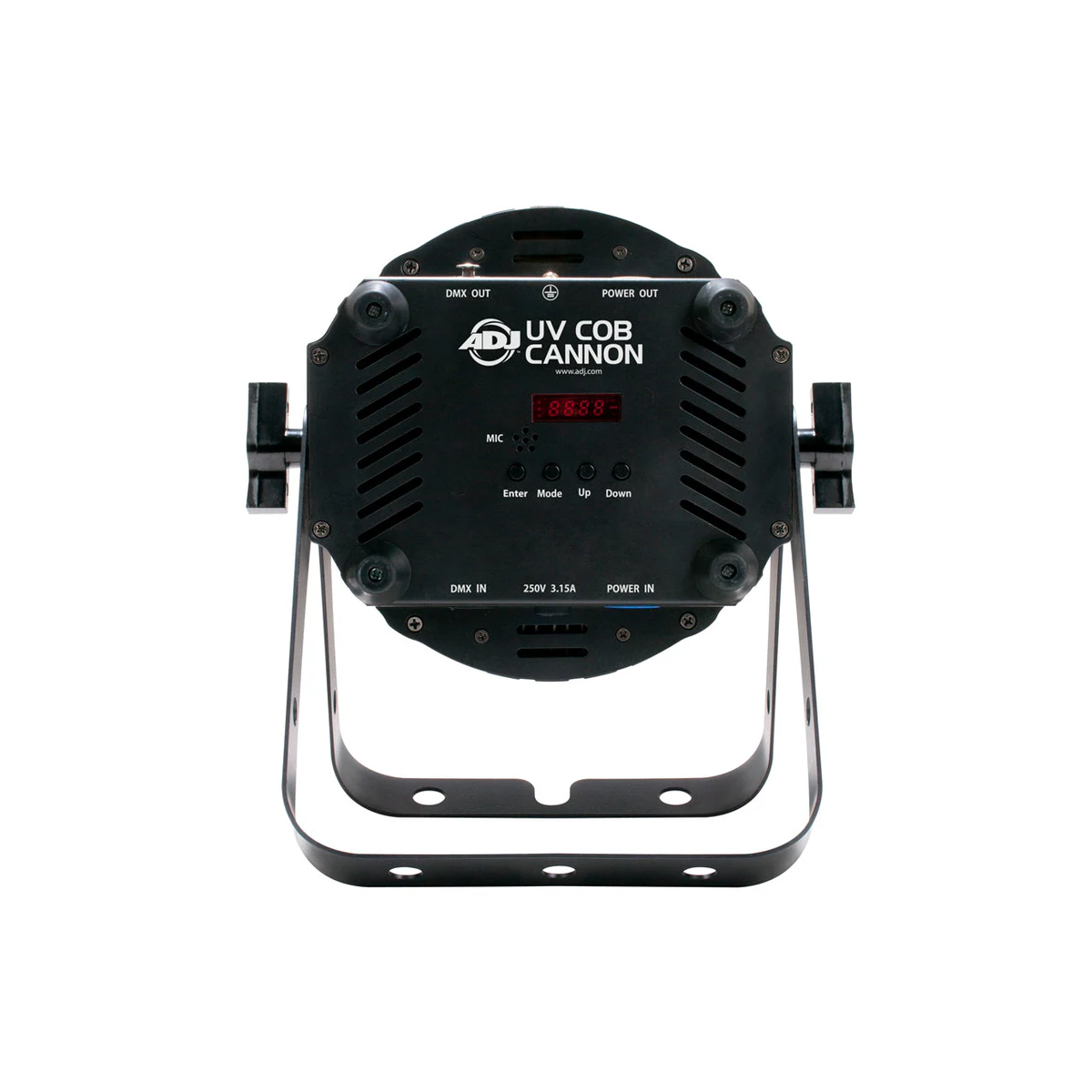

| Display menu | 4-button digital DMX display |
| CONNECTIONS | |
| DMX Linkable | 3-pin XLR data connectors |
| Power Linkable | Locking Power Connection (Up to 3 UV COB Cannon’s @ 120V, 5 UV COB Cannon’s @ 220V fixtures) |
| Network | With Wired Digital Communication Network |
| ELECTRICAL | |
| Input Voltage | Multi-voltage Operation: Auto switching, AC 100V – 240V / 50Hz – 60Hz |
| Power Draw | 120W total (All LED’s @ Full) |
| Maintenance | Requires almost no maintenance – low heat, low power consumption |
| PHYSICAL | |
| Dimensions | 12.75” x 11” x 8” / 320 x 278 x 200 mm |
| Weight | 11 lbs. / 4.98 kgs |
| Mounting / Housing | Dual yoke allows fixture to be hung or set on the ground |
| RATING / APPROVALS | |
| Certifications | ETL Approved |
