| Technical Specifications | |
|---|---|
| Overview | |

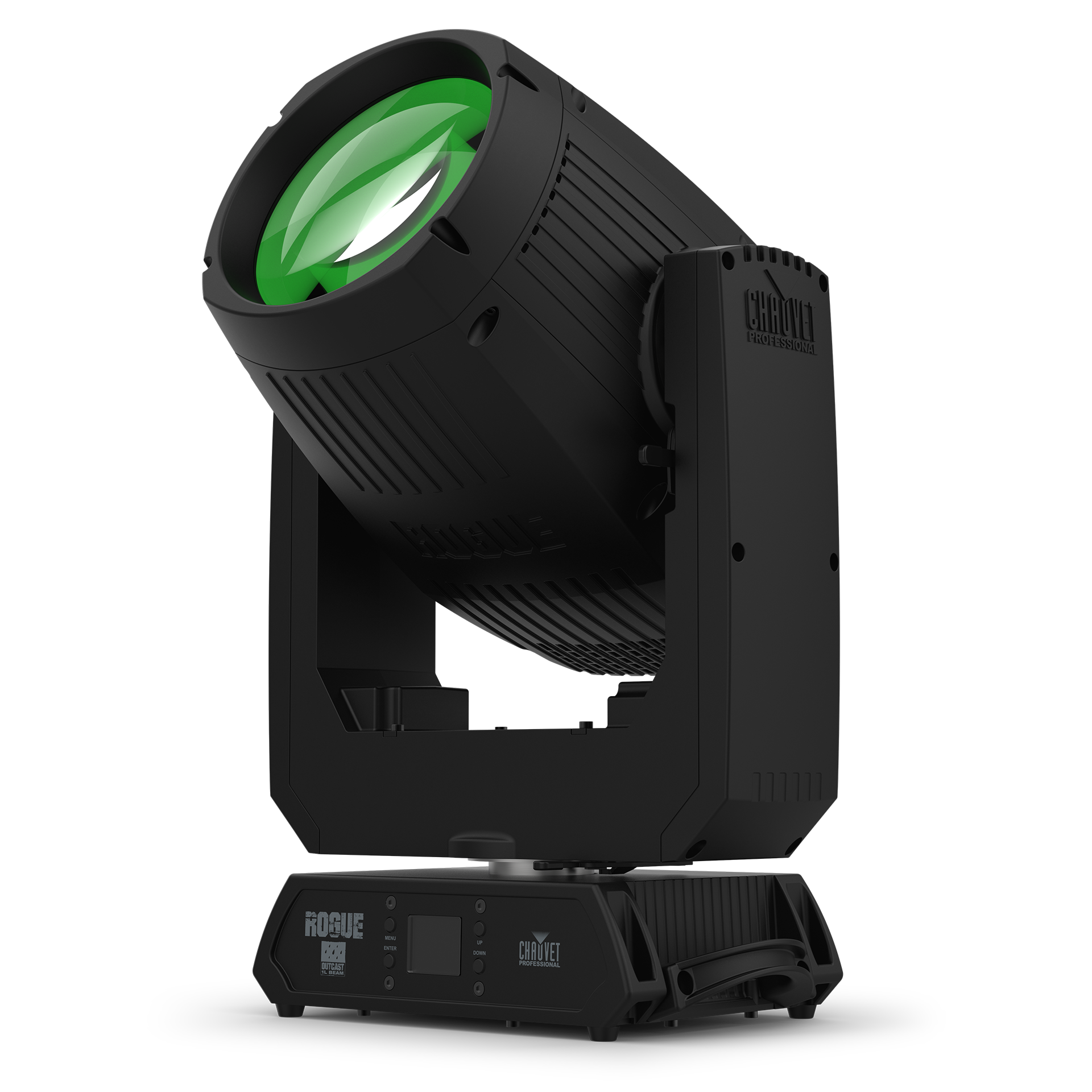

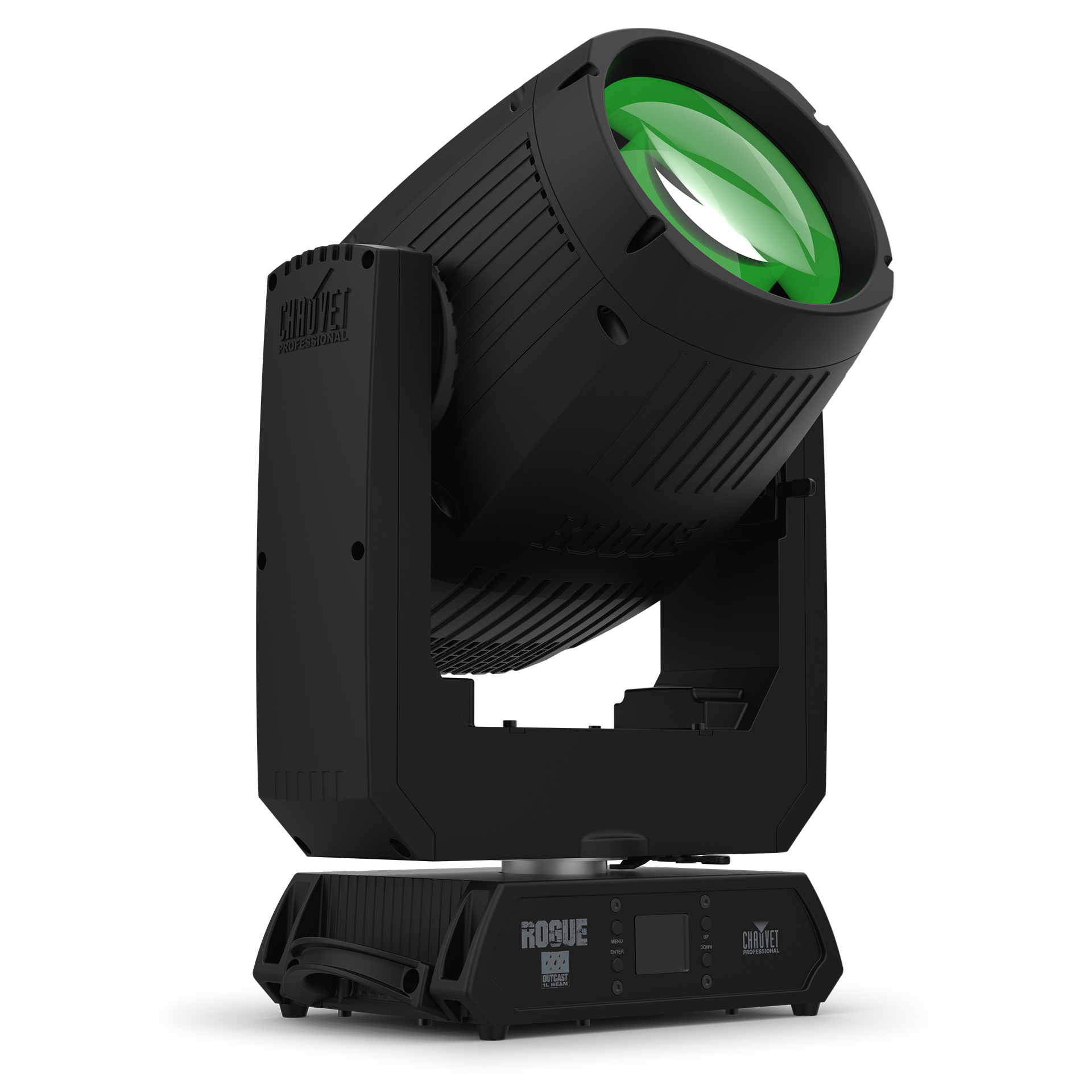

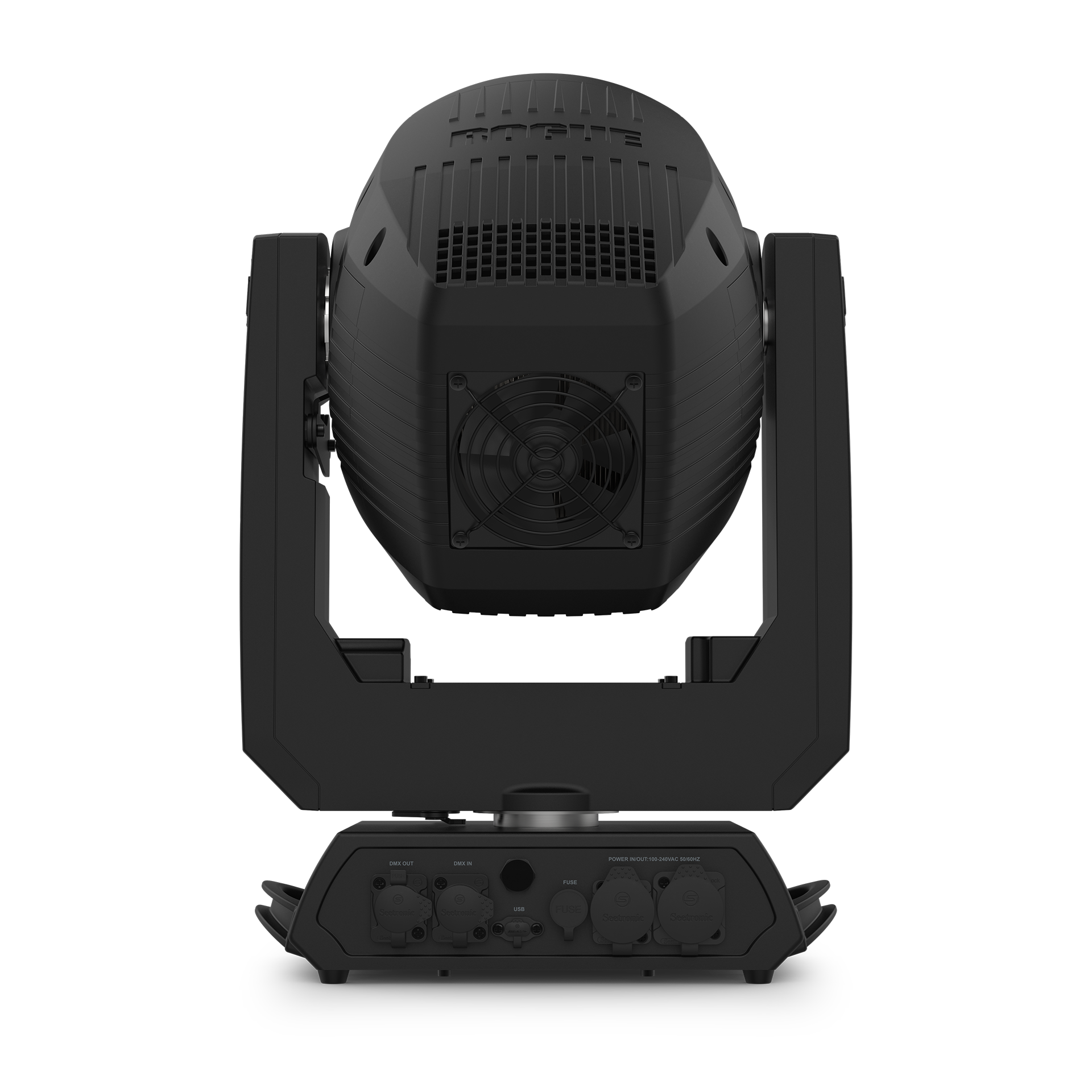

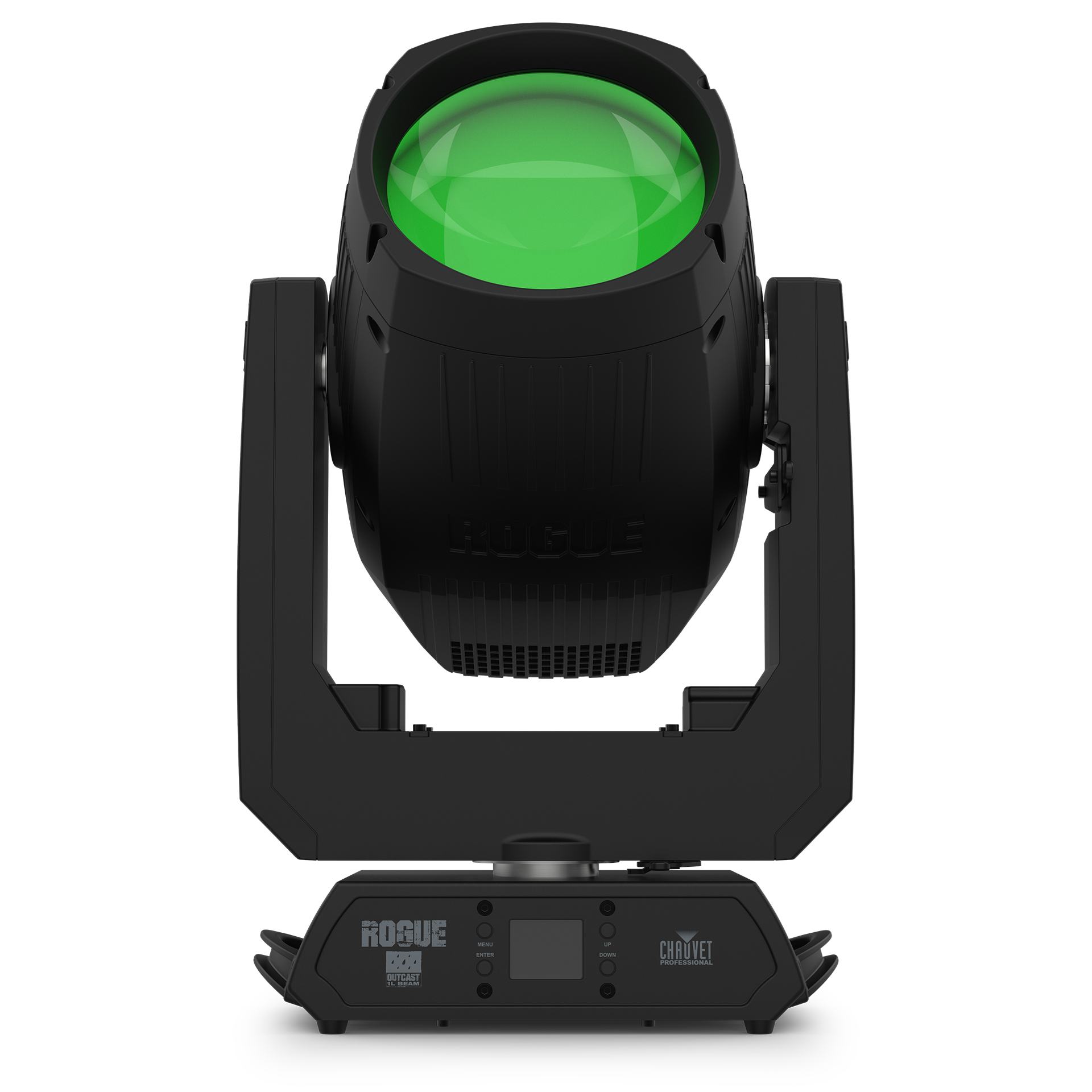

| Fixture Type | Professional IP65 LED Moving Head Fixture |
| Optical & Light Source | |
| Light Source | 1 LED (cool white) 140 W, (4 A), 50,000 hours life expectancy |
| Color Temperature & CRI | Color Temperature (at full): 6,928 K CRI: 69.3 |
| Optics & Angles | Front Lens Diameter: 160 mm Beam Angle: 1.4° | Field Angle: 1.7° | Cutoff Angle: 1.8° |
| Photometrics & Output | Lumens: 5,500 (Source) / 3,218 (Output) Illuminance (Total): 224,670 lux @ 5 m |
| Dynamic Effects & Movement | |
| Pan & Tilt Ranges | Pan: 540° (Ranges: 540°, 360°, 180°) Tilt: 270° (Ranges: 270°, 180°, 90°) |
| Colors | 14 + white, split colors, continuous scroll at variable speeds |
| Gobos | Gobo Wheel: 14 + open (14 metal), 7 rotating, 7 static, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds Gobo Size (Rotating): Positions 2, 4, 6, 8, 10, 12, 14 (metal); size: 9.8 mm outside, 5 mm image, 0.6 mm max. thickness |
| Prisms & Optics Effects | Linear Prism: 5-facet, motorized, linear, rotating Round Prism: 8-facet, motorized, round, rotating Focus & Frost: Motorized Focus | Motorized Frost |
| Dimmer, Strobe & Functions | Dimmer: Electronic Shutter/Strobe: Motorized Move-in-Black: Yes |
| Control & Connectivity | |
| Control Protocols & Channels | Protocols: DMX, RDM DMX Channels: 17 or 19 (2 Personalities) |
| Connections & Wiring | Power Input: Seetronic Powerkon IP65 (Bare ended to Seetronic Powerkon IP65) Data Connectors: 5-pin IP rated Power Cable Length: 5 ft (1.5 m) |
| Electrical & Power | |
| Input Voltage & Power | Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) Power and Current: • 233 W, 2.08 A @ 120 V, 60 Hz • 226 W, 1.15 A @ 208 V, 60 Hz • 223 W, 1.04 A @ 230 V, 50 Hz |
| Physical, Environmental & Construction | |
| Dimensions & Weight | Size: 12.56 x 8.58 x 19.88 in (319 x 218 x 505 mm) Weight: 35.4 lb (16.1 kg) |
| Housing & Finish | Housing Material: Aluminum/Magnesium diecast Exterior Color: Black |
| Environmental Ratings & Temperature | IP Rating: IP65 (temporary outdoor / wet, with pressure equalizing M12 GORE valve) Ambient Temperature: -14 °F to 113 °F (-10 °C to 45 °C) Max Exterior Surface Temperature (Tc): 80° C / 176° F Max Ambient Temperature (Ta): 45° C / 113° F |
| Approvals | CE, MET, UKCA |
