| Technical Specifications | |
|---|---|
| Overview | |

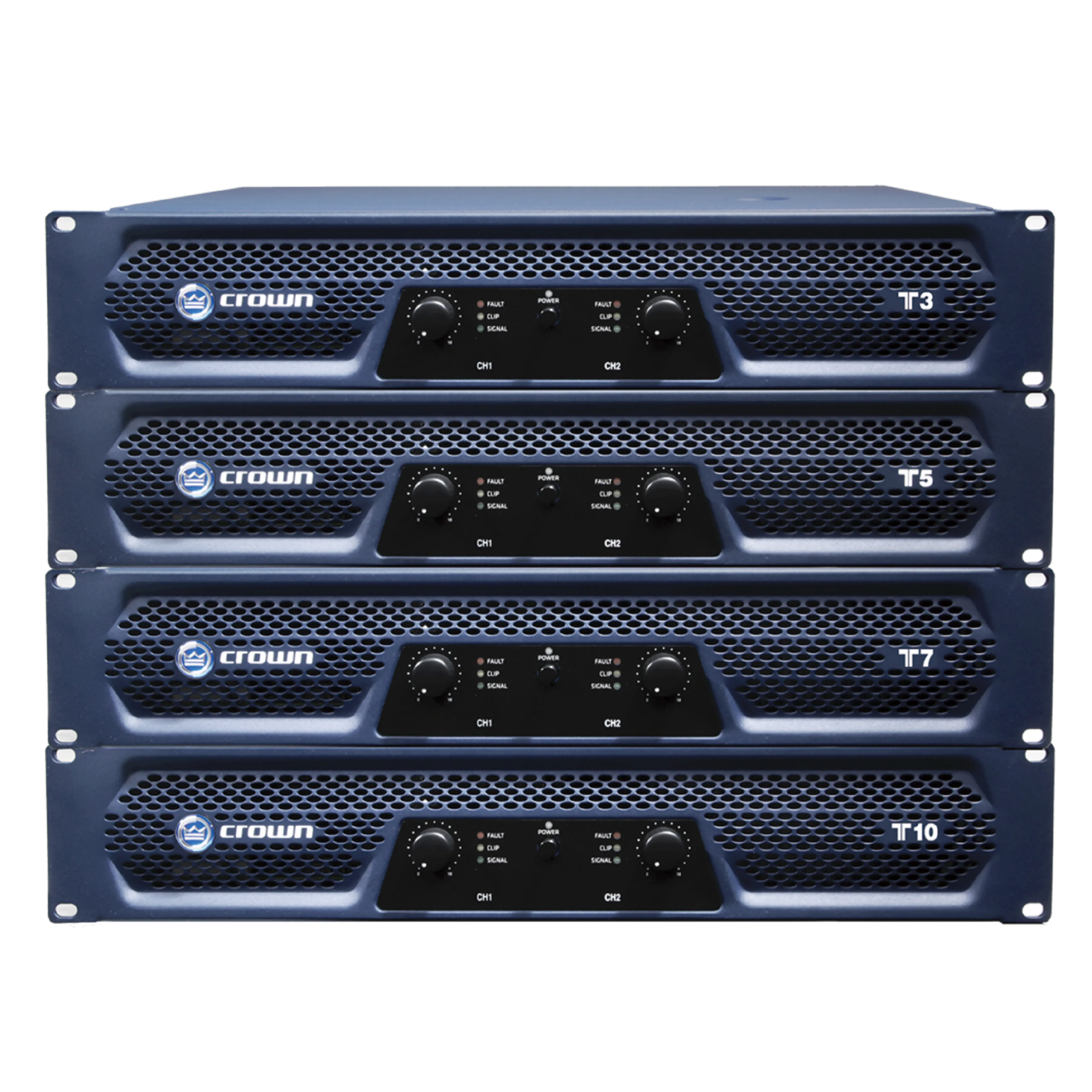

| Model / Series | Professional Audio Power Amplifier Series (T3 / T5 / T7 / T10) |
| Minimum Guaranteed Power (1kHz EIA, 0.5% THD) | |
| 4 ohms Stereo (per channel) | T3: 450W | T5: 750W | T7: 950W | T10: 1,350W |
| 8 ohms Stereo (per channel) | T3: 330W | T5: 500W | T7: 675W | T10: 1,000W |
| 8 ohms Bridge | T3: 900W | T5: 1,500W | T7: 2,000W | T10: 2,700W |
| Audio Performance & Distortion | |
| Frequency Response | 20 Hz – 20 kHz, +0 / -1 dB |
| Distortion (THD & IMD) | THD: < 0.5% (20 Hz – 20 kHz) Intermodulation Distortion: ≤ 0.35% |
| Gain & Slew Rate | Voltage Gain: 31 dB Conversion Rate (Slew Rate): > 10 V/μs |
| Damping Factor & SNR | Damping Factor: > 200 (8Ω, 10 Hz – 400 Hz) Signal-to-Noise Ratio: > 100 dB (below rated power, 20 Hz – 20 kHz, A-weighted) |
| Crosstalk | -75 dB @ 1 kHz, -59 dB @ 20 kHz (referred to rated output power) |
| Inputs, Outputs & Controls | |
| Input Sensitivity & Impedance | Sensitivity: 0.775V or 1.4V (rated output power into 8Ω) Impedance: 20 kΩ balanced, 10 kΩ unbalanced |
| Connectors | Inputs: Balanced XLR or unbalanced RCA per channel Outputs: 4-pin Speakon® and binding post pair per channel |

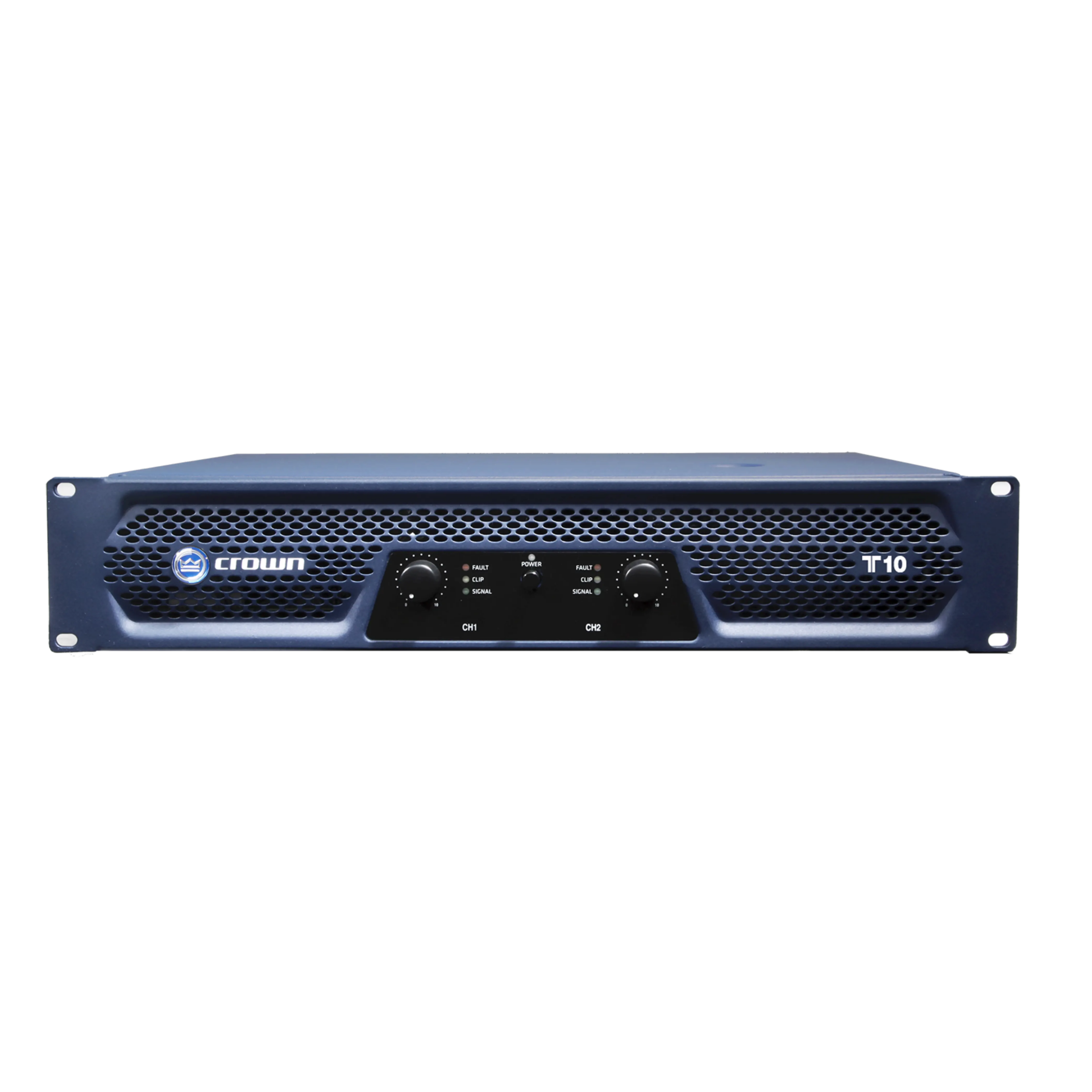

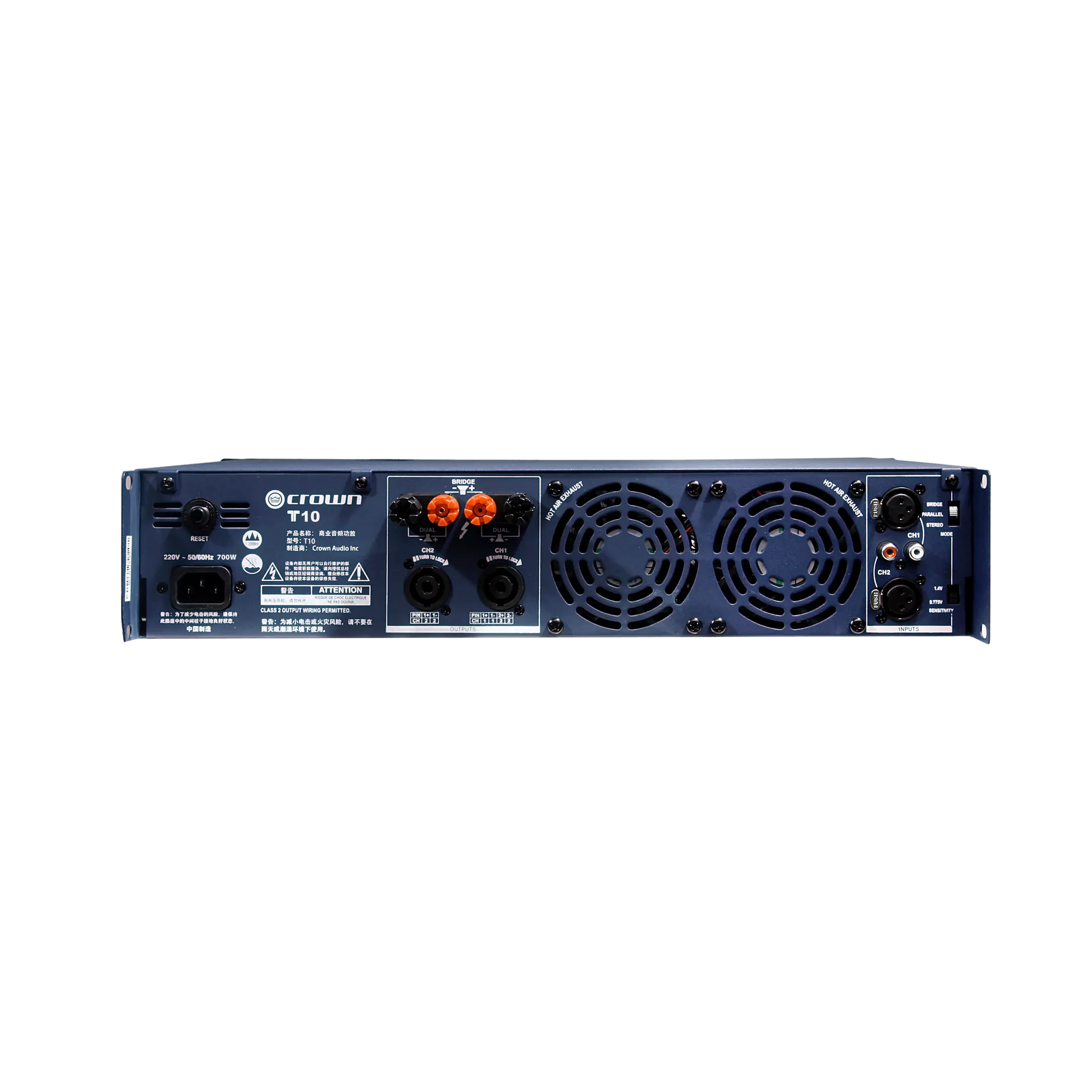

| Front & Rear Controls | Front Panel: Power switch, channel gain control knobs Rear Panel: Output mode switch (Stereo, Parallel, Bridge); Input sensitivity switch (0.775V / 1.4V) |
| Indicators | Power: Blue LED Signal: Green LED per channel Clip: Yellow LED per channel Fault: Red LED per channel (indicates channel shutdown) |
| Electrical, Cooling & Physical | |
| Power & Protection | Power Plug / Cord: 10A, 250V; CCC 3 x 1.5 mm² Protections: Short circuit, open circuit, turn-on/off muting, RF interference protection |
| Cooling & Dimensions | |
| Cooling & Ventilation | Front-to-back airflow mechanism; internal forced-air heat dissipation, fan-cooled with rapid regulation and thermal protection |
| Dimensions & Weight | Dimensions (W x H x D): 19” x 3.46” x 12.45” (482 mm x 88 mm x 316.4 mm) Net Weight: 28.0 lb (12.7 kg) | Shipping Weight: 32.4 lb (14.7 kg) |
