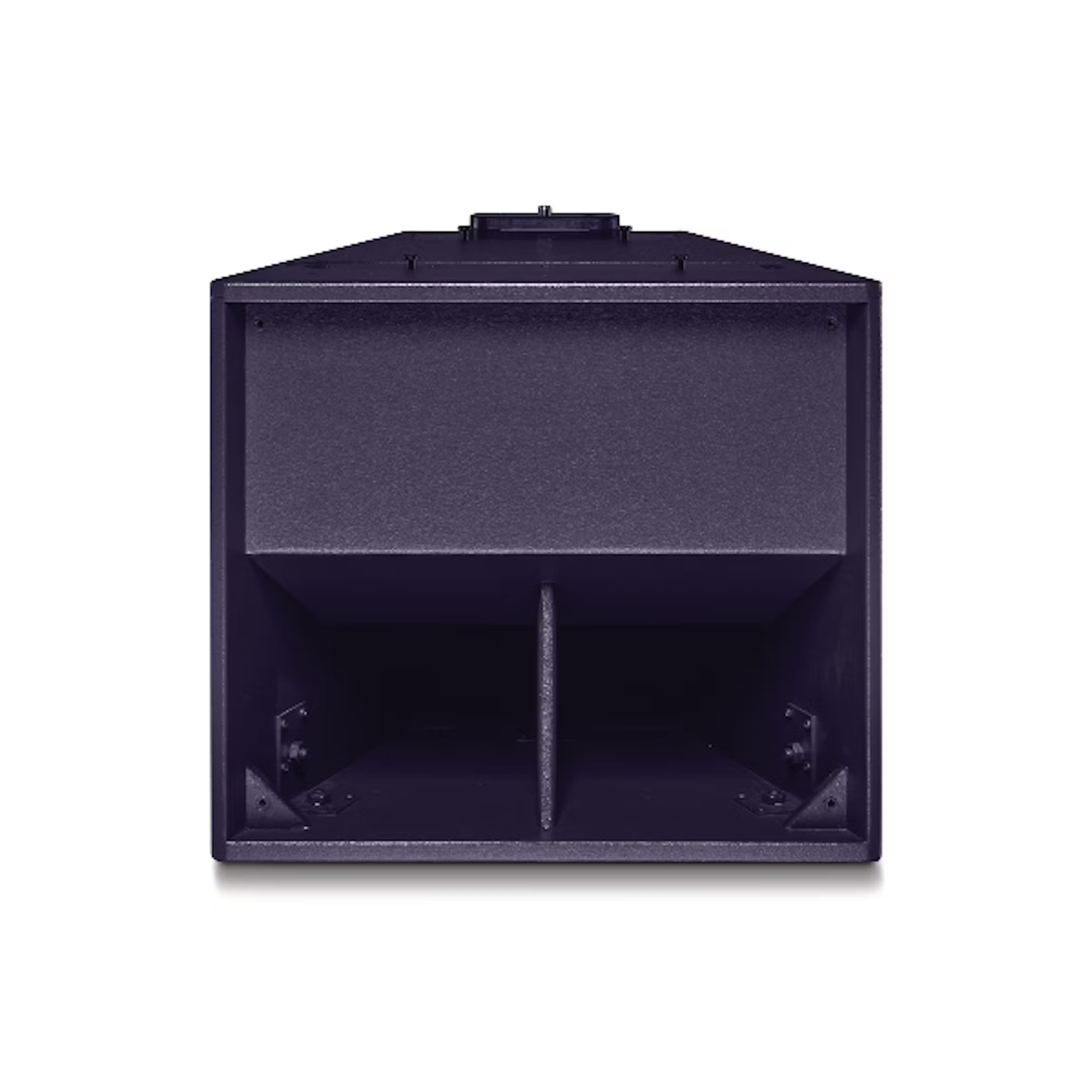

Evo 2L is the mid-bass addition for the Evo 2, increasing headroom and enabling the full output capacity of the mid-high elements.
An intuitive coupling mechanism enables quick and safe attachment of an Evo 2L to the top or bottom of an Evo 2. Once connected, the assembly can be lifted by the Evo 2’s Butterfly Plate (BFP-2) as
normal.

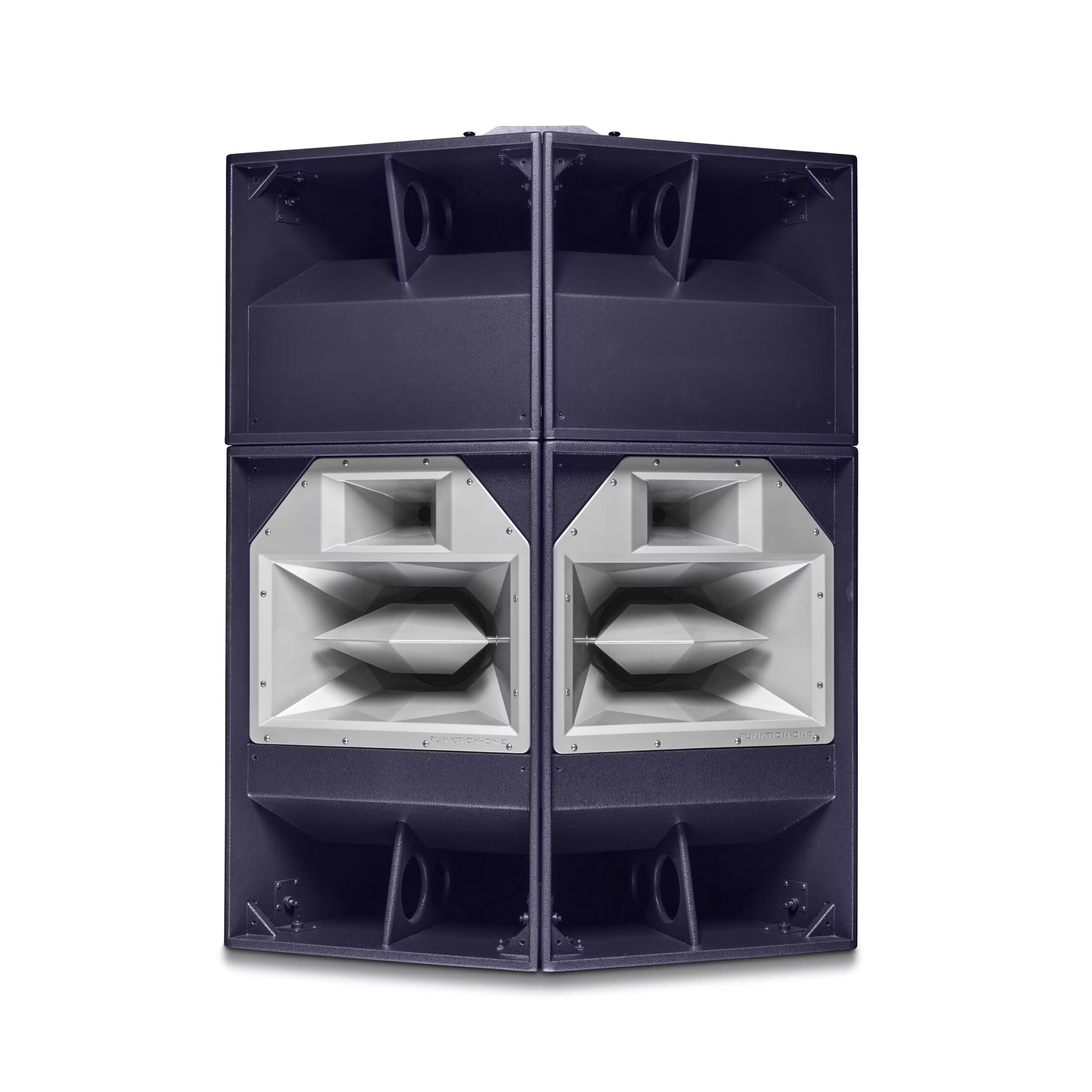

Pairs of Evo 2 and Evo 2L can be flown together to form an extremely powerful system which is suitable for medium sized live music venues and clubs. A foam backed grille can be added for a more discreet appearance.
Increases the usable headroom of an Evo 2
• Safe and intuitive coupling mechanism
• Foam backed grille available for discreet appearance
• BFP-2 compatibility
• Install version available (does not include coupling mechanism)
• 15mm Baltic birch ply construction
Frequency Response: 85Hz – 280Hz
Low Frequency Response (-10dB): 60Hz
Weight: 21kg (46.3lbs)
Nominal Dispersion: Array Dependant
Connectors: 2 x Neutrik NLT4M or NLT8M
Driver : 12” (LF)
Crossover : 85Hz – 280Hz
Frequencies Sensitivity (at 1m)* : 100dB at 2.8V
Power (AES) : 600W
Nominal Impedance : 8Ω
