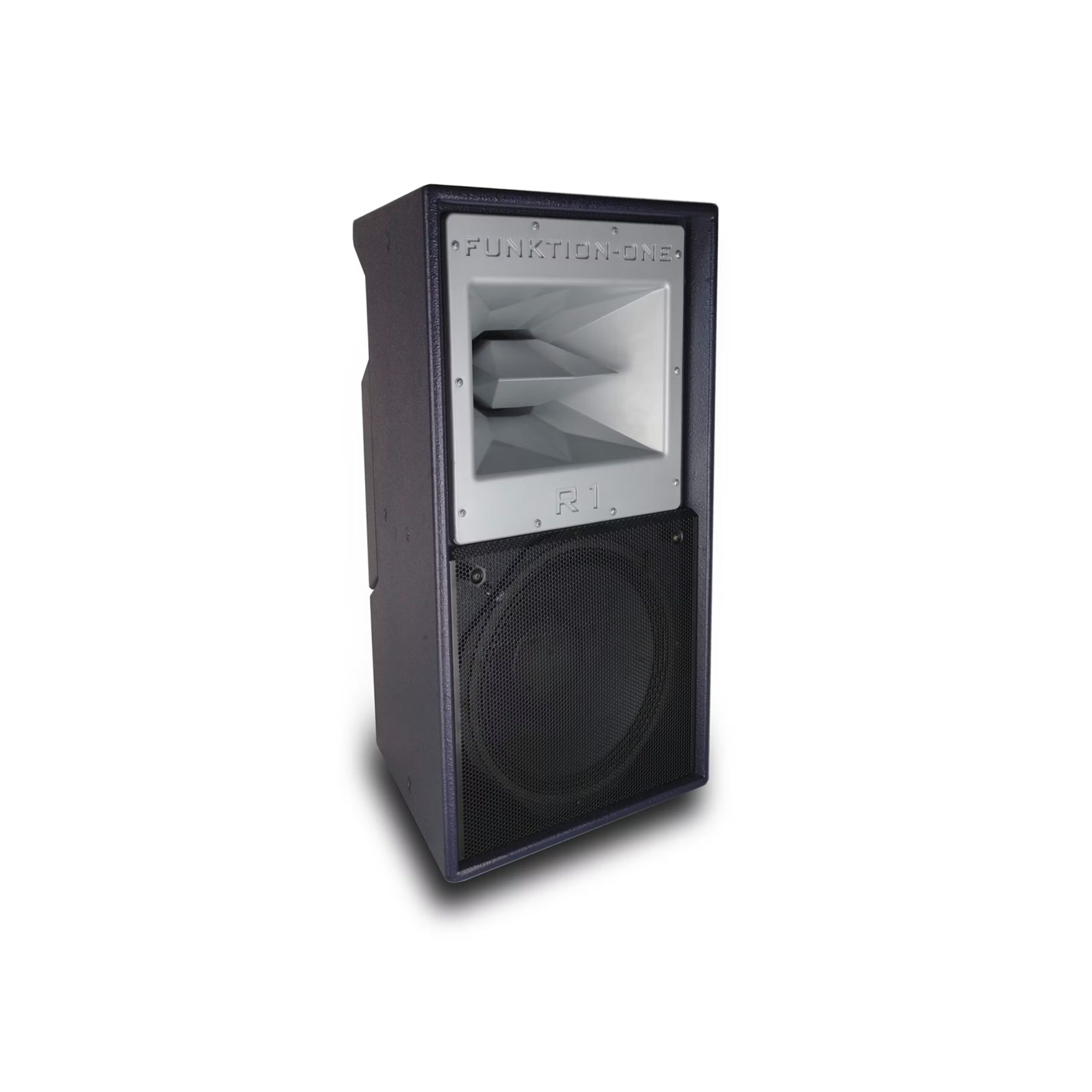

Funktion One Resolution 1

The Resolution 1 is a radical, 2-way loudspeaker enclosure, resulting from Tony Andrews’ 40 years pioneering research and development of high efficiency cone mid-range.  A unique Funktion-One 5” loudspeaker eliminates the need for compression drivers with their associated harshness and distortion. This device, when used in conjunction with the dedicated Axhead-loaded waveguide, smoothly reproduces both mid-range and high frequencies with exceptional coherency and detail.  Further, this 5″ device seamlessly connects with the 12″ ported low frequency driver at 520Hz.  This is in contrast to conventional 2-way systems where compromised compression drivers are stretched to (almost) meet equally stretched and indistinct 12″ or 15″ low frequency drivers at between 1 and 2kHz.  The accuracy, projection and        imaging detail of the R1 make it ideally suited to high intelligibility applications including theatrical use.

The enclosure shape has a rear recess that can be fitted with the optional PX1 passive crossover module. The waveguide can be rotated for use in either vertical or horizontal formats.
