SPECIFICATIONS
| ProFX10 GO Technical Specifications | |
|---|---|
| Noise Characteristics | |
| Equivalent Input Noise (EIN) (150 Ω Source Impedance, 20 Hz to 20 kHz) | Mic in to Insert Send out, max gain: -126 dBu |
| Residual Output Noise | All outputs, master levels off, all channel levels off: -95 dBu All outputs, master levels unity, one channel level unity: -80 dBu |
| Frequency Response | |
| Mic input to any output (gain at unity, +0 dB / -1 dB) | 20 Hz to 30 kHz |
| Distortion (THD+N) | |
| (22 Hz to 80 kHz bandwidth) | Mic in to Main Out (+4 dBu output): <0.02% |
| Attenuation and Crosstalk | |
| Adjacent Inputs @1 kHz | -90 dB |
| Inputs to Outputs @1 kHz | -80 dB |
| Fader Off @1 kHz | -75 dB |
| Mute Switch @1 kHz | -90 dB |
| Common Mode Rejection Ratio (CMRR) | |
| Mic in to Main out, max gain, 1 kHz | 70 dB |
| Maximum Levels | |
| All inputs | +22 dBu |
| Main Mix XLR | +28 dBu |
| All other outputs | +22 dBu |
| Impedances | |
| Mic in | 3.3 kΩ |
| Channel Insert Return | 10 kΩ |
| All other inputs | ≥20 kΩ |
| Phones out | 25 Ω |
| All other outputs | 120 Ω Unbalanced, 240 Ω Balanced |
| Equalization | |
| Low | ±15 dB @ 80 Hz |
| Mid | ±15 dB @ 2.5 kHz |
| High | ±15 dB @ 12 kHz |
| Low Cut Filter | 18 dB/octave @ 100 Hz |
| Maximum Voltage Gain (EQ Flat) | |
| Mic Input Channel to… | Insert Output: 60 dB 1/4″ Main Output: 80 dB XLR Main Output: 86 dB |
| Mono Line Input Channel to… | Insert Output: 40 dB 1/4″ Main Output: 60 dB XLR Main Output: 66 dB |
| Stereo Line Input Channel to… | 1/4″ Main Output: 20 dB XLR Main Output: 26 dB |
| 1/8″ Input to… | 1/4″ Main Output: 40 dB XLR Main Output: 46 dB |
| USB Input to… | XLR Main Output: 46 dB |
| Digital Effects | |
| Number of Presets | 12 |
| Meters | |
| Main L/R Mix | Two columns of 12 segments each: OL, +15, +10, +6, +3, 0 (0 dBu), -2, -4, -7, -10, -20, -30 |
| USB | |
| Format | USB 2.0 |
| I/O | 1 Stereo Input, 2 Stereo Outputs |
| A/D/A | 24-bit, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz |
| Phantom Power | |
| Voltage | 48 VDC to all Mic channels simultaneously |
| Power Requirements | |
| Power Connector | 12V ⎓ 2A Class I Hard-Wired Wall Mount Adapter [Output] 100VAC–240VAC, 50–60 Hz, 0.8A [Input] |
| Battery Type | Lithium Ion |
| Battery Technology | 11.1V, 5200mAh 57.72Wh, 24V |
| Battery Life | Up to 8 hours |
| Operating Temperature | 0–40° C // 32–104° F |
| Options | |
| ProFX10 GO Carry Bag | P/N 2057398 |

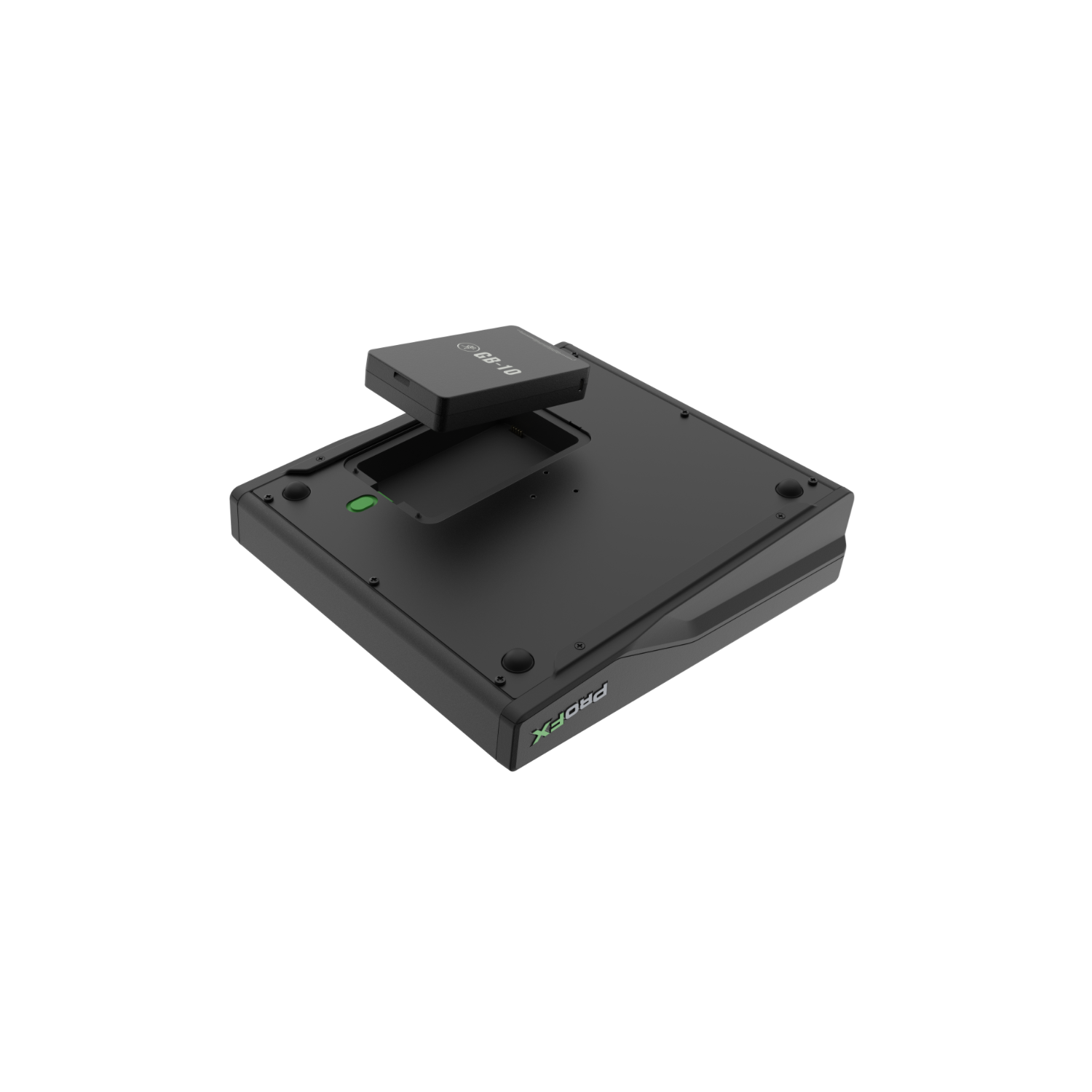

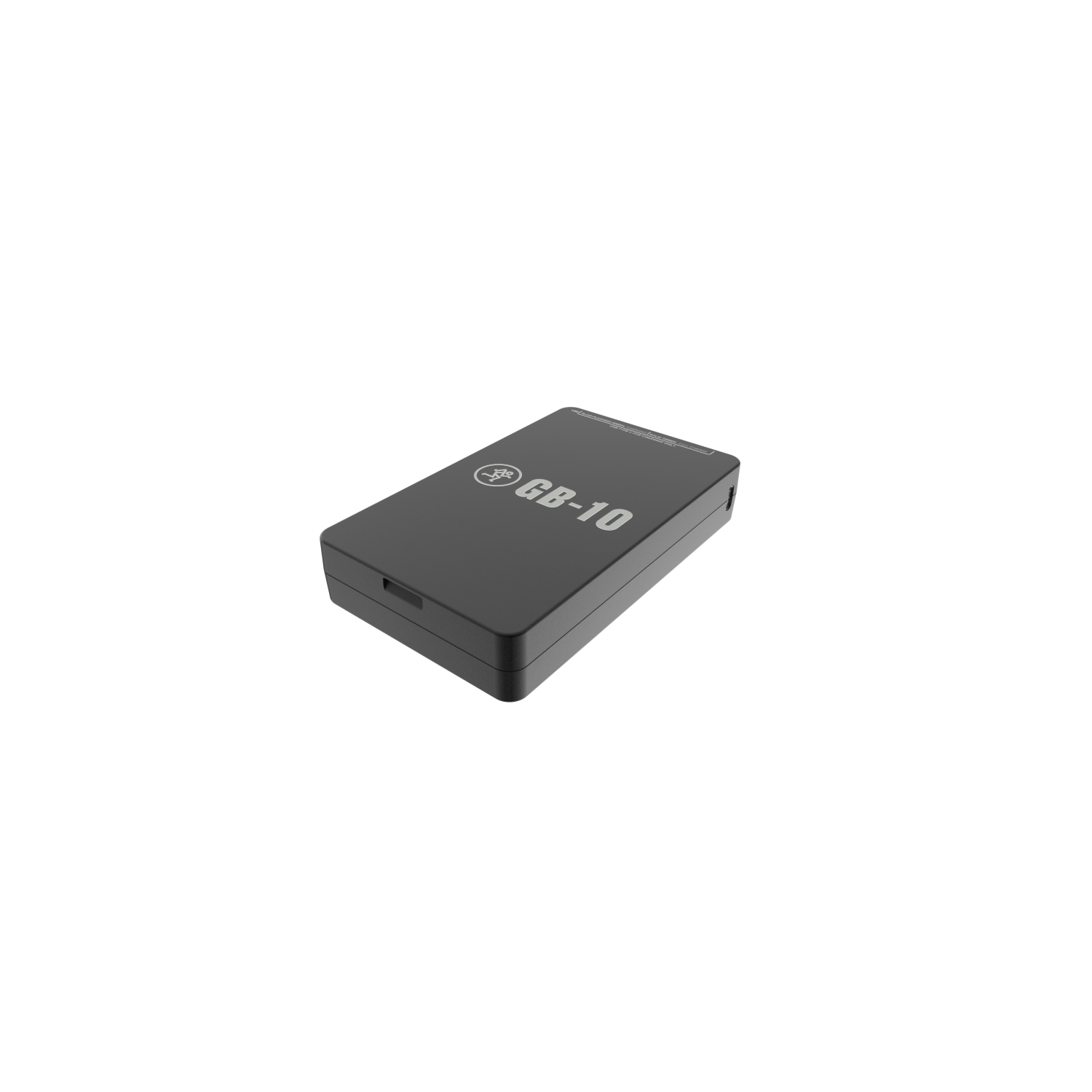

| GB-10 Battery | P/N 2058458 |
| Physical Properties (Product) – PROFX10 GO | |
| Height | 3.8 in / 97 mm |
| Width | 10.6 in / 269 mm |
| Depth | 11.5 in / 292 mm |
| Weight | 5.9 lb / 2.7 kg |
