| Technical Specifications | |
|---|---|
| Overview | |
| Fixture Type | Class 3R Laser Moving Effect Fixture |
| Light Source & Laser | |
| Laser Class & Source | Class 3R laser product (extended source) Wavelengths: 448nm, 518nm, 638nm (Class 3R laser product 450nm, 638nm, 520nm per standard text) Colors: Smooth RGB spectrum |
| Beam Characteristics | Beam Diameter (1/e) at scanning vertex: > 14 mm Beam Divergence: > 1.5 mrad | Scan Rate: 330 Hz NPHA: 240 mm | Max Output: 23.2 μJ | Typical Avg Power at 1m: < 1 mW |
| Central Scanning System | |
| Scanning Motor & Mirror | Motor: Extensive lifetime brushless motor Scanning Angle: 360° | Mirror Reflectivity: R > 98% | Safeguard: Certified failed-safe |
| Mirror Output (Tilt Side) | 11.5 x 5 cm PMMA mirror | 8 independent mirrors producing 8 independent light planes Aperture by Mirror: 42° linear aperture by tilt | Operating Angle: 180° Motorization: 8 step-to-step motors (16-bits non-linear resolution) Movement & Speed: Very smooth at low speed, extremely reactive; max speed from mirror to frost side in 0.25 sec |
| Frost Output (Tilt Side) | 11.5 x 5 cm frost filter | 8 independent frost filters producing 8 independent frosted outputs Aperture & Angle: Very wide aperture, 180° operating angle Motorization: 8 step-to-step motors (16-bits non-linear resolution) Movement & Speed: Very smooth/reactive; max speed from mirror to frost side in 0.25 sec Output: 4,000 lux |
| Moving Core Output | Central circular frosted reflector (5 cm high, 24 cm external dia., 10 cm internal dia.) Vertical Movement: Length of 6 cm, 16 bits resolution Speed: Up to 6 cm/sec (standard mode) / up to 15 cm/sec (fast mode) Output: 20,000 lux |
| Control & DMX | |
| DMX & Channels | Channels: 60 | Options: Standard or fast mode Update: By micro-SD card |

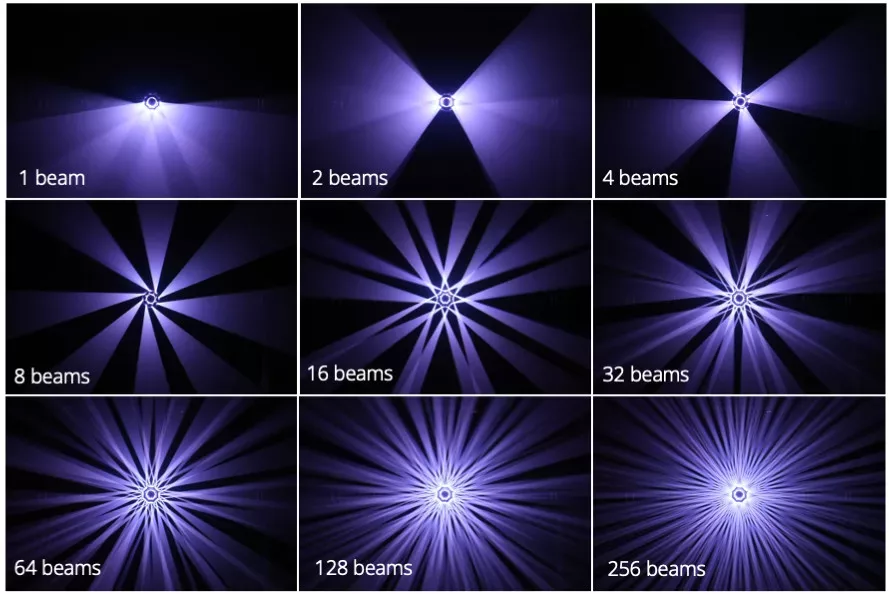

| Beam Control & Parameters | Electronic Gobos: 9 e-gobos (1 to 256 beams, intuitive gobo-like system) Control Parameters: Independent RGB control per tilt (x8), independent dimmer control per tilt (x8), zoom parameter (moving core position), strobe (frequency and duration control) Gobo Attributes: Beam width (size), beam position (indexation), beam speed & direction (rotation) |
| Electrical, Thermal & Construction | |
| Power Supply & Cooling | Input Voltage: 100 to 240 Volts – 50/60 Hz | Max Power: 200 W Cooling: Thermoelectric cooling | Safety: Over-temperature protection Nominal Laser Source Temp: 30°C |
| Physical Dimensions & Weight | Circular Housing: 481 x 481 x 327 mm³ Total Dimensions (with adjustable lyre): 649 x 556 x 327 mm³ Weight: 16 kg |
| Housing & Environment | Modular conception (independently/quickly replaceable modules), low cleaning care (optical parts isolated from haze) Protection Rating: IP20 | Menu Display: LCD color screen Ambient Temp: 0°C to 40°C (32°F to 104°F) |
| Connections | AC Power I/O: Neutrik PowerCon True1 DMX Data I/O: 5-pin locking XLR |
