Specifications
Frequency Range UHF 480 – 934 MHz (country dependent)
Bandwidth 72 MHz
Display Backlit LCD
Encryption 256-bit
Mic. Capsule Modules Work with all MIPRO’s lavalier and headworn mics
Input Connector MIPRO 4-Pin Mini XLR
AF Sensitivity Preset at 0 dB (equal to capsule sensitivity)
6 switchable levels: 18 dB, 12 dB, 6 dB, 0 dB, -6 dB, -12 dB
RF Power Output 10 mW / 50 mW switchable (country dependent)
Battery Type One 18500 Li-ion battery or two AA alkaline
Battery Charging MP-800 / MP-820 charging station or USB Type-C
Dimensions 63 × 80 × 25 mm (W × H × D)
Weight Approx. 97 g
MIPRO ACT-800T UHF Digital Bodypack Transmitter
The ACT-800T is a premium digital bodypack transmitter featuring a compact housing, backlit LCD, and flexible mute control. It provides a 4-pin mini-XLR input, six-stage gain adjustment, and AA or 18500 Li-ion battery operation with USB-C charging for lavalier, headworn, and instrument use.
- MIPRO’s premium digital bodypack transmitter is designed for use with the ACT-800 Series receivers, delivering high-performance digital wireless transmission.
- Compact and lightweight housing with a streamlined, patented design for secure and comfortable belt-worn use.
- A backlit LCD clearly displays group, channel, battery status, and AF signal strength.
- Supports advanced settings including mute mode, input sensitivity adjustment, low-cut filter, audio limiter, RF output power, input polarity, and lock.
- Offers both onboard mute switch and external mute control for flexible operation in various scenarios.
- Features a MIPRO 4-Pin Mini XLR input compatible with MIPRO’s full range of lavalier and headworn microphones, as well as instrument microphones.
- Six-stage input gain adjustment allows precise control based on vocal or instrument volume, improving audio clarity and preventing distortion.
- Incorporates MIPRO’s exclusive ACT™ function for fast and accurate frequency synchronization.

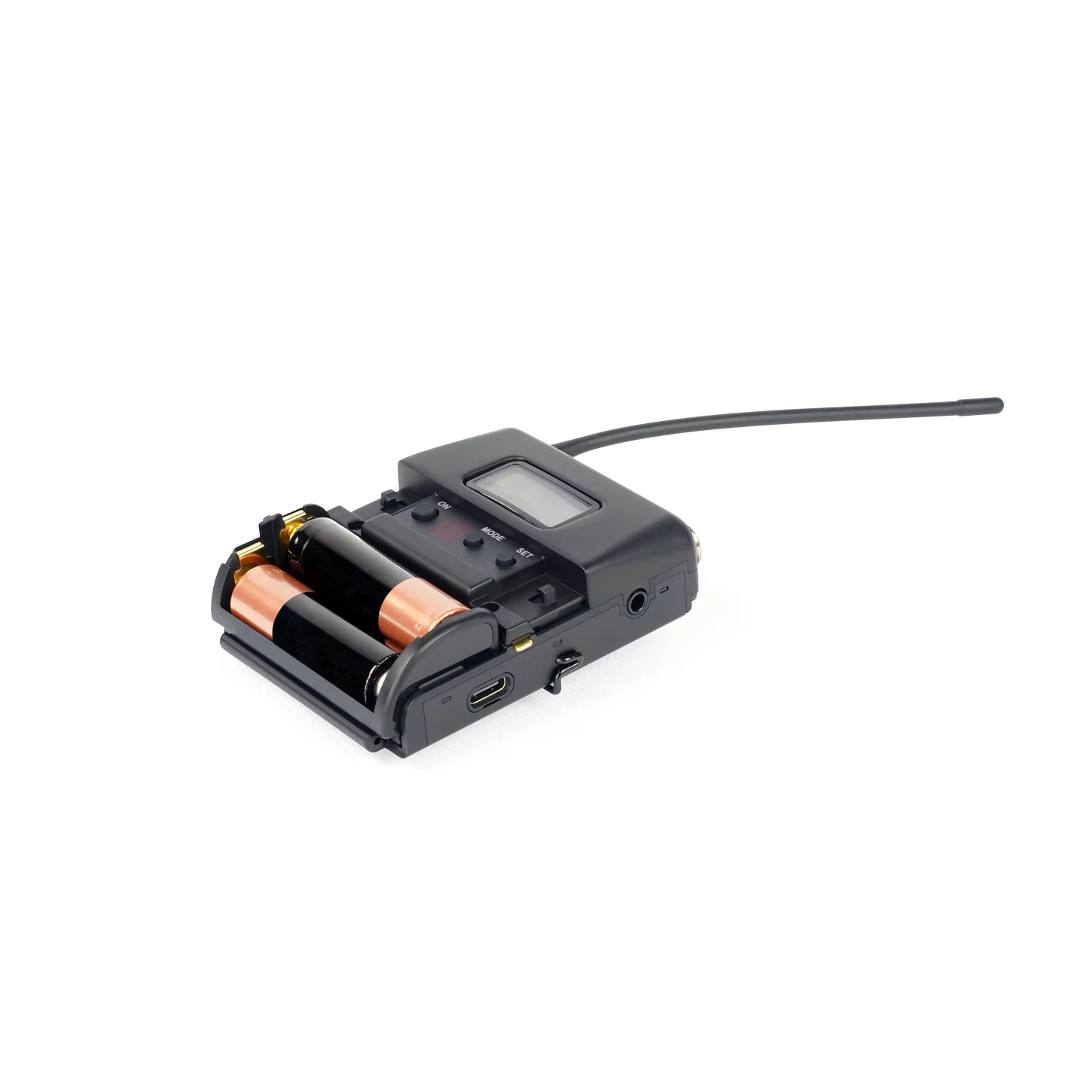

- Patented dual-purpose battery compartment allows quick switching between AA and rechargeable Li-ion batteries.

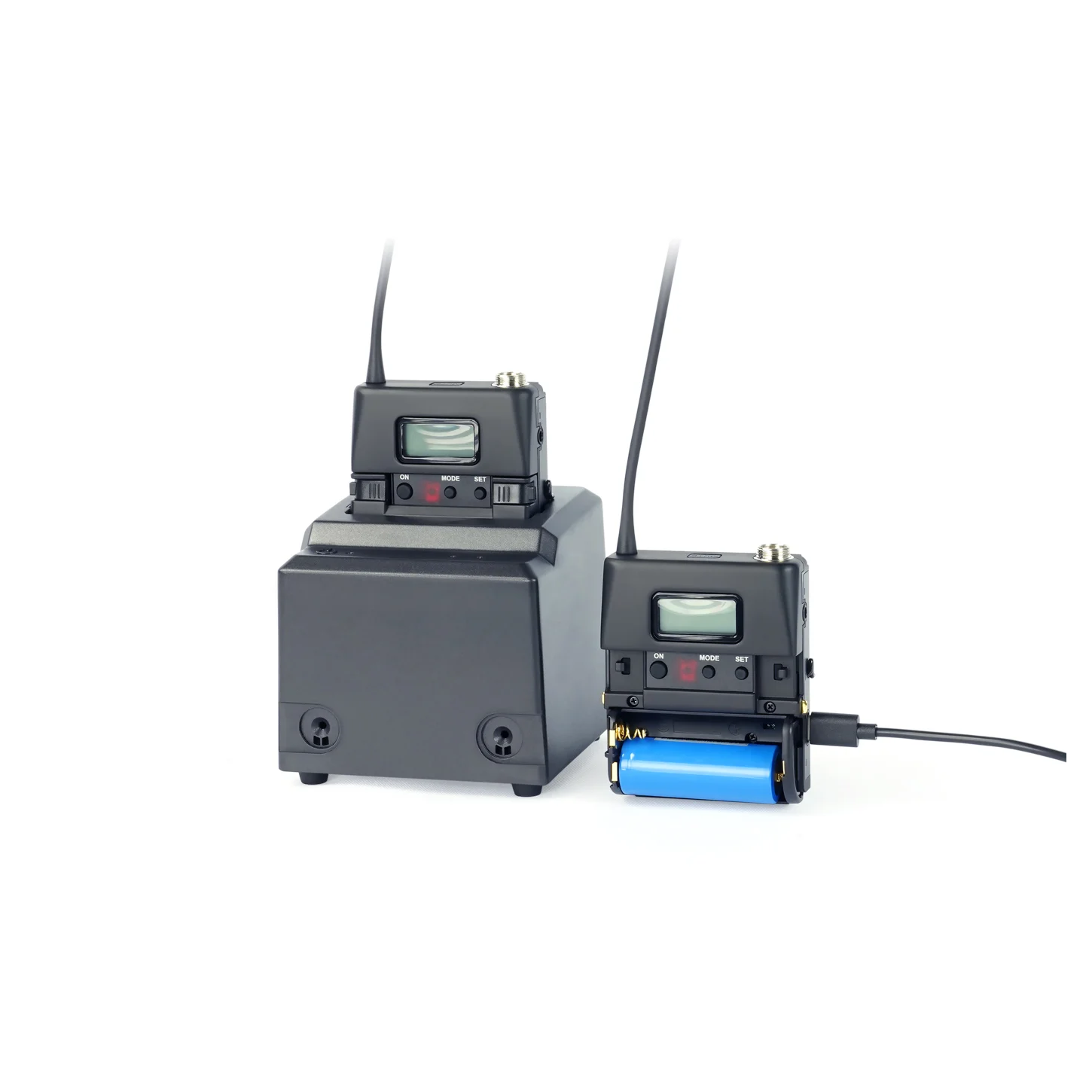

- Built-in USB Type-C charging port and charging contacts with foolproof protection circuitry support cable and drop-in charging.
- Detachable metal belt clip allows upright or inverted mounting for secure and flexible wearing.
ACT-800T 為高階數位佩戴式發射器，具輕量外殼、背光 LCD 與彈性靜音控制。提供 4-Pin Mini XLR、六段增益調整，以及 AA 或 18500 鋰電池兩用與 USB-C 充電，可搭配各式領夾、頭戴與樂器收音。
- MIPRO 頂級數位無線系列專用佩戴式發射器，搭配 ACT-800 系列數位接收機，性能完美匹配。
- 採用全新設計的輕巧機殼與流線外型，專利造型兼具美觀與實用性，方便腰掛配戴。
- 配備背光 LCD 顯示器與直覺式操作按鍵，清楚顯示頻道、電量與 AF 音訊強度指示條。
- 支援靜音模式、靈敏度調整、低頻衰減（Low cut）、音訊限制（AF limit）、發射功率、輸入極性切換與按鍵鎖定等完整功能設定。
- 提供本體按鍵與外部連線控制兩種靜音方式，操作靈活便利。
- 輸入端採 MIPRO 4-Pin Mini XLR，可搭配 MIPRO 全系列領夾或頭戴麥克風及各類樂器收音模組。
- 提供六段增益控制，可依音量大小調整輸入強度，提升收音品質。
- 採用 MIPRO 獨創的 ACT 自動對頻技術，與接收機快速精準同步頻率。
- 首創專利電池座兩用設計，可快速更換 AA 電池或鋰離子充電電池，提升使用彈性。
- 整合 USB Type-C 充電介面與充電座電極，具防呆設計與充電保護電路，支援充電線與專用充電座兩種方式。
- 金屬腰夾可調整安裝方向，確保佩戴穩定且方便操作。
