Source

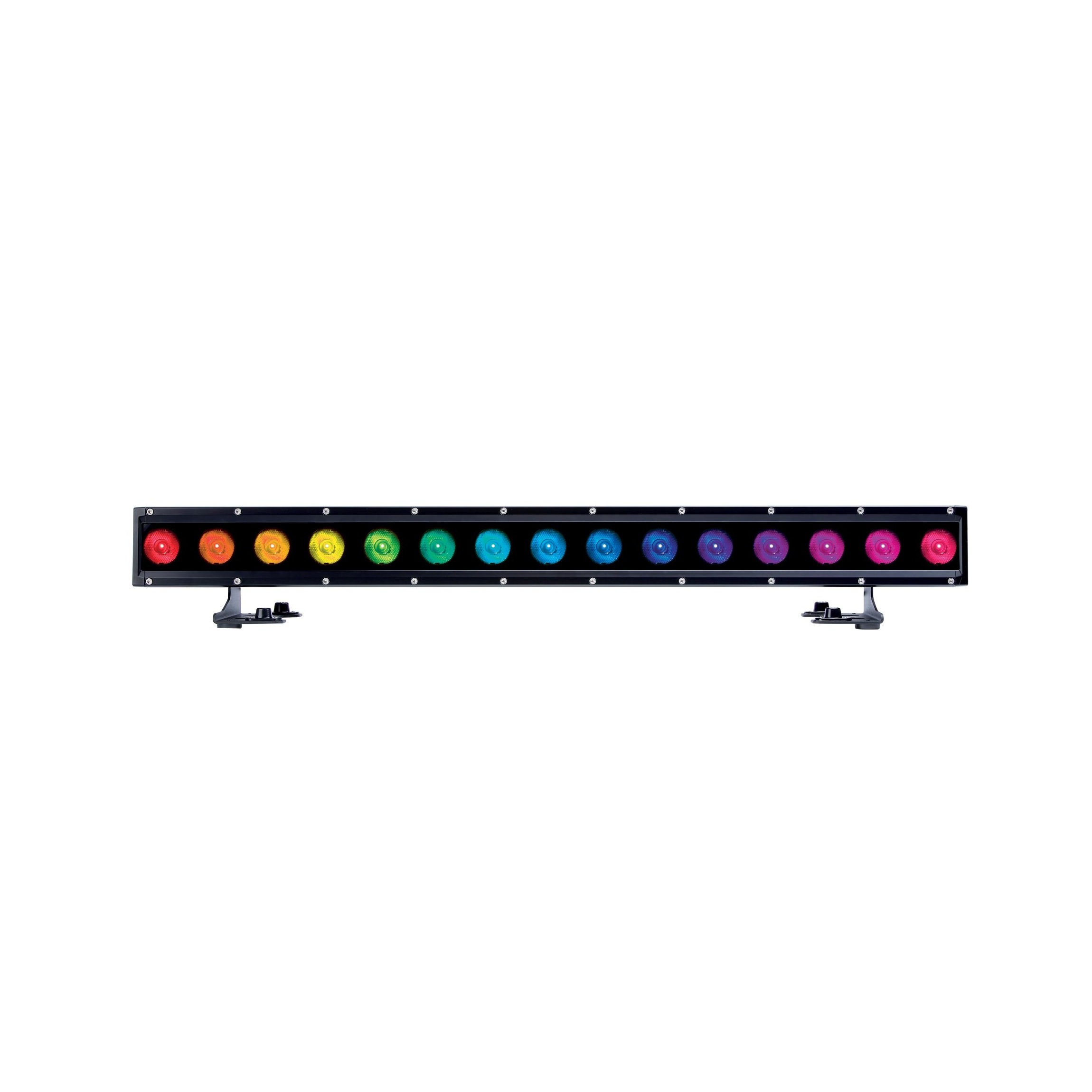

• Light source type: 15x 15W RGBW LED multichips
• LED life expectancy: min. 60 000 hours
• Typical lumen maintenance: L70/B50 @ 50.000 hours
• LED colour variants: RGBW
Optical system
• Beam angle: 7.5° (without diffuser), diffuser 35°x70° included as standard
• Optional diffusers: 32°, 50°, 10°x30°, 30°x10°, 70°x35°
• Fixture total lumen output:
6.280 lm (integrating sphere)
5.041 lm (goniophotometer)
• Illuminance: 5920 lx @ 5m
Dynamic Effects and Features
• Variable CTO: 0-100%
• Virtual Colour Wheel: With 237 colours including whites (2.700 K, 3.200 K, 4.200 K, 5.600 K and 8.000 K)
• Tungsten lamp effect at whites: 2.700 K and 3.200 K (red shift and thermal delay during dimming)
• Colour rainbow effect with variable speed
• Pre-programmed pixel effects with colour, dimming and strobe chases, waves and pulses at variable speed and direction
• Strobe effect: variable speed (max. 20 flashes per second)
• Pre-programmed random strobe & pulse effects
• High resolution electronic dimming: 0-100%
• L3™ – (Low Light Linearity) Imperceptible 18 bit dimming for ultra smooth fade to black
Control and programming
• Setting & Addressing: 4-segment LED display & 4 control buttons, stand-alone operation with 1 editable program up to 35 steps)
• Protocols: USITT DMX-512, RDM
• Wireless CRMX™ technology from Lumen Radio – on request
• DMX Protocol modes: 4 including SunStrip emulation mode (Halogen Strip)
• Control channels: 16, 11, 61, 76
• Colour mixing: RGBW or CMY
• Manual control of all effects via control panel
Electrical specification and connections
• Power supply: Electronic auto-ranging
• Input voltage range: 100-240 V, 50/60 Hz
• Power consumption: max. 170 W
• DMX and RDM data in/out: DMX outdoor cables CA-0611 (300mm) + NC5MX-HD/NC5FX-HD (5-pin connectors)
• Power in/out connector: Neutrik powerCON TRUE1 in/out
