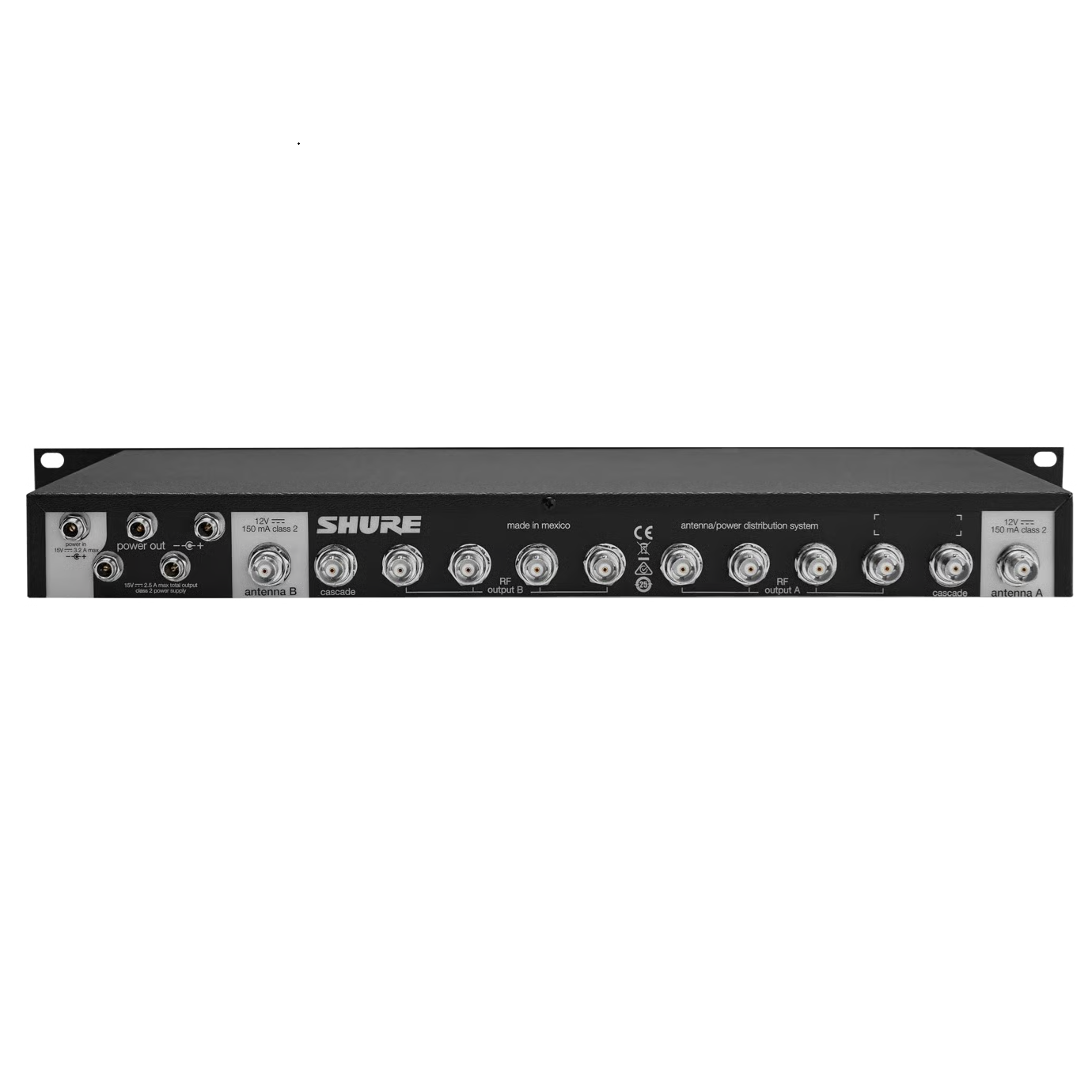

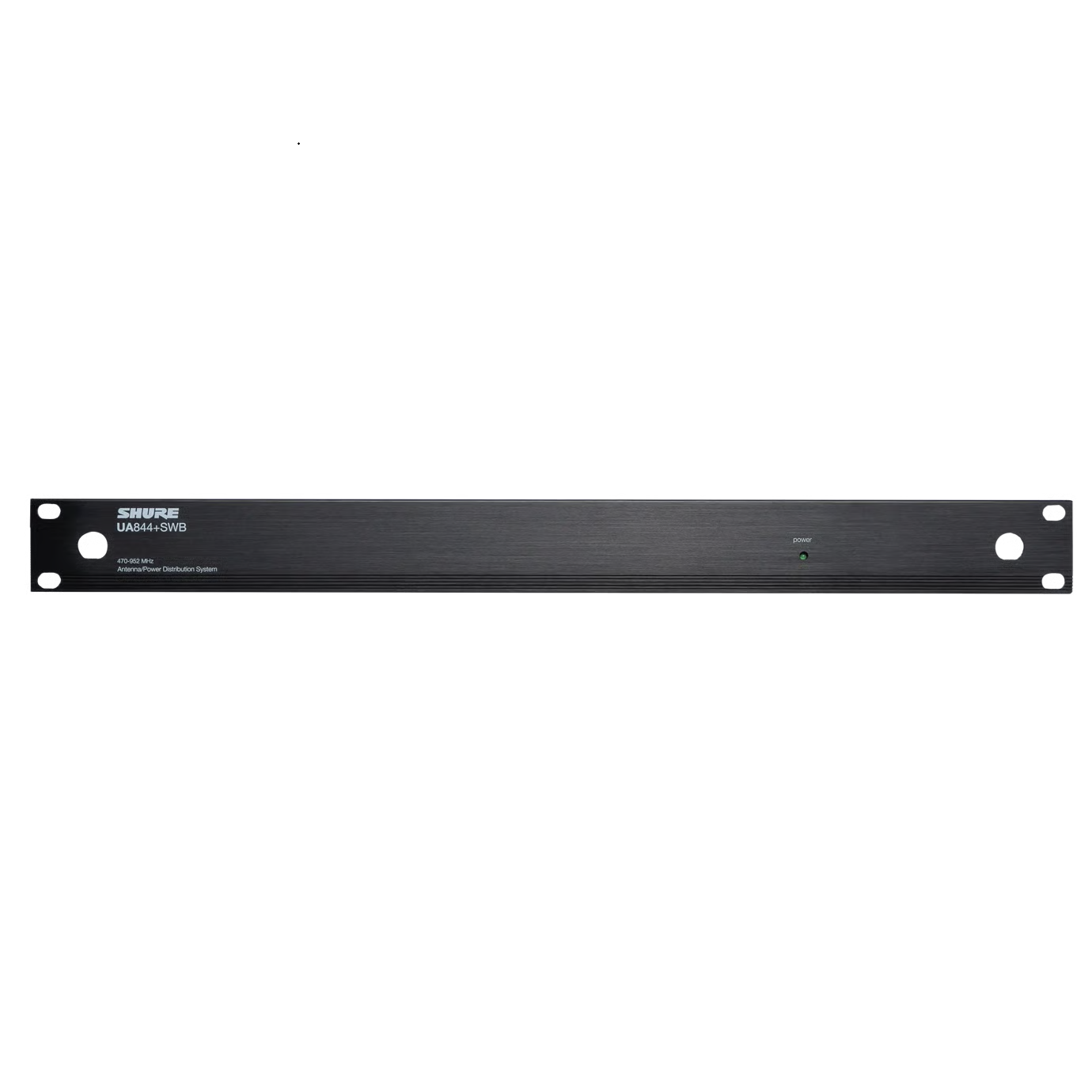

Shure UA844+ Antenna Distribution System

Antenna distribution system offers 4-way active antenna splitting and cascade port with different frequency versions available.

Power Requirements	14 to 18 VDC
DC Output	4x 14 to 18 VDC
Output Current	Combined Total from All DC Outputs 2.5 A, maximum
Operating Temperature Range	0 to 145°F (-18 to 63°C)

RF Input Specs

RF Output Specs

RF Frequency Range	470 to 960 MHz
Output Intercept Point	21 dBm, typical
Connector Type	BNC
Impedance	50 Ohms
Output Connector Isolation	30 dB, typical
Gain	Input to Any Output Port (unused ports terminated in 50 Ohms) -1 to +1 dB
Dimensions	1.8 x 19 x 6.8″ (45 x 483 x 172 mm)
Weight	3.6 lb (1.62 kg)
