CONTROL SURFACE
Input Faders:
8 (16 when assigned to output faders)
Output Faders:
8 + 3 + 1
Total Faders:
20
Vistonics II screens:
2 (1 input, 1 master)

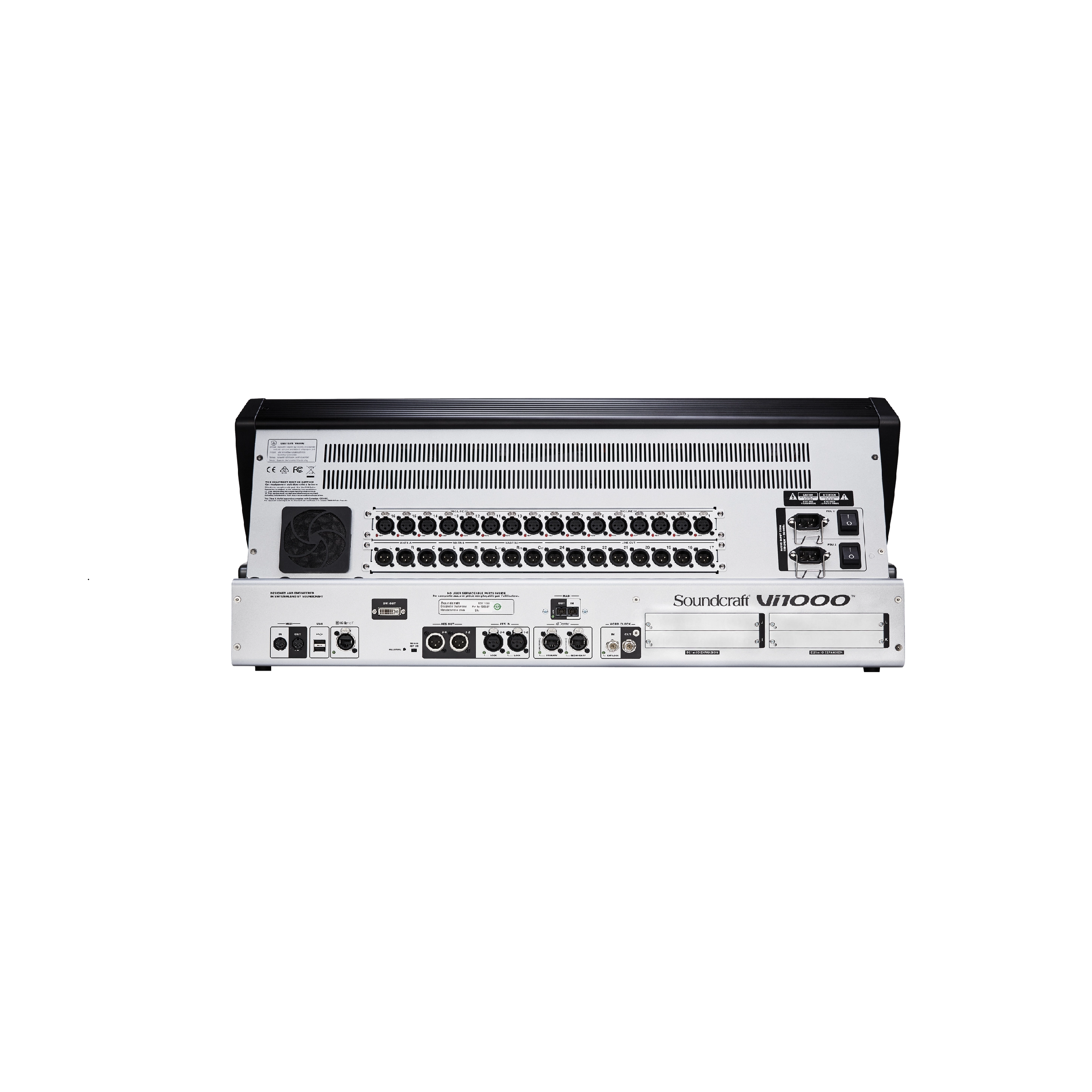

LOCAL I/0 PHYSICAL CONNECTORS
Total I/O count:
212 in/212 out
Mic/Line Inputs:
16 Soundcraft HQ preamps
Line Outputs:
16
AES/EBU In (with SRC):
2 (4ch)
AES/EBU Out:
2 (4ch)
TB Mic in:
1 front panel with rear panel 48V on/off sw
Phones out:
1 stereo jack, under front armrest
Dante ports:
1x 64ch
MADI Optical:
64 in/64 out
D21m Option Slots:
2x double/4 single (total 128ch)
DSP MIXING CORE
Input Channels:
96 mono Pairable to 48 stereo
Busses – Aux/Grp:
24 mono or stereo
Busses – Matrix:
From bus pool – max 16 mono/stereo
Busses – Master:
3 (LRC)
Assignable Insert Points:
64 external + 8 DEQ + 4FX
Lexicon FX:
4 Stereo reverb/delay/pitch effects
BSS GEQ:
All mono/stereo busses and masters
BSS DPR901ii DEQ:
8 instances
vMIX Automixing:
2x16ch instances
EXTERNAL CONTROL PORTS
Ethernet:
1 (for Mirroring and external control)
MIDI:
1 In 2 Out
Mains Input:
2, switched, for redundant PSUs.
USB2.0:
4 (2 front, 2 rear)
Wordclock:
In /Out 2x BNC

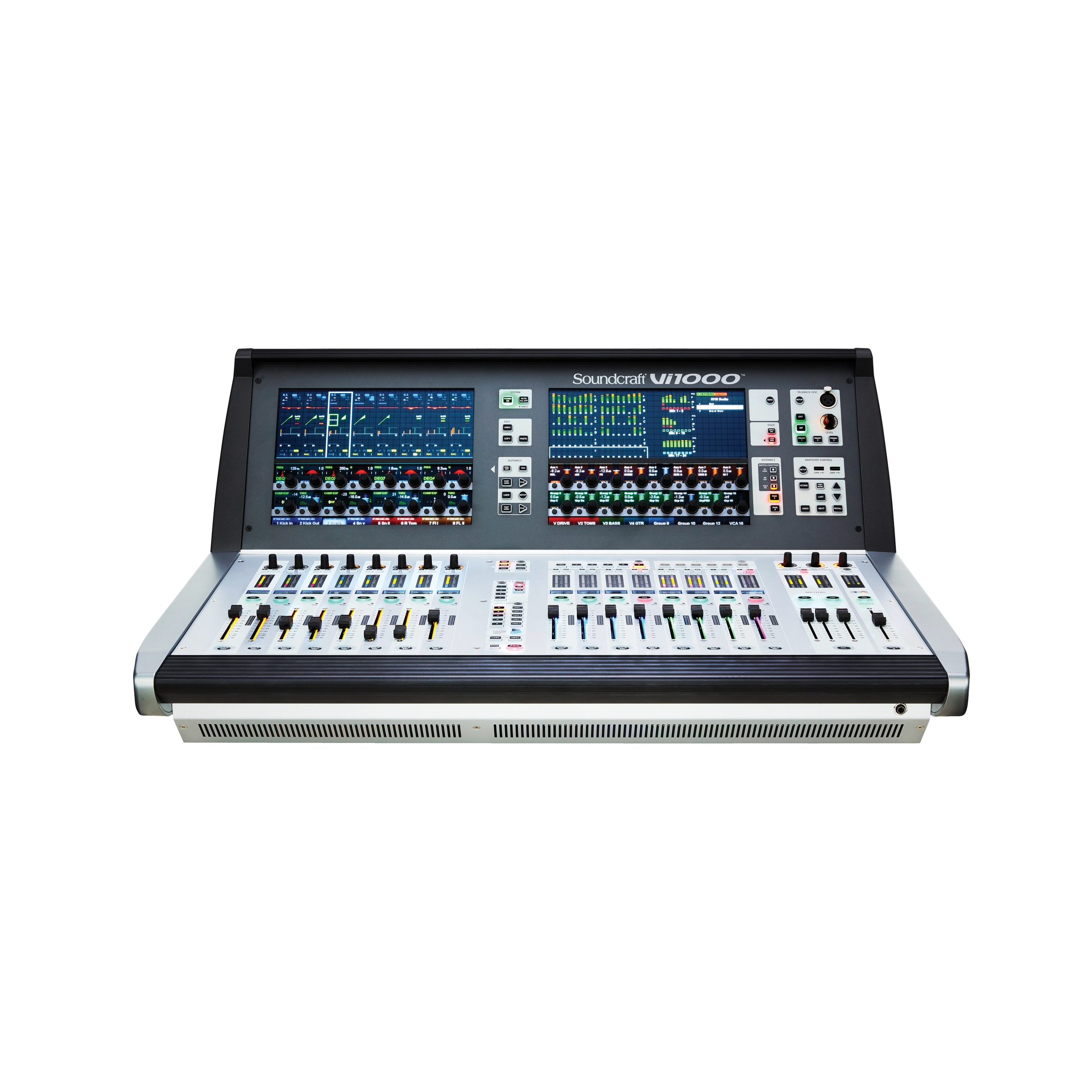

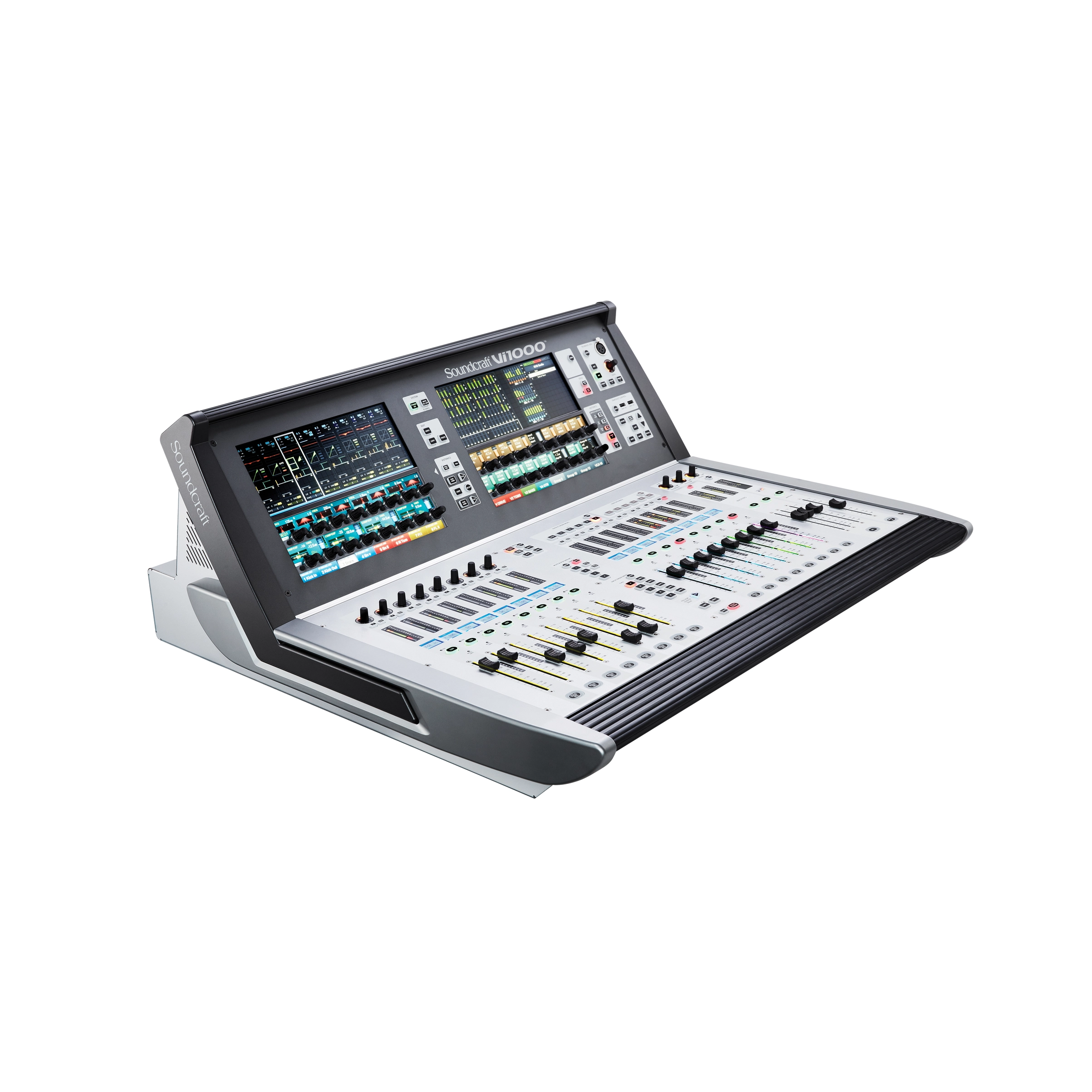

SOUNDCRAFT VI1000 Digital Live Sound Console
- 96 input channels with 24 mono/stereo mix busses, plus LRC master busses
- Vistonics II proprietary ‘knobs-on-glass’ functionality; key to the console’s streamlined, intuitiveoperational interface and widely praised as the easiest-to-use digital console on the market
- SpiderCore™ integrated DSP engine ensures superior audio performance
- Soundcraft Faderglow color coding illuminates the fader slots according to function
-
Integrated Dante™ interface facilitates instant connection to industry standard Dante audionetworks
- Two double-slot expansion slots for Stagebox connection or option card installation
- Built-in Lexicon world-class reverb, delay, and pitch effects from the industry’s leading brand
- Onboard BSS DPR901ii dynamic EQ digitally modelled after the original, industry-standard BSSanalog unit
- Integrated microphone monitoring for AKG, Shure®, and Sennheiser wireless systems
- Included vMIX automatic microphone mixing for two groups of up to 16 mics in conference ortheatrical applications
