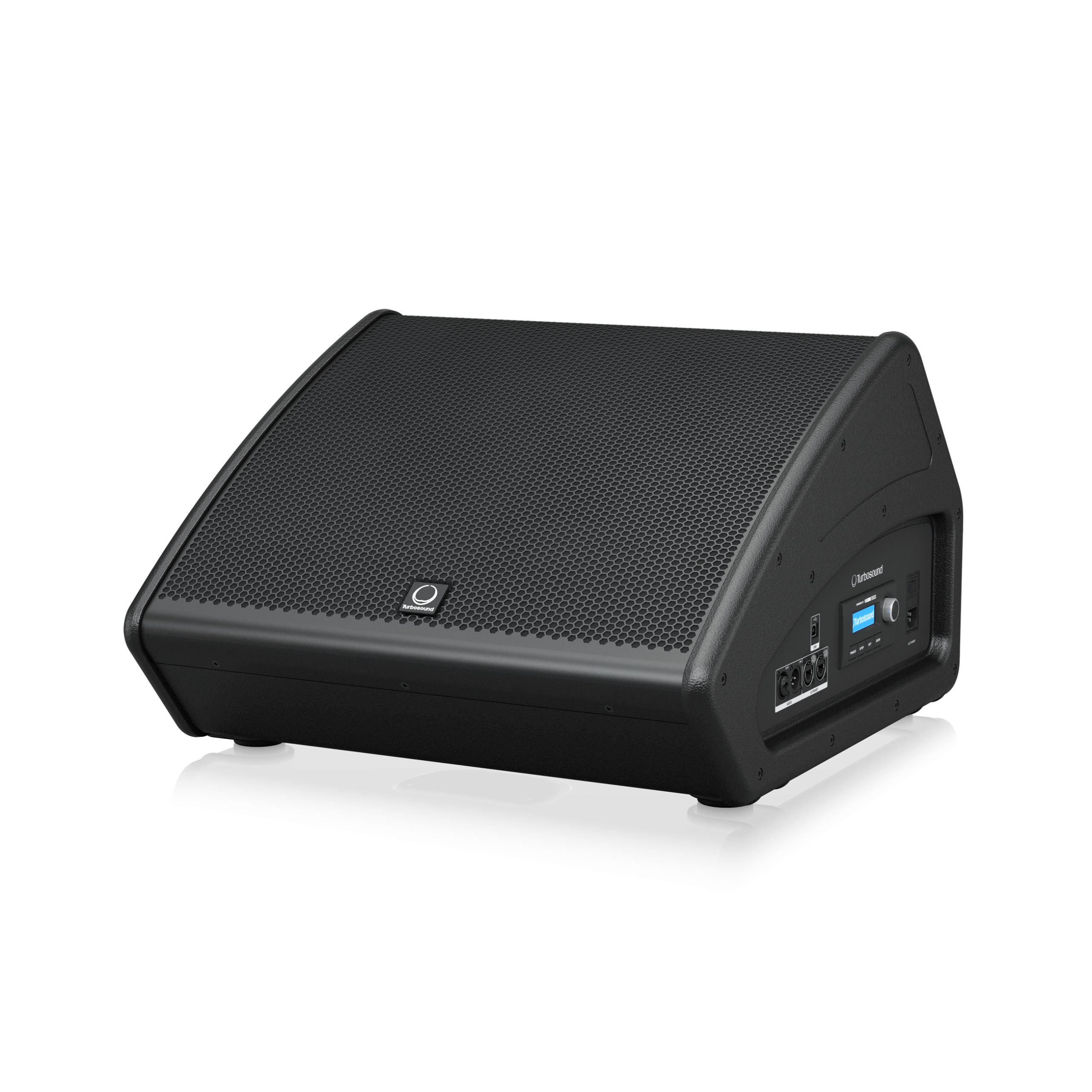

TURBOSOUND TFX152M-AN DSP Powered Monitor Speaker

Coaxial 1,100 Watt 2 Way 15″ Stage Monitor with Klark Teknik DSP Technology and ULTRANET

  • 2 way stage monitor for portable applications
  • 1,100 Watt power featuring Klark Teknik Class-D technology
  • Klark Teknik Digital Signal Processing for total system control
  • ULTRANET digital audio networking connects to mixers and other sources
  • High excursion 15″ low frequency driver with low mass voice coil for improved transient response
  • Titanium dome 1″ compression driver with extended high frequency reproduction
  • Low profile design to maximise audience sight lines
  • Low distortion waveguide provides 60° H x 40° V dispersion
  • Fully featured user interface with LCD display for ease of navigation
  • PC remote control software downloadable at turbosound.com
  • 15 mm (5/8″) plywood enclosure with fibre glass reinforced composite end cheeks
  • Hard wearing semi matt black paint finish
  • Rugged powder coated perforated steel mesh grille
  • Durable handle for easy lifting and carrying
分類: ,
System
Frequency Response 60 Hz – 18 kHz ± 3 dB
50 Hz – 20 kHz -10 dB
Nominal Dispersion 60° H x 40° V @ -6 dB points, rotatable
Maximum SPL 128 dB peak
Crossover type Active
Transducers 1 x 15″ (393.5 mm) LF driver
1 x 1.4″ (33 mm) HF compression driver
Limiter Independent HF, LF, peak and rms
Amplifier
Maximum output power* 1100 W*
Type Class-D
Protection Short circuit, thermal
Connectors
Input / Link 1 x combo jack/XLR, 1 x XLR
Ultranet input/link 2 x RJ45
Mains Supply Industry-standard twist-lock power input 20A and link 15A
Controls
DSP Rotary push-encoder and level control
Buttons for Process, Setup, Exit, Enter
User DSP Functions
Factory EQ presets Positioning, Sound mode, FBQ
Display LCD 128 x 32, blue , backlit
Delay 0 – 300 ms
Equalisation High and low shelving EQ, 2 x parametric EQ
Limiter Zero attack input limiter
Presets 20 total presets, 19 user-definable
Crossover High pass L-R 24 dB/oct
Protection Lock-out function for all settings
Ultranet Digital Network
Digital processing
System
Cabling
Power Supply
Power consumption 180 W @ 1/8 max power**
Voltage (fuses)
Enclosure
Dimensions (H x W x D) 351 x 530 x 565 mm (13.8 x 20.9 x 22.3″)
Net weight 20.2 kg (44.5 lbs)
Construction 15 mm (5/8″) birch plywood + polypropylene plastic
Finish Semi matt black paint
Grille Powder coated perforated steel
Flying hardware N/A
