| Technical Specifications | |
|---|---|
| Light Source & Photometric Data | |

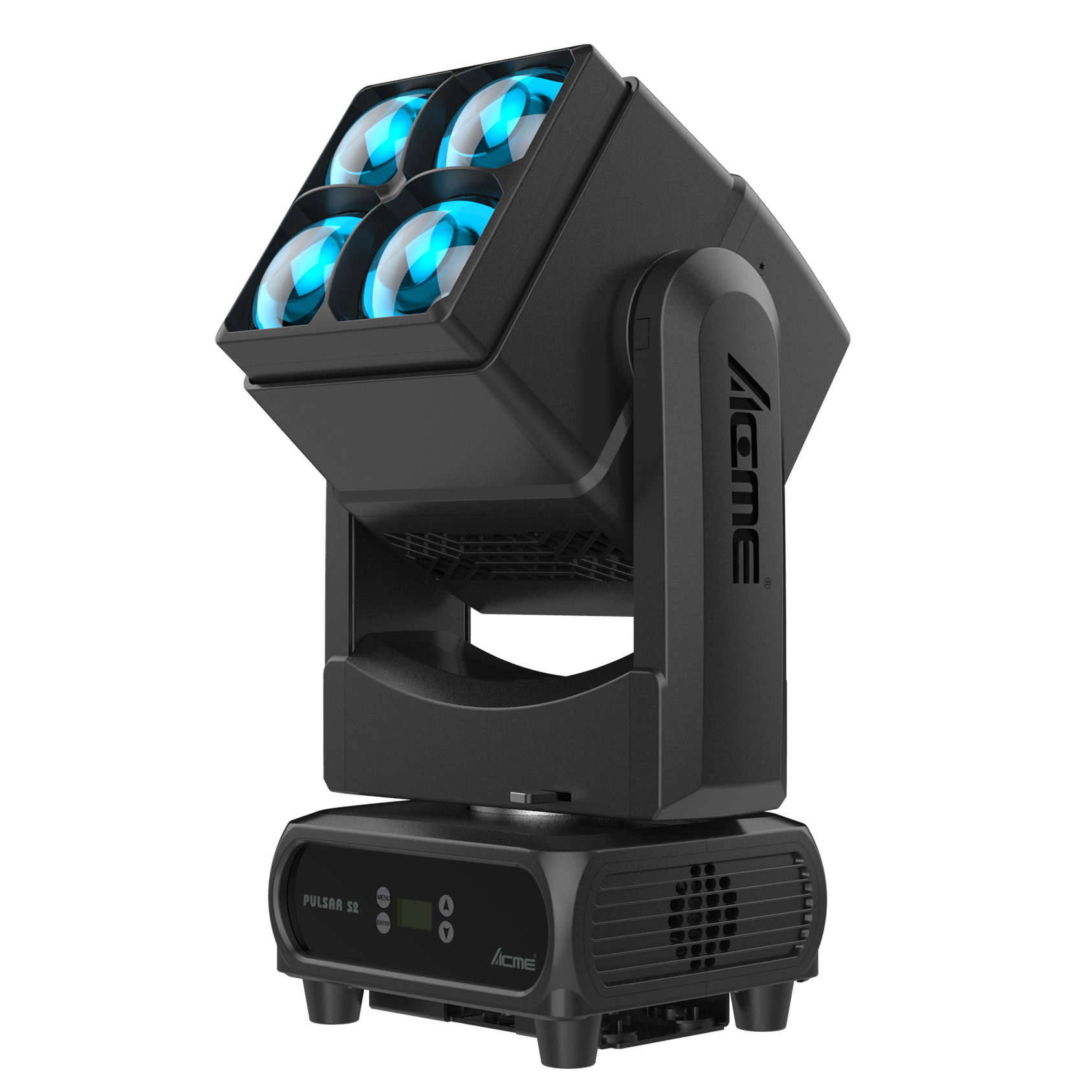

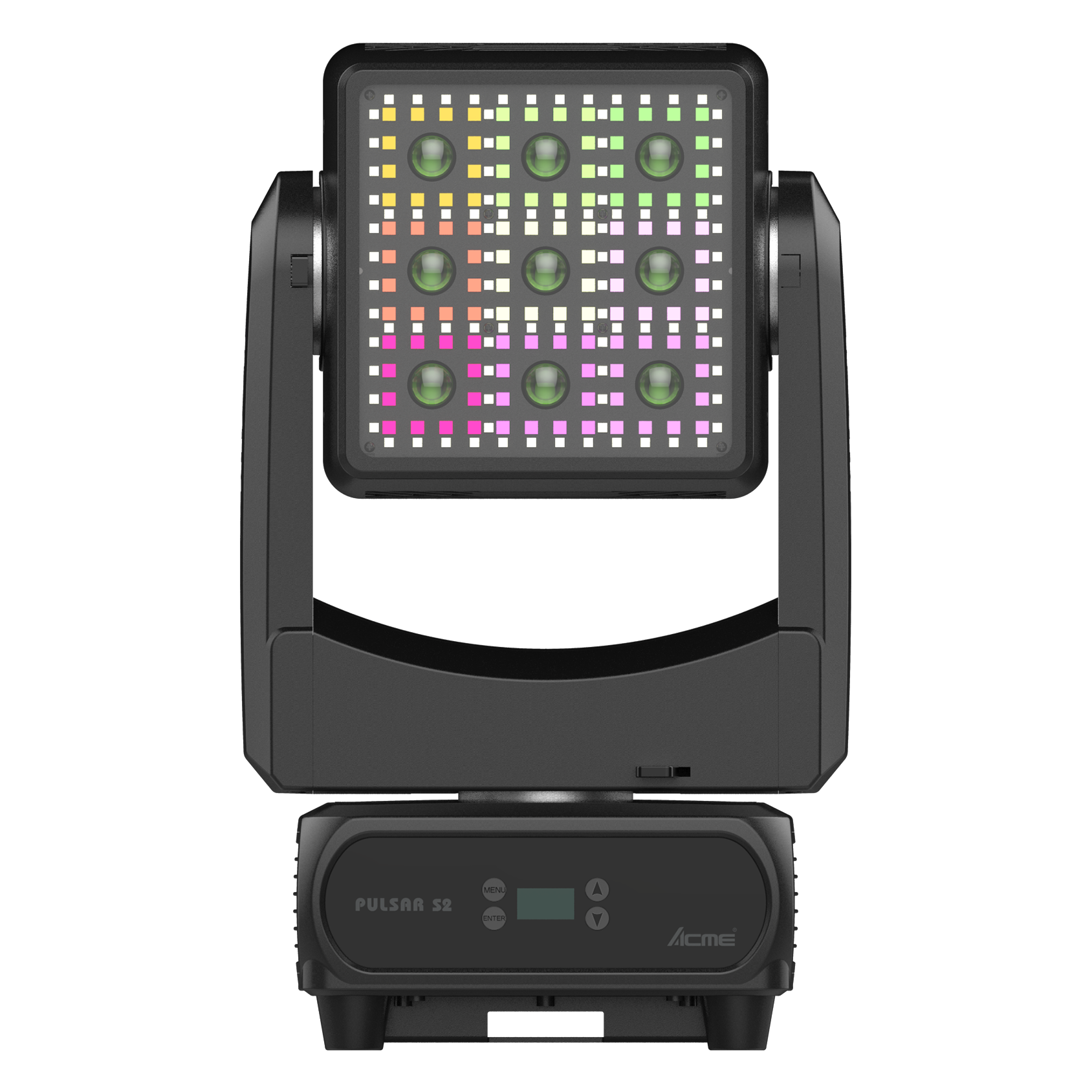

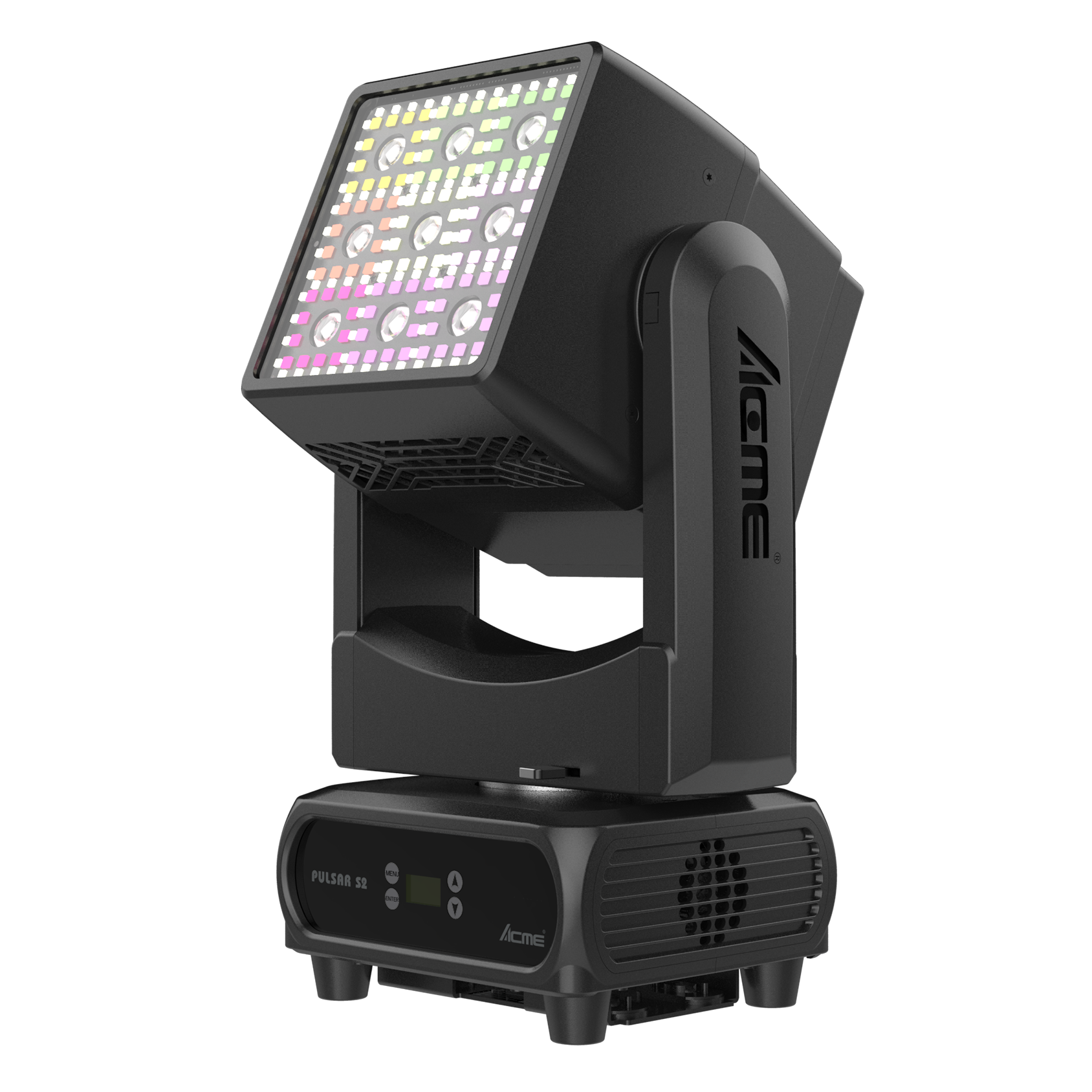

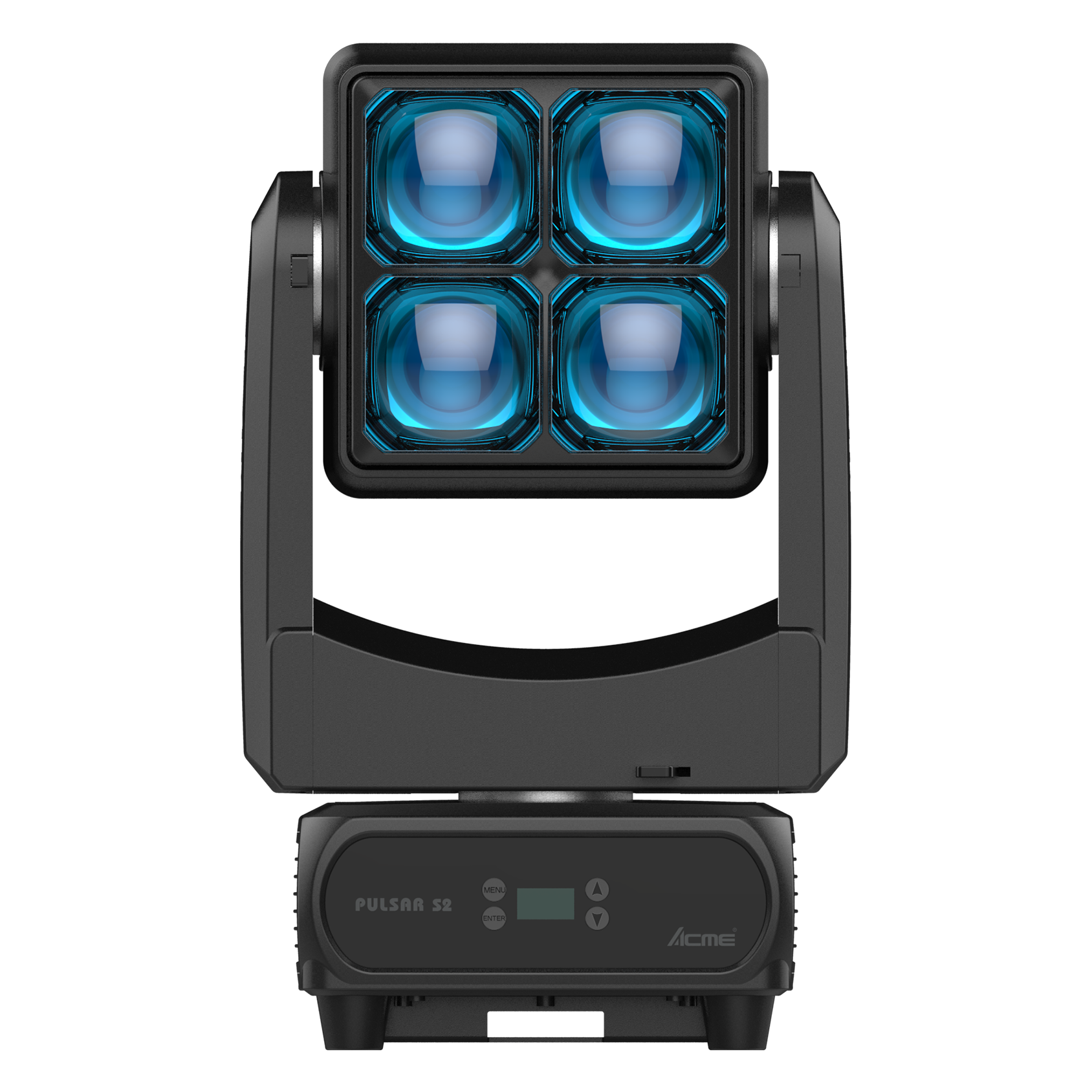

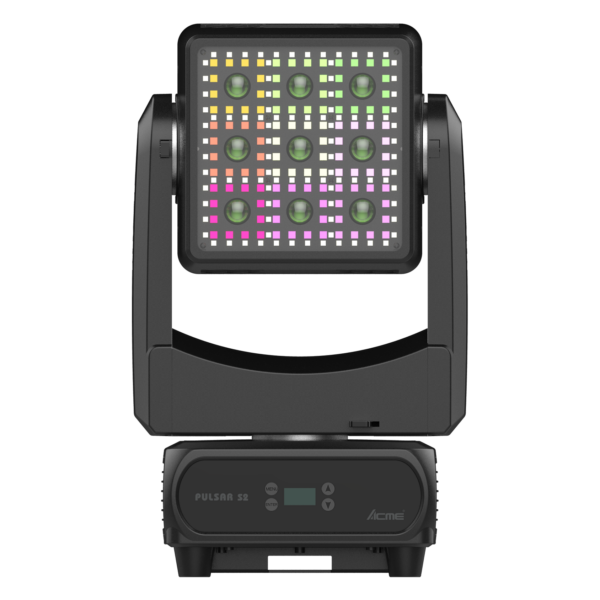

| Light Source | Beam/Wash: 4 x 60W RGBW LEDs 10W Beam: 9 x 10W CW LEDs Strobe: 96 x 3W CW LEDs (24 controllable zones) Pixel: 108 x 0.5W RGB LEDs (9 controllable zones) Rated Life: 20,000 hours (manufacturer spec) |
| Total Lumen Output | Beam/Wash Section: 4,400 lm | 10W Beam: 2,700 / 1,300 lm (rated 1,300 lm) Strobe: 18,000 lm | Pixel: 2,200 lm |
| Optical System | |
| Beam Angles | Beam/Wash: 2.5°–28° | 10W Beam: 3.5° | Strobe: 108° | Pixel: 115° |
| Field Angles | Beam/Wash: 4.4°–36° |
| Pan & Tilt Movement | |
| Movement & Resolution | Infinite Pan & Tilt Movement | 16-bit resolution Automatic Pan/Tilt position correction, Pan/Tilt lock mechanism |
| Colors & Performance Features | |
| Color Control | Linear CTO Color Correction (2,500K–8,000K), built-in color macro effects |
| Effects & Control | Variable speed strobe effect, smooth 0–100% dimming (4 user-selectable dimming curves) Motorized zoom, individual pixel control, wash and strobe functions |
| Control & Electrical | |
| Control Protocols & Channels | DMX512, RDM, Art-Net, sACN 4 DMX Protocol Modes / Channels: 21+ / 24 / 39 / 97 |
| Display & Firmware | 4-touch button control panel with OLED display; firmware upgrade via DMX link |
| Input Voltage & Power | 100–240 Vac, 50/60 Hz | Power Consumption: 600 W |
| Connectors | Power: Power connector in/out Data: 3-pin or 5-pin XLR, RJ45 connector |
| Physical, Packaging & Environment | |

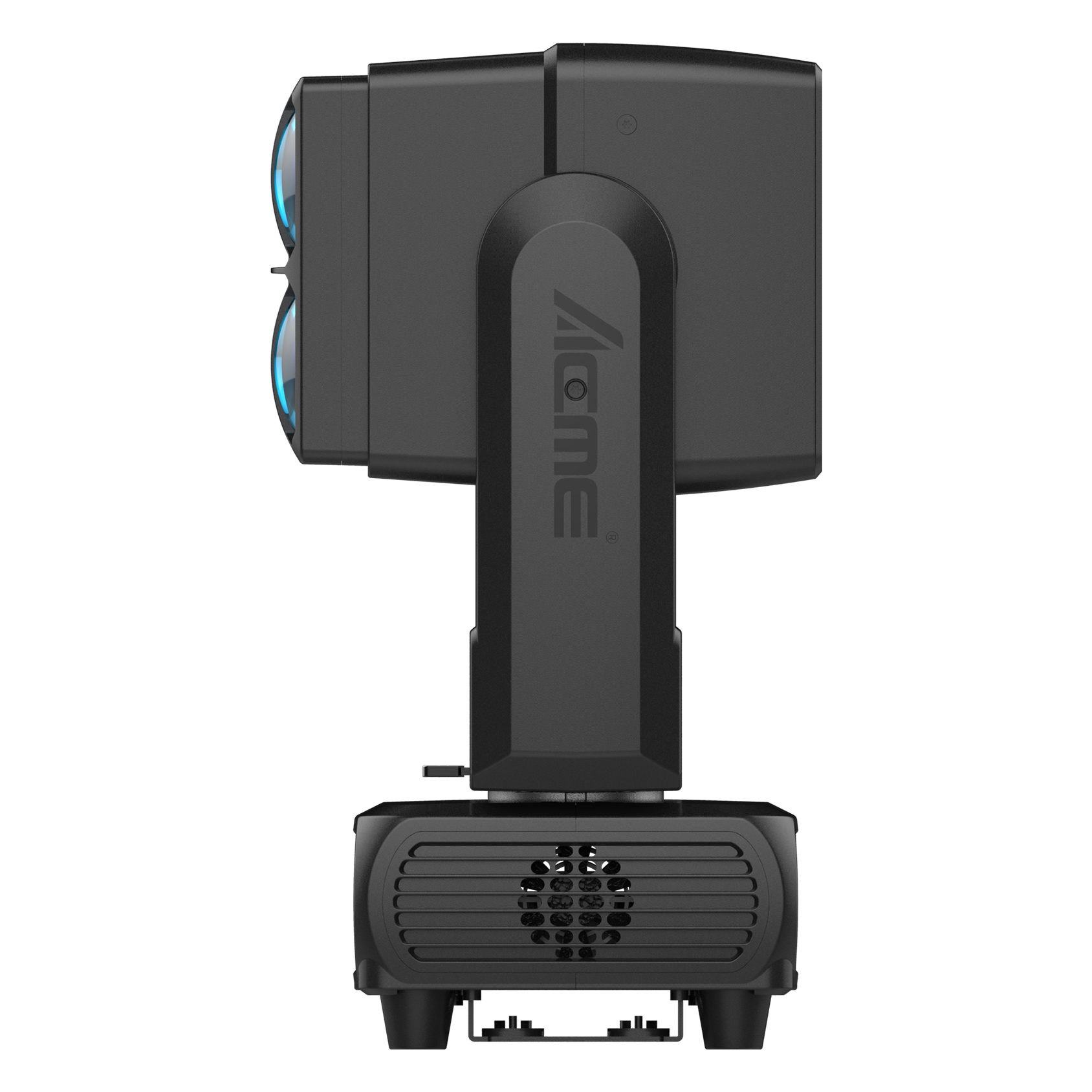

| Fixture Dimensions & Weight | 237 x 176 x 383 mm (9.3″ x 6.9″ x 15.1″) | Weight: 11.0 kg (23.4 lbs) |
| Packaging Options | Carton (One-pack): 365 x 265 x 480 mm (14.4″ x 10.4″ x 18.9″) | G.W.: 12.0 kg (26.5 lbs) Flight Case 1 (Standard Six-pack): 1,025 x 580 x 640 mm (40.4″ x 22.8″ x 25.2″) | G.W.: 115.0 kg (253.5 lbs) Flight Case 2 (Standard Eight-pack): 1,220 x 610 x 640 mm (48.0″ x 24.0″ x 25.2″) | G.W.: 150.0 kg (330.7 lbs) Flight Case 2 (North American Eight-pack): 1,220 x 610 x 640 mm (48.0″ x 24.0″ x 25.2″) | G.W.: 156.0 kg (343.9 lbs) |
| Operating Environment | Ambient Temp: 0°C to 40°C | Max Surface Temp: 65°C Protection Rating: IP20 |
| Approvals | CE compliant, UKCA compliant, cETLus compliant |

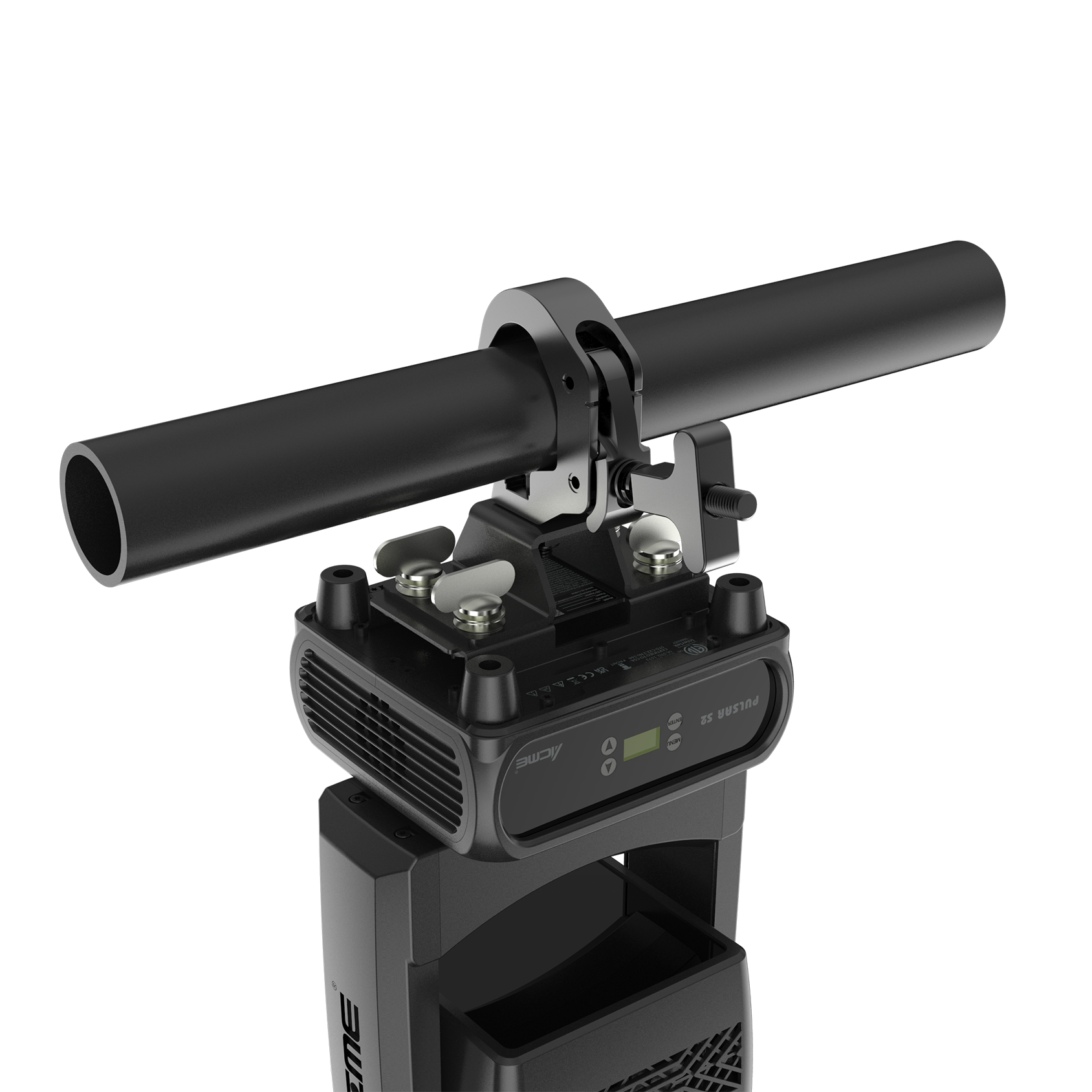

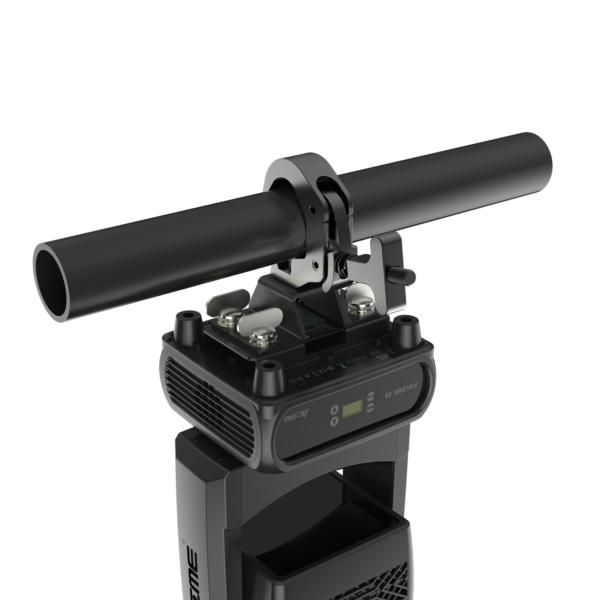

| Installation & Included Items | Horizontal or vertical mounting, universal working position (1x omega bracket [63583372], safety cable point, power cable, digital manual) |
