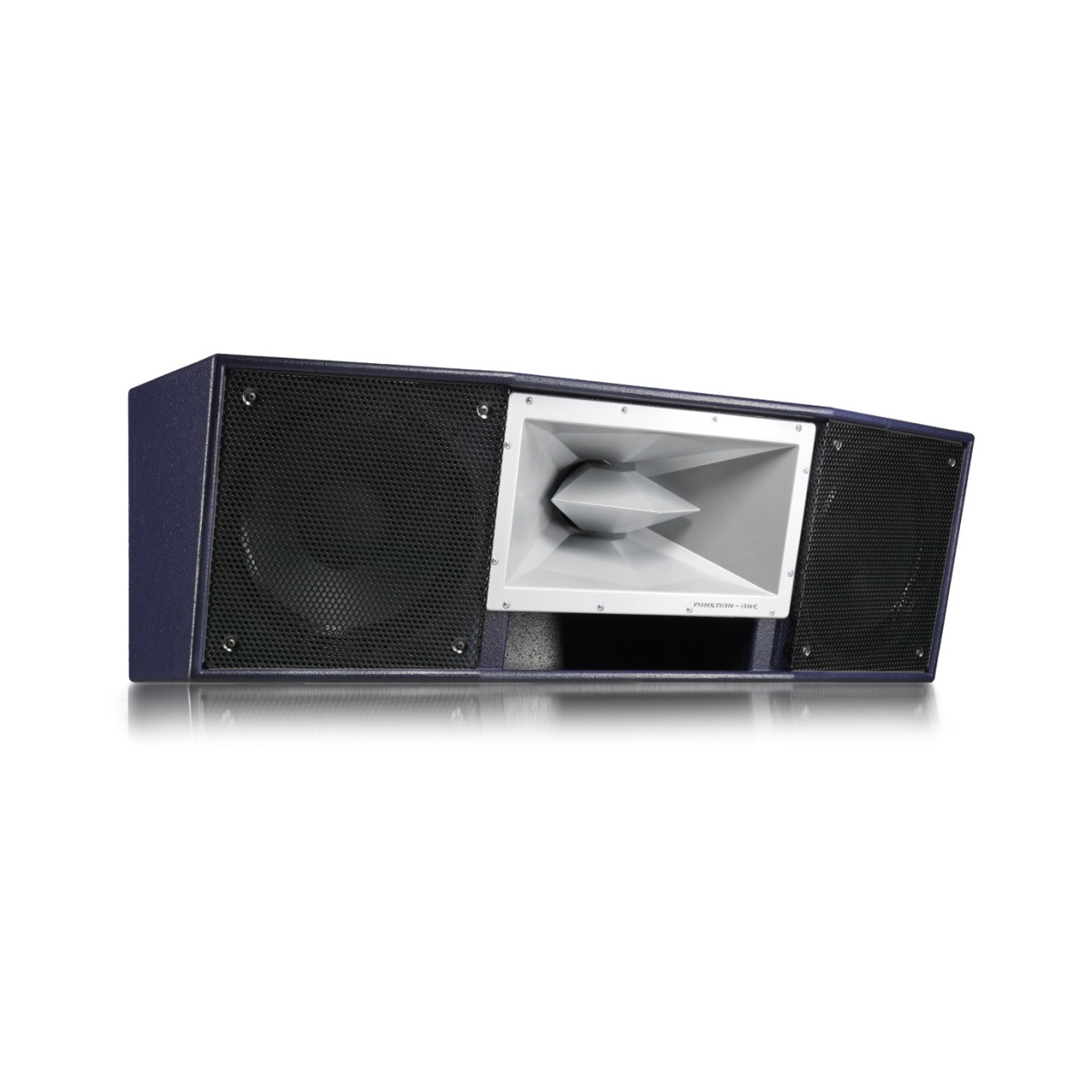

The Resolution 1.5TT is a two-way enclosure specifically designed for mid sized venues with low ceiling heights. Combining twin 12” drivers as used in the Resolution 1 with the 90 degree dispersion 5“ from the Resolution 1.5, it can be neatly installed tight against a ceiling providing good coverage due to the built-in downward angle of the devices. Its already strong bass response can be further extended with a wide range of Funktion One bass enclosures, particularly the BR and F series.
Features:
| Driver | Operating Band | Sensitivity(1W at 1m) | Power (AES) | NominalImpedance |
| 2 x 12″ | 25 – 520Hz | 103dB | 700W | 4Ω |
| 5″ | 520Hz – up | 110dB | 75W | 12Ω |
Go to crossover settings
| Frequency Response ± 3dB: | 55Hz – 15kHz |
| Weight: | 29kg (64lbs) |
| Nominal Dispersion: | 90° Horizontal x 25° Vertical |
| Connectors: | 2 x Speakon NL4 |
