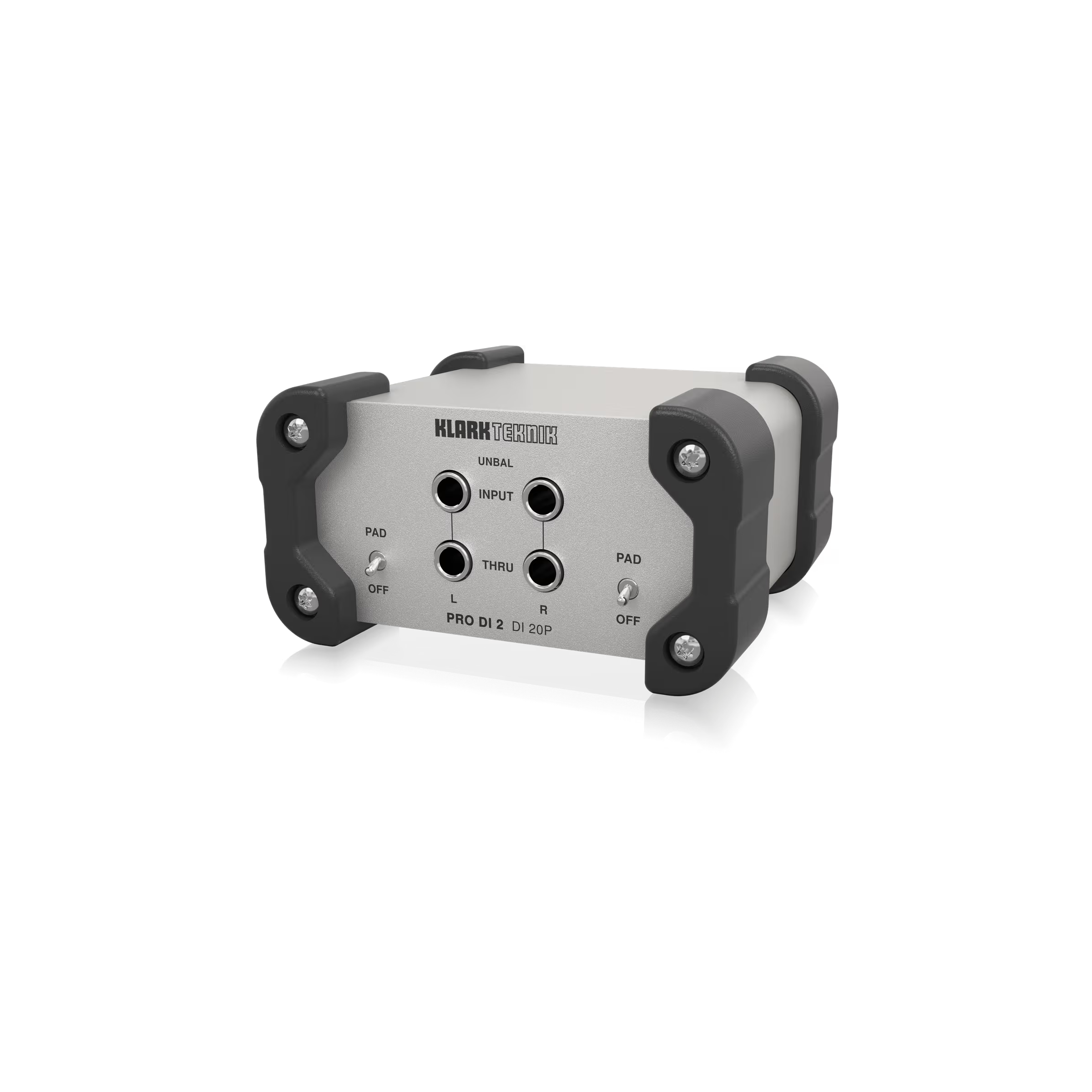

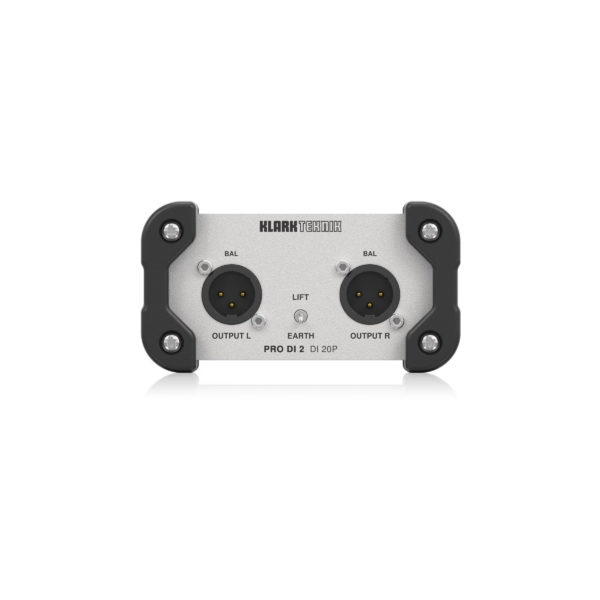

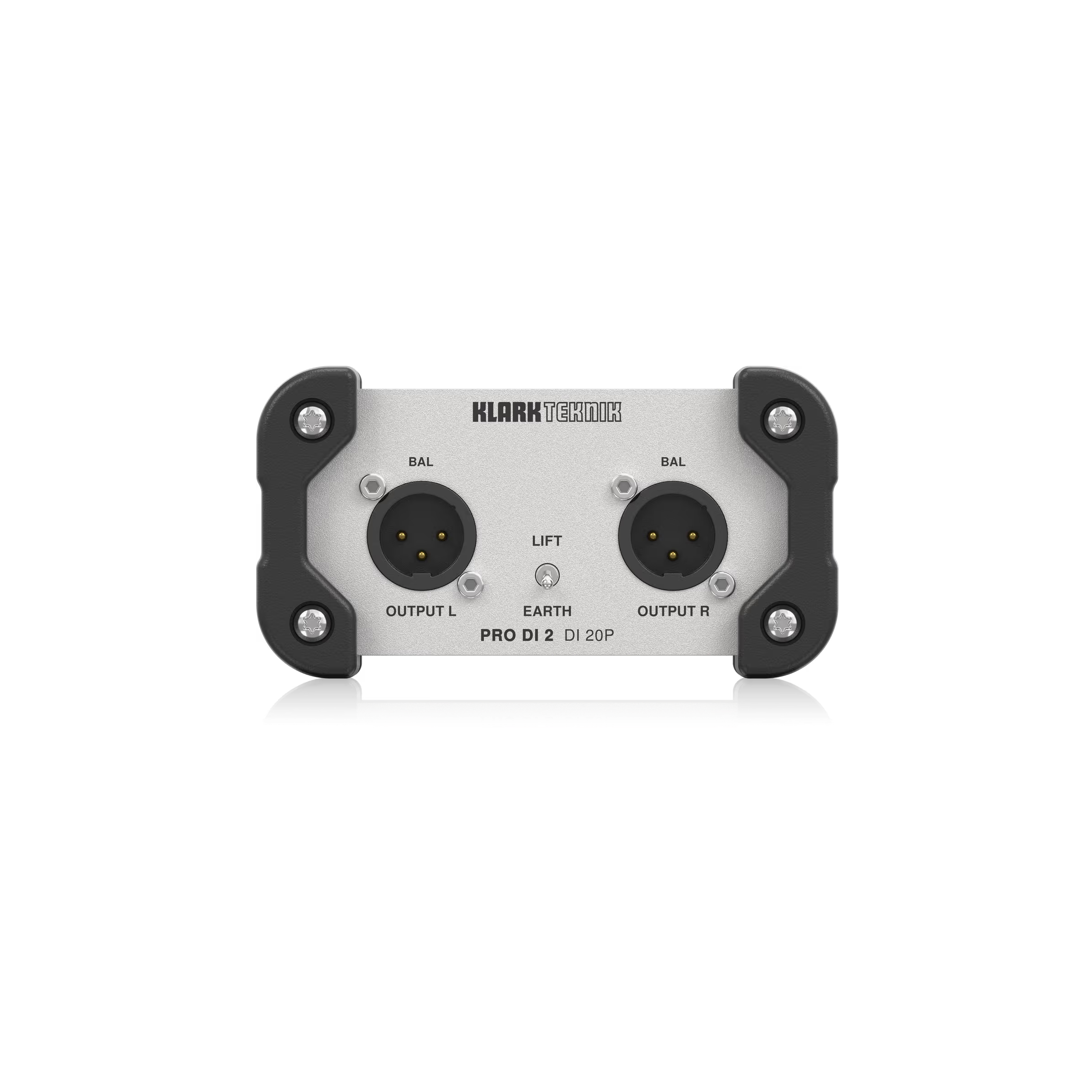

KLARK TEKNIK DI 20P Passive Stereo DI Box

Passive Stereo DI Box with Midas Transformer and Extended Dynamic Range

  • Passive stereo DI Box for general purpose applications
  • Custom-built Midas transformer for highest signal integrity
  • High headroom design offers superior sound quality
  • Passive design does not require any power supply
  • Stereo inputs on 1/4″ TS connectors
  • Through connectors on 1/4″ TS connectors
  • Switchable input attenuation for guitar, line and speaker levels
  • Industry standard XLR connectors for highest reliability
  • Earth Lift switch eliminates ground loop problems
  • Fully transformer-isolated design ensures electrical separation
  • Ultra-low noise and ultra-linear system for highest signal integrity
  • Aluminium extrusion casing with protective rubber corners
  • Compact and rugged design
分類: ,

Technical Specifications

Connectors

2 x ¼” TS unbalanced

Impedance

10 kΩ/PAD , 500 kΩ/off

Max. input level

30 dBu @ 1 kHz

Connector

2 x XLR, balanced

Impedance

150 Ω, 1 kHz

Max. output level

8.5 dBu @ 1 kHz

Frequency response

20 Hz to 30 kHz (± 1 dB)

THD + N (distortion)

0.01% @ 1 kHz, 0 dBu

Signal-to-noise ratio

108 dBu

Input pad

-15 dB

Power requirement

Passive

Dimensions (WxDxH)

118 x 112 x 64 mm (4.6 x 4.4 x 2.5″)

Weight

0.54 kg (1.2 lbs)
