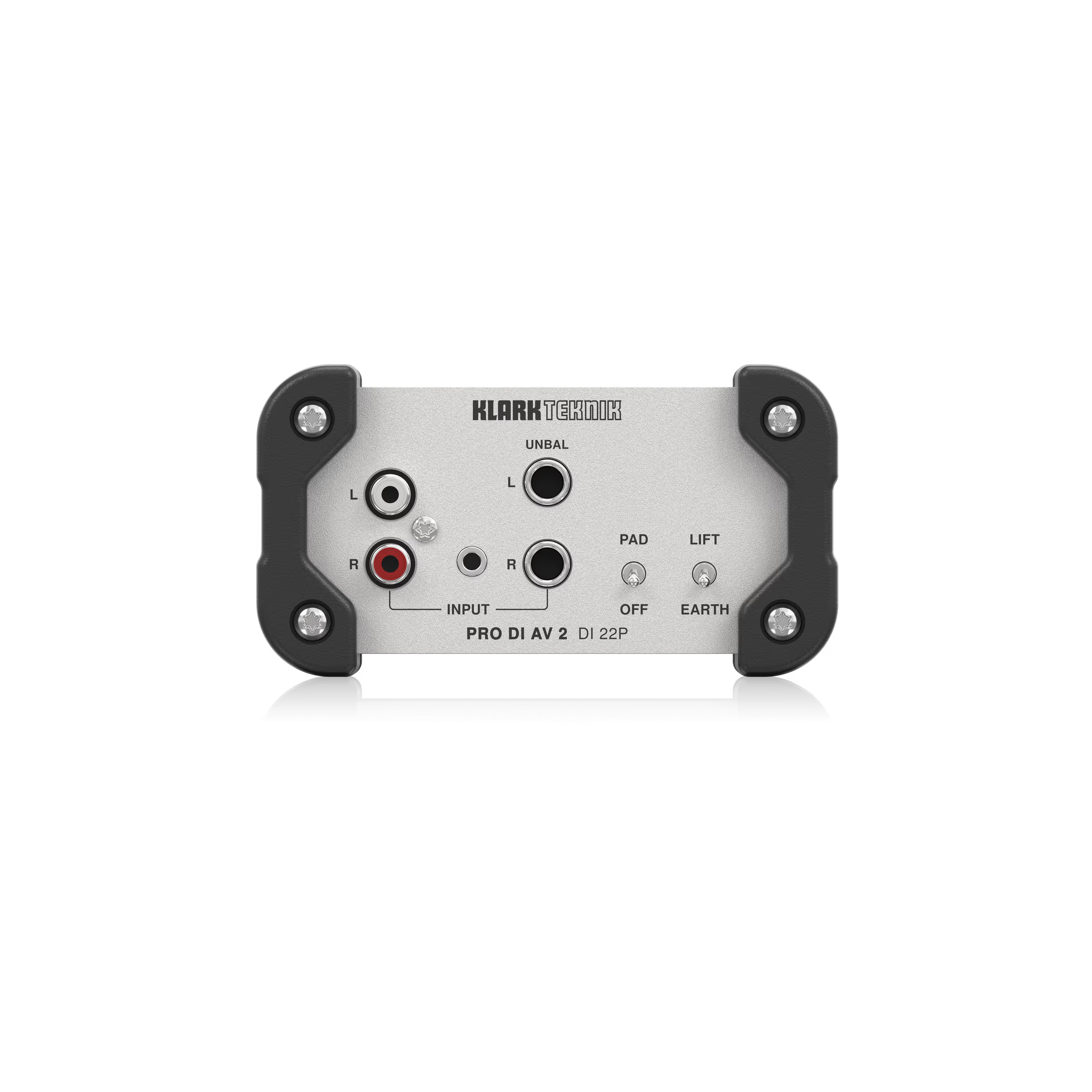

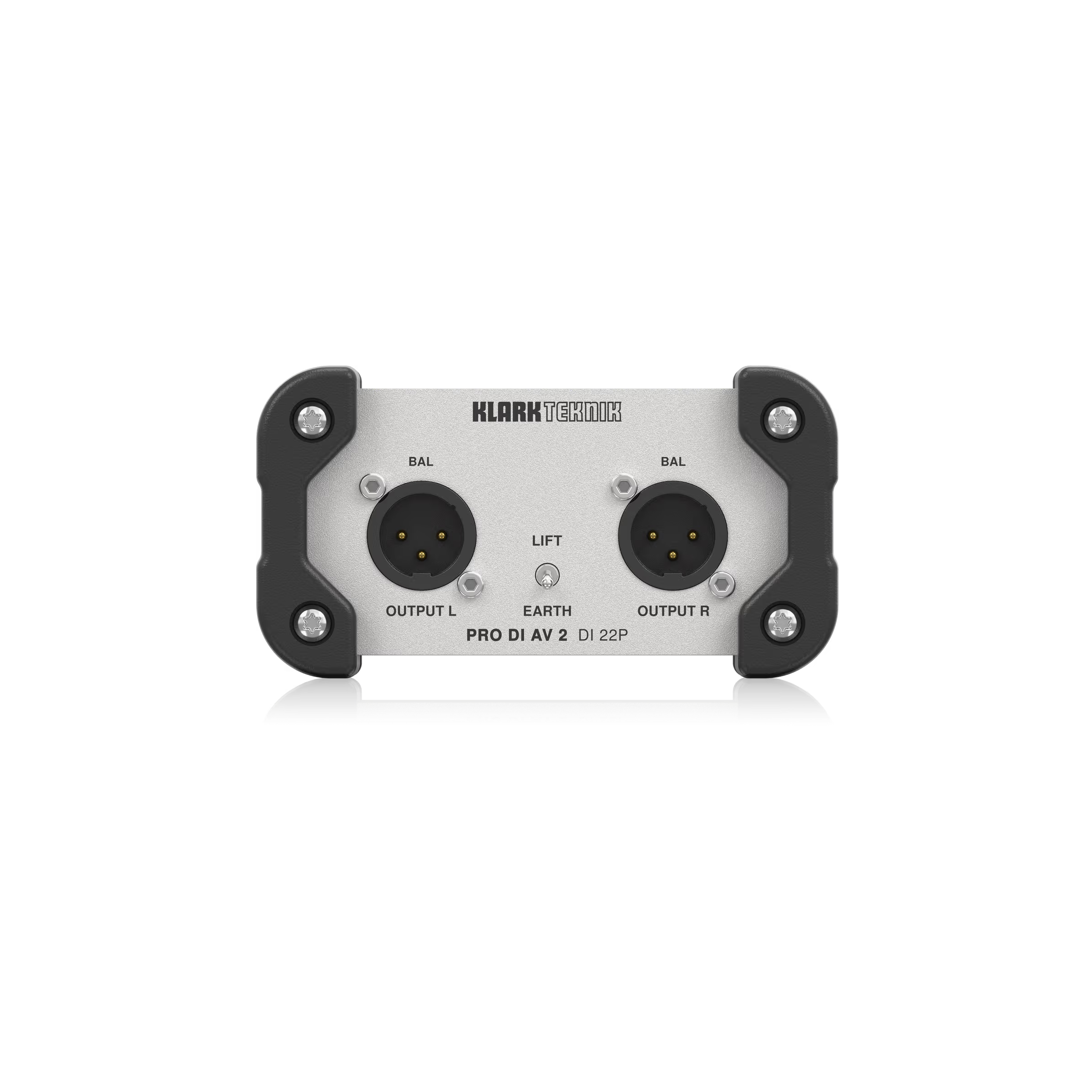

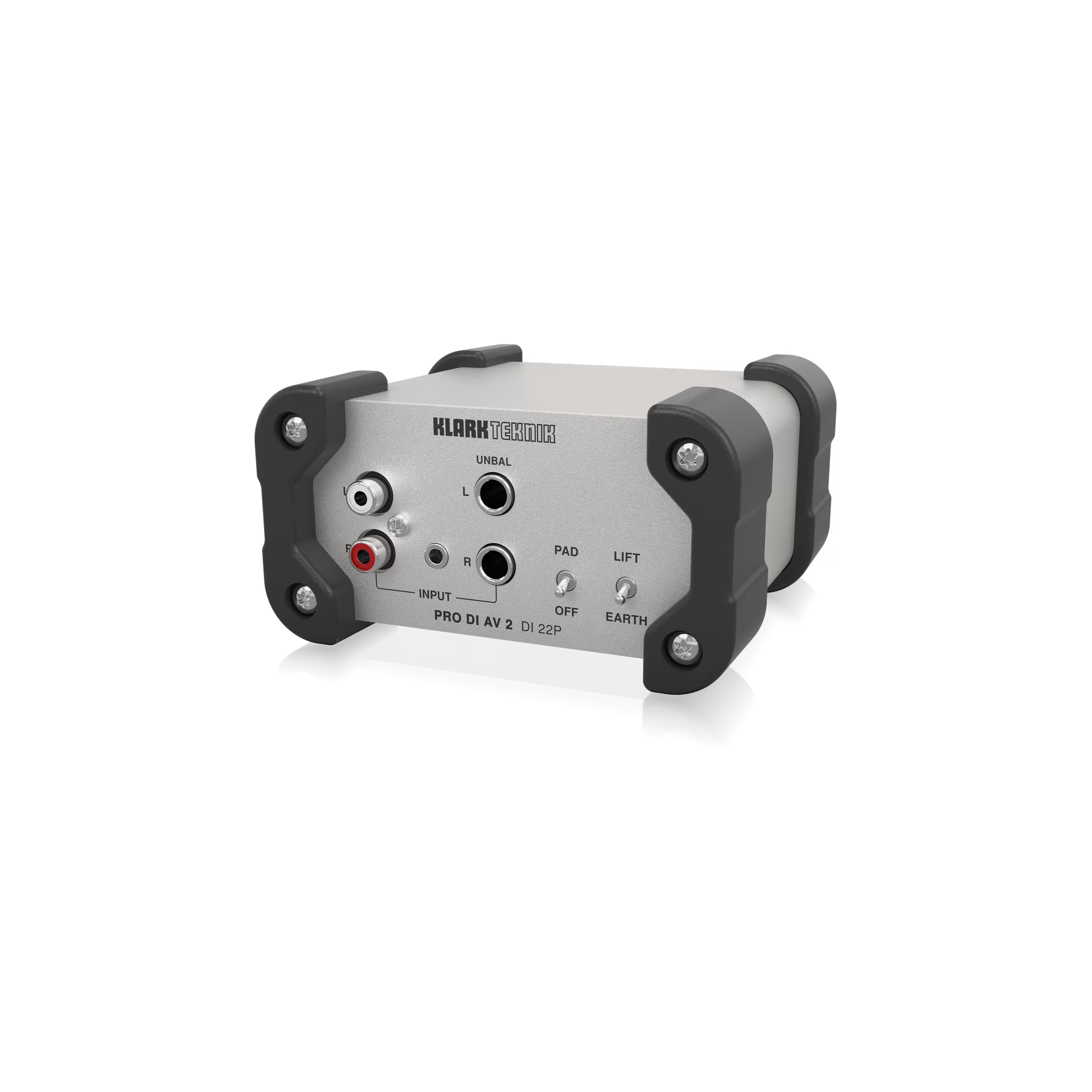

KLARK TEKNIK DI 22P Passive Stereo DI Box

Passive Stereo DI Box with Midas Transformers and Extended Dynamic Range

  • Passive Stereo DI Box for general purpose and multimedia applications
  • Custom-built Midas transformers for highest signal integrity
  • High headroom design offers superior sound quality
  • Passive design does not require any power supply
  • Stereo input on 1/4″, 1/8″ TRS and RCA connectors
  • Switchable input attenuation for guitar, line and speaker levels
  • Industry standard XLR connectors for highest reliability
  • Earth Lift switches for input and output eliminate ground loop problems
  • Fully transformer-isolated design ensures electrical separation
  • Ultra-low noise and ultra-linear system for highest signal integrity
  • Aluminium extrusion casing with protective rubber corners
  • Compact and rugged design
分類: ,

Technical Specifications

Connectors

2 x ¼” TS, 1/8″ TRS, RCA unbalanced

Impedance

30 kΩ

Max. input level

30 dBu @ 1 kHz

Connectors

2 x XLR, balanced

Impedance

600 Ω

Max. output level

8.5 dBu @ 1 kHz

Frequency response

20 Hz to 30 kHz (± 1 dB)

THD + N (distortion)

0.01% @ 1 kHz, 0 dBU

Signal-to-noise ratio

105 dBu

Input pad

-15 dB

Power requirement

Passive

Dimensions (W x D x H)

118 x 112 x 64 mm (4.6 x 4.4 x 2.5″)

Weight

0.53 kg (1.2 lbs)
