Specifications
| System | |
| AF frequency response | 20 to 20,000 Hz |
| Dynamic range | > 120 dB(A) |
| THD (1 kHz) | typ. 0.1 % |
| Audio sampling | 24 bit/48 kHz |
| Signal-to-noise ratio | > 90 dB(A) |
| Encryption | AES 256 |
| RF frequency ranges | EU: 1,880 to 1,900 MHz USA: 1,920 to 1,930 MHz Brazil: 1,910 to 1,920 MHz Taiwan: 1,880 to 1,895 MHz Japan: 1,893 to 1,906 MHz |
| Modulation | GFSK with back channel |
| Transmission method | TDMA, space diversity |
| Latency | 19 ms |
| Relative air humidity | max. 95 % |
| Temperature range* | Operation: -10 °C to 55 °C (14 °F to 131 °F) Storage: -20 °C to 70 °C (-4 °F to 158 °F) * The temperature range is influenced by the battery characteristics |

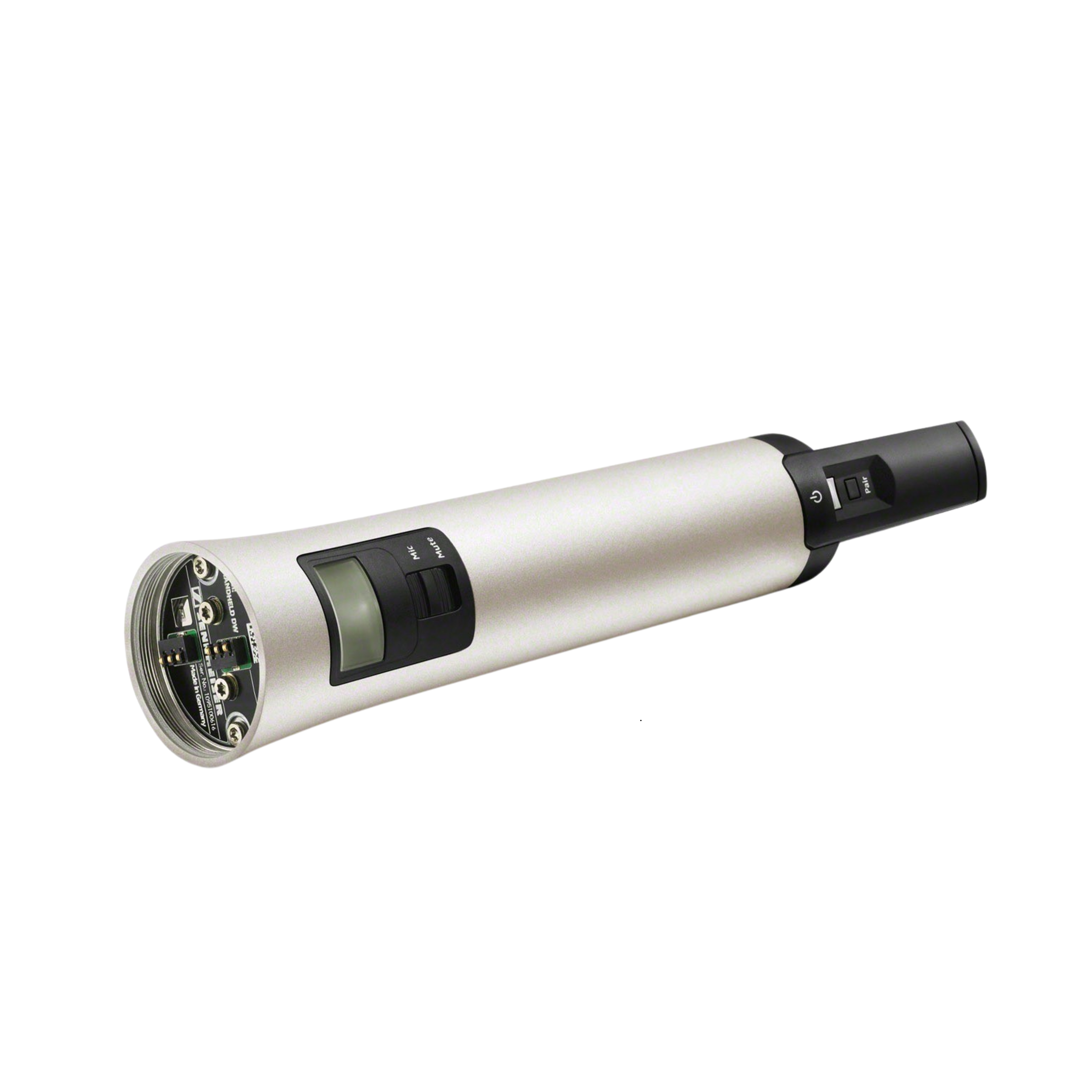

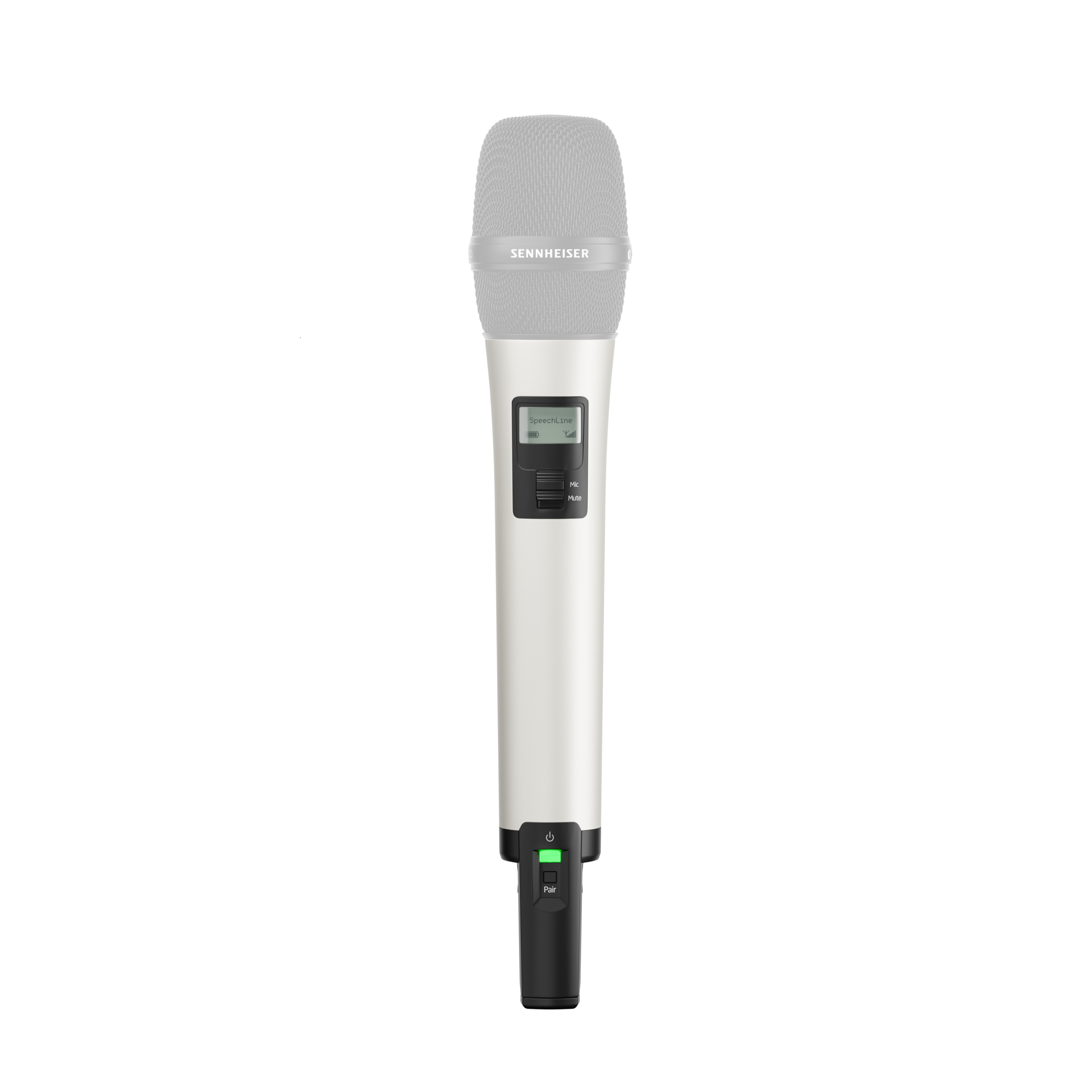

| SL Handheld DW | |
| RF output power | adaptive, up to 250 mW (country-specific) |
| AF frequency response | 50 to 20,000 Hz |
| Input sensitivity | automatic sensitivity adjustment |
| Power supply | Rechargeable battery: BA 10 (Li-Ion, 3.6 V) Batteries**: 2 x AA size battery (1.5 V) |
| Operating time | Accupack: typ. 15 h Batteries**: typ. 10 h |
| Display | LCD |
| Mute switch | available |
| Weight (w/o accupack) | approx. 262 g incl. microphone head |
| ** optional accessory | |
