TURBOSOUND PQ10 Full Range Loudspeaker

2 Way 10″ Full Range Loudspeaker for Tour and Live Sound Applications

Full range 10″ Loudspeaker for Touring and Installation Applications
350 Watts continuous, 1,400 Watts peak power
Ideal for FOH, side fill and monitor applications
10″ low frequency driver with low mass voice coil for improved transient response
1.7″ Voice Coil, Polyimide Diaphragm Neodymium Compression driver
Rotatable Catenary Horn provides 80° H x 50° V dispersion
15 mm (5/8″) plywood enclosure with hard wearing semi matt black PU paint finish 0
Rugged powder coated perforated steel mesh grille
Integral 35 mm dual angle pole mount and handles
Multiple internal rigging points allow bracket mount and suspension in any orientation

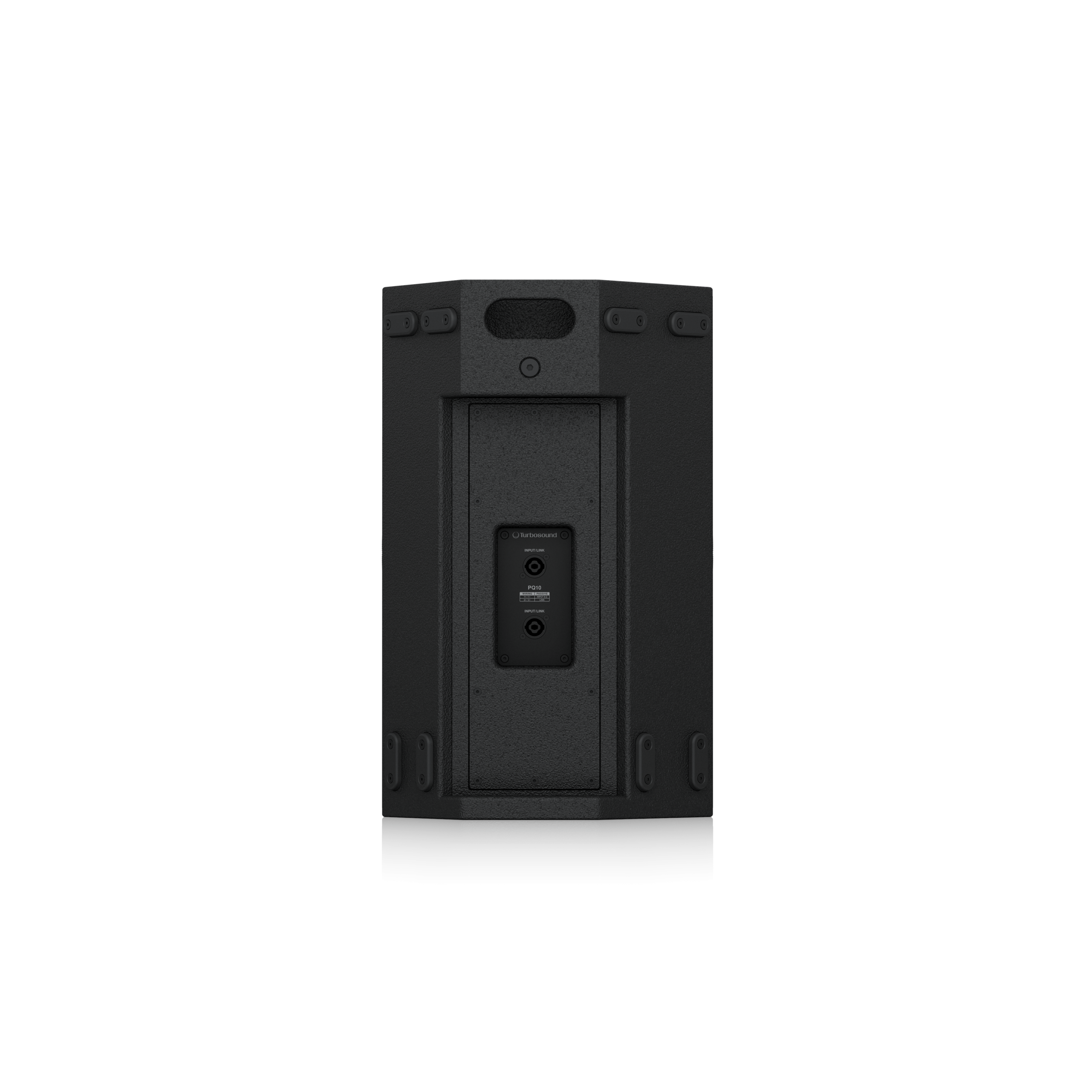

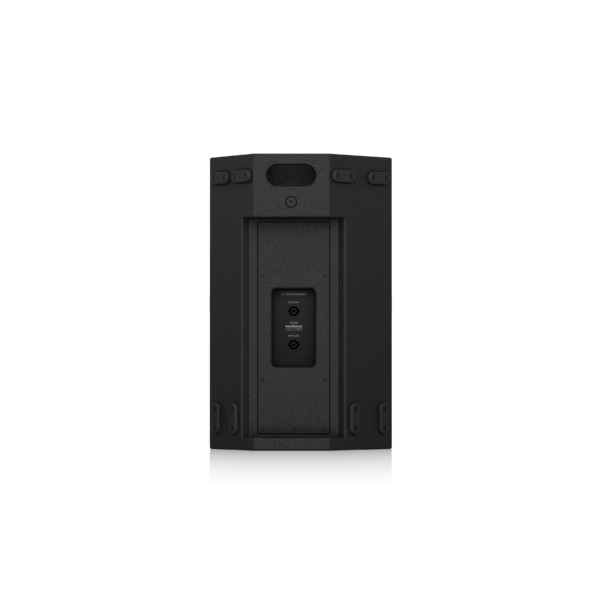

2 x NL4M connectors for reliable long life operation

分類: TurboSound, TurboSound

Frequency response (±3 dB)¹	80 Hz – 20kHz
Frequency response (-10 dB)¹	50 Hz – 20kHz
Nominal dispersion (@ -6 dB points)	80° H x 50° V
Power handling (IEC) PASSIVE	LF: 350 W continuous HF: 50 W continuous FR: 400 W continuous
Peak	LF: 1400 W peak HF: 200 W peak FR: 1600 W peak
Sensitivity (1 W @ 1 m)¹	96 db
Maximum SPL (FR)³	128 dB (134 dB peak)
Impedance	8 Ω
Crossover type	Passive
Components	1 x 10″ (250 mm) Ferrite LF driver
	1 x 1.75″(44.4 mm) voice coil Polymide diaphragm, Neo Motor HF compression driver
