ACME LIGHTNING

The ACME LIGHTNING fixture is inspired by the elements and is designed to perform in them as well. This IP66-rated provides dynamic strobes, powerful pointed beams, and soft flood wash. We have integrated our Smart Glass Technology – also available in the ACME Pixel Line IP fixture (patented) – extends the range and usefulness of the LIGHTNING, making it one of the most versatile strobe and wash fixtures on the market. Smart Glass Technology is a controllable electronic frost softens the fixture’s light allowing additional effects.

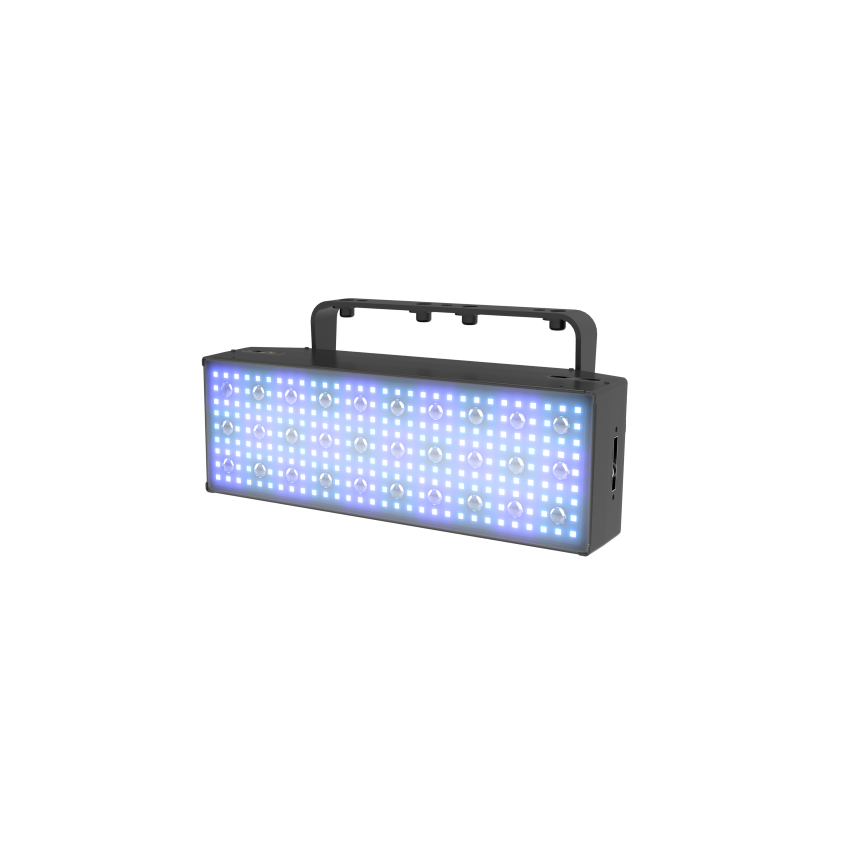

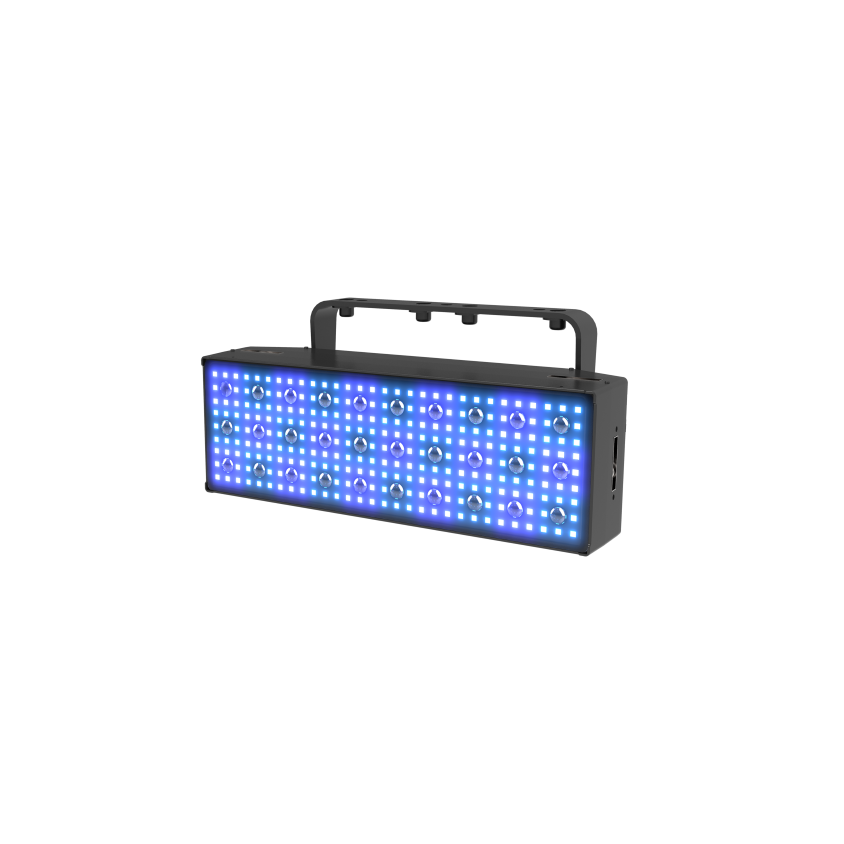

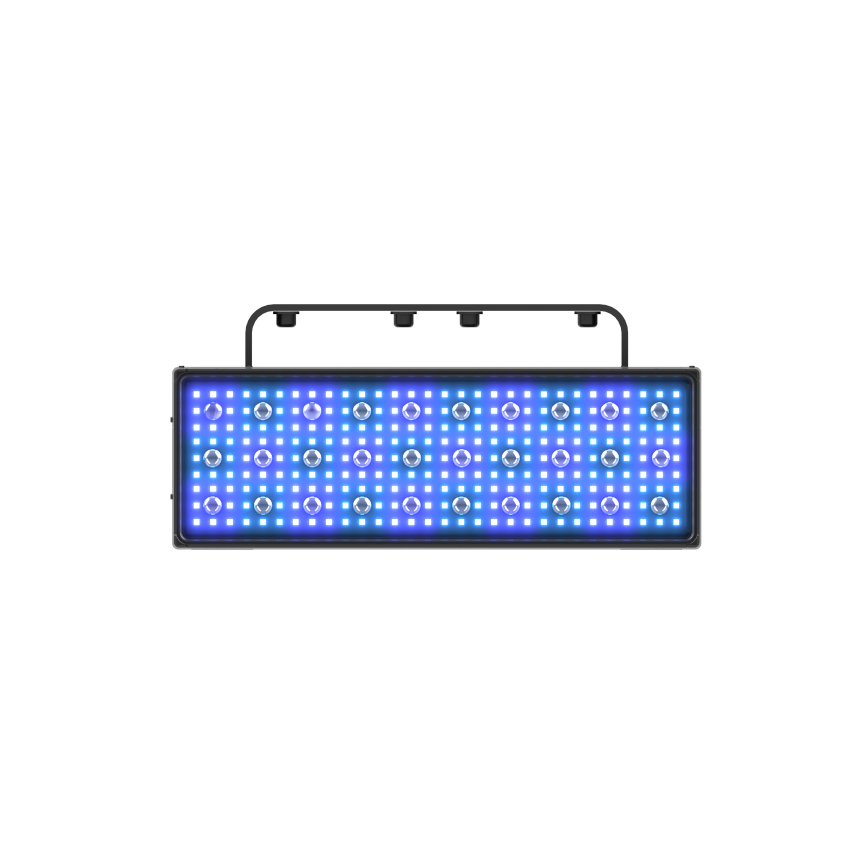

The LIGHTNING is powered by 240, 12-Watt RGBW LEDs and 30, 10-Watt cool white pixel beam LEDs and the RGBW LEDs are divided into 30 independent sections with a cool white LED centered in each color LED section. The RGBW LEDs have a 102° beam angle while the cool white LEDs are at 3.5° for unprecedented effects. Additionally, the unit offers ten different DMX control modes and built-in effects macros giving you unlimited ways to control the fixture for the looks and effects you want.

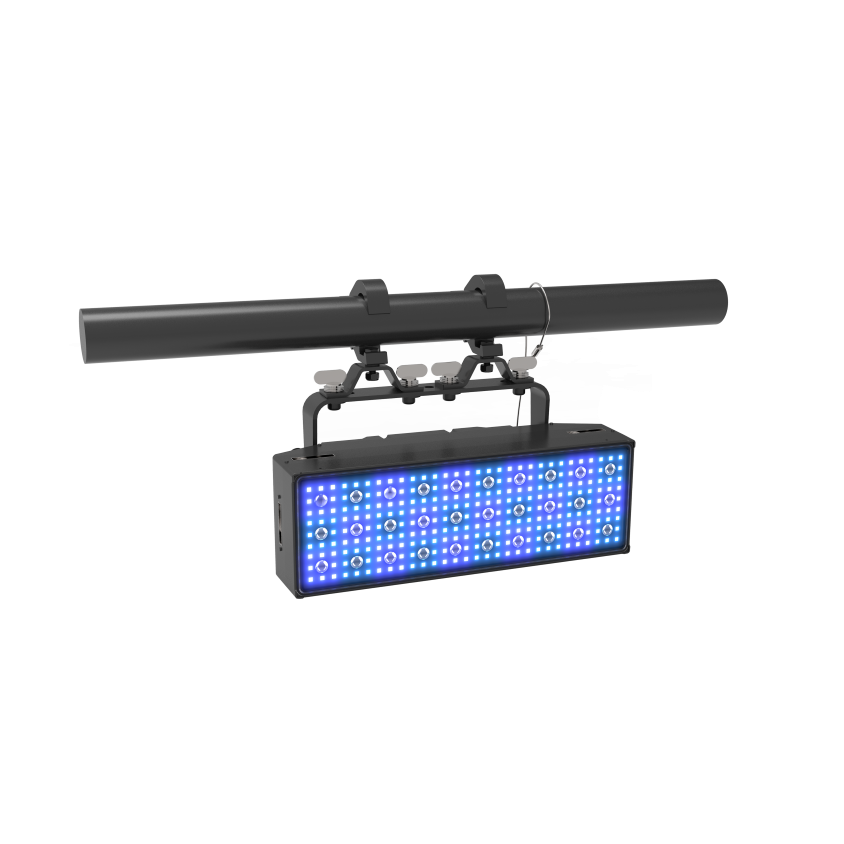

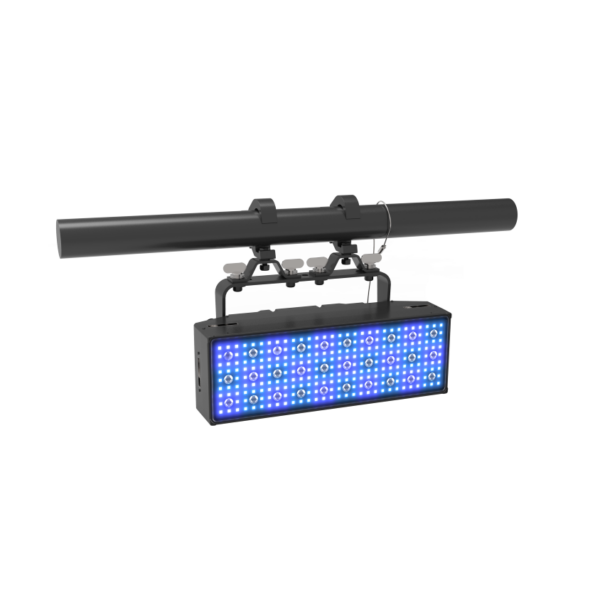

The LIGHTNING can be mounted in any orientation with its yoke. The yoke assembly has a center hole for clamps and two omega bracket attachment points. The unit also features camlocks on all sides to easily create a matrix grid of LIGHTNING fixtures side-to-side -and top-to-bottom and is perfect for any indoor and outdoor application..

The ACME LIGHTNING changes and elevates the standard of strobe and wash lighting.

分類: Acme Lighting, Acme Lighting

描述

Technical Specifications
Light Source & Color
Light Source	240 x 12W RGBW LEDs (30 controllable sections) 30 x 10W CW LEDs (30 controllable sections) Rated Life: 20,000 hours (manufacturer spec)
Color Temp Output	6,300K
Optical System & Smart Glass
Beam Angles	RGBW: 102° \| CW: 3.5°
Smart Glass & Patents	DMX Controllable Smart Glass technology (DMX controllable frost effects) Patents: CN216010577U, US11698183B1, DE202023101966U1, FR3134870B3
Performance Features & Effects
Effects & Dimming	Variable speed strobe effect, smooth 0–100% dimming (4 user-selectable dimming curves), excellent RGBW color mixing, 30 powerful beams
Flicker Free Rate	900 Hz to 25,000 Hz
Interlocking / Rigging Design	Hidden twist-lock design / inventive quick-release mechanism for quick, accessories-free unit combining and alignment
Control & Electrical
Control Protocols & Channels	DMX512, RDM, Art-Net, sACN 10 DMX Protocol Modes / Channels: 10 / 17 / 24 / 21 / 26 / 36 / 41 / 61 / 150 / 158

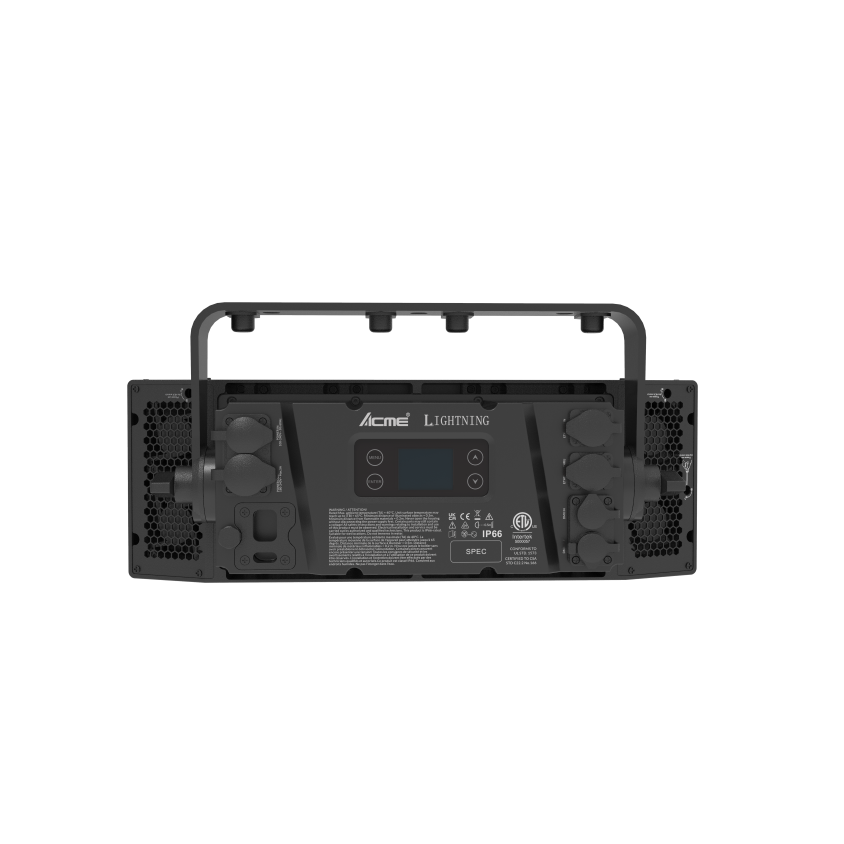

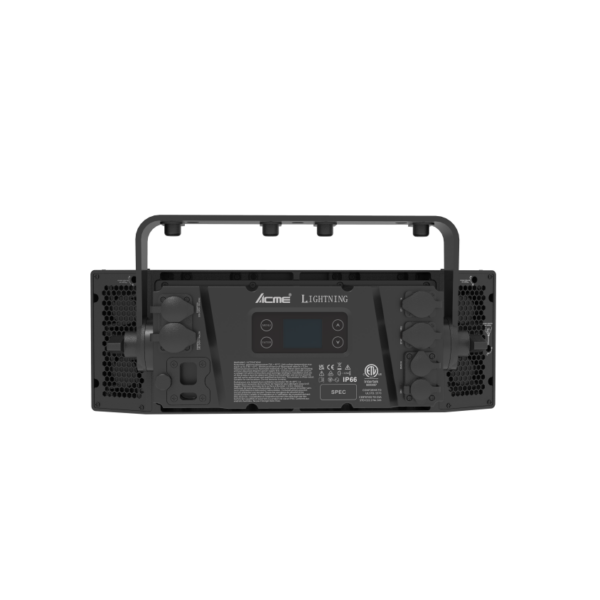

Display & Firmware	4-touch button control panel with LCD display; firmware upgrade via DMX link
Input Voltage & Power	100–240 Vac, 50/60 Hz \| Power Consumption: 1,610 W
Connectors	Power: Waterproof power connector in/out Data: 3-pin or 5-pin waterproof XLR, RJ45 connector
Physical, Packaging & Environment
Fixture Dimensions & Weight	483 x 212 x 224 mm (19.0″ x 8.4″ x 8.8″) \| Weight: 13.3 kg (29.3 lbs)
Packaging Options	Carton (One-pack): 590 x 320 x 390 mm (23.0″ x 13.0″ x 15.0″) \| G.W.: 16.5 kg (37 lbs) Flight Case 1 (Standard Four-pack): 1,220 x 610 x 655 mm (48.0″ x 24.0″ x 25.7″) \| G.W.: 105.0 kg (231 lbs) Flight Case 2 (North American Four-pack): 480 x 240 x 260 mm (18.9″ x 9.4″ x 10.2″) \| G.W.: 254.0 kg (560.0 lbs)
Operating Environment	Ambient Temp: -10°C to 40°C \| Max Surface Temp: 65°C Protection Rating: IP66
Approvals	CE compliant, UKCA compliant, cETLus compliant
Installation & Rigging	Horizontal or vertical mounting, universal working position, safety cable point
Included Items	Digital user manual, power cable
