ACME NOVA BEAM

Overview

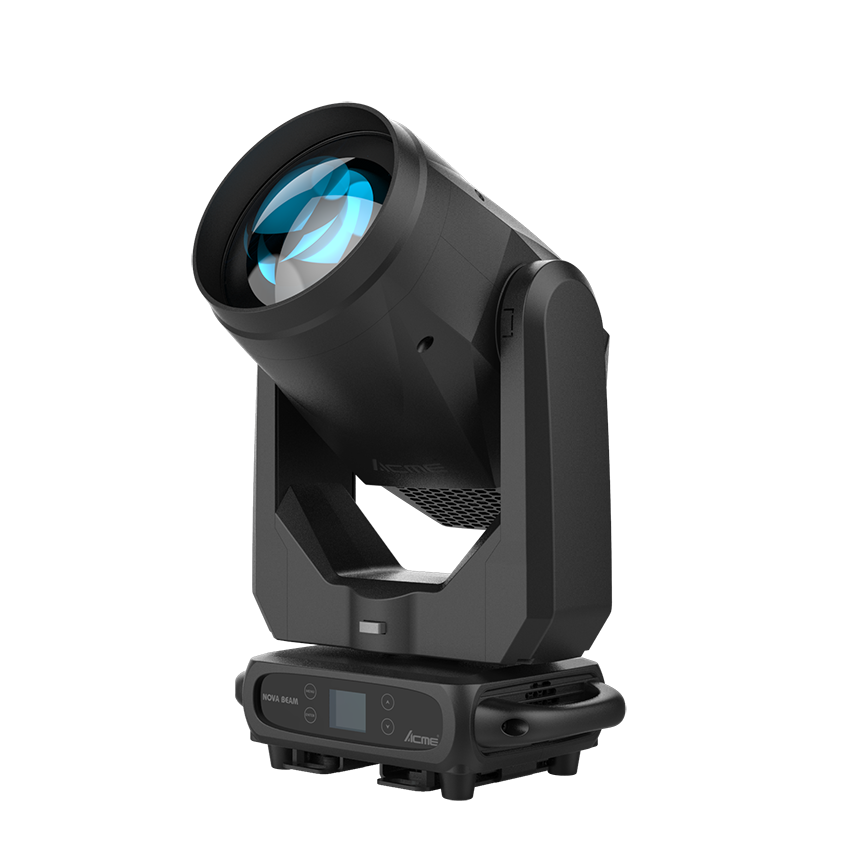

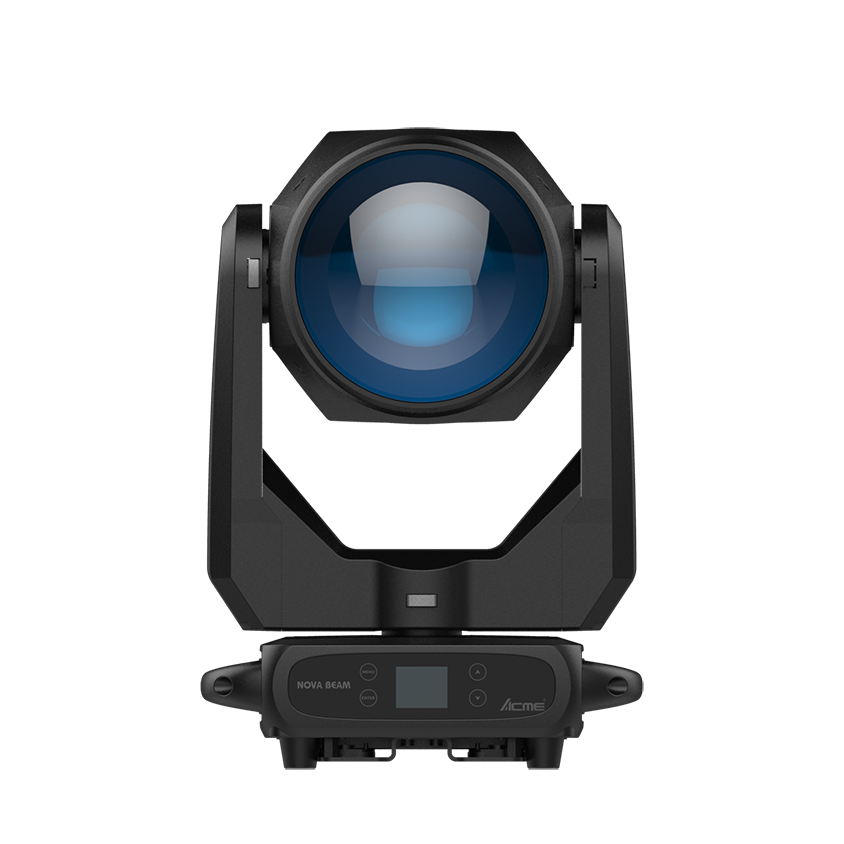

The ACME NOVA BEAM is a compact 300W LED moving beam fixture, engineered for crisp and sharp projection in indoor applications. Delivering 5,700 lumens through a large 180 mm frontal lens, the fixture produces an ultra-tight 2° beam with stunning clarity.

Weighing just 17.2 kg (37.8 lbs), the NOVA BEAM is packed with all the creative design functions you need: a color wheel with 12 colors, a static gobo wheel with 7 static gobos and 3 effect gobos, and dual rotating prisms (1 x 6-facet and 1 x 12-facet circular prism).

To enhance its flexibility, the fixture features a motorized linear iris and motorized focus system for precise beam control, along with a frost filter that softens edges to create smooth transitions between beam and wash effects.

With its versatile features and compact design, the NOVA BEAM is an ideal choice for theaters, clubs, and any indoor production requiring high-impact visuals.

分類: Acme Lighting, Acme Lighting

描述

Technical Specifications
Light Source & Photometric Data
Light Source	300W LED engine (20,000 hours rated life)
Color Temperature Output	8,000K
Total Lumen Output	5,700 lm
Optical System, Pan & Tilt
Beam Angle & Lens	Beam Angle: 2° Front Lens Diameter: 180 mm
Pan & Tilt Movement	Pan: 540° \| Tilt: 270° 16-bit resolution, automatic position correction, mechanical locks
Colors, Gobos & Effects
Color Wheel	1 wheel with 12 colors + open
Static Gobo Wheel	7 gobos + 3 effect gobos + open (Gobo Size: OD 108 mm)
Prism & Frost	Prisms: 2 combinable rotating & indexable prisms (1x 6-facet circular, 1x 12-facet circular, bidirectional) Frost: 1 frost filter
Strobe, Dimmer & Focus	Variable speed strobe, smooth 0–100% dimming (4 selectable curves), motorized focus system
Control & Electrical
Control Protocols & Channels	DMX512, RDM, Art-Net, sACN (1 mode: 19 Channels)
Display & Firmware	4-touch button control panel with LCD display; firmware upgrade via DMX link or USB stick
Input Voltage & Power	100–240 Vac, 50/60 Hz \| Max Power Consumption: 425 W
Connectors	Power: Power connector in/out Data: 3-pin or 5-pin XLR, RJ45 connector
Physical, Packaging & Environment
Fixture Dimensions & Weight	309 x 206 x 520 mm (12.2″ x 8.1″ x 20.5″) \| Weight: 17.2 kg (37.8 lbs)
Carton Dimensions & Weight	460 x 400 x 600 mm (18.1″ x 15.8″ x 23.6″) \| G.W.: 22.0 kg (48.5 lbs) (One-pack loader carton)
Operating Environment	Ambient Temp: -10°C to 45°C \| Max Surface Temp: 65°C Protection Rating: IP20
Approvals	CE compliant, UKCA compliant, cETLus compliant

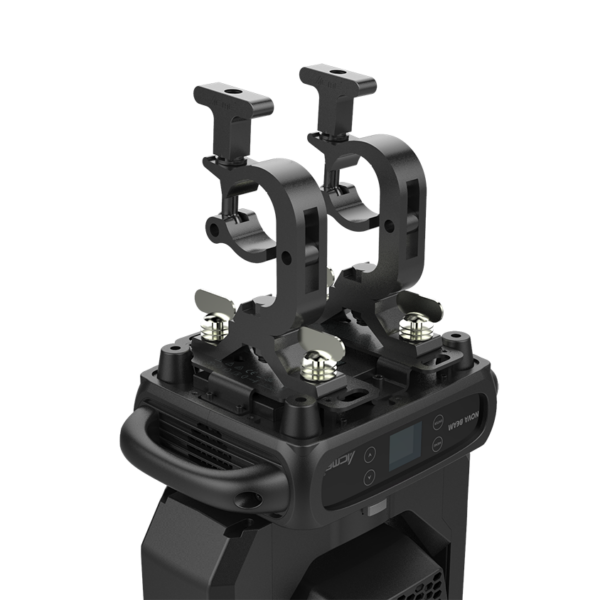

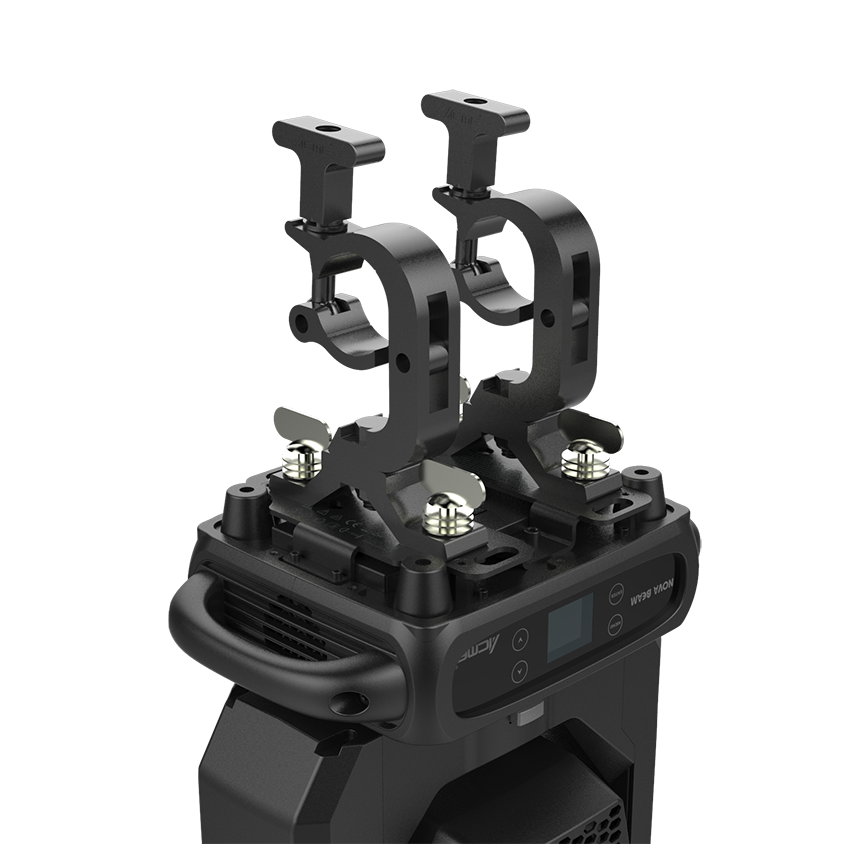

Installation & Included Items	Horizontal or vertical mounting (2x omega brackets [3002003002], safety cable point, power cable, and QR code for digital manual)
