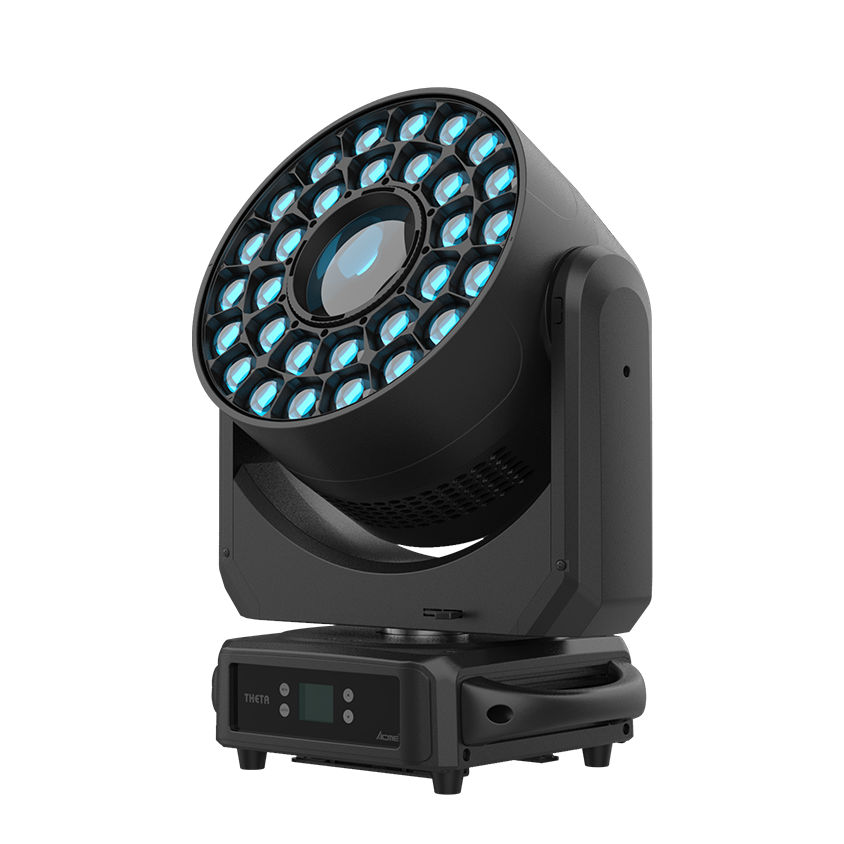

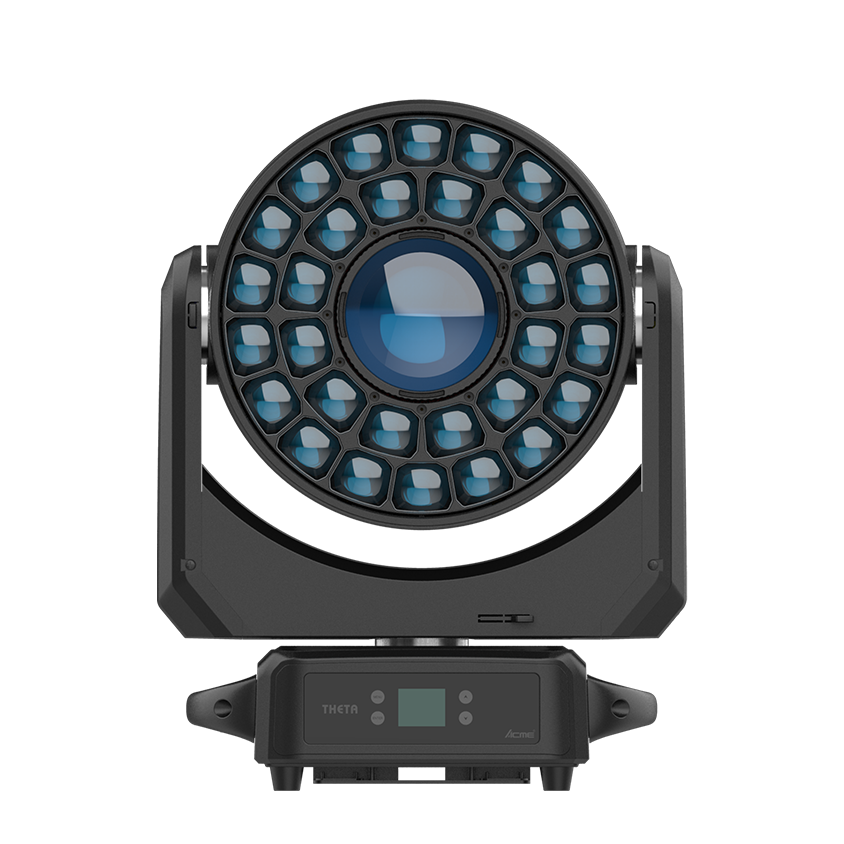

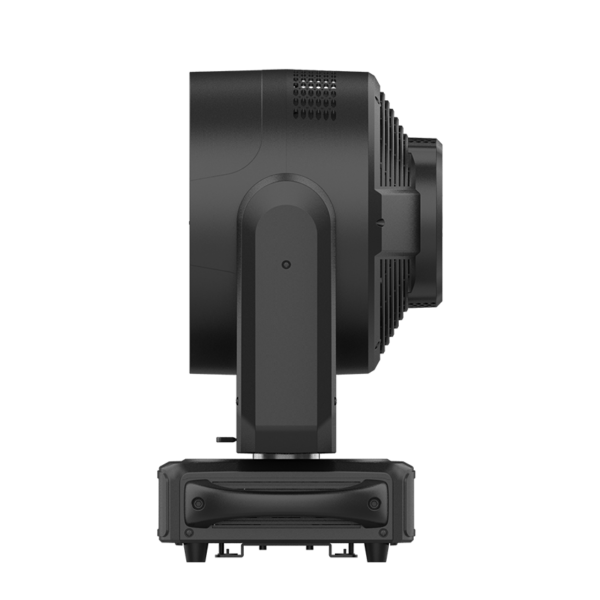

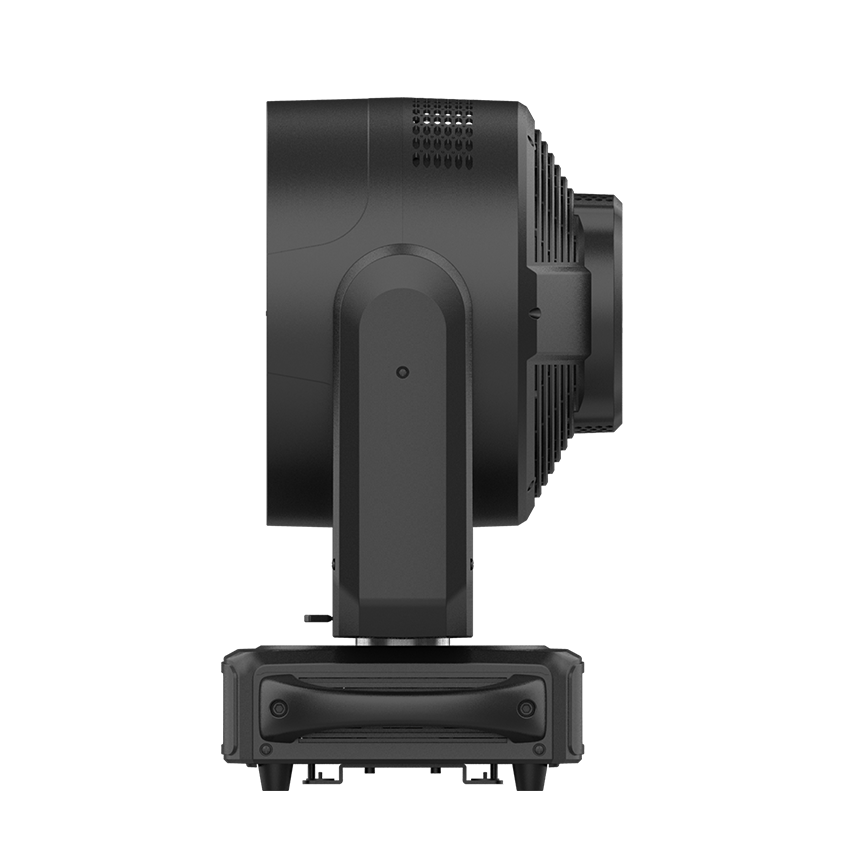

ACME THETA LED Wash

The ACME THETA combines beam and wash features into one extraordinary luminaire for powerful effects and deep color washes. The center section is powered by a 200-Watt cool white LED and the surrounding wash section has 30, 40-Watt RGBW LEDs.

The center beam portion of THETA is equipped with a color wheel with 13 colors, a static gobo wheel with 9 patterns, 8-facet and 16-facet prisms, and a frost filter. The beam is a tight 3° beam angle and has motorized focus to sharpen images. The two prisms can be overlaid and are rotatable in either direction for amazing lighting effects.

THETA’s wash section delivers a wide range of rich, deep colors and includes a zoom range from 4° to 51°, individual pixel control, CTO color temperature adjustment from 2500K to 8000K, and color macro effects, providing lighting designers with a wide range of creative options and looks.

分類: Acme Lighting, Acme Lighting

描述

Technical Specifications
Light Source & Photometric Data
Light Source	Beam Engine: 200W CW LED Wash Engine: 30 x 40W RGBW LED (20,000 hours rated life)
Color Temperature Output	7,000K
Total Lumen Output	Beam Output: 4,000 lm Wash Output: 19,500 lm
Optical System, Pan & Tilt
Beam Angle & Zoom	200W LED Beam Angle: 3° 40W RGBW LED Zoom Range: 4° – 51°
Pan & Tilt Movement	Pan: 540° \| Tilt: 215° 16-bit resolution, automatic position correction, mechanical locks
Colors, Gobos & Effects
Color Correction & Wheel	Linear CTO (2,500K – 8,000K) + 1 Color Wheel (13 colors + open)
Static Gobo Wheel	6 gobos + 3 effect gobos + open (Gobo Size: OD 100 mm)
Prism & Frost	Prisms: 2 combinable rotating/indexable prisms (1x 8-facet circular, 1x 16-facet circular, bidirectional) Frost: 1 frost filter
Strobe, Dimmer, Zoom & Focus	Variable speed strobe, smooth 0–100% dimming (4 selectable curves), motorized focus, motorized zoom
Control & Electrical
Control Protocols & Channels	DMX512, RDM, Art-Net, sACN (5 modes: 19+ / 27 / 29 / 139 / 141 Channels)
Display & Firmware	4-touch button control panel with LCD display; firmware upgrade via DMX link
Input Voltage & Power	100–240 Vac, 50/60 Hz \| Max Power Consumption: 1,600 W
Connectors	Power: Power connector in/out Data: 3-pin or 5-pin XLR, RJ45 connector
Physical, Packaging & Environment
Fixture Dimensions & Weight	454 x 341 x 590 mm (17.9″ x 13.4″ x 23.2″) \| Weight: 34.0 kg (75.0 lbs)
Packaging Options	Flight Case (Two-pack): 1,220 x 685 x 645 mm (48.0″ x 27.0″ x 25.4″) \| G.W.: 122.5 kg (270.1 lbs) Carton (One-pack): 560 x 470 x 675 mm (22.1″ x 18.5″ x 26.6″) \| G.W.: 40.0 kg (88.2 lbs)
Operating Environment	Ambient Temp: 0°C to 40°C \| Max Surface Temp: 65°C Protection Rating: IP20
Approvals	CE compliant, UKCA compliant, cETLus compliant

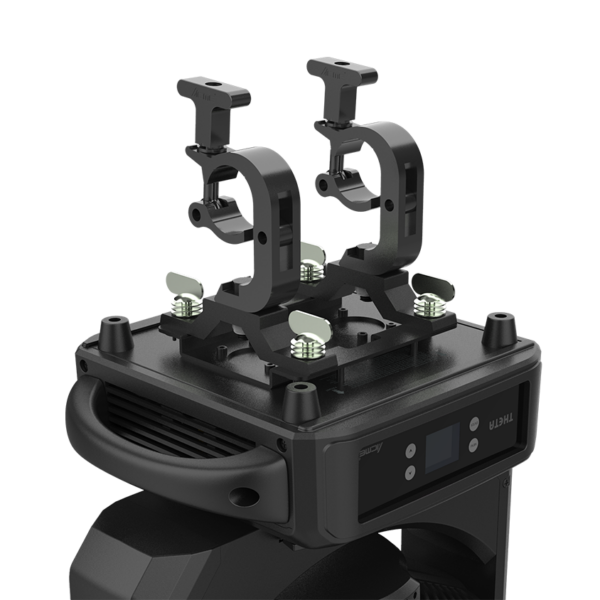

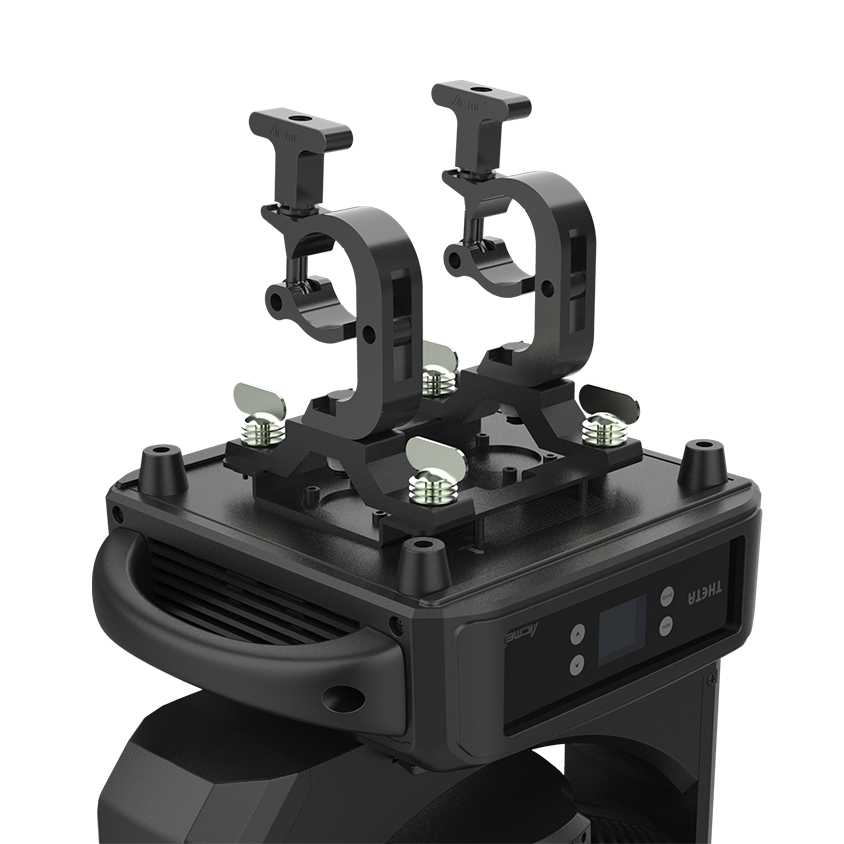

Installation & Included Items	Universal working position, horizontal or vertical mounting (2x omega brackets [3002000288-B], safety cable point, power cable, digital manual)
