ACME PIXEL LINE IP 500

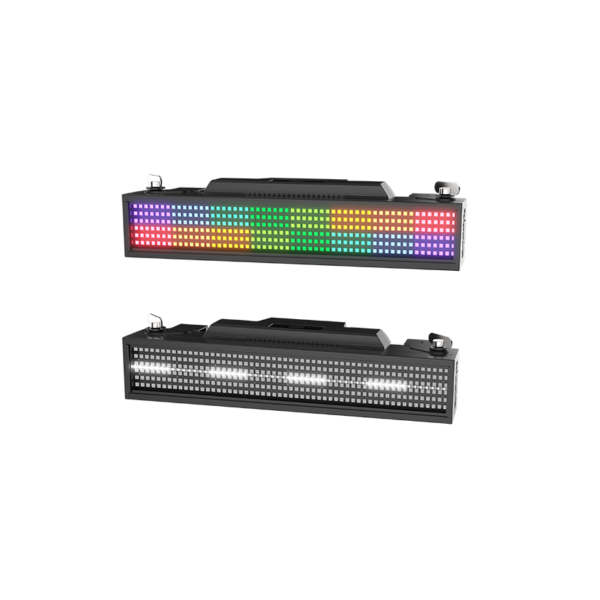

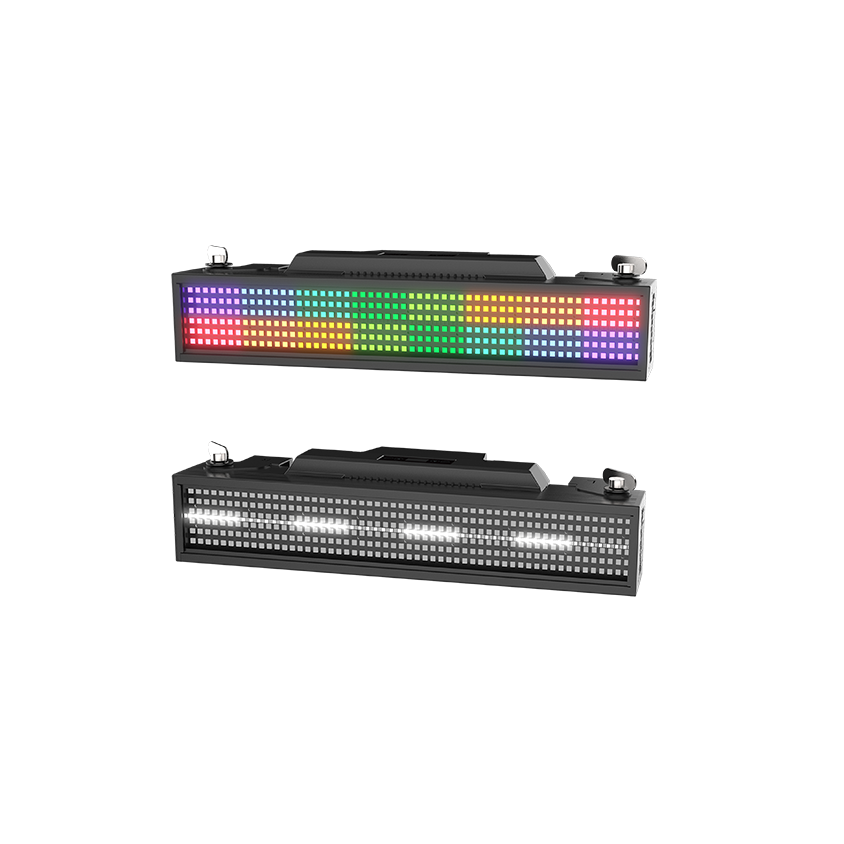

The ACME PIXEL LINE IP 500 is an remarkable fixture equipped with 336 0.5-Watt RGB LEDs and 112 6-Watt cool white LEDs, all divided into 16 controllable sections. The RGB LEDs boast a beam angle of 102° and a field angle of 149°, while the cool white LEDs boast a beam angle of 108° and a field angle of 150°.

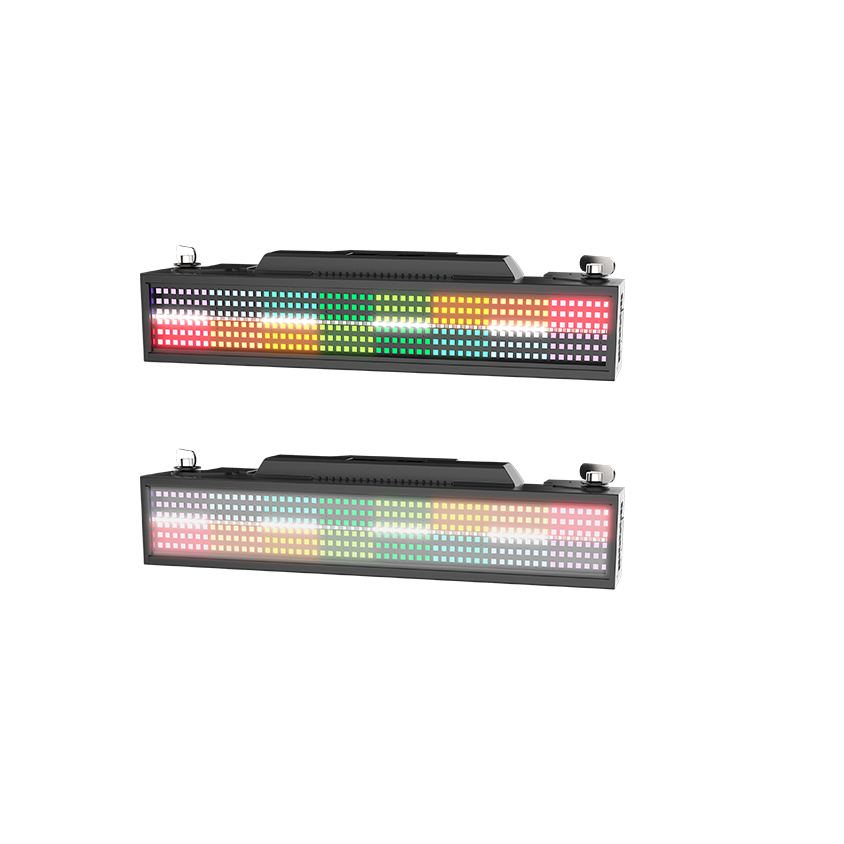

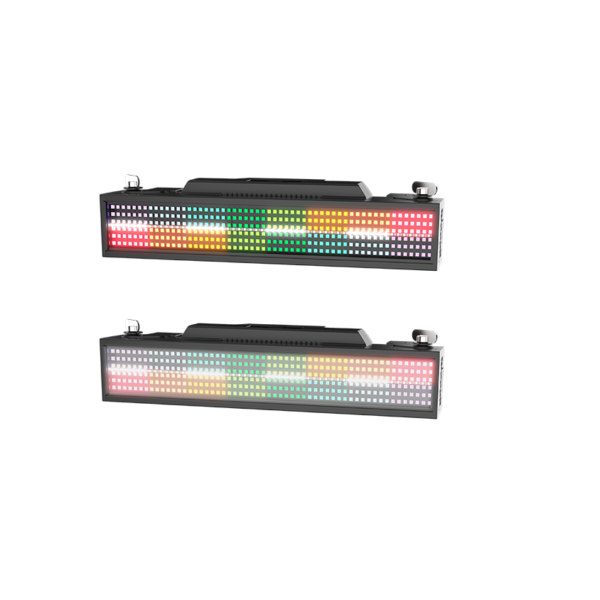

With its outstanding color mixing effects, high output strobe effects, and patented Smart Glass Technology for frost effects, the PIXEL LINE IP 500 delivers a stunning visual effect that will leave you in awe. It is also designed for durability with an IP66 rating, making it suitable for both indoor and outdoor use.

Furthermore, it can be mounted horizontally or vertically, further increasing its versatility. Whether you’re looking to create a dynamic lighting atmosphere or simply add some visual flair to your space, the PIXEL LINE IP 500 is the perfect choice.

分類: Acme Lighting, Acme Lighting

描述

Technical Specifications
Versions & Light Source
Versions	Version 1: STROBE 1 IP (Omega Bracket Mounting) Version 2: STROBE 1 IP (Fixed Foldable Clamp) Note: Different versions cannot be connected together.
Light Source	336 x 0.5W RGB LEDs (16 controllable sections) 112 x 6W CW LEDs (16 controllable sections) Rated Life: 30,000 hours (manufacturer spec)
Color Temp Output	7,000K–7,500K
Photometric Data & Optics
Total Lumen Output	56,500 lm
Beam Angles	RGB: 102° \| CW: 108°
Field Angles	RGB: 149° \| CW: 152°
Smart Glass & Patents	DMX Controllable Smart Glass technology Patents: CN216010577U, US11698183B1, DE202023101966U1, FR3134870B3
Performance Features & Modes

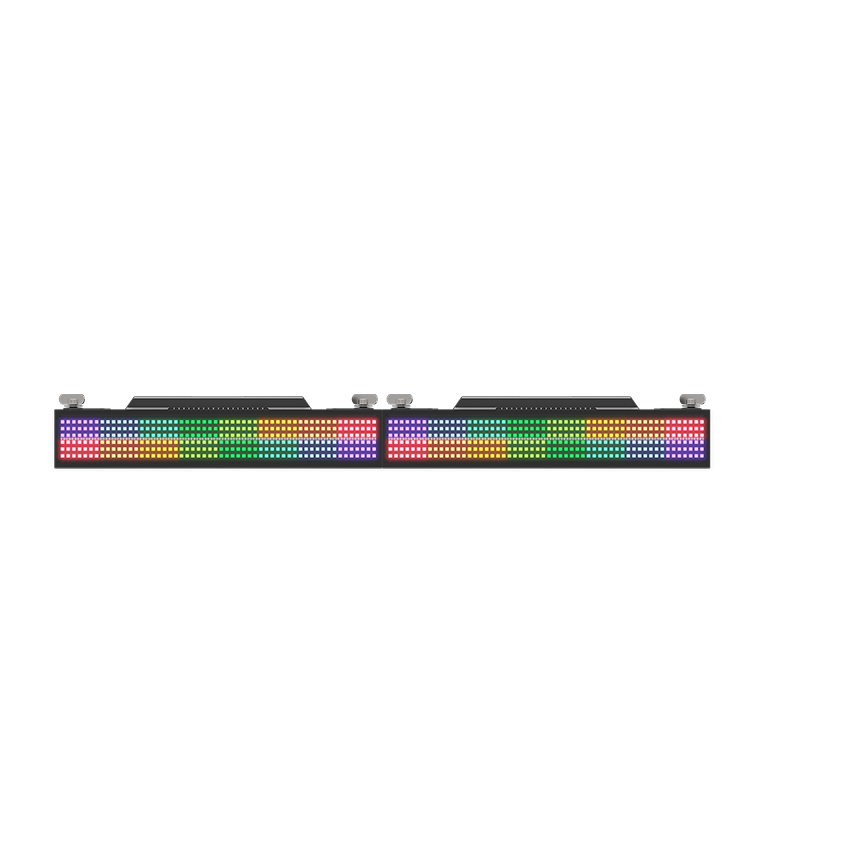

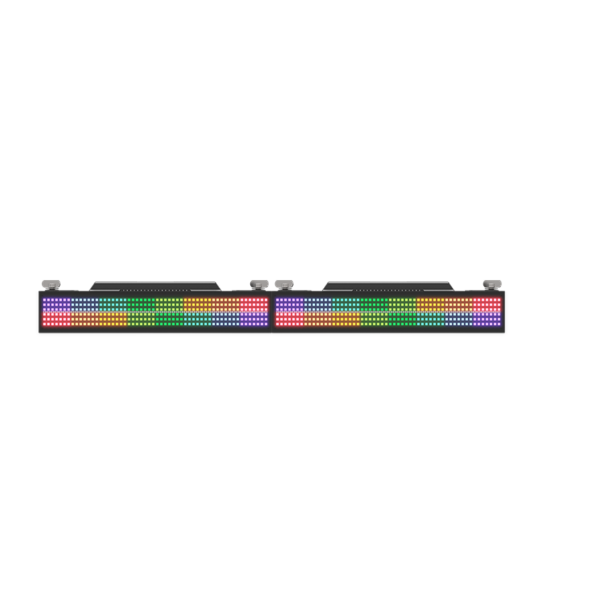

Linear Modes	Powerful Mode: 16 RGB sections + 16 CW sections (high output, high brightness) Splicing Mode: 16 RGB sections + 8 CW sections (same output as Pixel Line IP)
Effects & Dimming	Variable speed strobe effect, smooth 0–100% dimming (4 user-selectable dimming curves), outstanding color mixing
Control & Electrical
Control Protocols & Channels	DMX512, RDM, Art-Net, sACN 15 DMX Protocol Modes / Channels: 8 / 10 / 16 / 18 / 22 / 26 / 34 / 37 / 38 / 39 / 56 / 62 / 63 / 68 / 69
Display & Firmware	4-touch button control panel with OLED display; firmware upgrade via DMX link
Input Voltage & Power	100–240 Vac, 50/60 Hz \| Power Consumption: 875 W
Connectors	Power: Waterproof power connector in/out Data: 3-pin or 5-pin waterproof XLR, RJ45 connector
Physical, Packaging & Environment
Fixture Dimensions & Weight	Dimensions: 500 x 113 x 124 mm (19.7″ x 4.5″ x 4.9″) Omega Bracket Version Weight: 5.1 kg (11.2 lbs) Fixed Foldable Clamp Version Weight: 5.8 kg (12.8 lbs)
Packaging Options	Carton (One-pack): 595 x 215 x 220 mm (23.4″ x 8.5″ x 8.7″) \| G.W.: 6.5 kg (14.3 lbs) Flight Case 1 (Standard Eight-pack): 1,170 x 580 x 580 mm (46.1″ x 22.8″ x 22.8″) \| G.W.: 100.0 kg (220.5 lbs) Flight Case 2 (North American Ten-pack): 1,220 x 610 x 810 mm (48.0″ x 24.0″ x 31.9″) \| G.W.: 125.0 kg (275.6 lbs)
Operating Environment	Ambient Temp: -10°C to 40°C \| Max Surface Temp: 65°C Protection Rating: IP66 \| IP Class Test Verification
Approvals	CE compliant, UKCA compliant, cETLus compliant

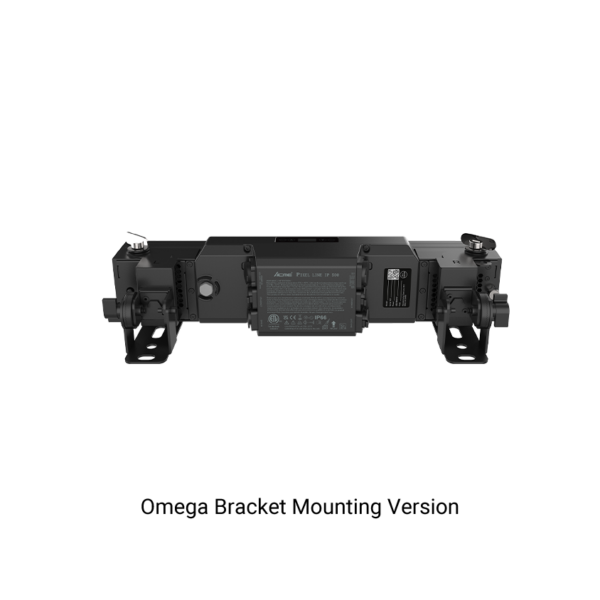

Installation & Rigging	Horizontal or vertical mounting, universal working position, safety cable point, 2x omega brackets included
Included Items	Digital user manual, power cable, 2x omega brackets (63583242)
