| System Type | Two-Way loudspeaker, bass reflex |

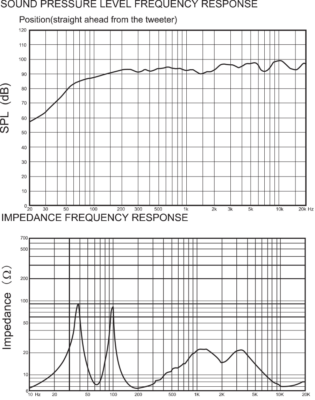

| Frequency Range(-10dB) *1 | 57Hz~20kHz |
| Frequency Response(±3dB) *1 | 95Hz~20kHz |
| Sound Pressure Level *2 | 93dB |
| Impedance | 8Ω |
| Max Sound Pressure Level *3 | 118dB(Peak 124dB) |
| Power Capacity | Continuous 300W, Program 600W, Peak 1200W |
| Dimensions | (W)319mm×(H)530mm×(D)357mm (12.5″×20.8″×14.0″) |
| Shipping Dimensions | (W)424mm×(H)635mm×(D)460mm (16.7″×25.0″×18.1″) |
| Net Weight | 16.6kg(36.6lbs) |
| Shipping Weight | 19.5kg(43.0lbs) |
| Input Connectors | Speaker Connector(4P)×2 |
| Pole Mount Cap | Φ36mm(1.4″), Depth 75mm(3.0″) |
| Speaker unit | LF Unit:250mm(10.0″) Cone, 65mm(2.6″) Voice Coil×1 HF Unit:25mm(1.0″) Throat, 34.4(1.3″)mm Voice Coil× 1 |
| Enclosure Construction | 15mm(0.6″) Plywood |
| Accessories | Owners manual Registration card |
| *1 Full space (4π) conditions *2 1w1m on-axis, swept-sine in anechoic environment *3 Calculated |
|
