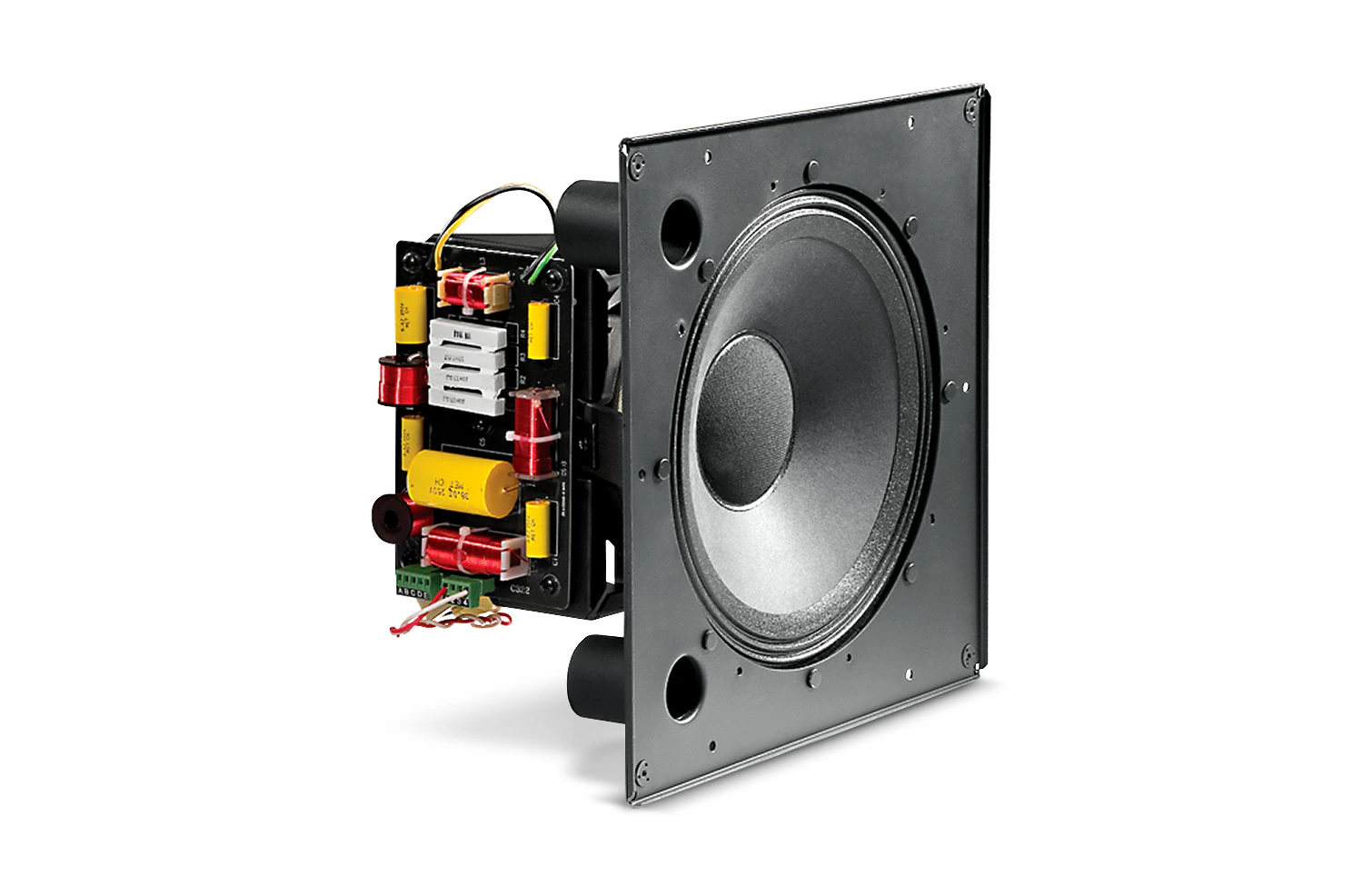

JBL Control 322C Ceiling Loudspeaker

The Control 322C delivers exceptional next-generation performance in a coaxial point source design ceiling loudspeaker.

Consistent 90° broadband pattern control.
Components
• Kevlar-reinforced 300 mm (12 in) woofer with 75 mm (3 inch) voice-coil cone.
• Medium-format compression driver.
Extraordinary clarity for speech and vocals with extended frequency response for music.
Power handling of 400 Watts with high sensitivity provides high SPL capability.
Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
Clean, contemporary grille and optional backbox available.

分類: JBL, JBL

Frequency Range (-10dB)	32 Hz – 20 kHz
Power Rating	IEC Long-Term System Power Rating: 400 W continuous pink noise (1600 W peak), 2 hrs 250 W continuous pink noise (1000 W peak), 100 hrs
Sensitivity	95 dB (1 kHz – 16 kHz)
Frequency Response (±3 dB)	48 Hz – 19 kHz
Coverage Angle	90° conical, constant directivity
Directivity Factor (Q)	9 (1k – 16kHz)
Directivity Index (DI)	9.5dB (1k – 16kHz)
Crossover Network	1.4 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
Impedance	8 ohms
Dimensions (H x W x D)	366 x 366 mm (14.4 x 14.4 in) square baffle x depth from back of baffle of 223 mm (8.8 in)
Maximum SPL (1m)	121 dB (127 dB peak)
Input Connectors	Screw locking barrier strip for bare wire
Drivers	LF Driver: 300 mm (12 in) HF Driver: compression driver, 37 mm (1.5 inch) coil
Color	White
Safety Agency	Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70 when installed with UL listed backcan such as JBL MTC-300BB12. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan	formed steel (wood-lined; accessory)

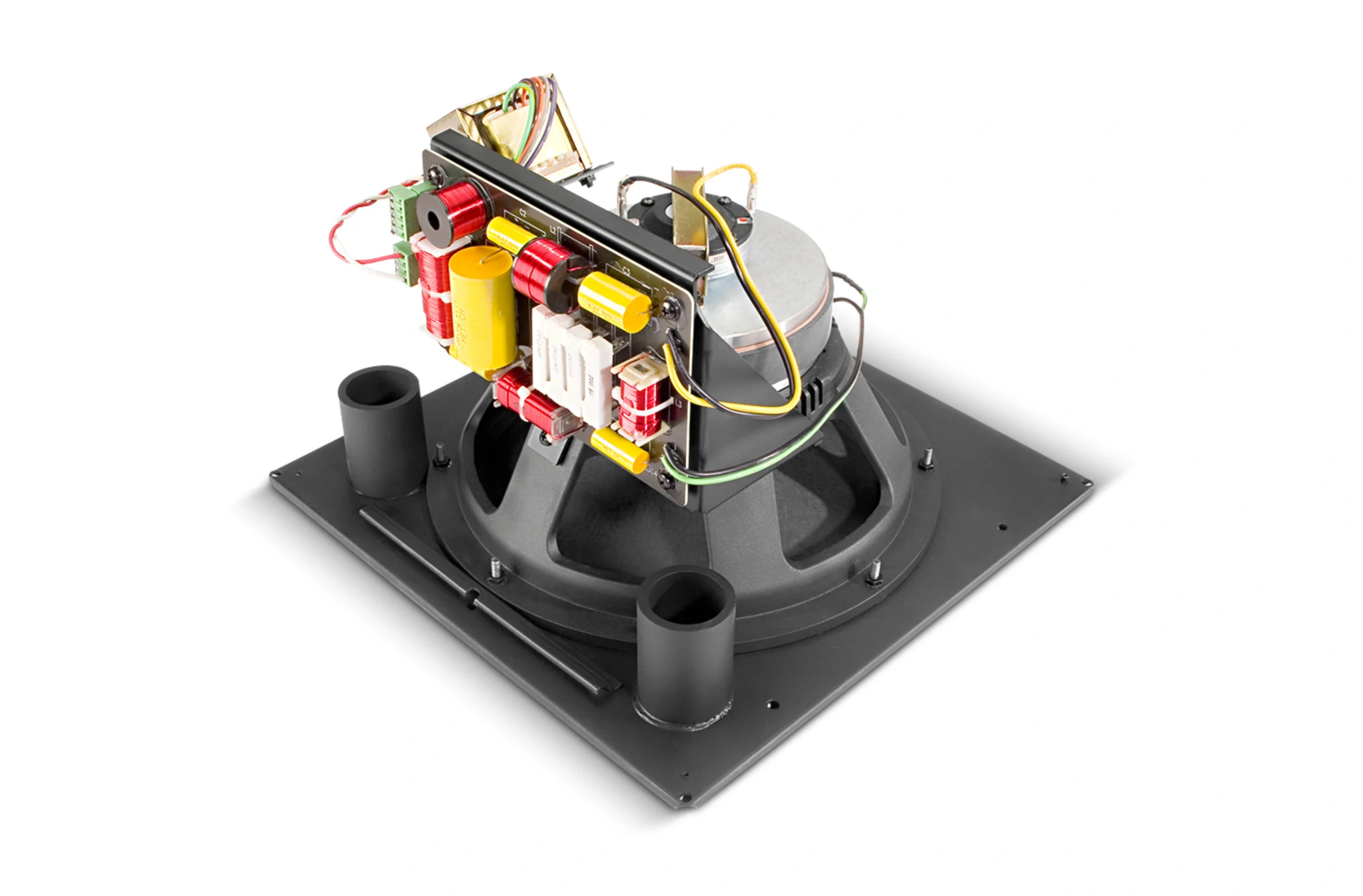

Baffle/Rim	Metal, driver pre-mounted to baffle, ported.
Ceiling Cutout Size	378 x 378 mm (14.9 x 14.9 in) (for MTC-300BB12 backcan)
Optional Accessories	MTC-300SG12 Grille, square contoured, white. MTC-300BB12 Backbox, 80 liters (3 cubic feet) MTC-300T150 Transformer, 150 W for use with 322C.
Plenum Usage	Yes, with accessory backcan
