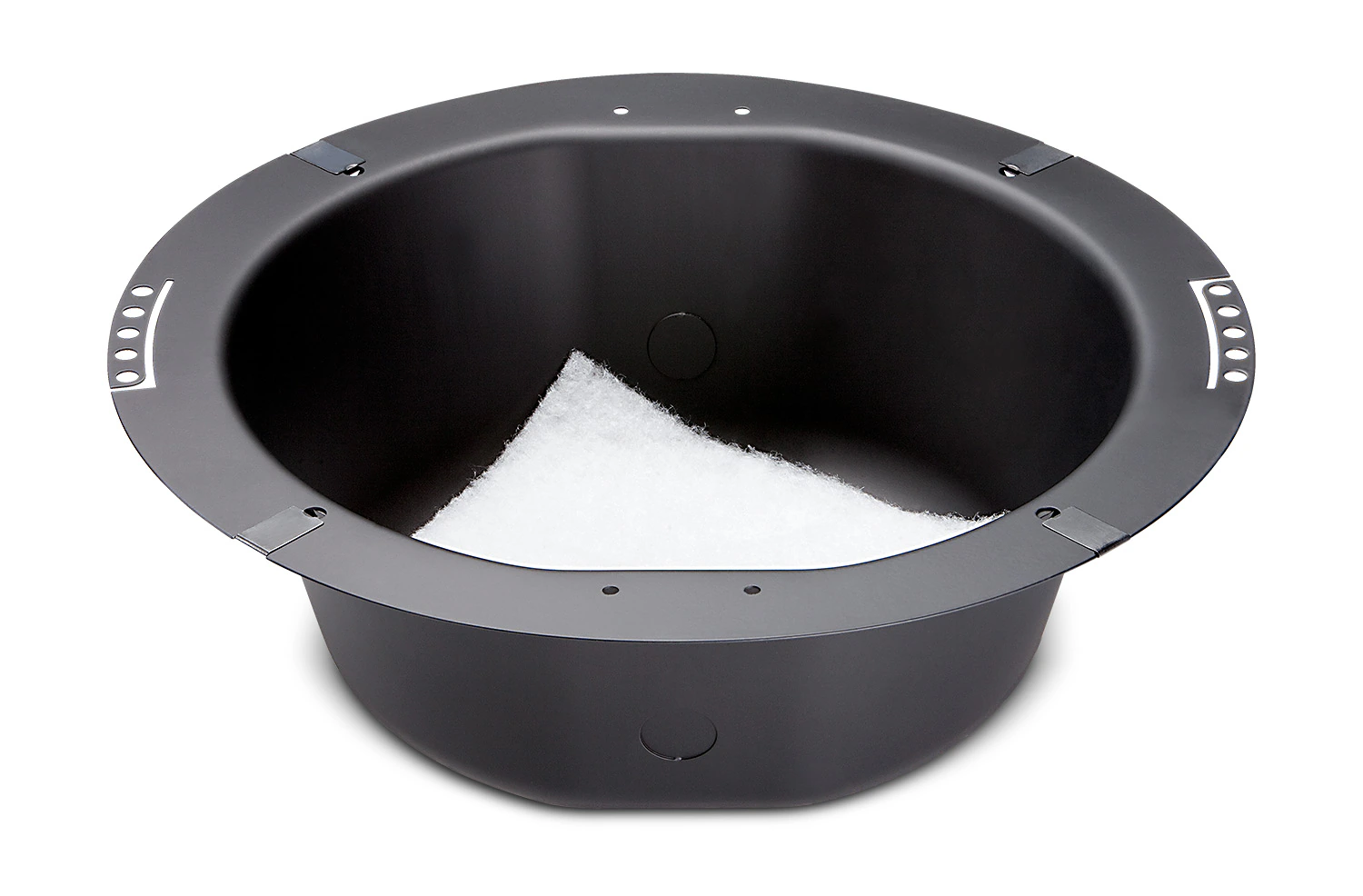

JBL CSS-BB8x6 Backcan

CSS-BB8x6

Pre-install backcan for use with CSS8008 or CSS8018 speaker.

For suspended ceilings, tile rail is CSS-TR4/8.

Comes in packs of 6 pcs CSS-BB8x6, for 6 speakers.

分類: JBL, JBL

Compatibility	CSS-8008 and CSS-8018 speaker, CSS-TR4/8 tile rails
Dimensions	108 deep x 334 diameter mm (4.3 x 13.2 in)
Bolt Mount Circle	4 points on 286 mm (11.25 in) diameter
Air Space	4.0 liters (0.15 cu ft)
Material	Steel, zinc-plated, powder-coated
Conduit Knockouts	Five (5) knockouts:4 on sides spaced at 90° and1 at center of top panel
Attachment Points	4 points on 286 mm (11.25 in) diameter with clip nuts for 4 screws.
Safety Agency	Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 & NFPA 70, when installed with corresponding UL Listed loudspeaker, above. S7232/UL Listed, Signaling Speaker. CUL Listed. In accordance with IEC60849/EN60849.
Net Weight (each)	0.87 kg (2.0 lb)
Shipping Weight (ea)	1.04 kg (2.3 lb)
Included Accessories	4 pcs M4 x 8 mm machine screws for attaching two tiles rails to backcan
