| Technical Specifications | |
|---|---|
| Overview | |
| Speaker Type | 12-inch (300mm) 3-way Bookshelf Loudspeaker |
| Acoustic & Performance Data | |
| Frequency Response (-6 dB) | 40 Hz – 40 kHz |
| Sensitivity (2.83V / 1m) | 90 dB |
| Impedance & Power | Impedance: 4 ohms Recommended Amplifier Power: 25–200 Watts RMS |
| Crossover Frequencies | 450 Hz, 3.5 kHz |
| Transducers | |
| Low Frequency Driver | 12-inch (300 mm) cast-frame Pure Pulp cone woofer with Dual Spider (JW300SW-8) |
| Mid Frequency Driver | 5.25-inch (130 mm) Polymer-coated Pure Pulp cone (JM125PC-8) |
| High Frequency Driver | 1-inch (25 mm) Titanium dome tweeter mated to acoustic lens and waveguide (JT025Ti2-4) |
| Physical, Dimensions & Construction | |
| Dimensions With Grille (H x W x D) | 25.3 in x 15.4 in x 14.4 in |
| Weight & Shipping | Net Weight (ea): 63 lb (28.6 kg) each Shipping Weight (ea): 73 lb (33.1 kg) each Shipping Unit: Single Speaker |

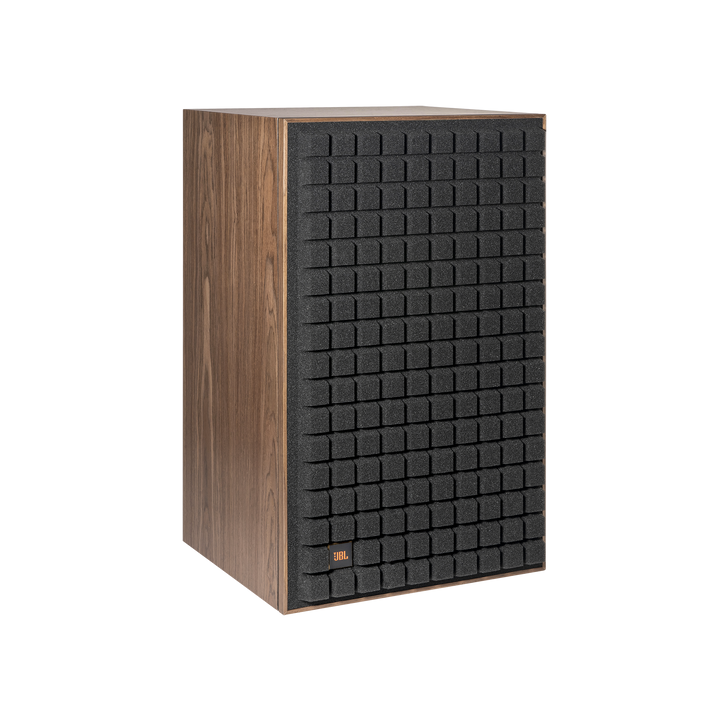

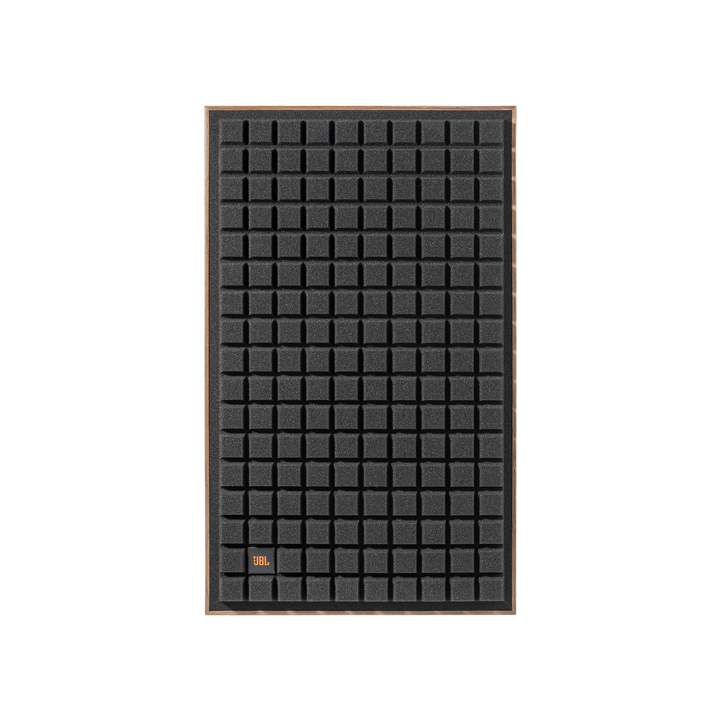

| Finish & Grille | Natural Walnut veneer with Black, Orange, or Blue Quadrex Foam Grille |
| Controls & Connectivity | |
| Controls | Attenuators for MF and HF level control |
| Connector Type | Dual sets of Gold-plated Binding Posts |
| Accessories & Stand | |

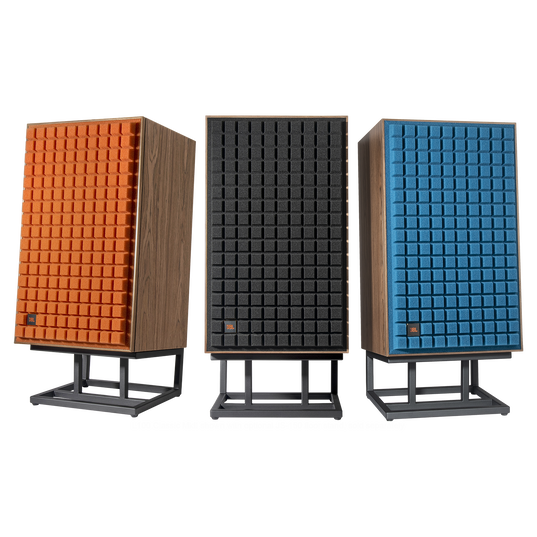

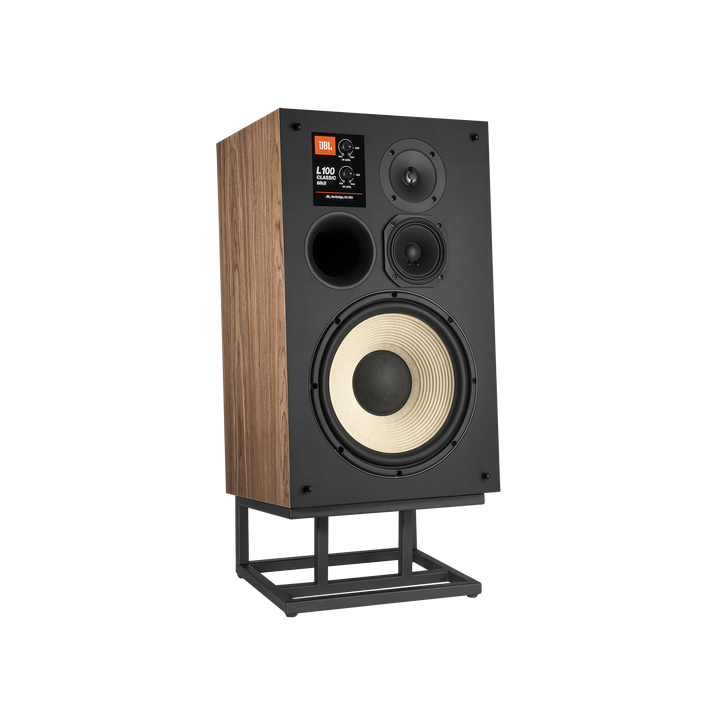

| Recommended Stand | JBL JS-120 or JS-150 (Sold Separately) Recommended Stand Height: 7 in (180 mm) |
