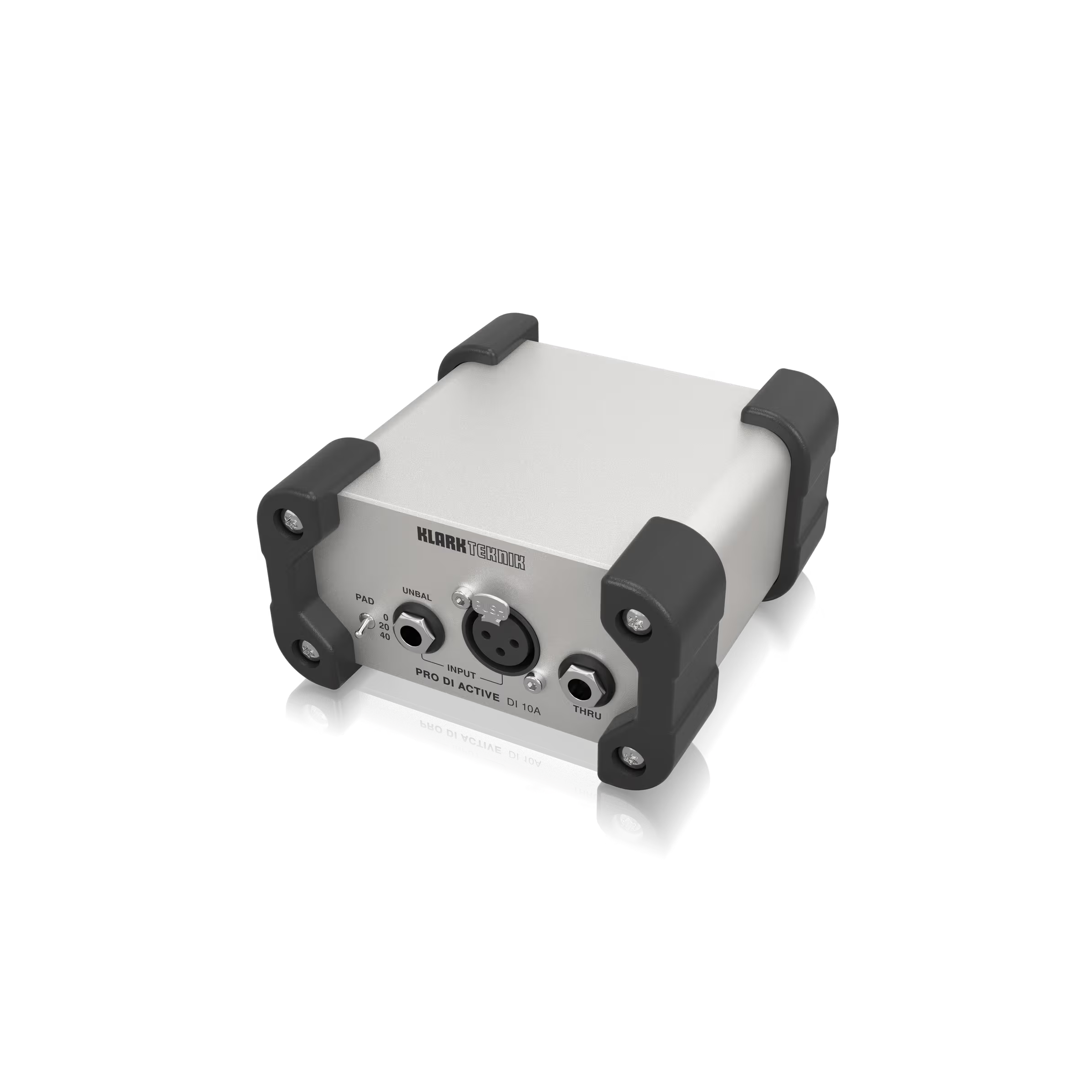

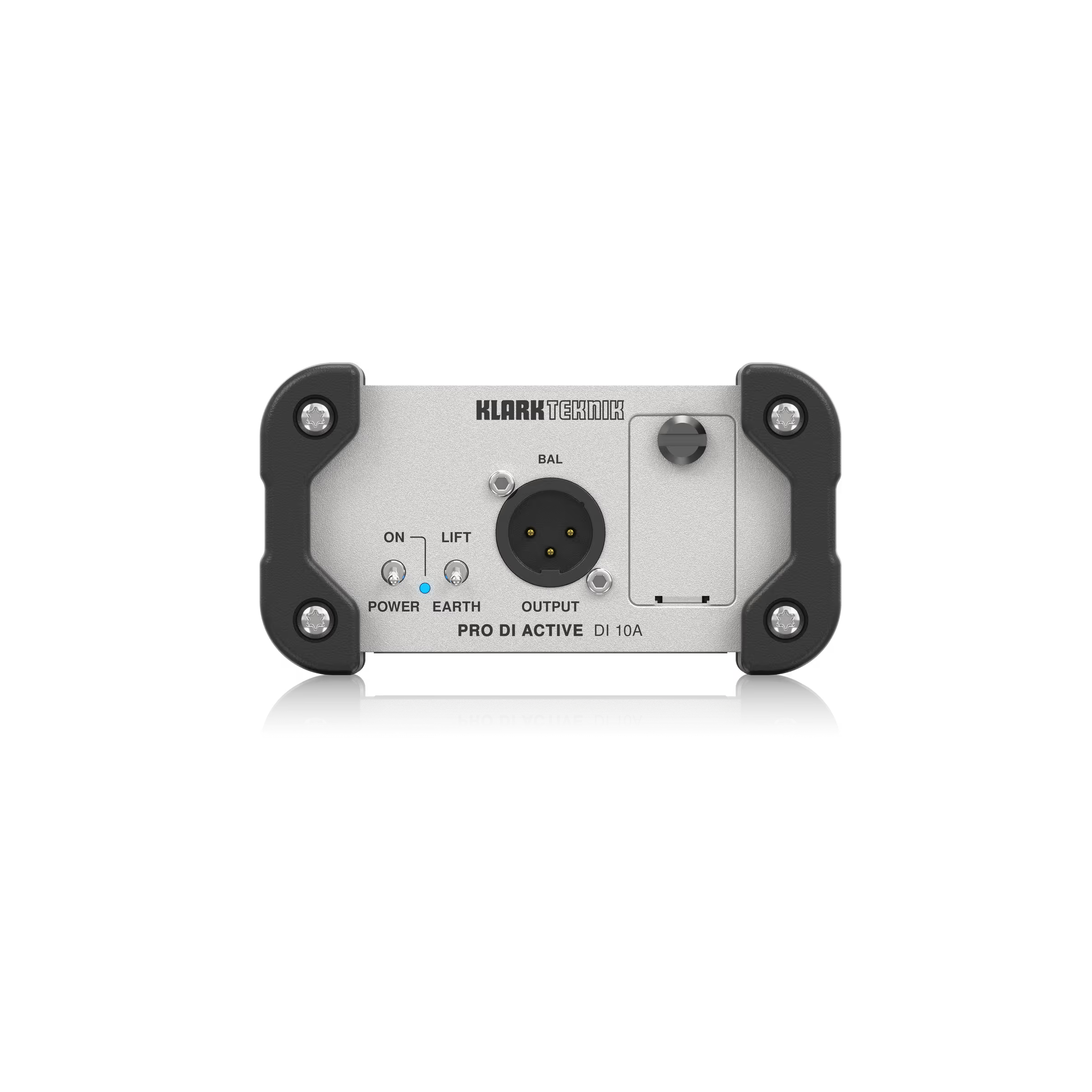

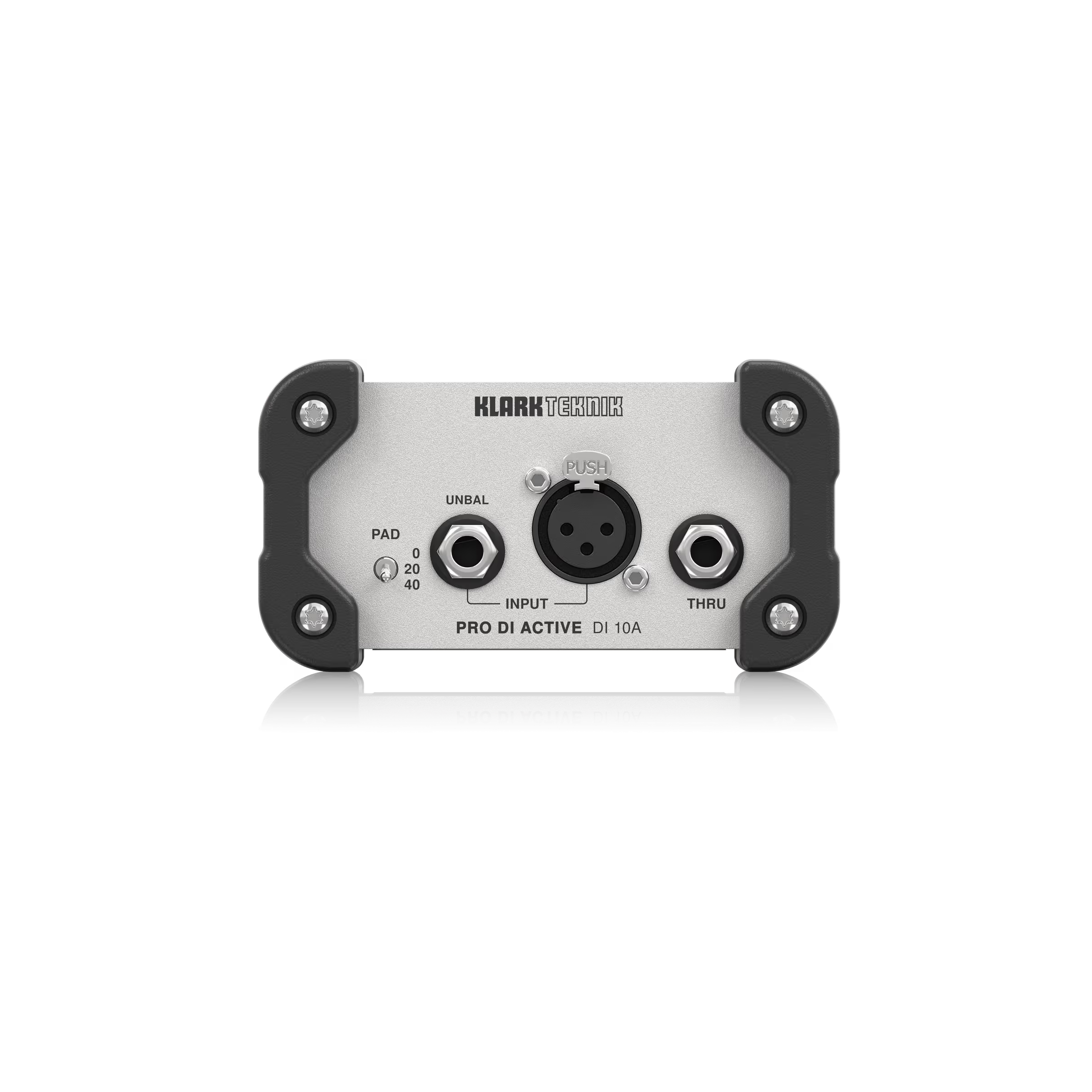

KLARK TEKNIK DI 10A Active DI Box

Active DI Box with Midas Transformer, Extended Dynamic Range and Phantom/Battery Operation

  • Active DI Box for general purpose and multimedia applications
  • Custom-built Midas transformer for highest signal integrity
  • High headroom design offers superior sound quality
  • Powered from console +48 V phantom or internal battery (not included)
  • Automatic switchover to battery if phantom power fails
  • Matches the level and impedance with unity gain without loading the source
  • Switchable input attenuation for guitar, line and speaker levels
  • High quality industry standard XLR and high impedance 1/4″ TRS connectors
  • Earth Lift switch eliminates ground loop problems
  • Fully transformer-isolated design ensures electrical separation
  • Ultra-low noise and ultra-linear system for highest signal integrity
  • Aluminium extrusion casing with protective rubber corners
  • Compact and rugged design
分類: ,

Technical Specifications

Input

1 x XLR, unbalanced 1 x 1/4″ TS, unbalanced

Input Impedance

> 250 kΩ

Thru

1 x 1/4″ TS, unbalanced

Output

1 x XLR, balanced

Load Impedance

> 600 Ω

Maximum Input level

+10 / +30 / +50 dBu

Frequency Response

10 Hz to 90 kHz, ±3 dB

THD+N

< 0.02 % @ 1 kHz, 0 dBu

Noise Leve

< -112 dBu

PAD Switch

0 / -20 / -40 dB

Phantom power

18 V DC to 48 V DC

Battery

9 V Blockcell 6LR61

Dimensions (W x D x H)

118 x 120 x 64 mm (4.6 x 4.7 x 2.5″)

Weight

0.56 kg (1.2 lbs)
