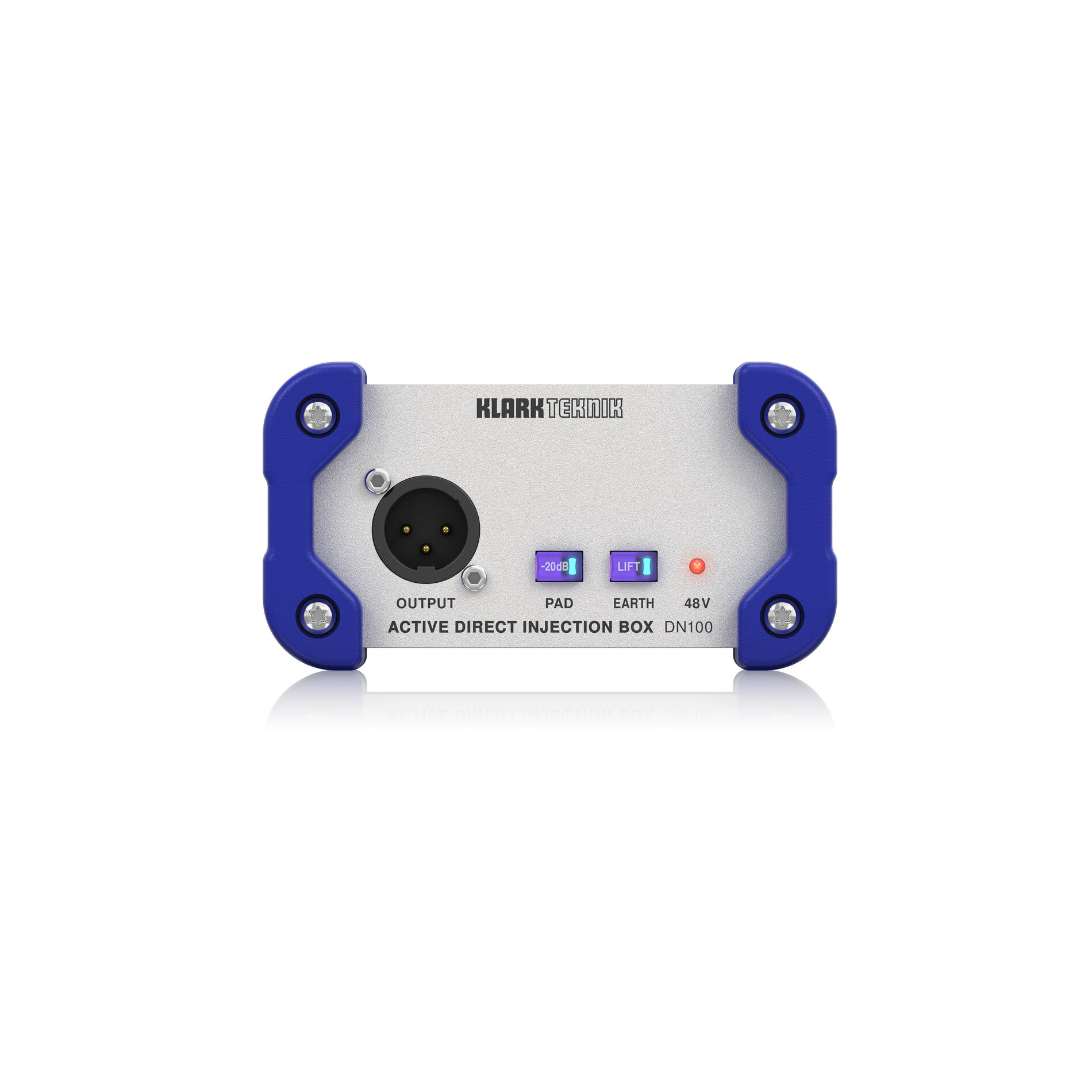

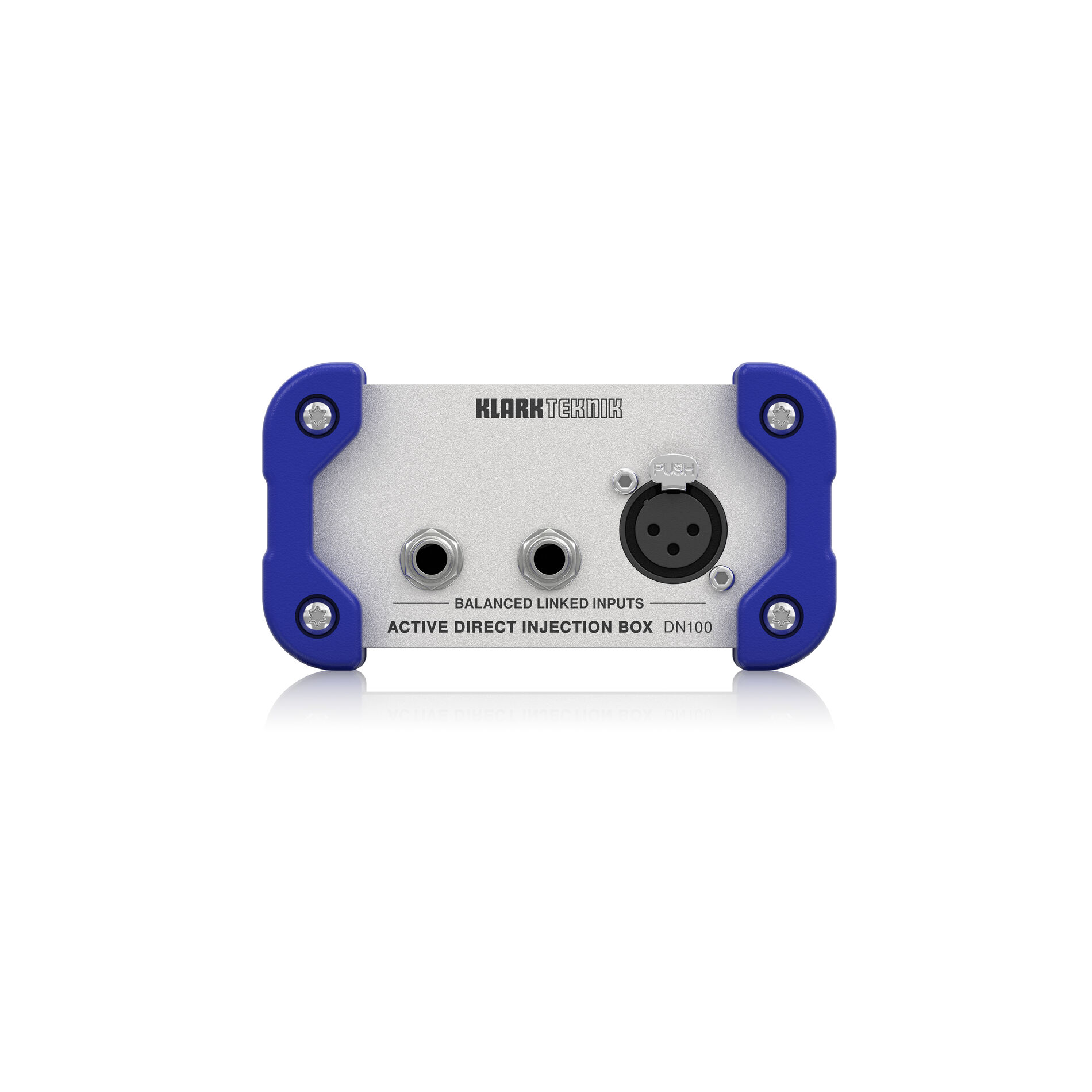

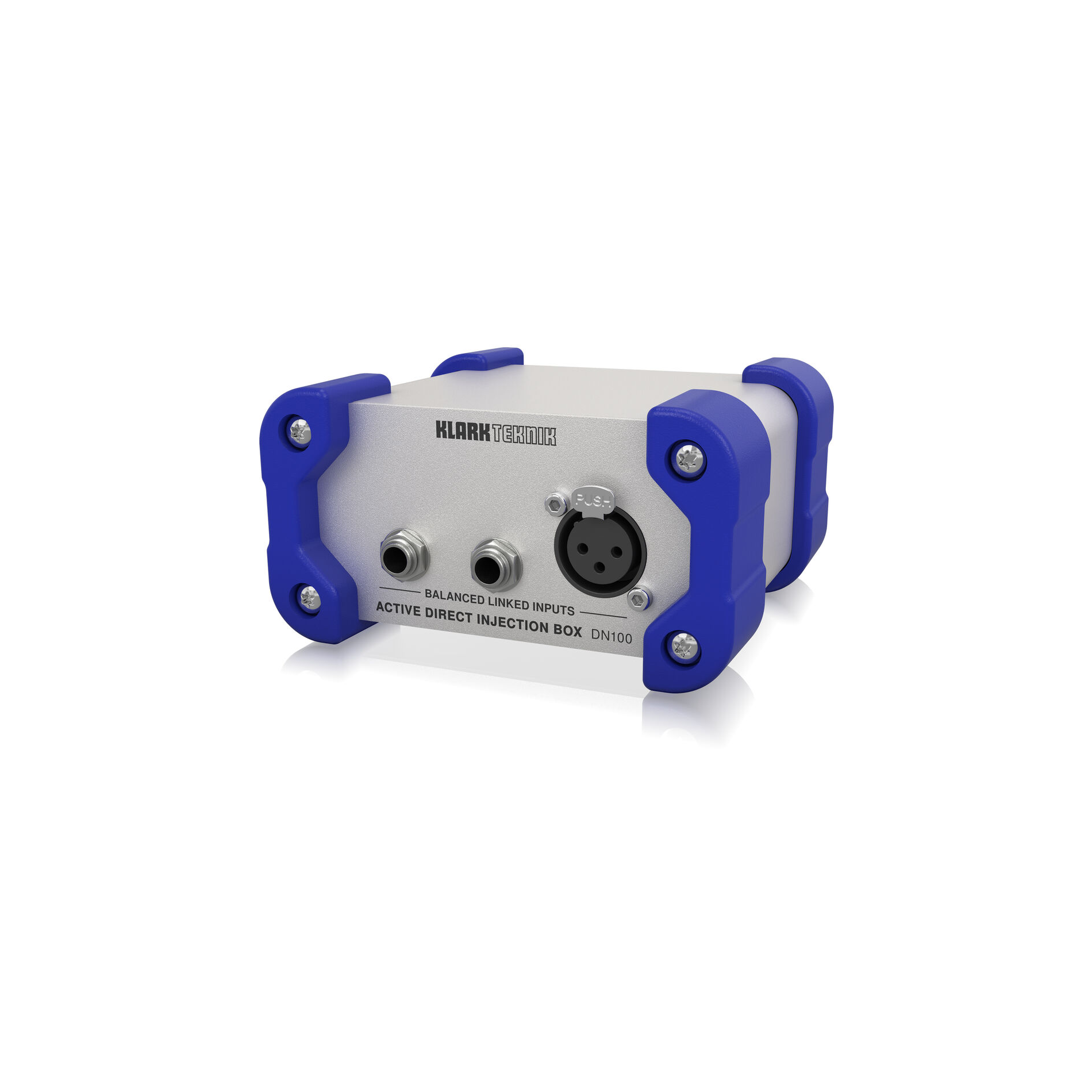

KLARK TEKNIK DN100 Active DI Box

Instantly recognizable by its purple color scheme, the popular Klark Teknik DN100 V2 is an active mono DI box essential to any audio tool box for sound professionals working live onstage or in the studio. The DN100 V2 is intended for professional applications where +48V phantom power is a standard feature on all mixing consoles. Its innovative design results in a significantly higher clipping point than with traditional, active DI boxes, providing +10 dBu output into a 2 kilohms load.

  • For Professional Applications
  • 48V Phantom-Powered Operation
  • XLR and 1/4″ TRS Balanced Linked Inputs
  • 1/4″ TS Link-Through to Amplifier
  • Balanced, Transformer-Isolated XLR Out
  • -20 dB Pad, Ground Lift
  • Durable, Thick Aluminum Housing
  • Protective Silicone Rubber Bumpers

分類: ,
General
Item Type
Standard DI
Number of Channels
Single-Channel
Active/Passive
Active
Circuitry
Solid-State
Preamp
Pad
-20 dB
Ground Lift
Yes
Polarity Reverse
No
EQ & Tone Shaping
Low-Cut/High-Pass Filter
No
Connectivity
Audio I/O
1x XLR 3-Pin Balanced Input
1x 1/4″ TRS Balanced/Unbalanced Input
1x XLR 3-Pin Balanced Output
1x 1/4″ TS Unbalanced Thru
Performance
Frequency Response
20 Hz to 20 kHz ±1 dB (10 Kiloms Load)
Maximum Input Level
+35 dBu
Input Impedance
1 Megohm (Balanced/Unbalanced)
20 Kilohms (XLR Only)
Output Impedance
50 Ohms
Signal-to-Noise Ratio
-103 dBu (22 Hz to 22 kHz Unweighted, with Input Terminated by 10 Kiloms Resistor)
Power
Operating Voltage
48 V (Phantom Power)
Physical
Dimensions
4.7 x 4.4 x 2.5″ / 11.9 x 11.2 x 6.3 cm
Weight
0.97 lb / 0.44 kg
