Technical Specifications

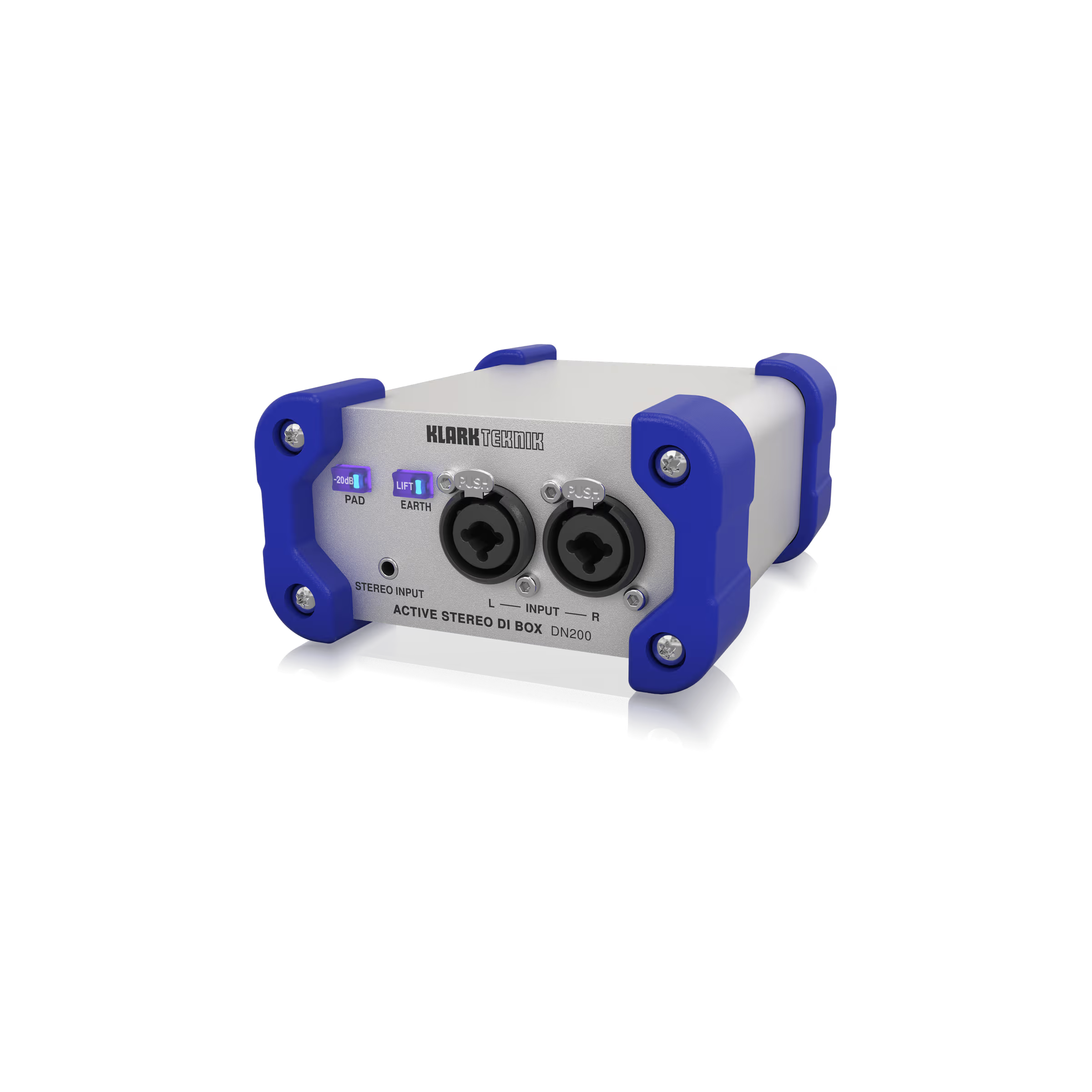

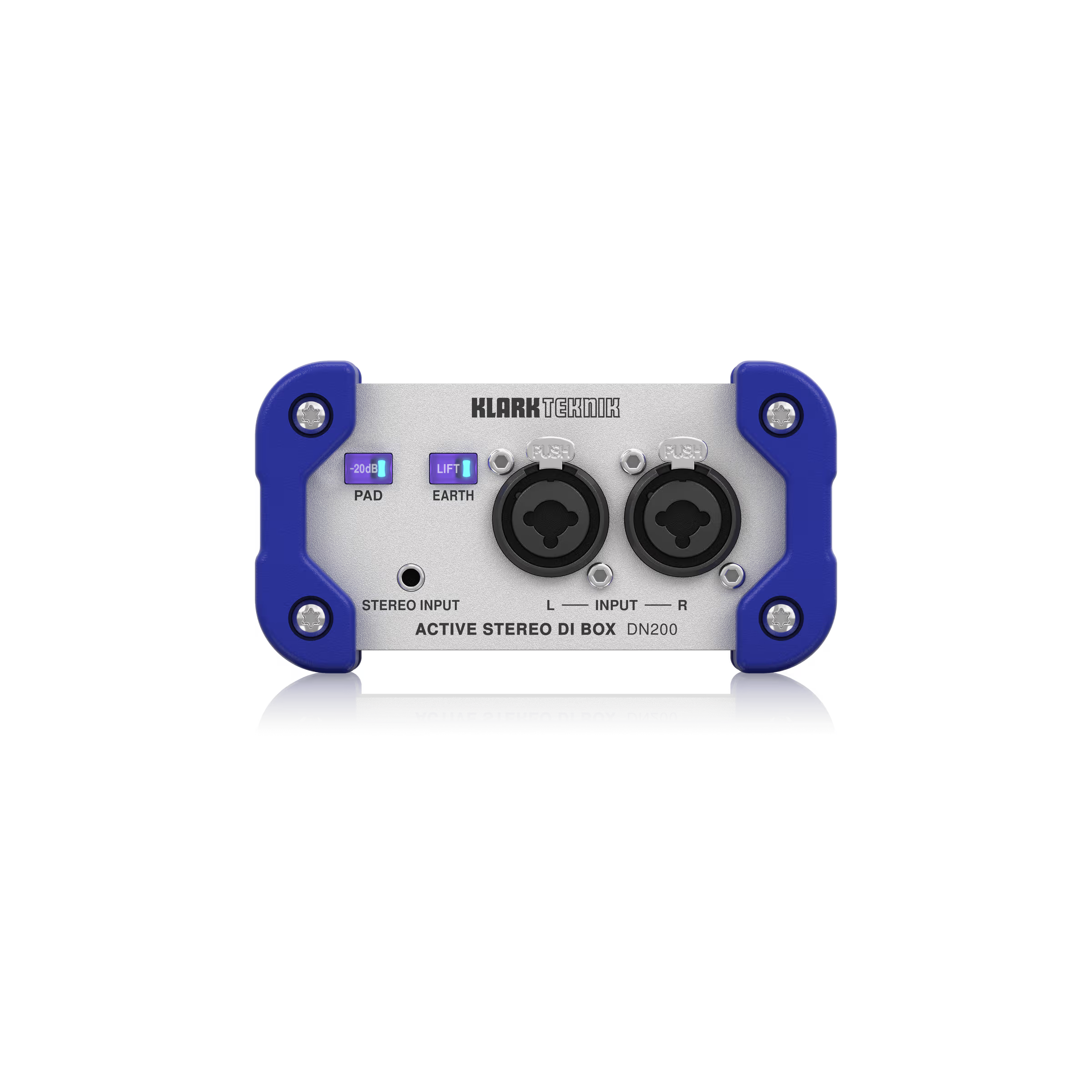

Connectors
2 x combo XLR, 2 x 1/4″ TRS link jacks, 1/8″ stereo TRS jack
Impedance
1 MΩ (combo & link jacks balanced), 20 kΩ (combo XLR only), 500 kΩ (1/8″ stereo TRS jack unbalanced)
Max input level
28 dBu combo XLR and TRS link jacks (pad enabled), 21 dBu 1/8″ TRS jack (pad enabled)
Attenuator
20 dB pad

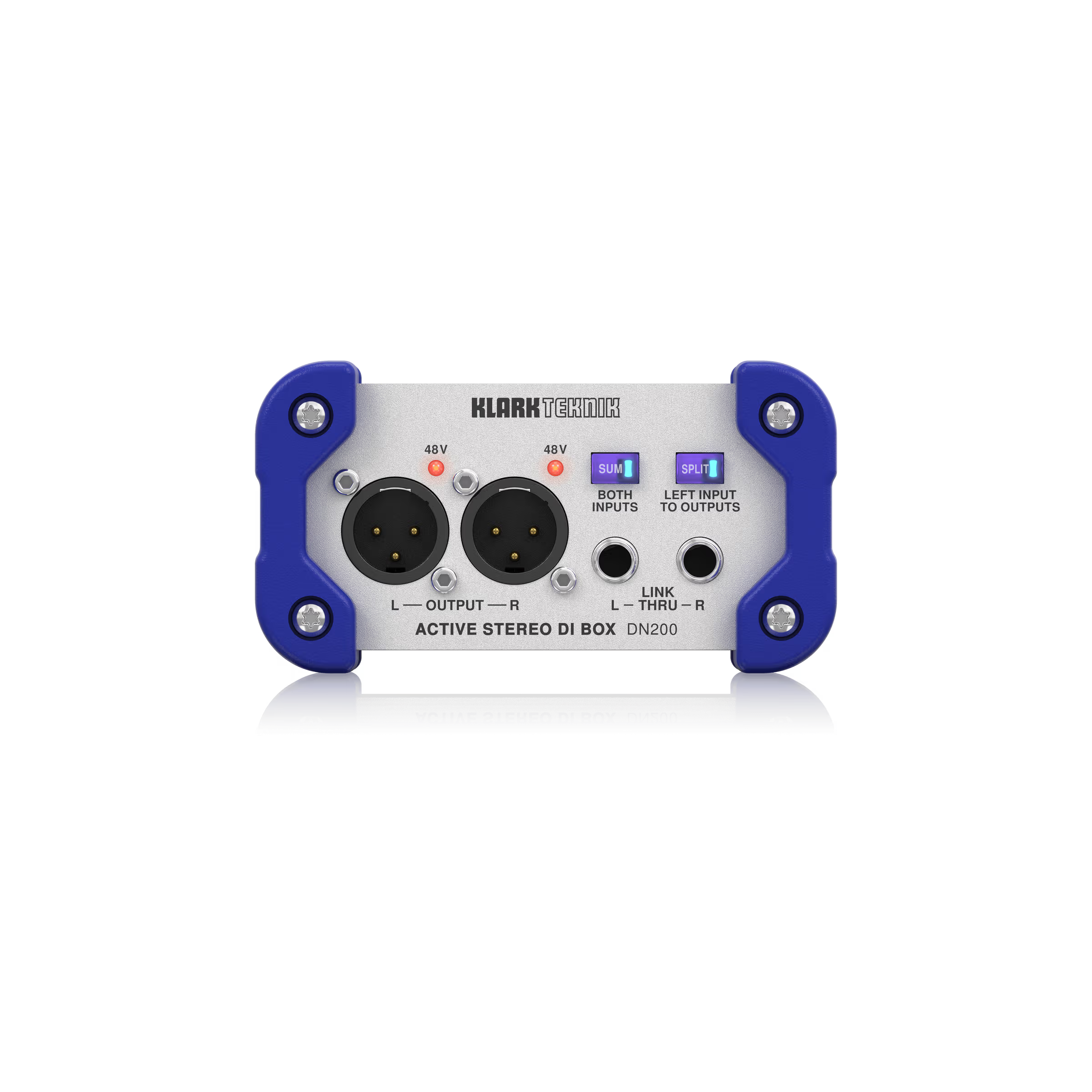

Connectors
2 x 3-pin XLR
Impedance
50 Ω
Max output level
13 dBu with 10 kΩ load, 10 dBu with 600 Ω load
Min load
600 Ω
Noise
103 dBu, 22 Hz to 22 kHz unweighted, with input terminated by 10 kΩ resistor
Frequency response
20 Hz to 20 kHz, ±1 dB, 10 kΩ load
Distortion (THD + N)
Typically <0.005% @ 1 kHz, +10 dBu
Crosstalk
<100 dB @ 1 kHz, inputs terminated
Voltage
+48 V phantom
Current consumption
<10 mA per channel
Dimensions
118 x 63 x 142 mm (4.7 x 2.5 x 5.6″)
Weight
0.65 kg (1.43 lbs)
