TECHNICAL SPECIFICATIONS
| Loudspeaker Technical Specifications | |
|---|---|
| Acoustic Performance | |
| Frequency Response (-3 dB) | 89 Hz–20 kHz |
| Frequency Range (-10 dB) | 59 Hz–22 kHz |
| Max SPL long-term | 118 dB @ 1 m |
| Low-Frequency Crossover Type | 6 dB / octave, time offset corrected |
| High-Frequency Crossover Type | 12 dB / octave |
| Crossover Point | 1800 Hz |
| Audio | |

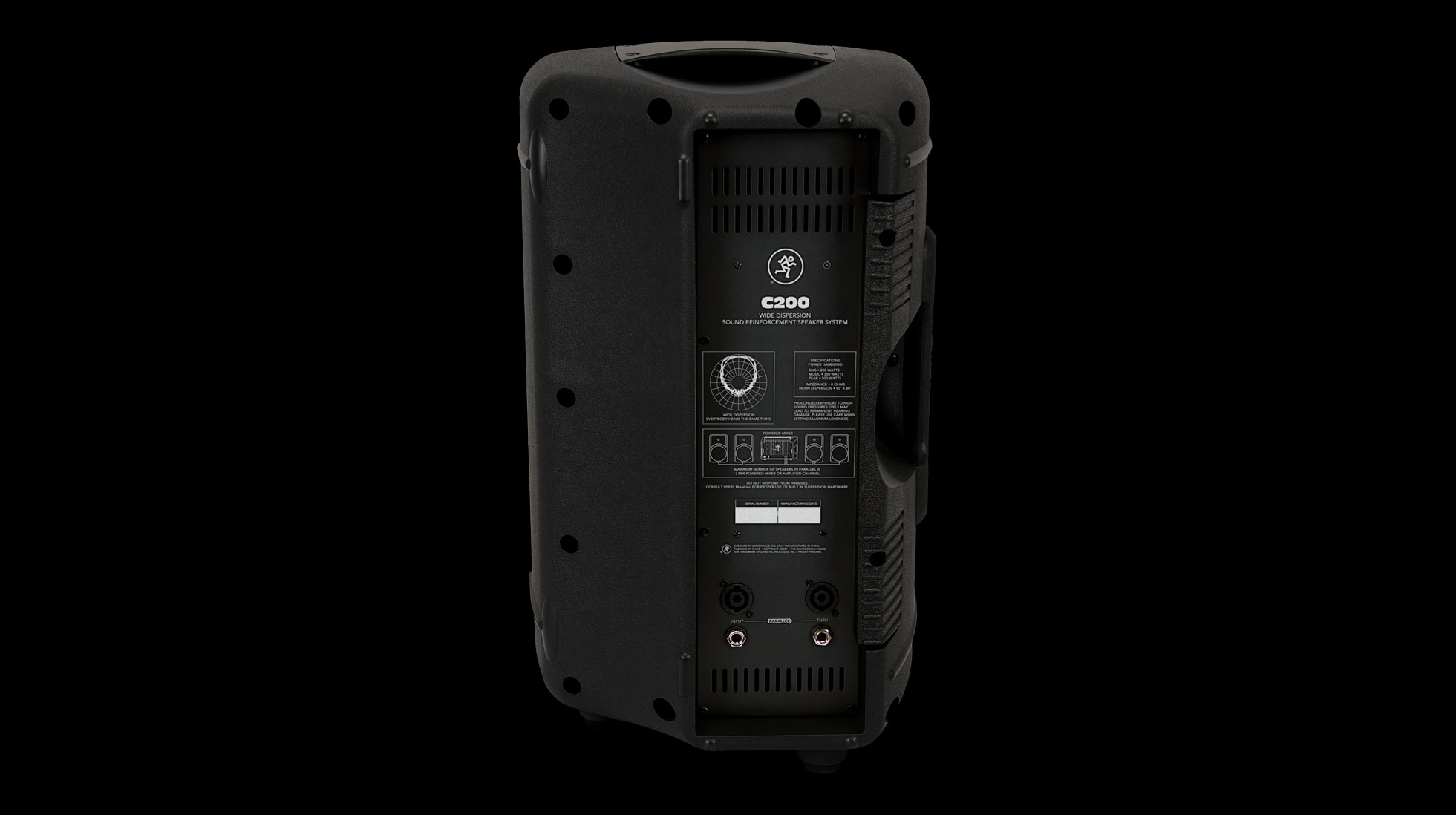

| Input / Thru Connector Type | Speakon™-style NL-4 jack 1/4″ TS jack |
| Input Impedance | 8 Ω |
| Power Handling | RMS: 200 watts Music: 350 watts Peak: 500 watts |
| Operating Temperature Range | -10° C to 45° C // 14° F to 113° F |
| Low-Frequency Transducer | |
| Diameter | 10 in / 250 mm |
| Voice Coil Diameter | 2 in / 51 mm |
| Magnet Material | Ferrite |
| High-Frequency Transducer | |
| Diaphragm Diameter | 1.4 in / 36 mm |
| Diaphragm Material | Heat treated titanium |
| Horn Exit Diameter | 1 in / 24.5 mm |
| Horn Design | |
| Type | Conical and Exponential |
| Mouth Size | 12 in / 305 mm (W) x 7 in / 178 mm (H) |
| Horizontal Coverage | 90° (1 kHz – 20 kHz) |
| Vertical Coverage | 80° (1 kHz – 20 kHz) |
| Safety Features | |
| Driver Protection | Dynamic protection for compression driver |
| Construction Features | |
| Basic Design | Asymmetrical Trapezoidal |
| Material | Polypropylene |
| Finish | Black, textured finish |
| Handles | One on right side, one on top |
| Grille | Perforated metal with weather-resistant coating |
| Physical Properties (packaged product) | |
| Height | 21.5 in / 546 mm |
| Width | 13.2 in / 335 mm |
| Depth | 12.4 in / 315 mm |
| Shipping Weight | 30.0 lb / 13.6 kg |
