TECHNICAL SPECIFICATIONS
| Loudspeaker Technical Specifications | |
|---|---|
| Acoustic Performance | |
| Frequency Response (-3 dB) | 55 Hz-18 kHz |
| Frequency Range (-10 dB) | 45 Hz-20 kHz |
| Max SPL long-term | 123 dB @ 1 m |
| Low-Frequency Crossover Type | 24 dB / octave, time offset corrected |
| High-Frequency Crossover Type | 24 dB / octave |
| Crossover Point | 1800 Hz |
| Audio | |

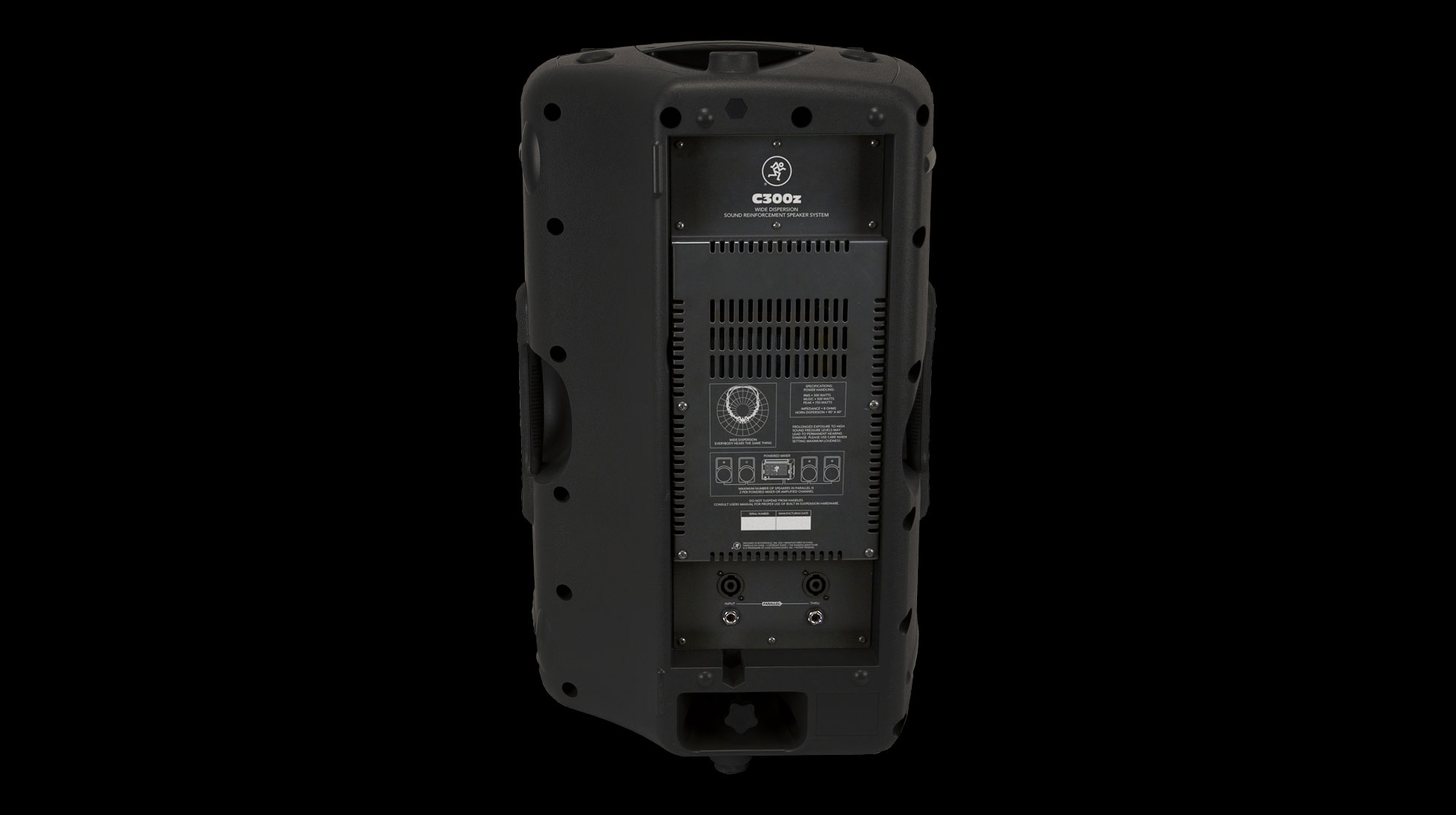

| Input / Thru Connector Type | Speakon™-style NL-4 jack 1/4″ TS jack |
| Input Impedance | 8 Ω |
| Power Handling | RMS: 300 watts Music: 500 watts Peak: 750 watts |
| Low-Frequency Transducer | |
| Diameter | 12 in / 300 mm |
| Voice Coil Diameter | 3 in / 75 mm |
| Magnet Material | Ferrite |
| High-Frequency Transducer | |
| Diaphragm Diameter | 1.75 in / 44.5 mm |
| Diaphragm Material | Heat treated titanium |
| Horn Exit Diameter | 1 in / 24.5 mm |
| Horn Design | |
| Type | Conical and Exponential |
| Mouth Size | 12 in / 305 mm (W) x 7 in / 178 mm (H) |
| Horizontal Coverage | 90° (1 kHz – 20 kHz) |
| Vertical Coverage | 45° (2.8 kHz – 20 kHz) |
| Safety Features | |
| Over-Excursion Protection | Second-order high-pass filter |
| Driver Protection | Dynamic protection for compression driver |
| Construction Features | |
| Basic Design | Asymmetrical Trapezoidal |
| Material | Polypropylene |
| Finish | Black, textured finish |
| Handles | One on each side, one on top |
| Grille | Perforated metal with weather-resistant coating |
| Operating Temperature Range | -10° C to 45° C // 14° F to 113° F |
| Physical Properties (packaged product) | |
| Height | 26.5 in / 673 mm |
| Width | 16.8 in / 427 mm |
| Depth | 15.5 in / 394 mm |
| Shipping Weight | 52.0 lb / 23.6 kg |
