DRM12A-P SPECIFICATIONS
| Loudspeaker Technical Specifications | |
|---|---|
| Acoustic Performance | |

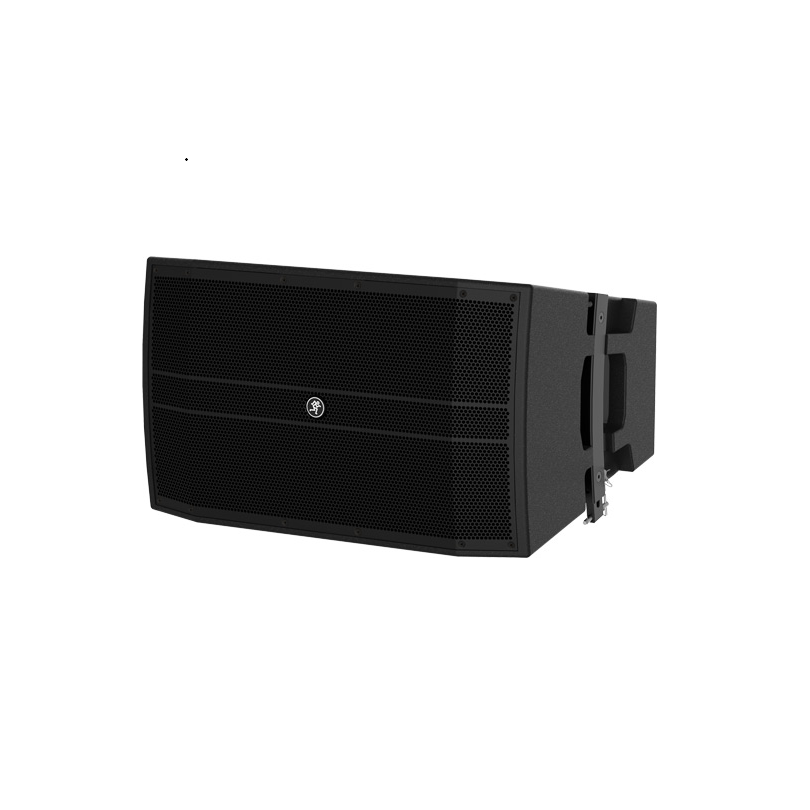

| Type | 12″ Arrayable Passive Loudspeaker |
| Frequency Range (-10 dB) | 47 Hz – 20 kHz |
| Frequency Range (-3 dB) | 60 Hz – 18 kHz |
| Horizontal Coverage Angle | 110° |
| Vertical Coverage Angle | 20° |
| Power Handling | 1000 watts RMS 2000 watts peak 132 dB max SPL peak |
| Crossover Frequency | 1.0 kHz |
| Monitor Angle | 50° |
| Transducers | |
| Low Frequency | 12 in / 305 mm with ferrite |
| High Frequency | 3x 1.0 in / 25 mm titanium dome compression driver |
| Array Coverage | |
| Horizontal Coverage (-6 dB) | 110° averaged 2 kHz to 10 kHz |

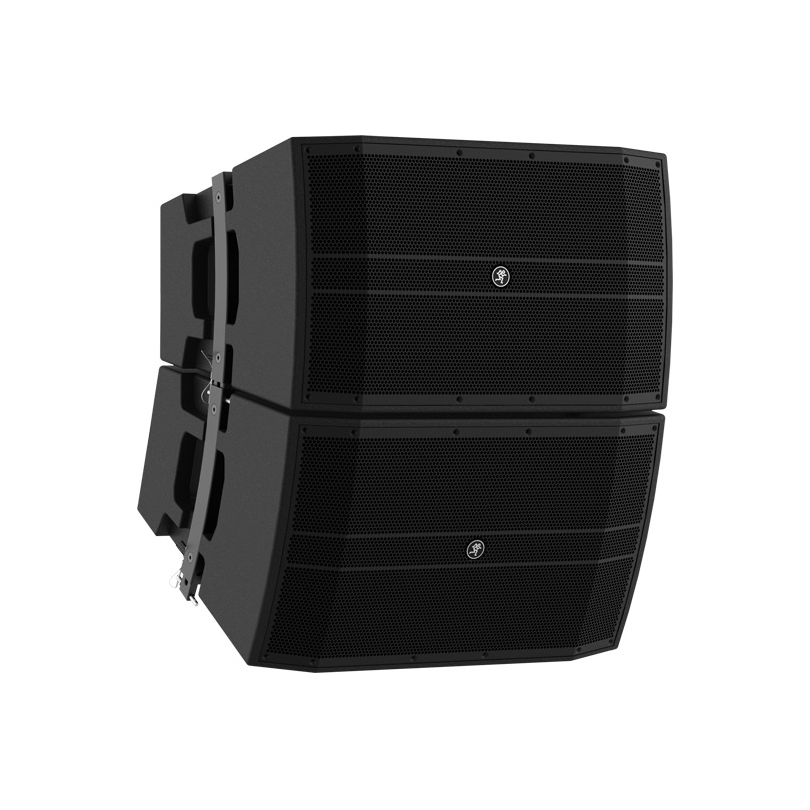

| Vertical Coverage (-6 dB) | 1x DRM12A-P: 20° averaged (2 kHz to 10 kHz) 2x DRM12A-P: 40° averaged (2 kHz to 10 kHz) 3x DRM12A-P: 60° averaged (2 kHz to 10 kHz) 4x DRM12A-P: 80° averaged (2 kHz to 10 kHz) |
| Physical Features | |

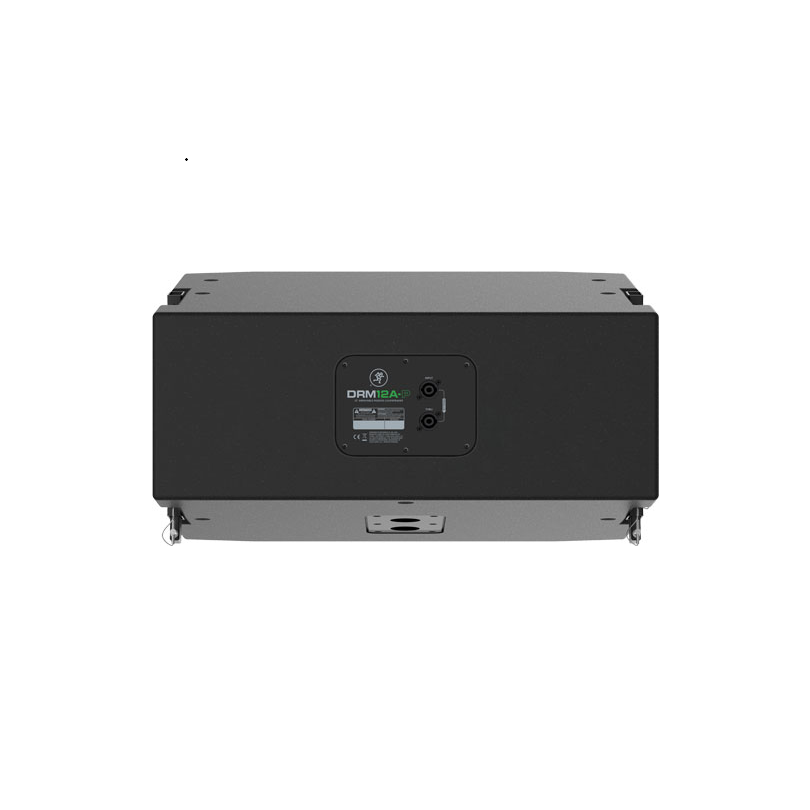

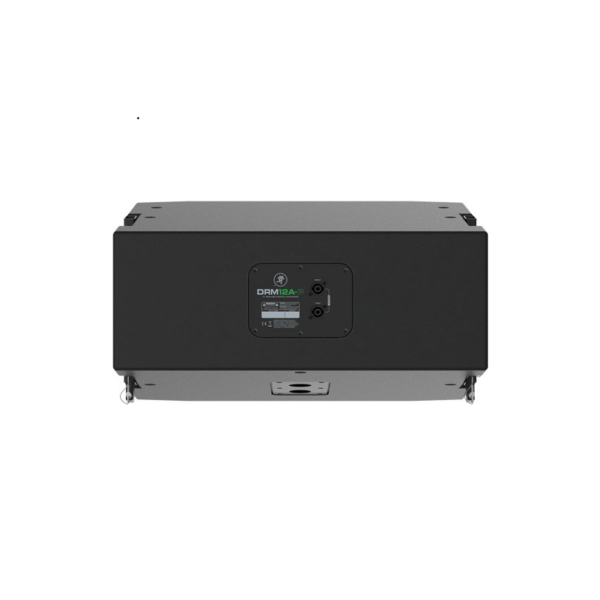

| Input Type | 1x Female speakON |
| Thru Type | 1x Female speakON |
| Nominal Impedance | 8 Ω |
| Basic Design | Horizontal Trapezoidal |
| Enclosure Material | 15 mm Plywood |
| Enclosure Finish | Black Polyurea |

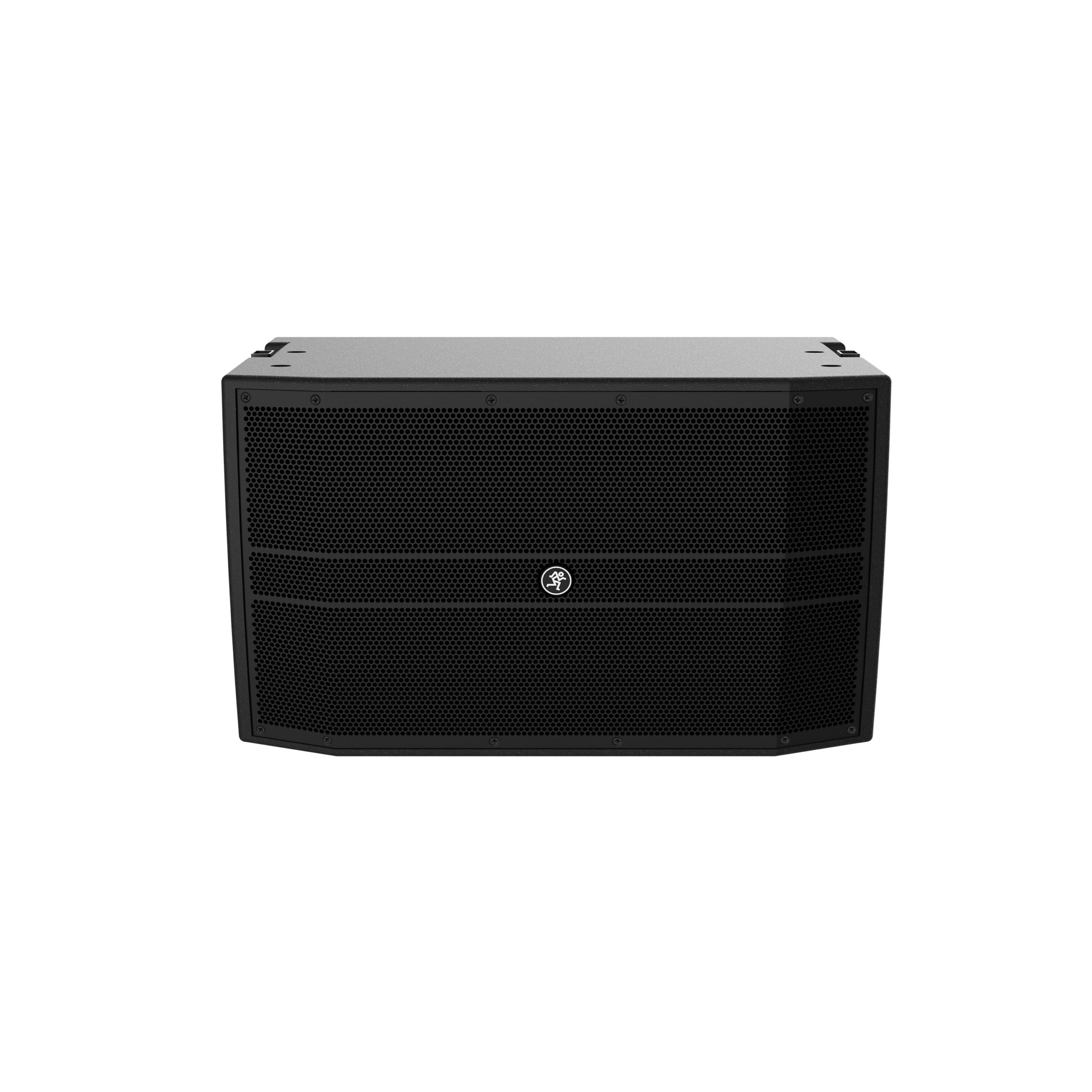

| Grille Material | 16-18 gauge perforated steel |
| Grille Finish | Powder-coated black |

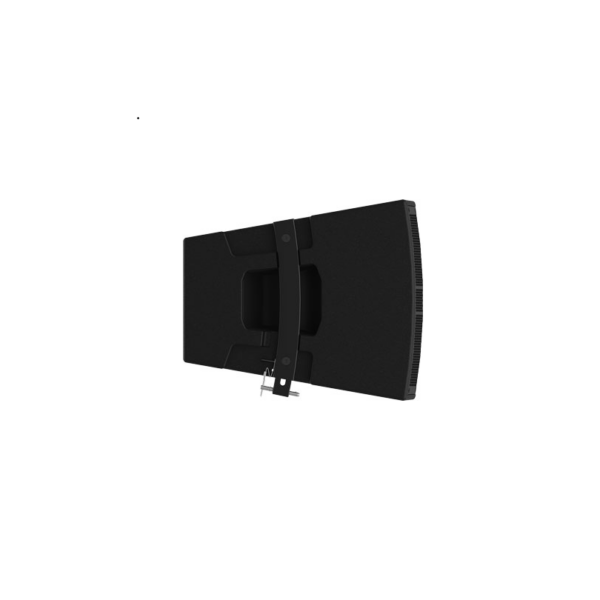

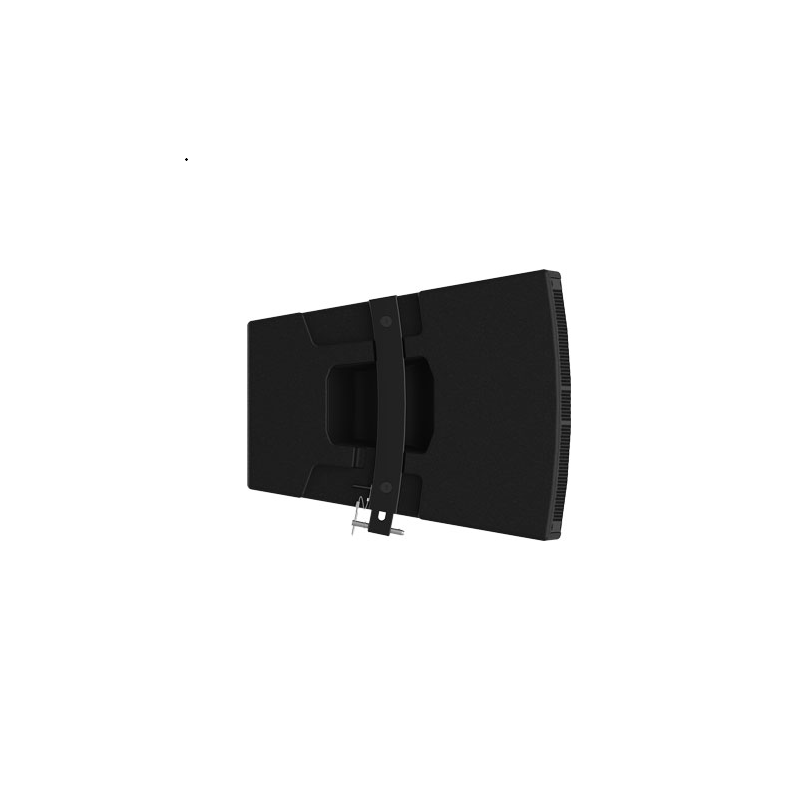

| Handles | One on each side |
| Operating Temperature | 0 – 40 °C // 32 – 104 °F |
| Physical Properties (product) | |
| Height | 15.2 in / 386 mm |
| Width | 24.7 in / 627 mm |
| Depth | 18.0 in / 457 mm |
| Weight | 53.7 lb / 24.4 kg |
| Physical Properties (packaged product) | |
| Height | 18.9 in / 480 mm |
| Width | 28.4 in / 721 mm |
| Depth | 21.1 in / 536 mm |
| Weight | 60.7 lb / 27.5 kg |
| Mounting Methods | |
| Supported Methods | Floor mount, pole mount via the built-in socket on the bottom of the cabinet [Be sure the pole is capable of supporting the weight of the DRM12A-P] or fly via the integrated M10 mounting points (using M10 x 1.5 x 20 mm forged shoulder eyebolts). |
