SPECIFICATIONS
| Loudspeaker Technical Specifications | |
|---|---|
| Acoustic Performance | |
| Type | 12″ Professional Passive Loudspeaker |
| Frequency Range (-10 dB) | 50 Hz – 20 kHz |
| Frequency Range (-3 dB) | 60 Hz – 20 kHz |
| Horizontal Coverage Angle | 90° |
| Vertical Coverage Angle | 60° |
| Power Handling | 800 watts RMS 1600 watts peak 128 dB max SPL peak |
| Crossover Frequency | 1.5 kHz |

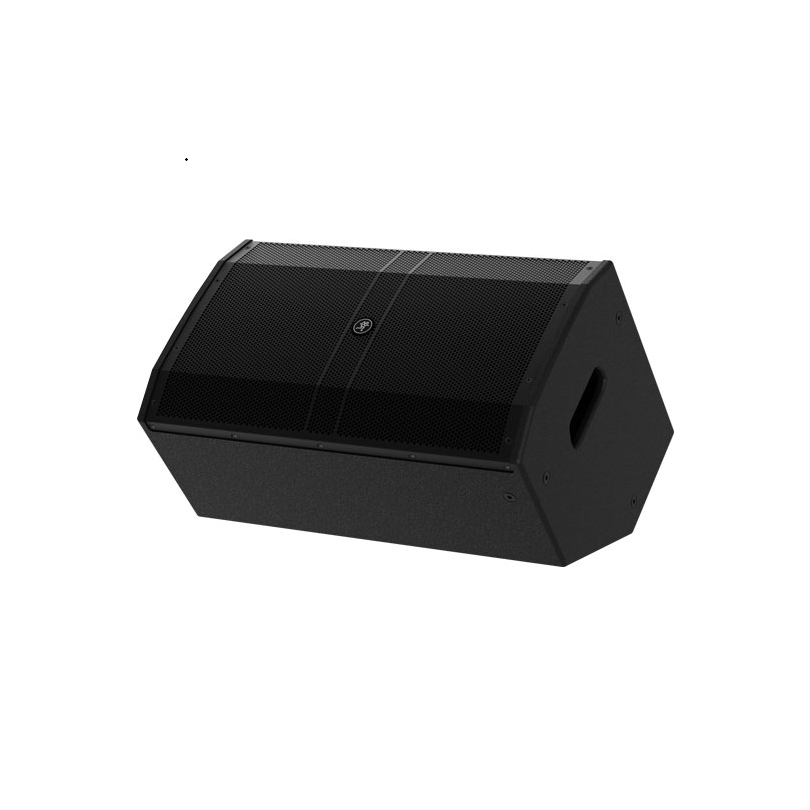

| Monitor Angle | 50° |
| Transducers | |
| Low Frequency | 12 in / 305 mm with ferrite |
| High Frequency | 1.4 in / 36 mm titanium dome compression driver |
| Physical Features | |
| Input Type | 1x Female speakON |
| Thru Type | 1x Female speakON |
| Nominal Impedance | 8 Ω |
| Basic Design | Asymmetrical |
| Enclosure Material | 15 mm Plywood |
| Enclosure Finish | Black Polyurea |
| Grille Material | 16-18 gauge perforated steel |
| Grille Finish | Powder-coated black |
| Handles | One on each side, one on top |
| Operating Temperature | 0 – 40 °C // 32 – 104 °F |
| Physical Properties (product) | |
| Height | 25.0 in / 635 mm |
| Width | 14.7 in / 375 mm |
| Depth | 16.2 in / 412 mm |
| Weight | 42.0 lb / 19.1 kg |
| Physical Properties (packaged product) | |
| Height | 29.6 in / 752 mm |
| Width | 18.7 in / 475 mm |
| Depth | 19.3 in / 490 mm |
| Weight | 50.4 lb / 22.9 kg |
| Mounting Methods | |

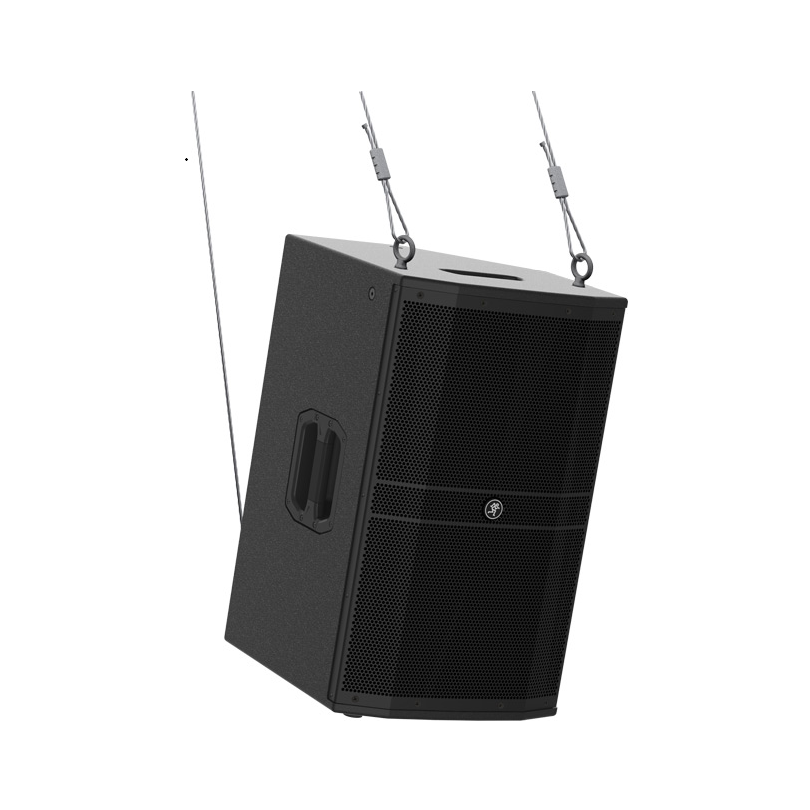

| Supported Methods | Floor mount, pole mount via the built-in socket on the bottom of the cabinet [Be sure the pole is capable of supporting the weight of the DRM212-P] or fly via the integrated M10 mounting points (using M10 x 1.5 x 20 mm forged shoulder eyebolts). |
| Options | |
| DRM212 Cover | P/N 2036809-48 |
| SPM400 Loudspeaker Pole Mount | P/N 2051055 |
| PA-A2 Forged Shoulder Eyebolt Kit (3 x M10 x 1.5 x 20 mm) | P/N 2051054 |
| Ordering Information | |
| DRM212-P 12″ Professional Passive Loudspeaker | P/N 2050800-00 |
