SPECIFICATIONS
| Loudspeaker Technical Specifications | |
|---|---|
| Acoustic Performance | |
| Frequency Response (-10 dB) | 47 Hz – 23 kHz [Thump212XT] 40 Hz – 23 kHz [Thump215XT] |
| Frequency Response (-3 dB) | 54 Hz – 20 kHz [Thump212XT] 47 Hz – 20 kHz [Thump215XT] |
| Horizontal Coverage | 90° |
| Vertical Coverage | 60° |
| Maximum SPL Peak | 128 dB [Thump212XT] 129 dB [Thump215XT] |
| Monitor Angle | 40° |
| Transducers | |
| Low Frequency | 12 in / 305 mm [Thump212XT] 15 in / 381 mm [Thump215XT] with ferrite |
| High Frequency | 1.0 in / 25 mm polymer compression driver |
| Power Amplifiers | |
| System Power Amplification – Rated Power | 1400 watts peak |
| Low Frequency Power Amplifier |
Rated Power: 1200 watts peak Rated THD: <1% Cooling: Convection Design: Class D |
| High Frequency Power Amplifier |
Rated Power: 200 watts peak Rated THD: <1% Cooling: Convection Design: Class D |
| System Processing | |
| Voicing | Four speaker modes |
| Input / Output | |
| Input Type | 2x Female XLR – 1/4″ Balanced TRS combo jack and 1/8″ TRS |
| Mic/Line Impedance | 10 kΩ Balanced |
| 1/8″ Line Impedance | 10 kΩ Balanced |
| Thru Out | Male XLR Balanced |
| Thru Out Impedance | 300 Ω Balanced |
| Electronic Crossover | |
| Crossover Frequency | 2.1 kHz |
| Line Input Power | |
| Detachable line cord | 100–240V~, 50–60 Hz, 75W |
| AC Connector | 3-pin IEC 250 VAC, 10 A male |
| Power Supply Type | Switchmode |
| Safety Features | |
| Input Protection | Peak and RMS limiting, power supply and amplifier thermal protection |
| Feedback Eliminator | On / Off |
| Display LEDs | Voicing Mode, Outdoor Mode, Music Ducking, Feedback Eliminator, Front LED, Bluetooth Status, Link Status, Overload |
| Mounting Methods | |

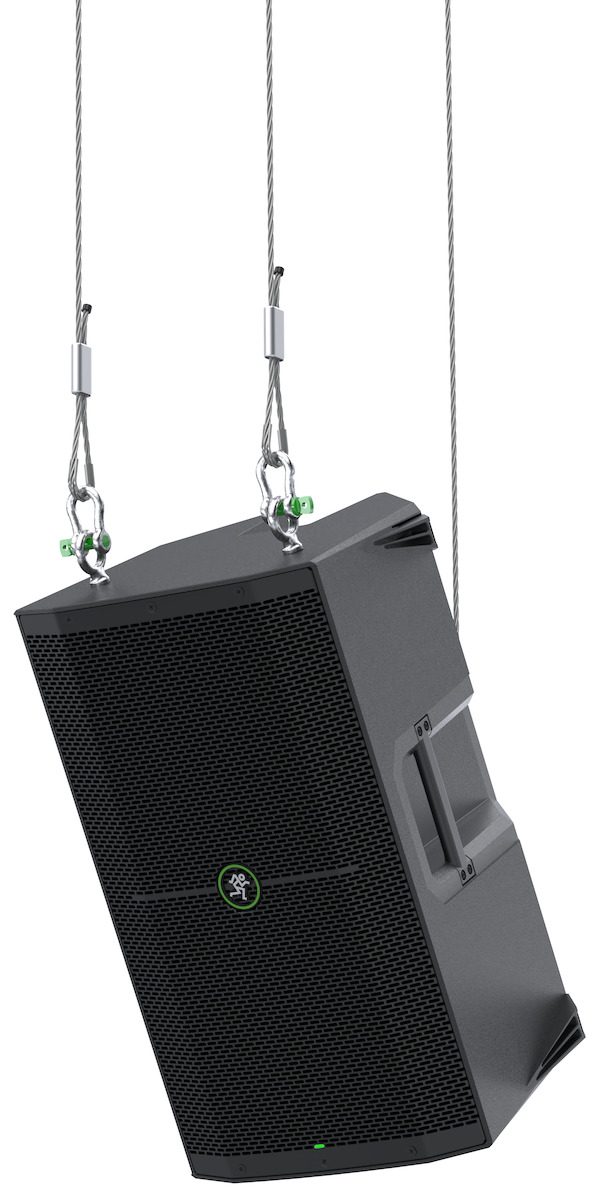

| Supported Methods | Floor mount, pole mount via the built-in socket on the bottom of the cabinet [Be sure the pole is capable of supporting the weight of the ThumpXT loudspeaker] or fly via the integrated M10 mounting points (using M10 x 1.5 x 20 mm forged shoulder eyebolts). |
| Physical Properties (product) [THUMP212XT] | |
| Height | 24.4 in / 620 mm |
| Width | 14.0 in / 356 mm |
| Depth | 14.0 in / 356 mm |
| Weight | 27.6 lb / 12.5 kg |
| Physical Properties (product) [THUMP215XT] | |
| Height | 27.4 in / 696 mm |
| Width | 17.3 in / 439 mm |
| Depth | 14.0 in / 356 mm |
| Weight | 32.6 lb / 14.8 kg |
