| Technical Specifications | |
|---|---|
| Electronic Specifications | |
| FTC Power Output Rating | 1200 W |
| Power Output per Channel | 1200 W into 2, 4 or 8 ohms |
| Number of Channels | 1 |
| Total Harmonic Distortion | 0.005% |
| S/N below rated output | Balanced: 124 dB Unbalanced: 120 dB |
| Dynamic Headroom | 2.2 dB |
| Damping Factor | >40 Wideband |
| Rated Power Band | 20Hz to 20kHz |
| Frequency Response | +0, -0.25dB from 20Hz to 20kHz +0, -3dB from 10Hz to 100kHz |
| General Specifications | |
| Circuit Configuration | Quad Balanced |
| Circuit Design | Solid State |
| Mono Bridge / Mono Parallel | N/A |
| Output Type | Autoformer™ |

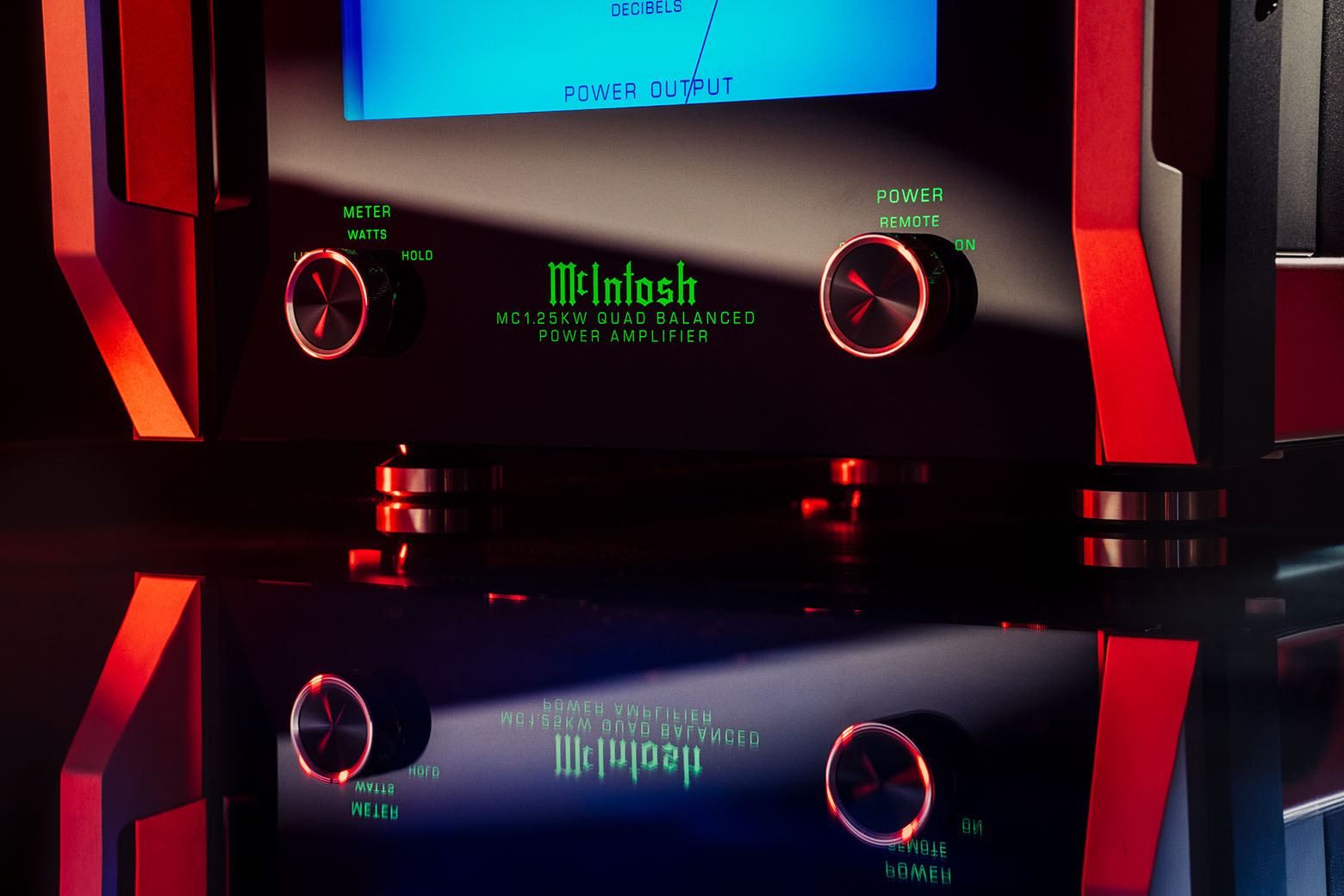

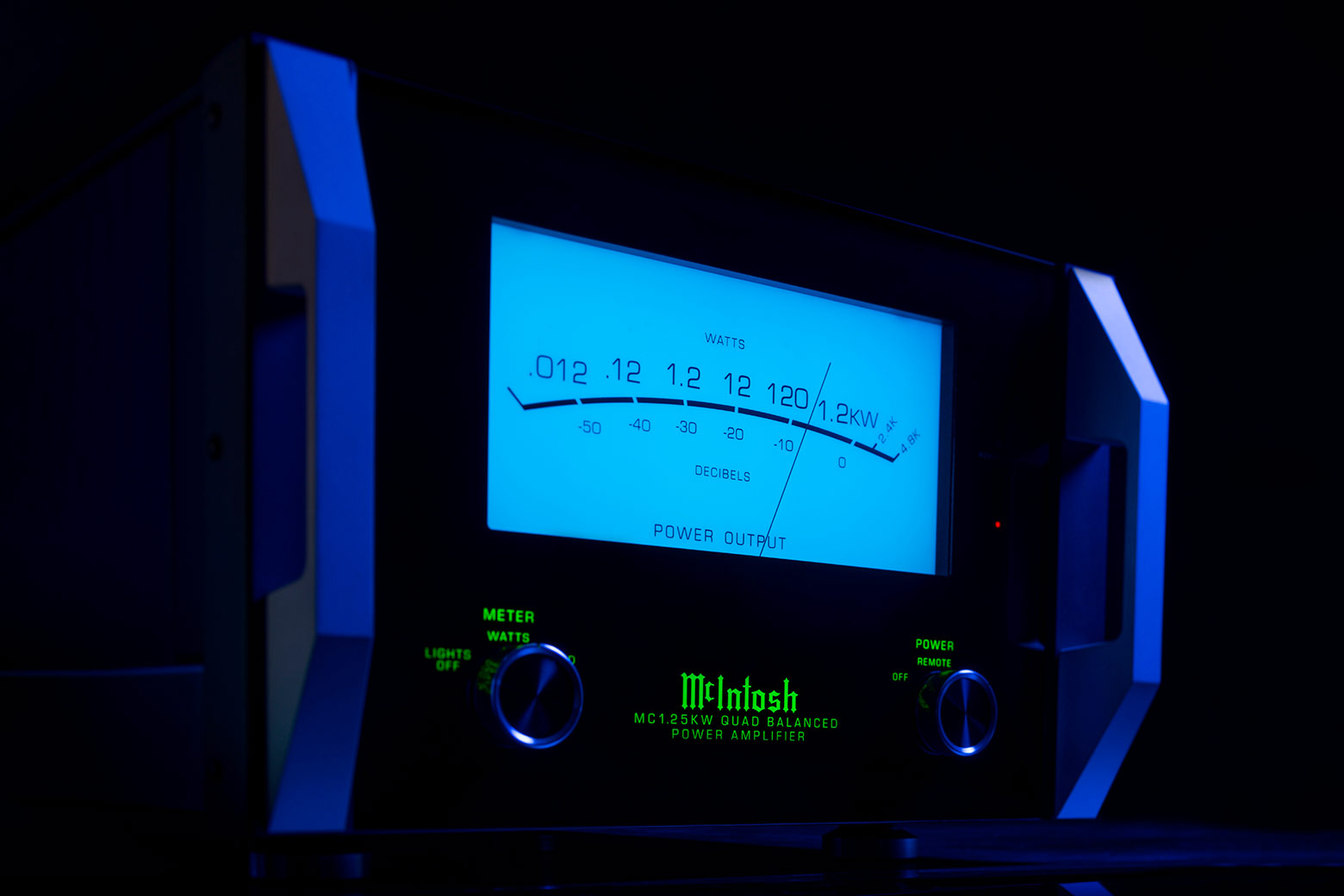

| Meters & Lighting | Yes (with Meter Light Switch) |
| Connectivity & Control | |
| Balanced Input | 1 |

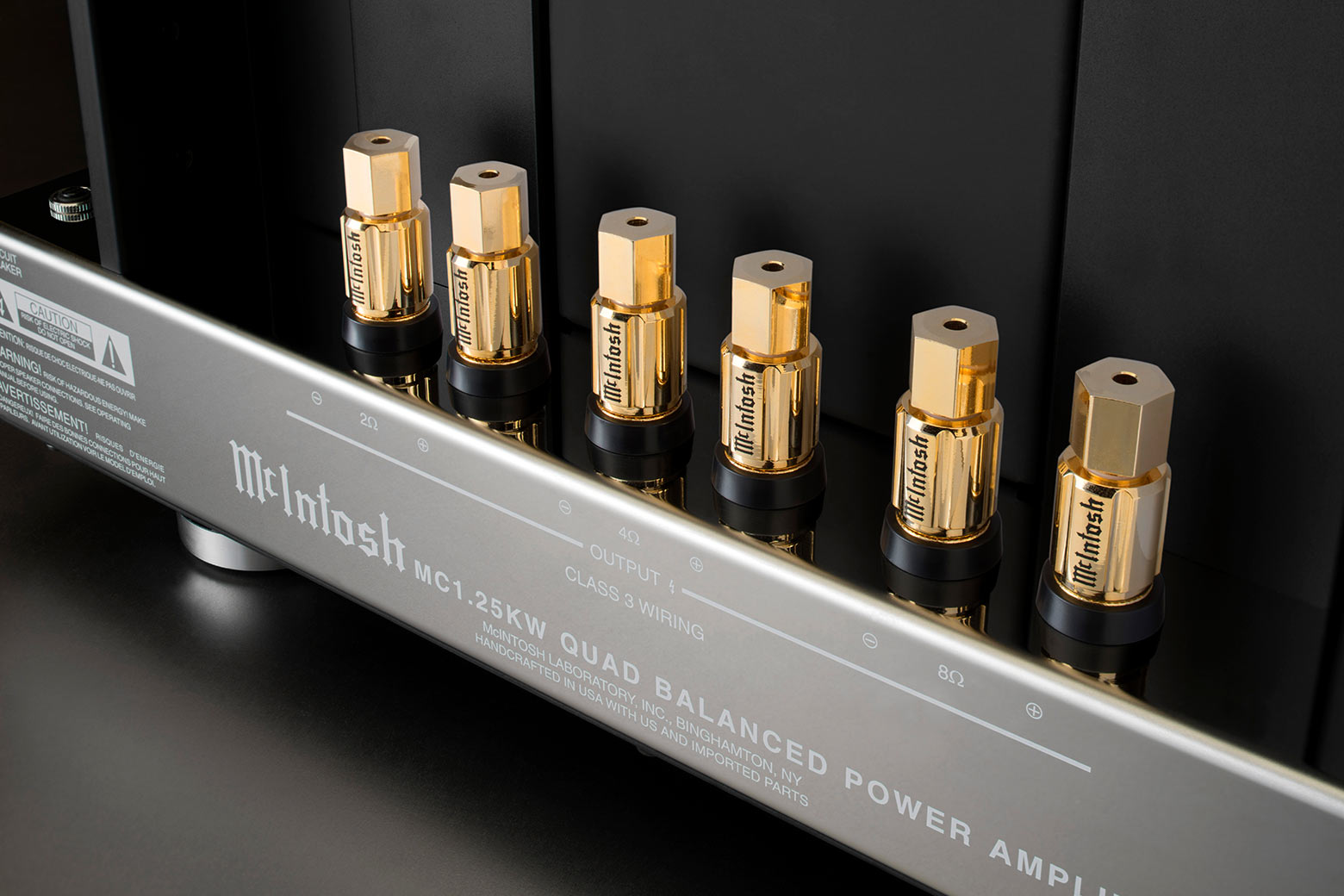

| Speaker Binding Post Type | Patented Solid Cinch™ Speaker Binding Posts |
| Remote Power Control | Yes |
| Multi-Channel DB25 Cable | N/A |
| Physical Features & Construction | |

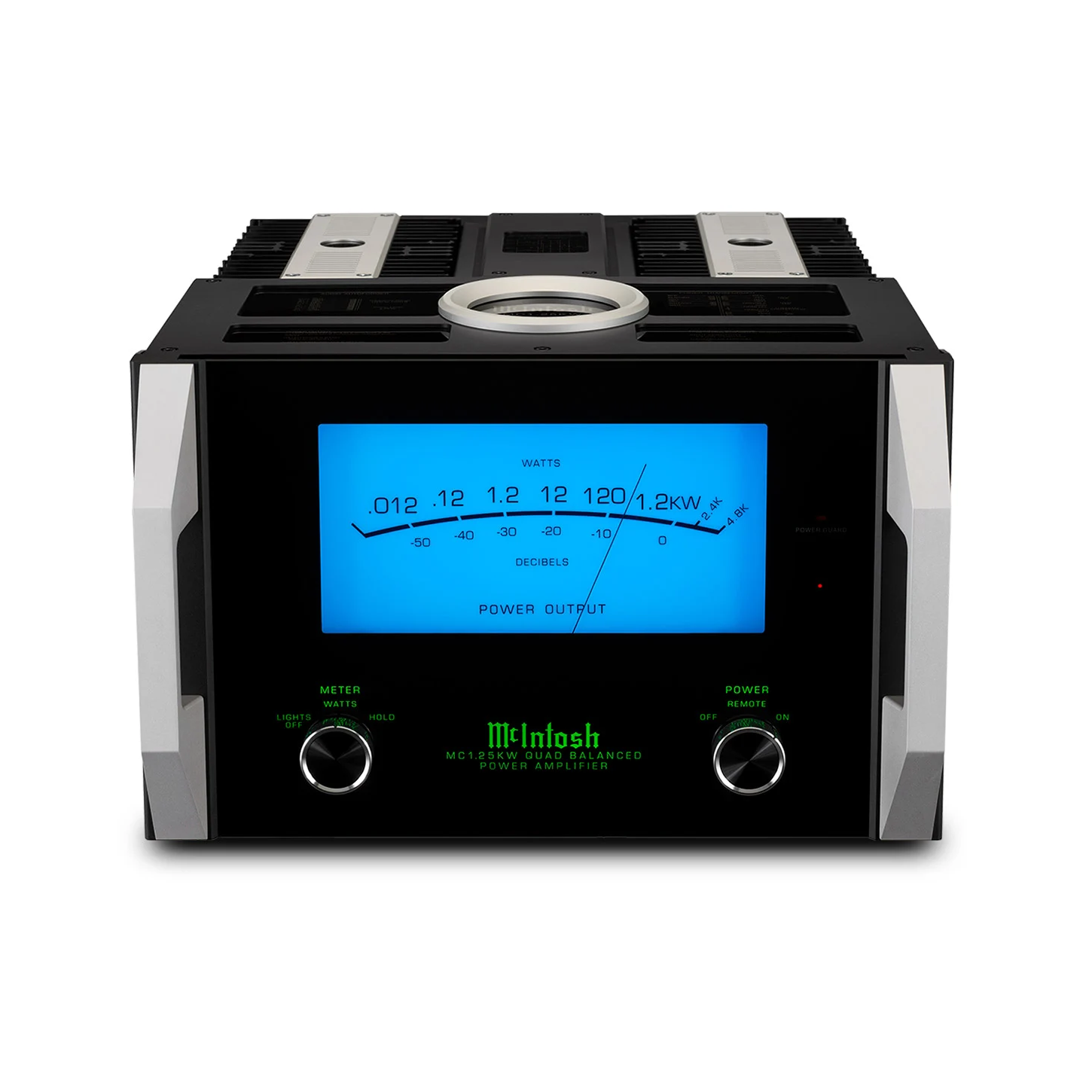

| Front Panel | 1/2″ Glass with handles |
| Illumination | Direct LED |
| Chassis Style | Polished stainless steel & black painted steel |
| Weights & Dimensions | |
| Unit Dimensions (W x H x D) | 17-3/4″ (45.09cm) x 12-12/16″ (31.27cm) (incl. feet) x 22″ (55.88cm) (incl. front panel and cables) |
| Unit Weight | 158 lbs (71.7 kg) |
| Shipping Weight | 184 lbs (83.4 kg) |
