| Technical Specifications | |
|---|---|
| Electronic Specifications | |
| FTC Power Output Rating | 2000 W |
| Power Output per Channel | 2000 W into 2, 4 or 8 ohms |
| Number of Channels | 1 |
| Total Harmonic Distortion | 0.005% |
| S/N below rated output | 123 dB |
| Dynamic Headroom | 2.1 dB |
| Damping Factor | >40 Wideband |
| Rated Power Band | 20Hz to 20kHz |
| Frequency Response | +0, -0.25dB from 20Hz to 20kHz +0, -3dB from 10Hz to 100kHz |
| General Specifications | |
| Circuit Configuration | Quad Balanced |
| Circuit Design | Solid State |
| Mono Bridge / Mono Parallel | N/A |
| Output Type | Autoformer™ |
| Meters & Lighting | Yes (with Meter Light Switch) |
| Connectivity & Control | |
| Balanced Input | 2 |

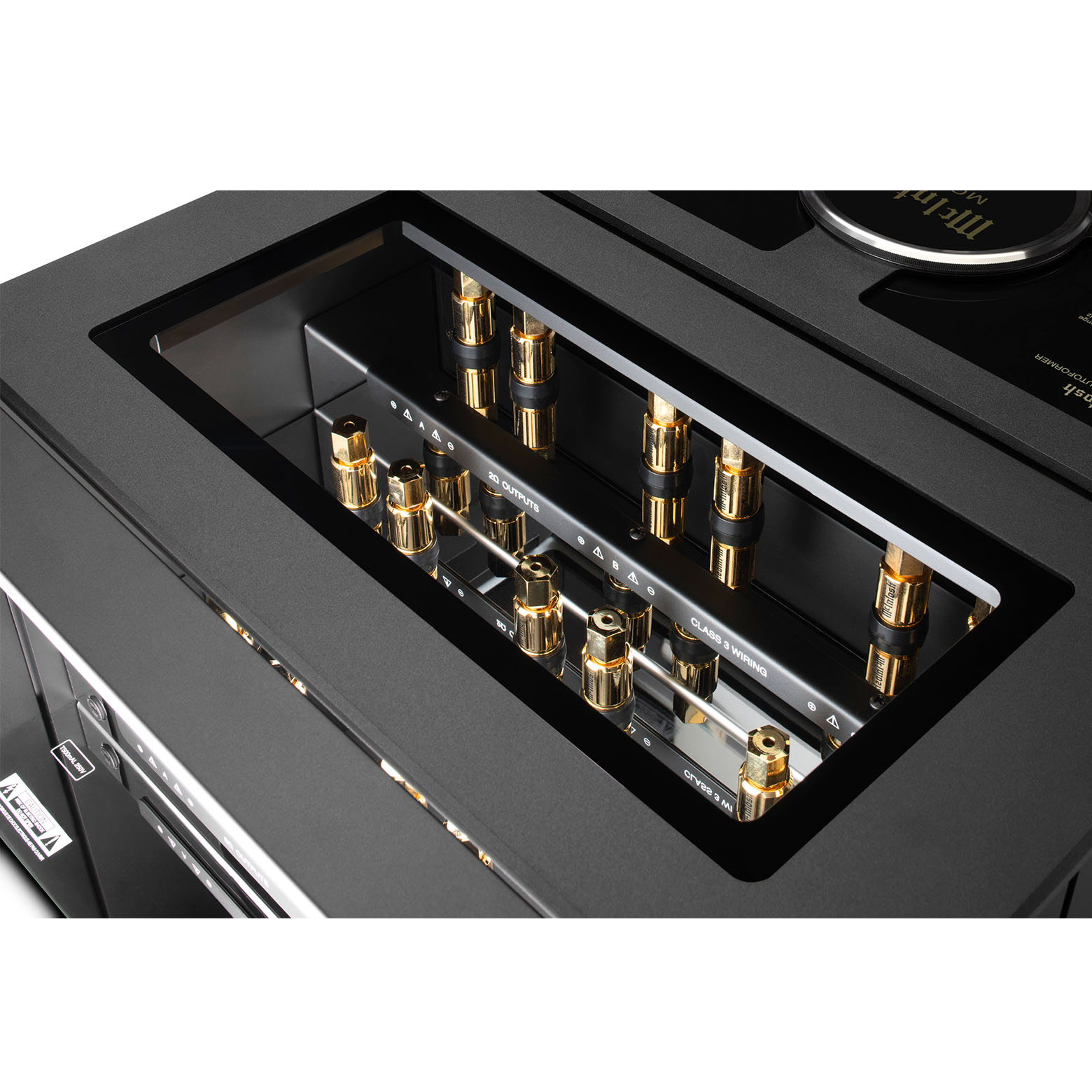

| Speaker Binding Post Type | Solid Cinch™ Speaker Binding Posts |
| Remote Power Control | Yes |
| Multi-Channel DB25 Cable | N/A |
| Physical Features & Construction | |
| Front Panel | 1/2″ Glass with handles |
| Illumination | Direct LED |
| Chassis Style | Open Stainless Steel (each module) |
| Weights & Dimensions | |

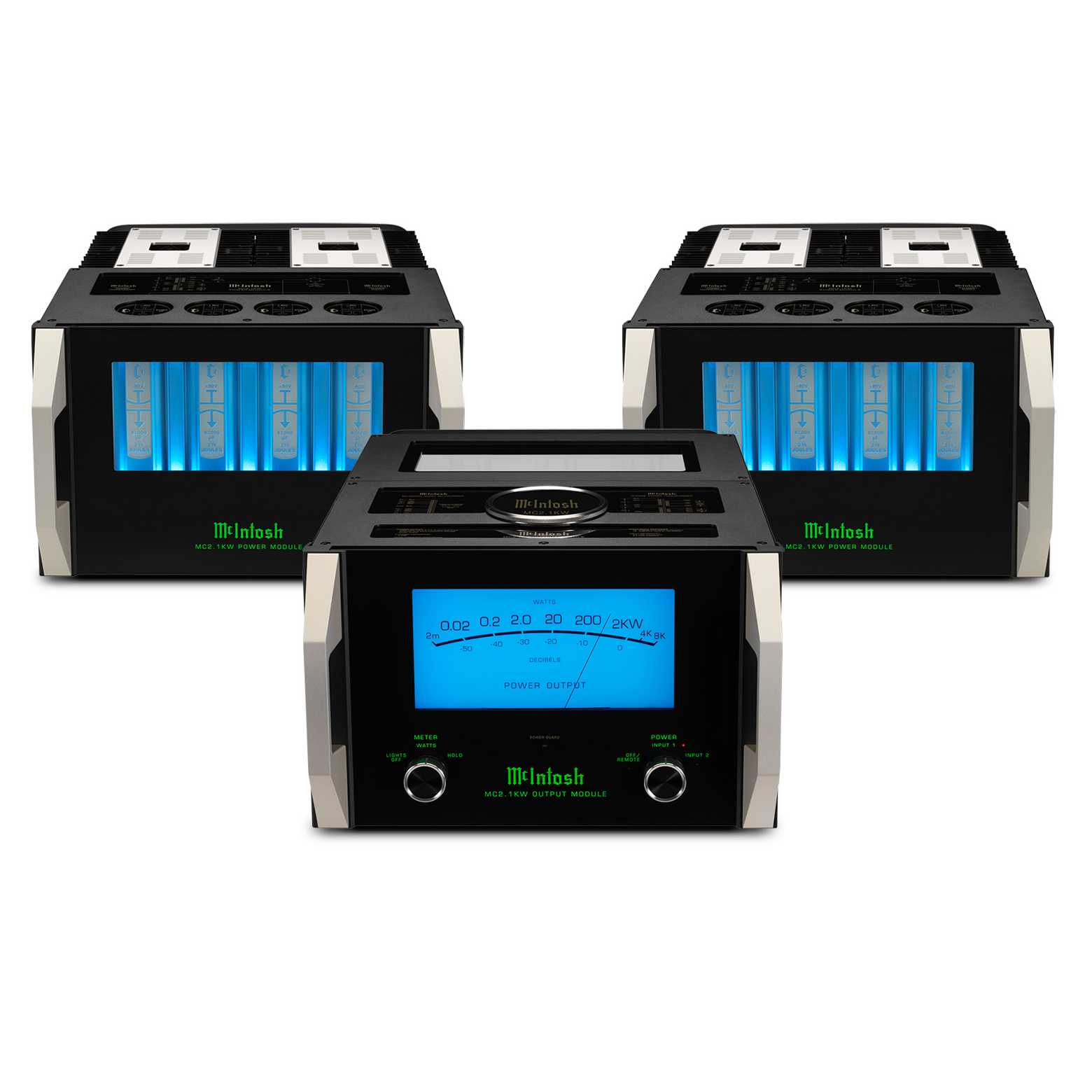

| Unit Dimensions (W x H x D) | Output Module (1 included): 17-15/16″ (45.6cm) x 12-5/32″ (30.9cm) x 30-3/16″ (76.7cm) (incl. handles and cables) Power Module (2 included): 17-15/16″ (45.6cm) x 11-7/8″ (30.2cm) x 30-3/16″ (76.7cm) ea (incl. handles and cables) |
| Unit Weight | Output Module (1 included): 125 lbs (56.7 kg) Power Module (2 included): 145 lbs (65.8 kg) ea |
| Shipping Weight | Output Module (1 included): 150 lbs (68 kg) Power Module (2 included): 165 lbs (74.8 kg) ea |
