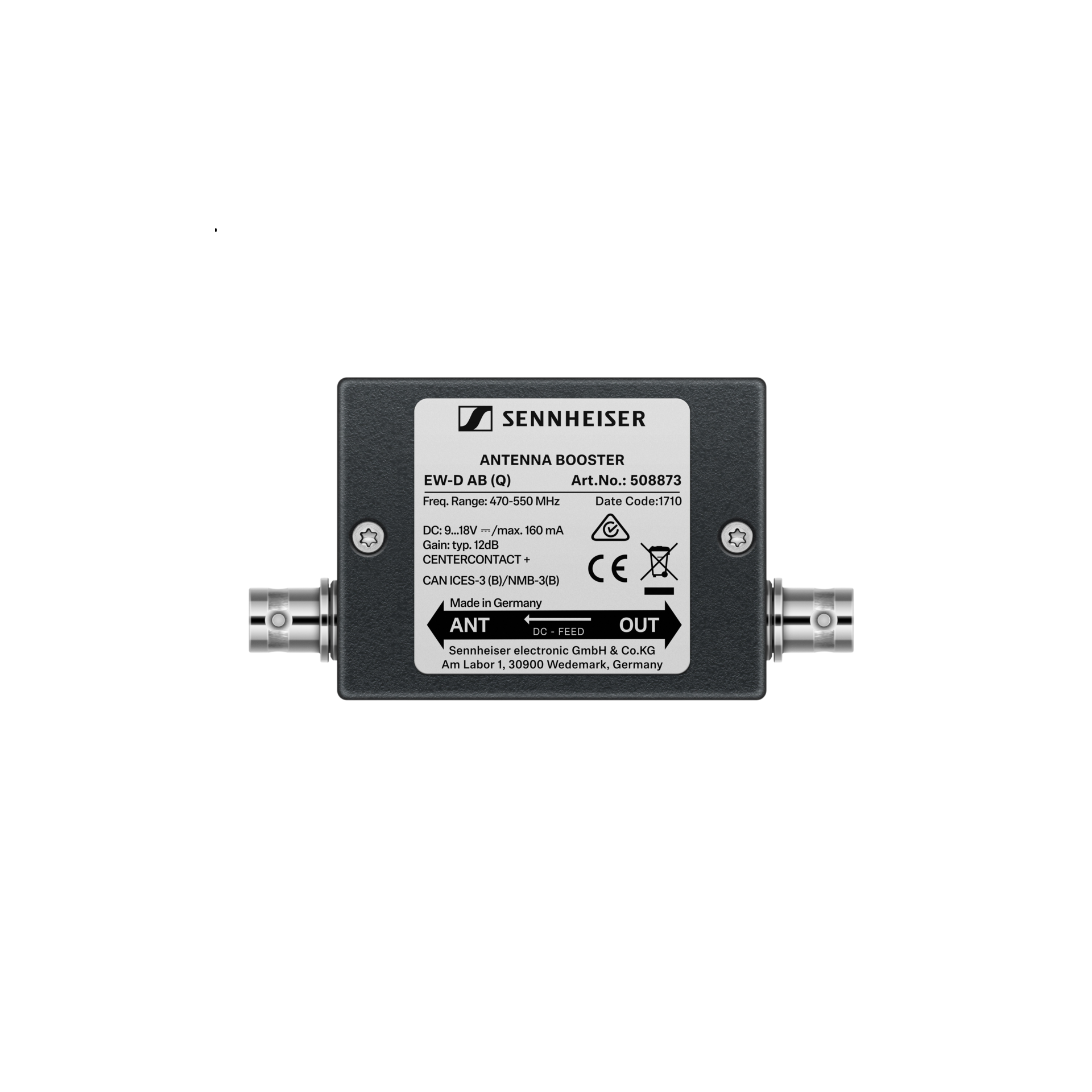

Specifications
| RF CHARACTERISTICS | |
| Frequency Ranges | • EW-D AB (Q): 470 – 550 MHz • EW-D AB (R): 520 – 608 MHz • EW-D AB (S): 606 – 694 MHz • EW-D AB (T): 694 – 824 MHz • EW-D AB (U): 823 – 865 MHz • EW-D AB (V): 902 – 960 MHz • EW-D AB (Y): 1785 – 1805 MHz |
| Gain & RF Performance | • Gain: Typically 12 dB • IIP3: > 25 dBm • Max. RF Input Power: +10 dBm • Impedance: 50 Ω |
| ELECTRICAL & CONNECTIONS SPECIFICATIONS | |
| Power Supply | DC coupled / DC 12 V (DC 9 – 18 V) / max. 160 mA @ 12 V, center contact + |
| Connections | 2x BNC female, DC power supply from OUT to ANT |
| PHYSICAL & ENVIRONMENTAL SPECIFICATIONS | |
| Dimensions & Weight | • Dimensions: Approx. 95 x 47 x 21 mm (3.74″ x 1.85″ x 0.83″) • Weight: Approx. 120 g (0.26 lbs) |
| Temperature Ranges | • Operating Temperature: -10 °C – +55 °C (14 °F – 131 °F) • Storage Temperature: -20 °C – +70 °C (-4 °F – 158 °F) |
| Relative Humidity | 5 – 95 % (non-condensing) |
