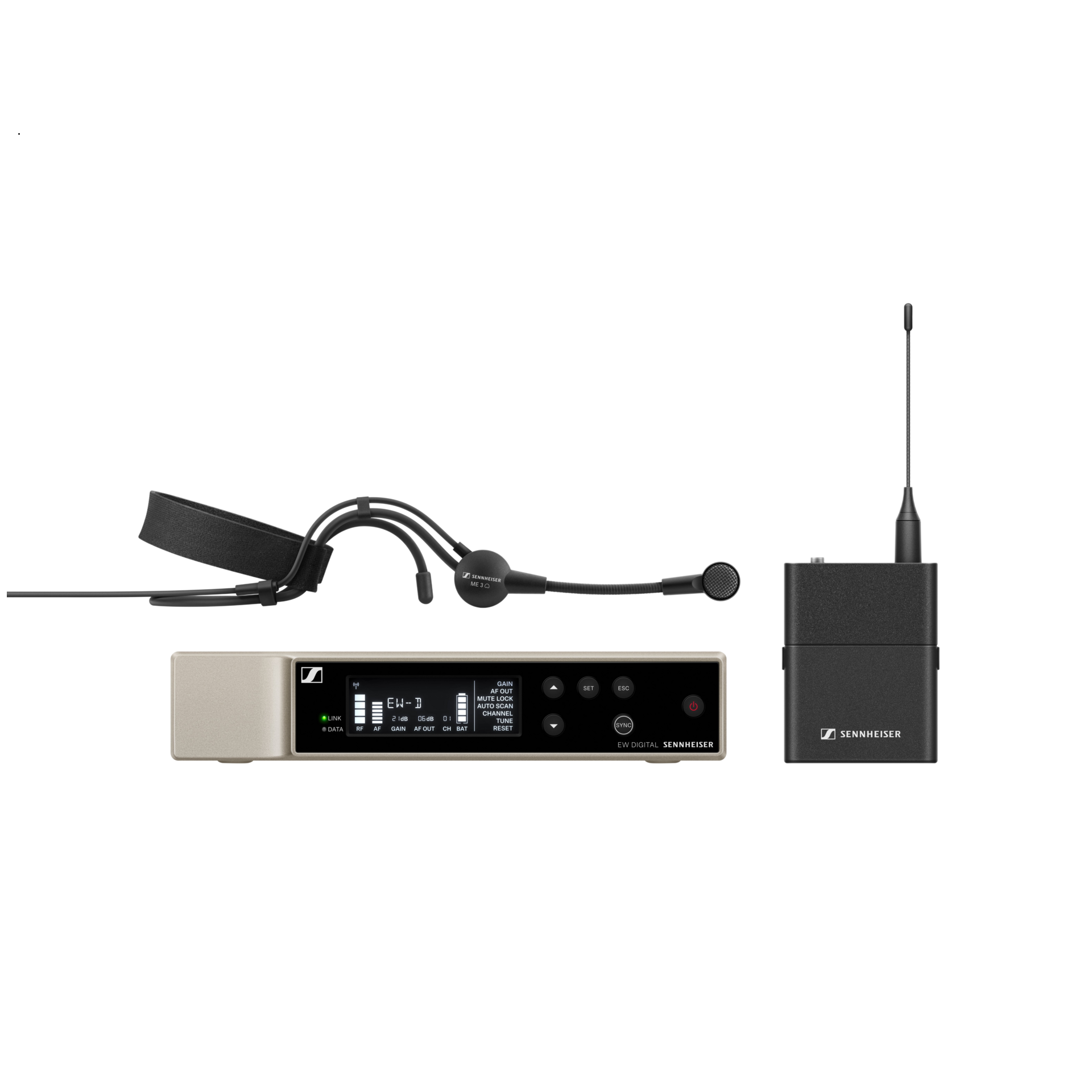

SENNHEISER EW-D ME3 SET Digital Wireless Headset Microphone System

All-in-one digital wireless lavalier set for those who sing or speak featuring Sennheiser’s renowned ME 3 cardioid headset microphone.

Versatile and feature-rich digital wireless system for those who speak or presentt that allows for seamless product pairing and management via the EW-D Smart Assist App. With a metal housing, the robust bodypack transmitter and unobstrusive clip-on microphone ME 3 (cardioid) with high speech intelligibility suit perfectly for daily use on stage.
  • Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
  • Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
  • Auto scan creates reliable connections with minimal time and effort
  • 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
  • Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
  • 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
  • 2,240 selectable frequencies allow for fine tuning
  • Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)
分類: ,

Product
Transducer type Pre-polarised condenser
Latency (ms) 1.9 ms
Total harmonic distortion (THD) ≤ -60 dB for 1 kHz @ -3 dBfs input level

Frequency Specifications
Frequency range 470.200 – 526.000
Audio frequency response 20 Hz – 20 kHz (-3 dB) @ 3 dBfs
Acoustic Properties
Dynamic range (>) 134 dB
Audio output level 18 dBu max
Max. sound pressure level 150 dB SPL
Pickup pattern Cardioid

Connectivity
Connection Wireless
Connectors 3.5mm

Ambient Conditions
Operating relative humidity (≤ %) 5 – 95 % (non-condensing)
Operating temperature (C) -10 °C – +55 °C (14 °F – 131 °F)

Battery & Power
Battery capacity (Ah) 2.3
Battery count 2
Battery included Y
Battery voltage (V) 1.5
Charging current (mA) < 300 mA

Electrical Properties
Sensitivity 1.6 mV/Pa
Input voltage 11 – 13 V ⎓
Transmission power (mA) Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) BLE:
max. 10 mW EIRP

Dimensions
Dimensions 212 x 44 x 189 mm
Product weight (g) 2800
Product height 73
Product length 405
Product width 350
Cable length (m) approx. 1.60 m (62.99″)

Bluetooth
Bluetooth transmission frequency 2402 – 2480 MHz
