Specifications
| GLOBAL SYSTEM SPECIFICATIONS | |
| Modulation | Wideband FM |
| Frequency Ranges |
• A: 548 to 572 MHz • GB: 606 to 630 MHz • B: 614 to 638 MHz • C: 766 to 790 MHz • D: 794 to 806 MHz • E: 821 to 832 MHz and 863 to 865 MHz • K: 925 to 937.5 MHz |
| Switching Bandwidth & Frequencies |
• Switching Bandwidth: Up to 24 MHz • Frequencies: Adjustable in 25-kHz steps • Frequency Banks: 8 frequency banks, each with up to 12 factory-preset channels |
| Signal-to-Noise Ratio & THD |
• Signal-to-Noise Ratio: ≥ 103 dBA • THD: ≤ 0.9% |
| Temperature Range |
• Operation: 0°C to +40°C • Storage: –20°C to +70°C |
| Transmitter Synchronization | 2.4 GHz, Low Power OQPSK (only active during synchronization) |

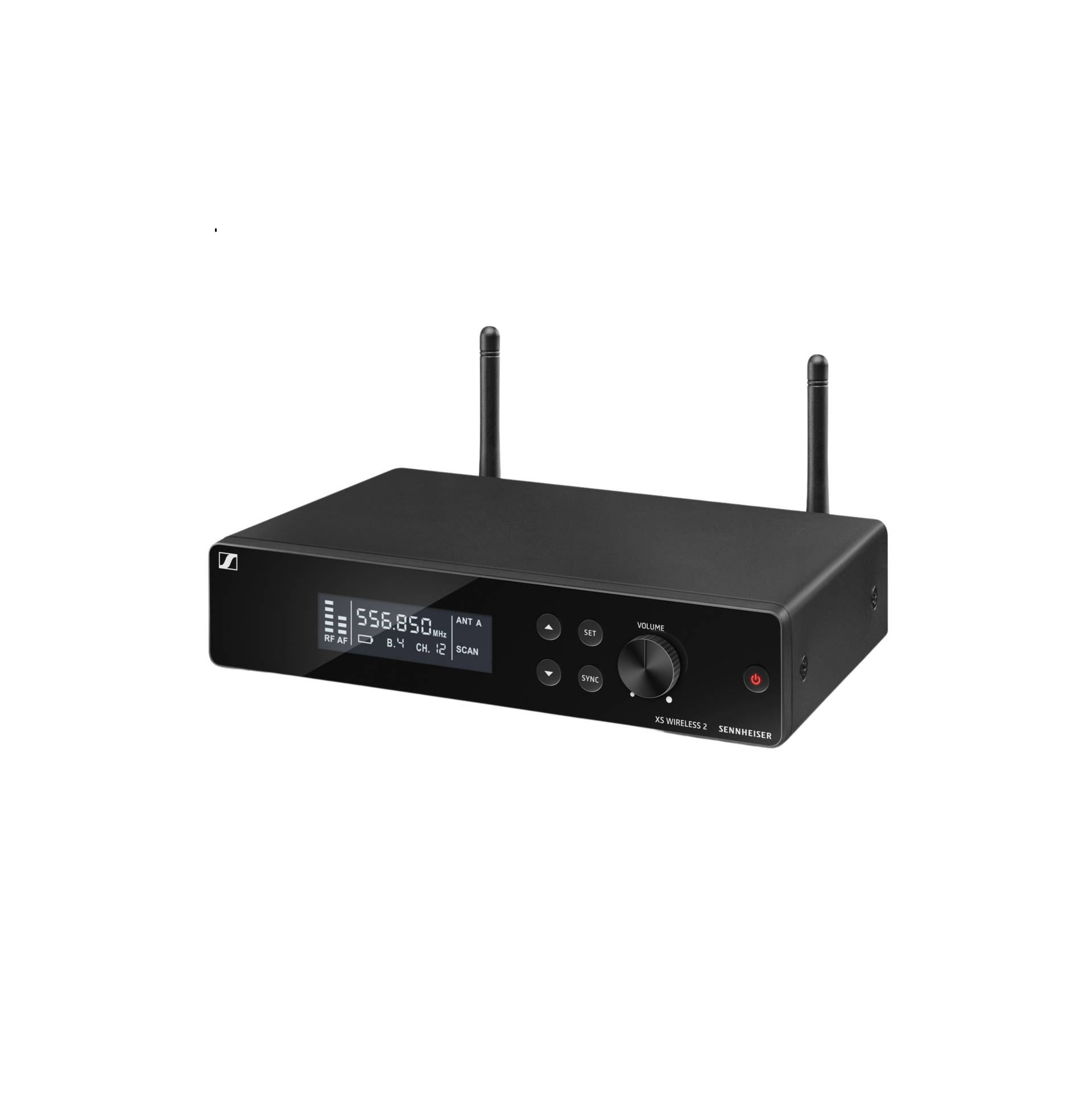

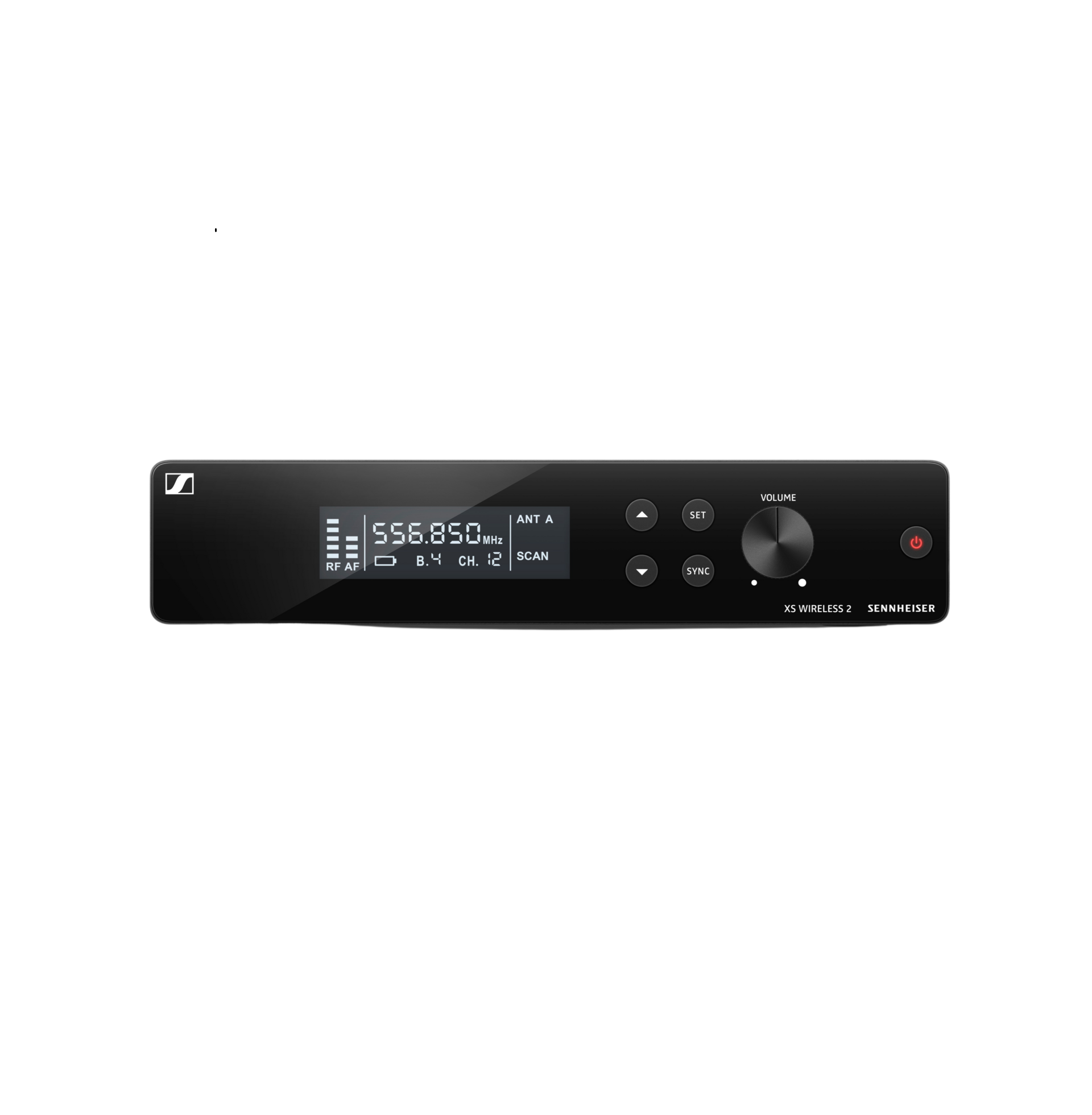

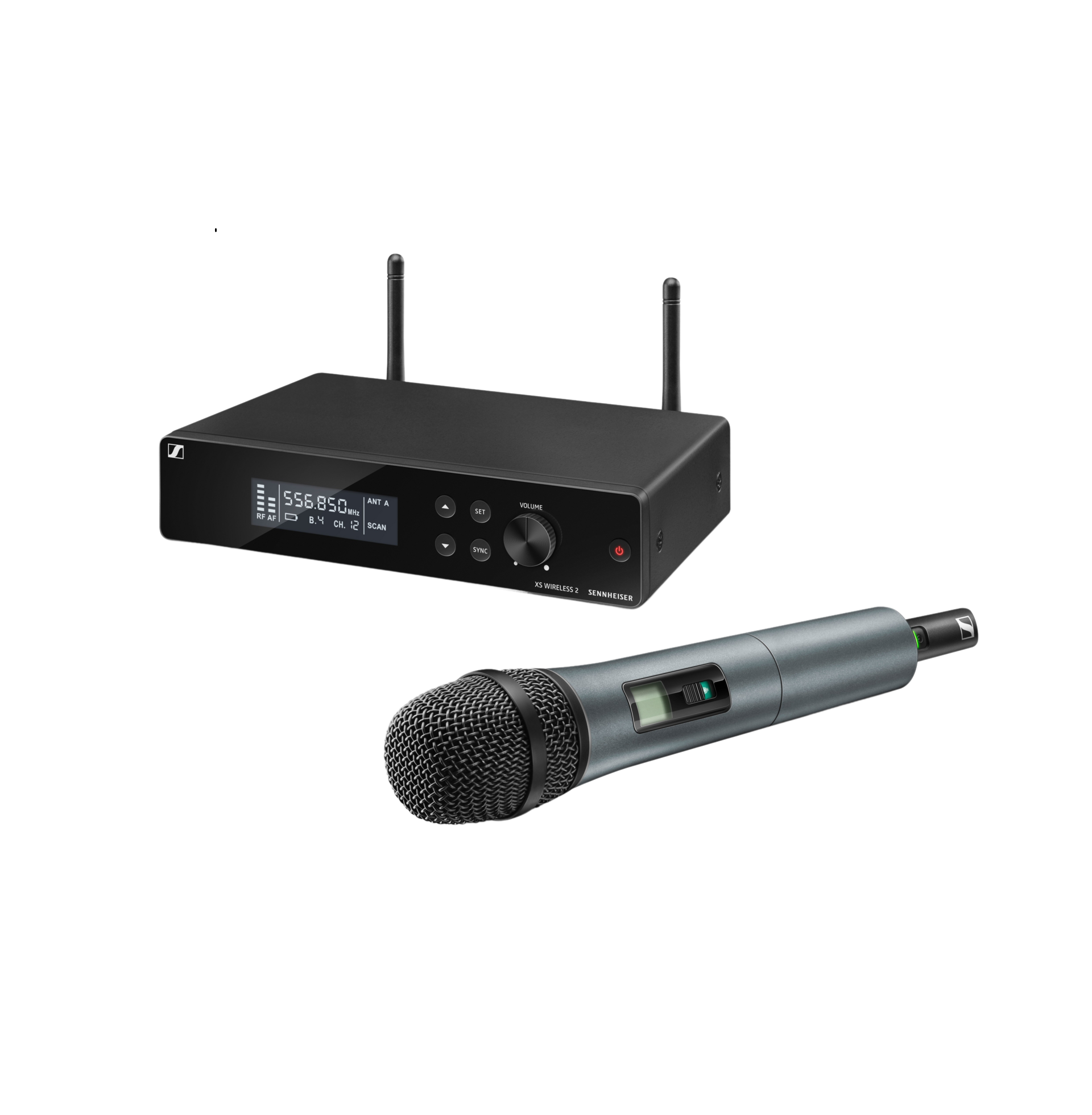

| RECEIVER SPECIFICATIONS | |
| Receiver & Diversity Principle |
• Receiver Principle: Double superheterodyne • Diversity Principle: True Diversity |
| Sensitivity & Squelch |
• Sensitivity (at peak deviation): < 3 μV at 52 dB(A)rms S/N • Squelch: Adjustable from 3 dBμV to 28 dBμV (combined with pilot tone) |
| Audio Frequency Response | 50 to 16,000 Hz (–3 dB) |

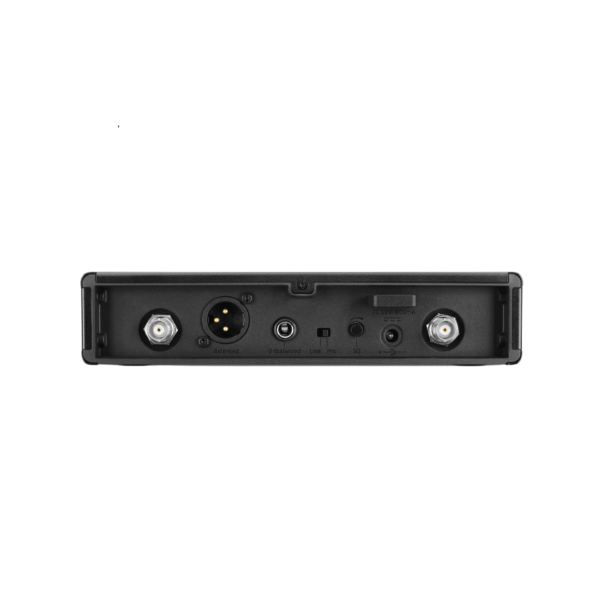

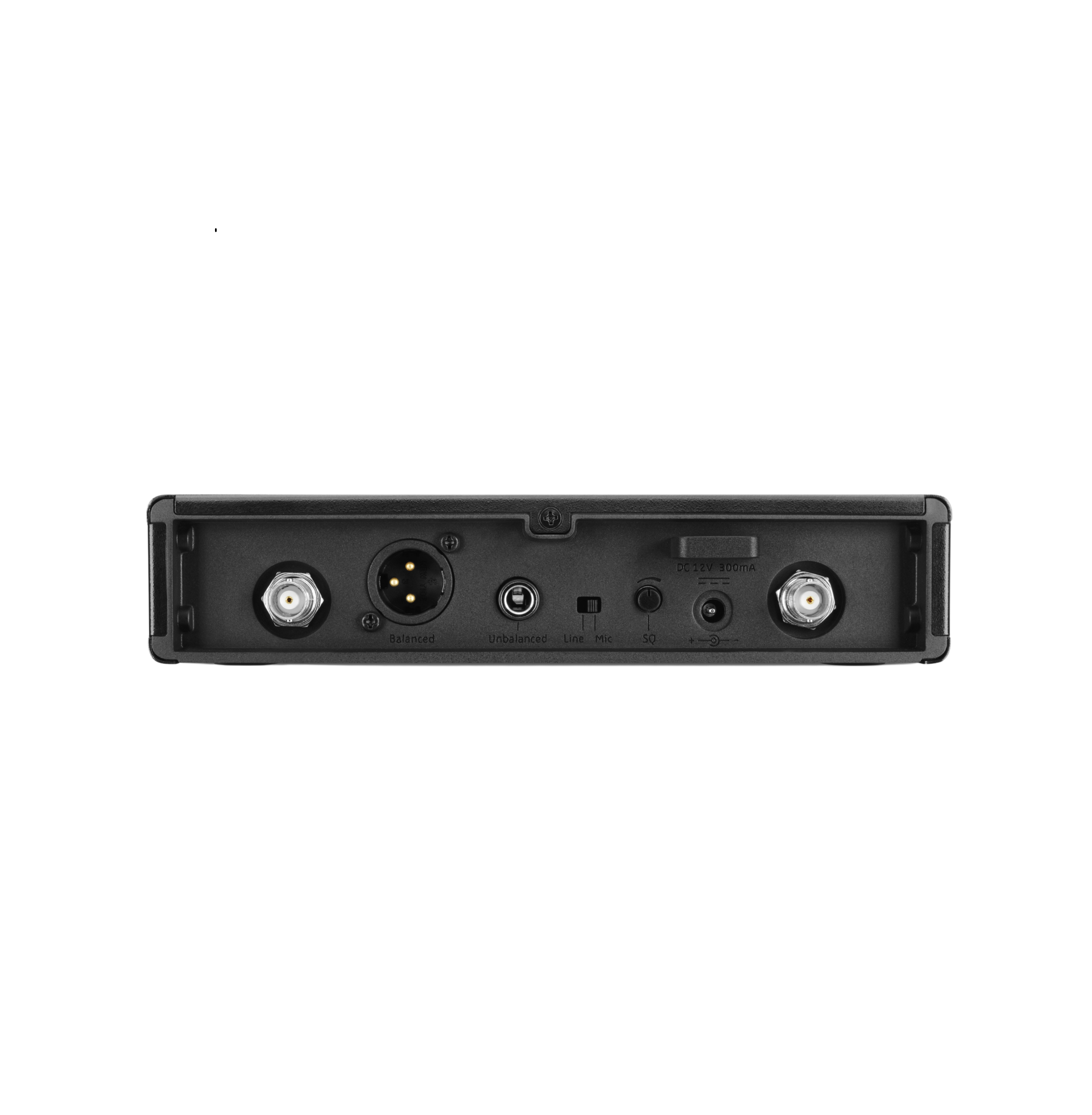

| Max. AF Output Voltage |
At peak deviation, 1 kHz AF: • 1/4″ (6.3 mm) Jack Socket (unbalanced): +6 dBu • XLR Socket (balanced): +12 dBu |
| Audio Adjustment & Levels |
• Audio Adjustment Range: 40 dB, adjustable via jog dial • Line/Mic Level: 20 dB, switchable |

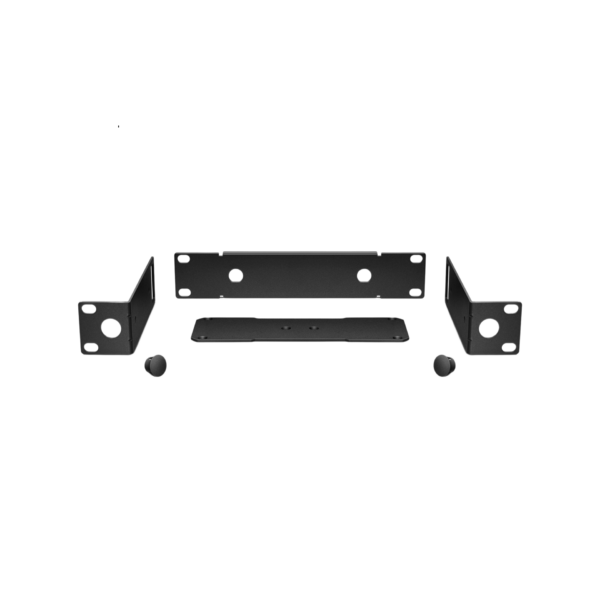

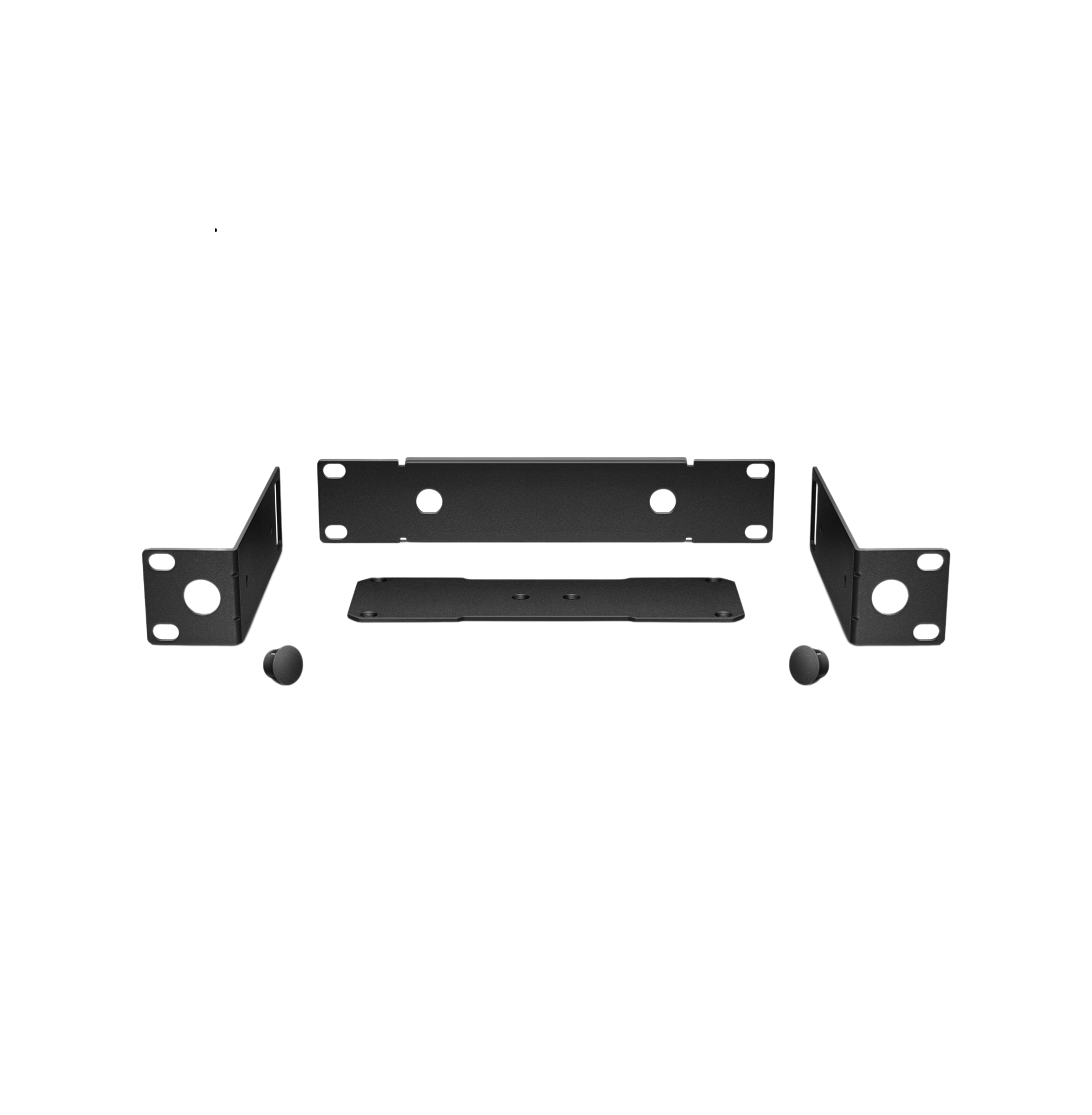

| Power Supply (Receiver) | 12 V⎓ nom. / 300 mA |
| Housing & Dimensions (Receiver) |
• Housing Material: Rugged metal housing • Dimensions: ca. 200 x 42 x 127 mm (W x H x D) • Weight: ca. 680 g |
| TRANSMITTERS SPECIFICATIONS | |
| RF Output Power | 10 mW |
| AF Frequency Response (Transmitters) |
• Bodypack Transmitter (Line): 50 to 16,000 Hz • Bodypack Transmitter (Mic): 80 to 16,000 Hz • Handheld Transmitter: 80 to 16,000 Hz |
| Bodypack Audio Input & Voltage |
• Audio Input: 3.5 mm jack socket • Max. Input Voltage (Mic/Line): typ. 1.5 VRMS Mic / typ. 2.6 VRMS Line @ –30 dB Gain (at 3% THD) |

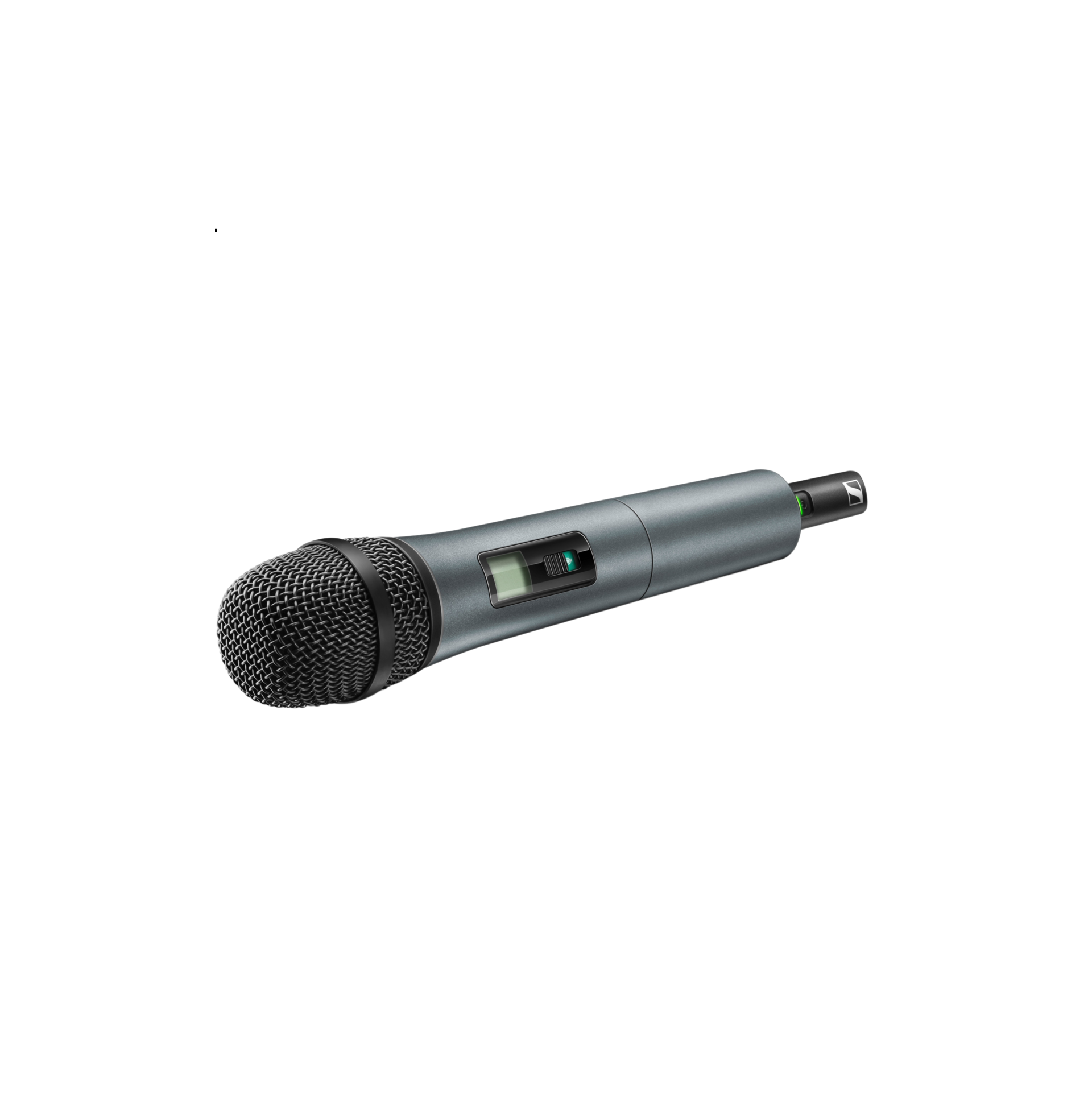

| Handheld Capsule Properties |
• Microphone Type Option 1: Dynamic (e 835 capsule / Cardioid / 1.5 mV/Pa) • Microphone Type Option 2: Condenser, pre-polarized (e 865 capsule / Super-cardioid / 1.8 mV/Pa) |
| Sensitivity Adjustment Range | 0 to –30 dB, adjustable in 10-dB steps |
| Power Supply & Operating Time | 2 AA size batteries, 1.5 V / Approx. 10 hours |
| Housing & Dimensions (Transmitters) |
• Housing Material: Rugged ABS housing • Bodypack Dimensions: Approx. 71 x 96 x 28 mm (W x H x D) / Approx. 95 g • Handheld Dimensions: Approx. 260 x 50 mm (L x ∅) / Approx. 245 g |
| COMPATIBLE MICROPHONES SPECIFICATIONS | |
| Lavalier Microphone (ME 2-2) |
• Transducer Principle: Condenser, pre-polarized • Sensitivity: 20 mV/Pa • Pick-up Pattern: Omni-directional • Max. SPL: 130 dB |
| Headset Microphone (ME 3-II) |
• Transducer Principle: Condenser, pre-polarized • Sensitivity: 1.6 mV/Pa • Pick-up Pattern: Cardioid • Max. SPL: 150 dB |
| POWER SUPPLY UNIT SPECIFICATIONS | |
| Input Rating |
• Nominal Input Voltage: 100 to 240 V~ • Power Frequency: 50 or 60 Hz • Input Current: ≤ 200 mA |
| Output Rating |
• Nominal Output Voltage: 12 V⎓ • Output Current: ≤ 500 mA |
| Standby Power & Efficiency |
• Standby Power Consumption: ≤ 0.075 W @ 230 V AC / ≤ 0.1 W @ 115 V AC • Energy Efficiency Level: DoE Level VI |
| Environmental & Physical |
• Temperature Range: 0°C to +40°C (Storage: –20°C to +60°C) • Relative Air Humidity: max. 95% • Cable Length: approx. 1.83 m • Weight (without adapter): approx. 65 g |
