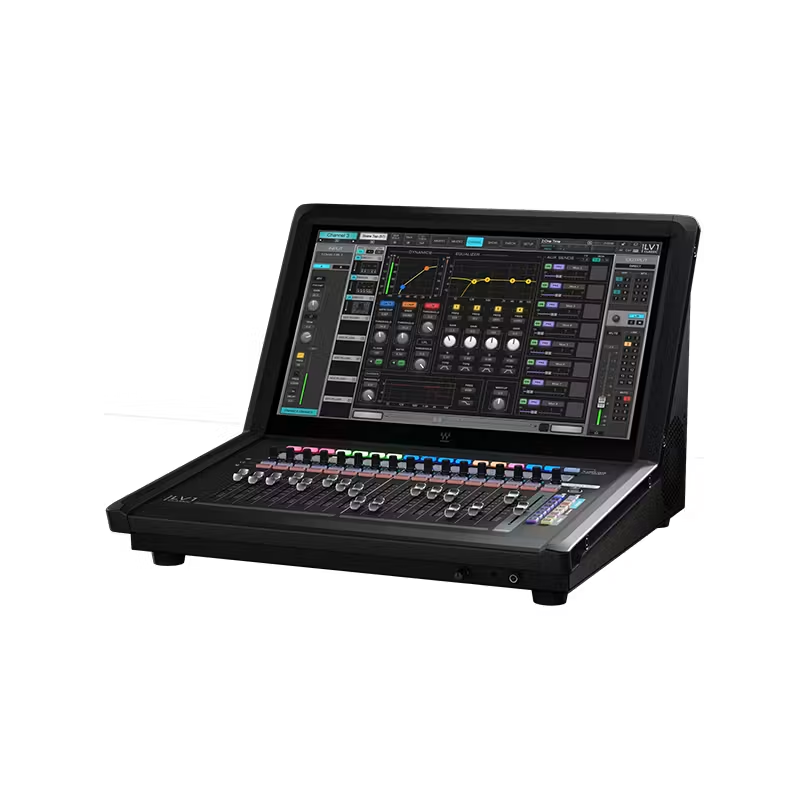

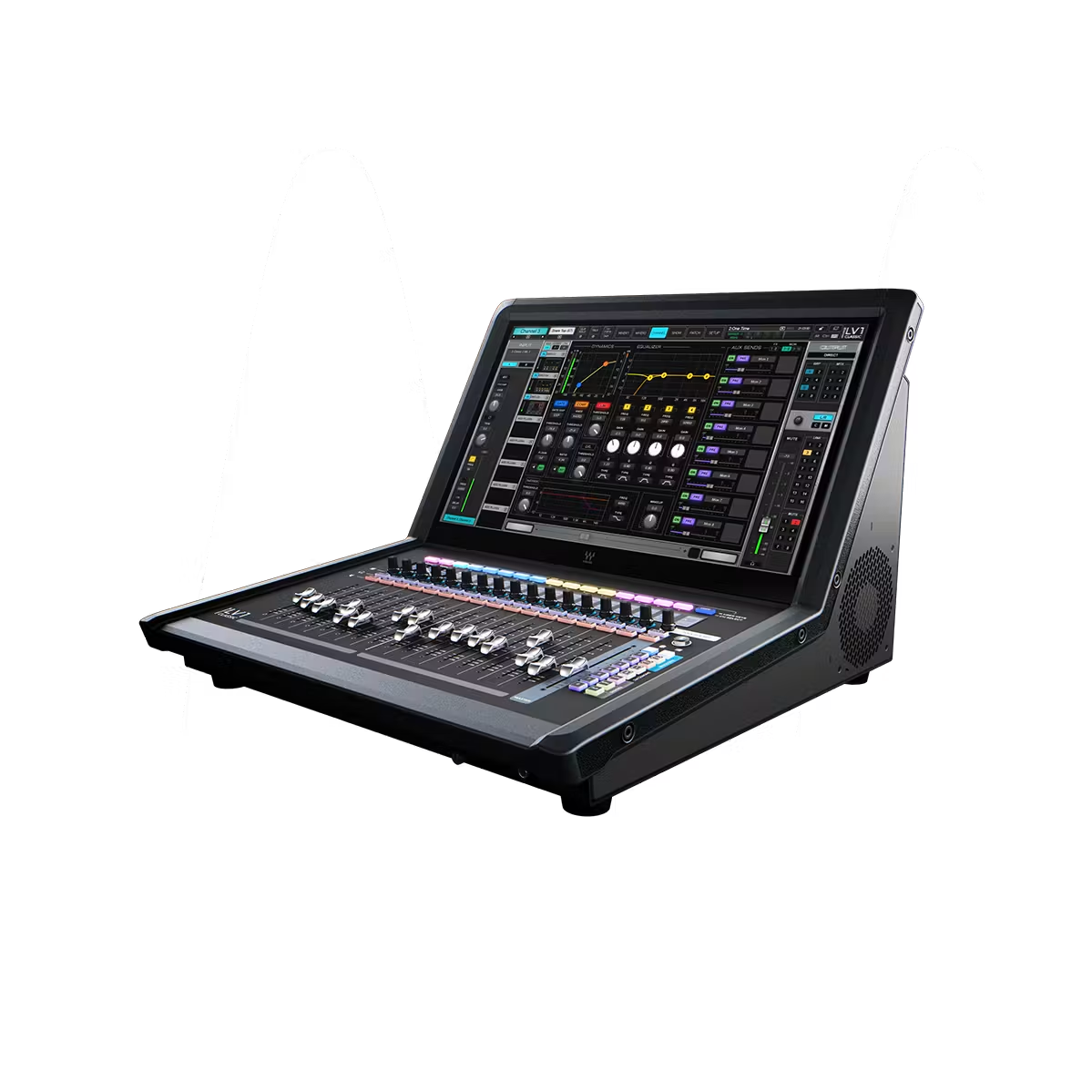

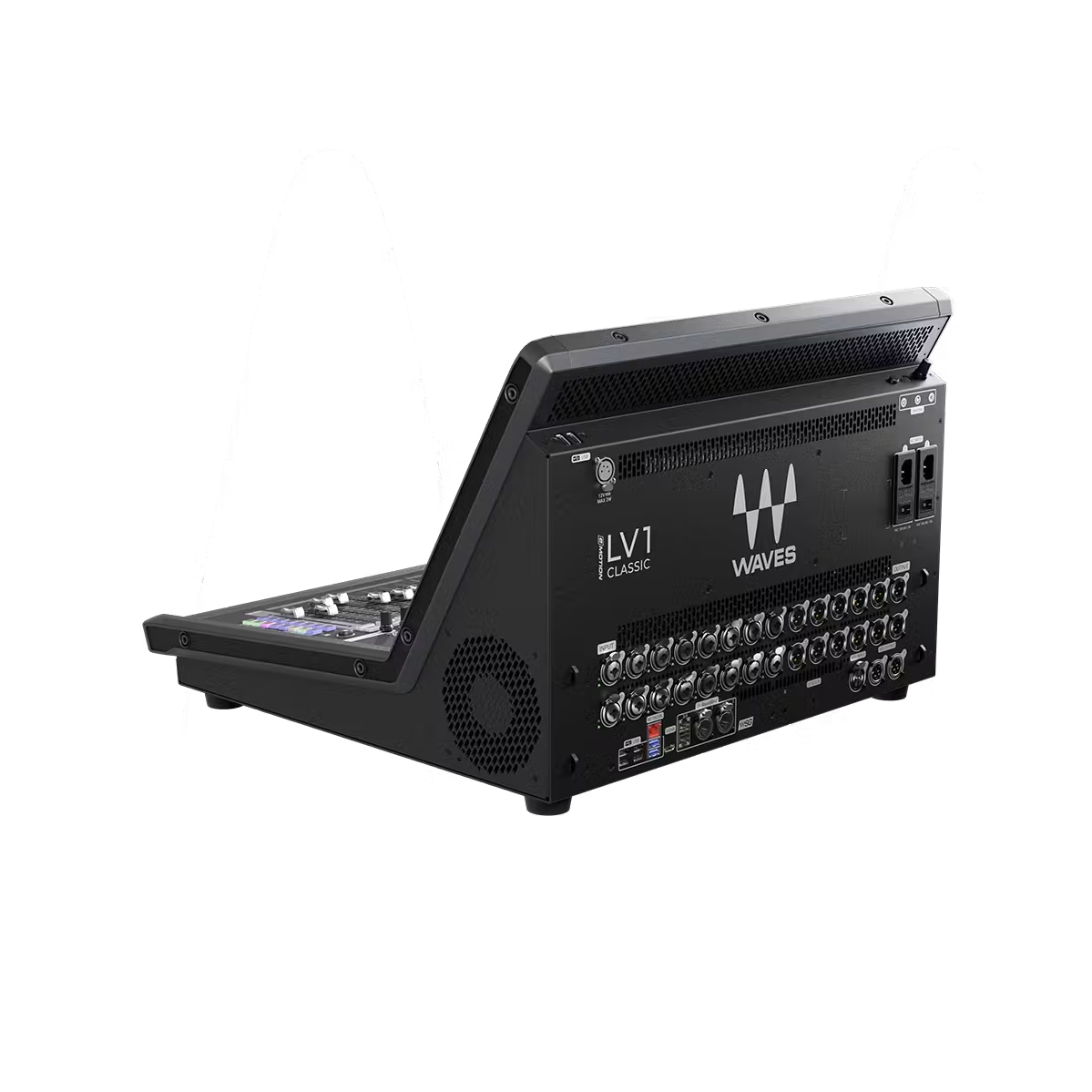

WAVES EMOTION LV1 CLASSIC Digital Mixer

Maximum Power. Compact Form.

eMotion LV1 Classic builds upon the industry-proven quality of the Waves LV1 mixer engine, and delivers its advantages in the preferred console workflow of live sound engineers worldwide.

With a pristine-sounding mixer engine, quick-access UI, and the industry’s deepest integration of state-of-the-art processing, LV1 Classic packs more live mixing power into a compact console than ever before.

• 64 mono/stereo input channels and 44 mono/stereo buses: 8 groups, 24 auxes, 8 matrices, 3 master, cue
• 16 Waves Signature Preamps for mic/line inputs with digital control
• 12 line outputs, 2 AES3 outputs, AES3 SRC input
• Built-in powerful SoundGrid server for mix engine and plugin processing
• Double Precision 32-bit floating point mix engine (44.1–96 kHz) with Latency as low as 0.8 ms
• 21.5” multi-touch screen with 1000 Nit brightness
• 16+1 motorized 100 mm Alps faders
• 16+1 precision encoders, with mini-displays including per-channel LCD metering, and Select/Mute/Solo
• 8 layers keys and 8 utility keys and a tempo pad
• 16+2 customizable user defined keys
• 4 SoundGrid switch ports: 2 Ethercon + 2 Rj45
• Hi-power H/P output with 1⁄4” jack + minijack
• HDMI / 8 USBs / remote network
• 12v XLR4 lamp connection
• Dual power supply for redundancy
• 8 Mute groups and 16 Link DCAs with Spill function
• 8-slot rack hosts 8 plugins per input channel + all mix channels
• Plugins included with the console: Waves Tune Real-Time, F6 Dynamic EQ, eMo Q4 EQ, eMo D5 Dynamics, eMo F4 Filter, GEQ, X-FDBK, Primary Source Expander, R-Comp, R-Bass, H-Delay, Doubler, R-Verb, TrueVerb, GTR3, Magma Tube Channel Strip, eMo Generator
• Custom colors per channel and custom options for mixing layout
• Up to 1000 scenes with Recall Safe and Scope Filters
• Record 16 tracks locally to USB / Stereo playback from USB / 128 tracks to/from remote computers
