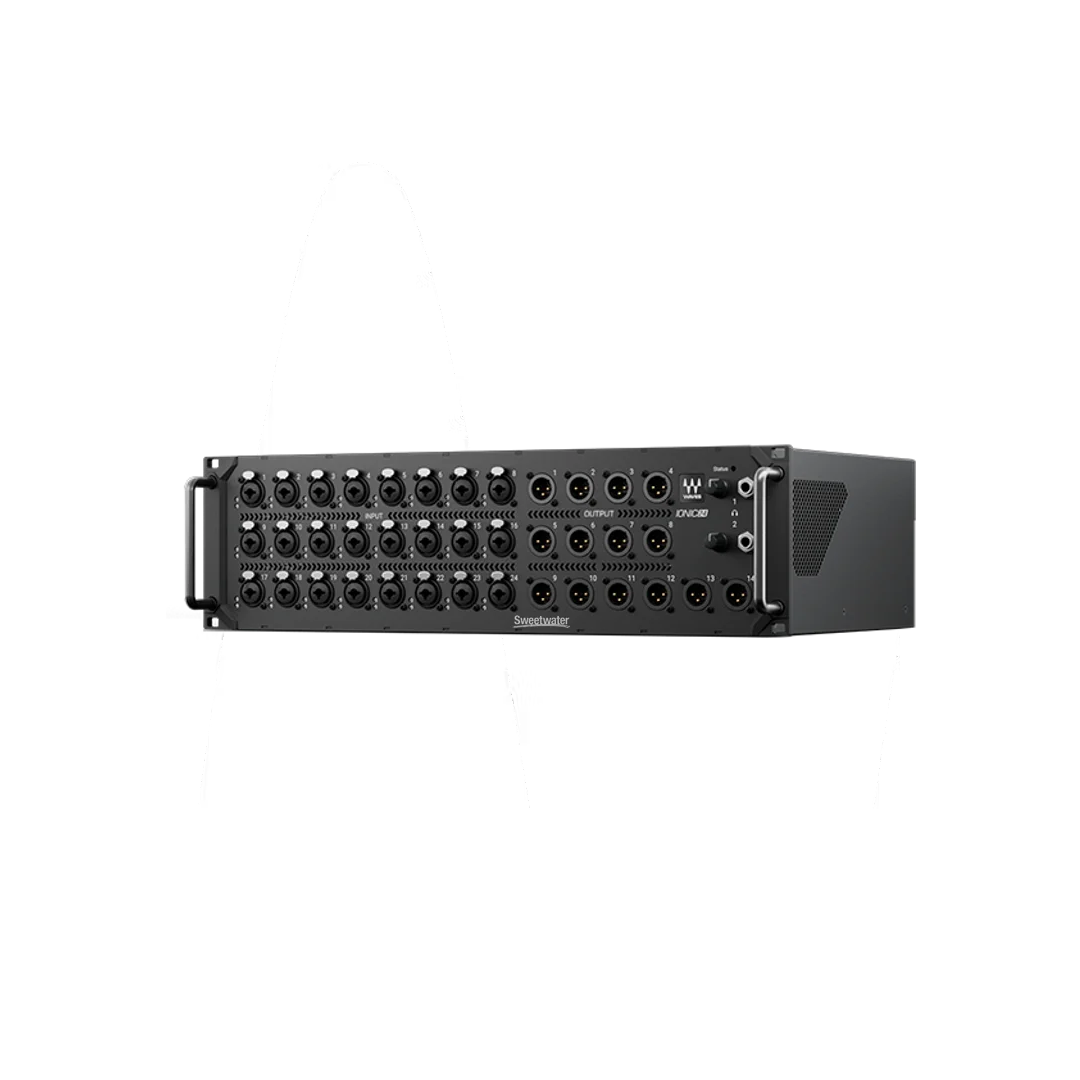

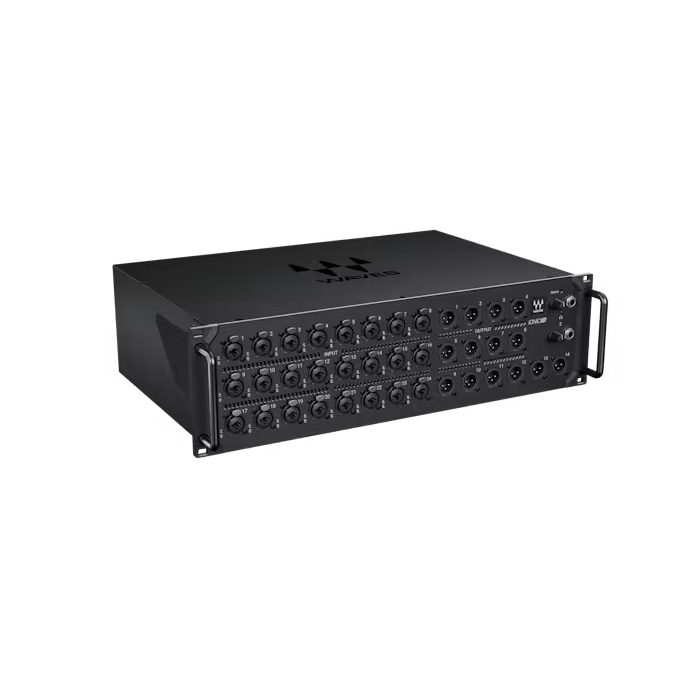

WAVES IONIC 24 24-in / 18-out SoundGrid stagebox

Experience unparalleled punch and clarity, ensuring your sound stands out in any scenario. Engineered for excellence, IONIC 24 is crafted to enhance every input, from vocals to snare drums, delivering superb sound quality with uncompromising precision.

At the heart of IONIC 24 are Waves Signature Preamps—originally designed preamps with fully discrete analog circuits. Waves Signature Preamps deliver maximum headroom, lightning-fast transient response, and an incredibly low noise floor, plus your choice between transparent preamp sound and added rich harmonic enhancement per input.

IONIC 24 is the perfect I/O expansion for the eMotion LV1 live mixing console, complementing the LV1’s already exceptional sonic performance and ensuring quick and easy setup.

  • 24 in / 18 out SoundGrid stage box with superior audio quality
  • Seamless integration with the eMotion LV1 console
  • 24 mic/line inputs with original-design Waves Signature Preamps
  • 18 crystal-clear line outputs (selectable between 18/24 dBu)
  • Stereo AES: 1 in / 2 out, two independent headphone outputs
  • Analog-modeled harmonic enhancement per input (optional)
  • Sample Rates: 44.1, 48, 88.2, 96 kHz
  • Analog input impedance selector: classic 2kΩ / modern 7kΩ

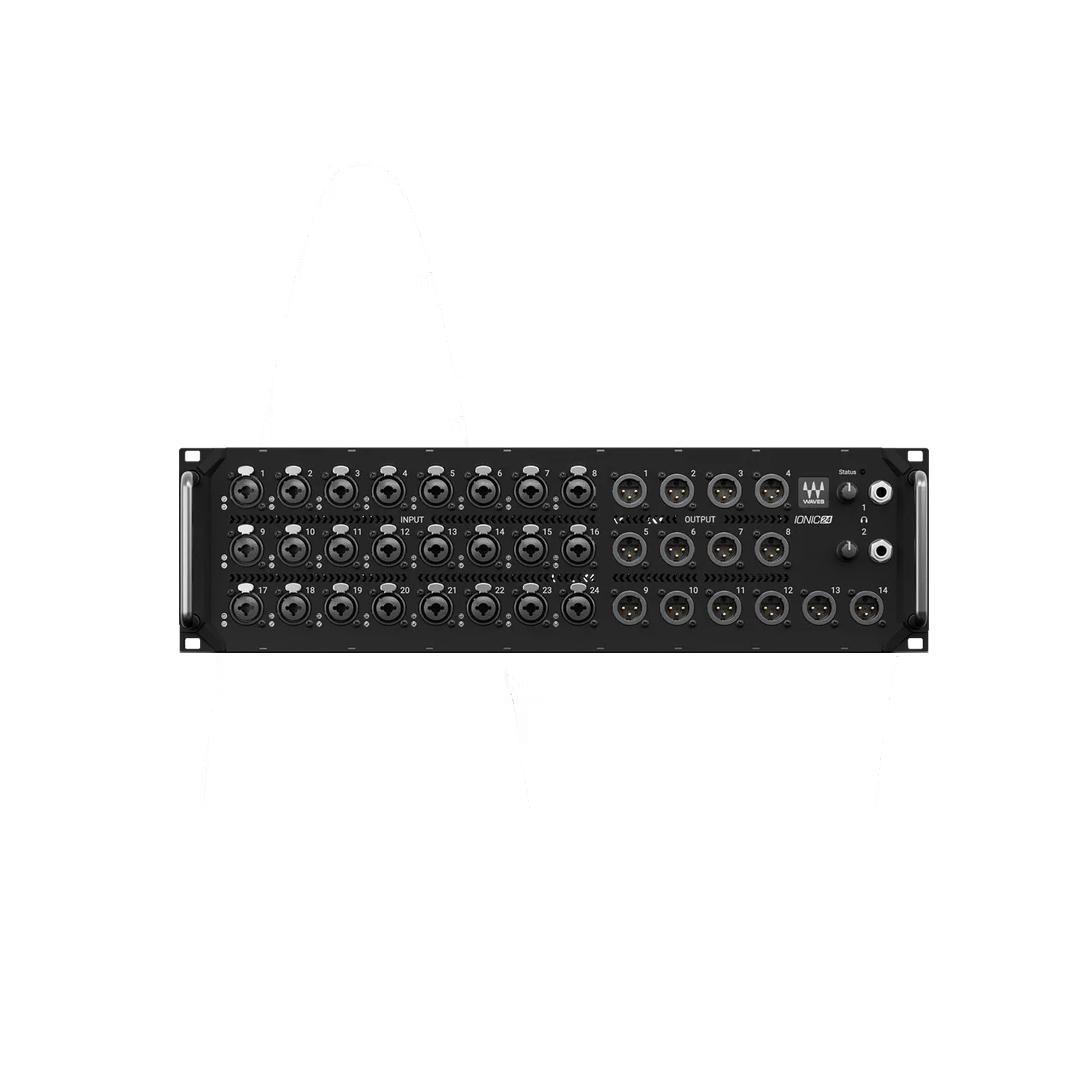

  • Road-ready 3U chassis: rugged build, rack-mountable
  • Optional external power supply available separately
分類: ,

SPECIFICATIONS

General & Audio Engine
Sample Rates 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Microphone/Line Inputs
Input Gain adjustable from -3 dB to 60 dB in steps of 1dB
Frequency response (+18 dBu input)
+/- 0.1 dB, 20 Hz to 20 kHz
+/ -1.0 dB, 10 Hz to 40 kHz
Dynamic range >110 dB (20 kHz BW, 0 dB Gain)
EIN -130 dBu (gain 60 dB, 0 ohms source, A-weighted)
THD+N -100 dB (997 Hz, +18dBu source, 0 dB Gain, 20kHz BW)
Input impedance XLR: 2k ohms / 7k ohms, selectable per input
TRS: 14.6K ohms
Input Sensitivity XLR: -33 dBu to +27 dBu, adjustable in 1 dB steps
TRS: -27 dBu to +33 dBu, adjustable in 1 dB steps
CMRR 50 dB (20 Hz to 1 kHz, 0 dB gain)
Crosstalk > 90 dB (20 Hz to 20 kHz, +27 dBu input, 0 dB gain)
Phantom Power 48V phantom power switchable per input
Transformer Emulation Input transformer simulation, switchable per input
Indicators Front panel signal presence and clip indicator, per channel
Line Output
Maximum output level +18 dBu or + 24 dBu, switchable per output
Frequency Response +/- 0.1 dB, 20 Hz to 20 kHz @ 48 kHz SR
+0.1 / -1.0 dB, 10 Hz to 40 kHz @ 96 kHz SR
THD+N -100 dB @ +24 dBu, -105 dB @ +18 dBu (997 Hz, 20 kHz BW)
Crosstalk > 90 dB (20 Hz to 20 kHz)
Residual output noise -87 dBu (A-Weighted)
Output impedance 150 ohms
Headphones Output
Gain Control Adjustable output-gain up to 6V
Frequency Response +/- 0.1 dB, 20 Hz to 20 kHz @ 48 kHz SR
+0.1 / -1.0 dB, 10 Hz to 40 kHz @ 96 kHz SR
THD+N -80 dB (3V @ 30 ohm load, 997 Hz, 20 kHz BW)
Output impedance 20 ohms

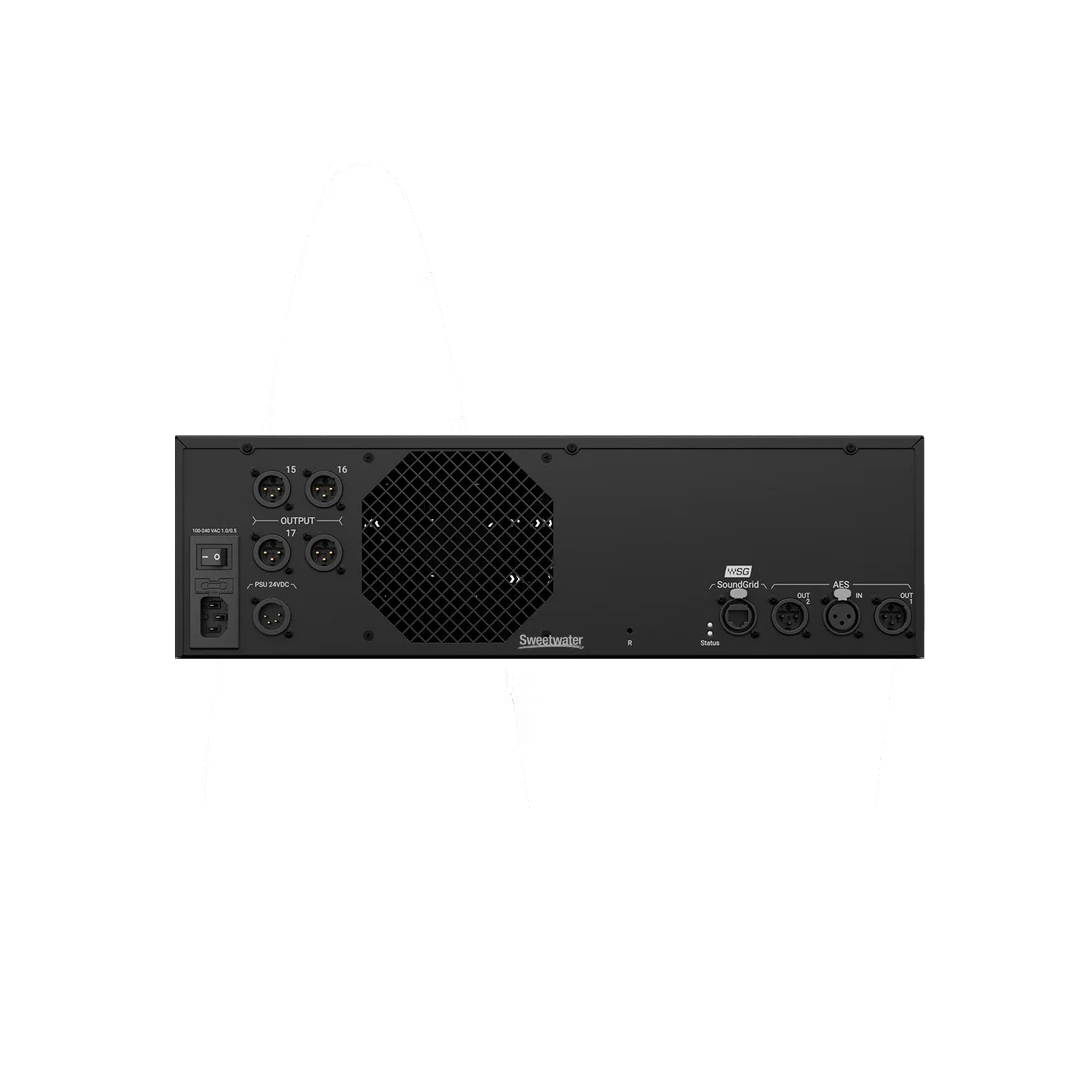

Digital I/O & Networking
AES3 Input / Output impedance: 110 ohms
Input SR with auto conversion (SRC)
Output SR support: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
SoundGrid Ethernet 1GB
Power & Environmental
Power Supply 100 V–240 V auto-switching PSU 0.5A / 0.25A, Redundant PSU external input
Operating Temperature 0 to 35 degrees Celsius (32 to 95 degrees Fahrenheit)
Physical Specifications
Dimensions 19 x 12.2 x 5.17 inches (482.1 x 310.8 x 131.4 mm)
Weight 14.77 lbs (6.7 kg)
