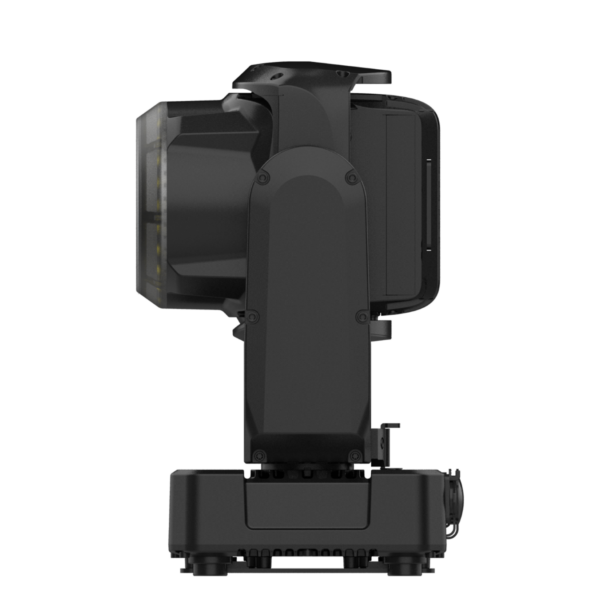

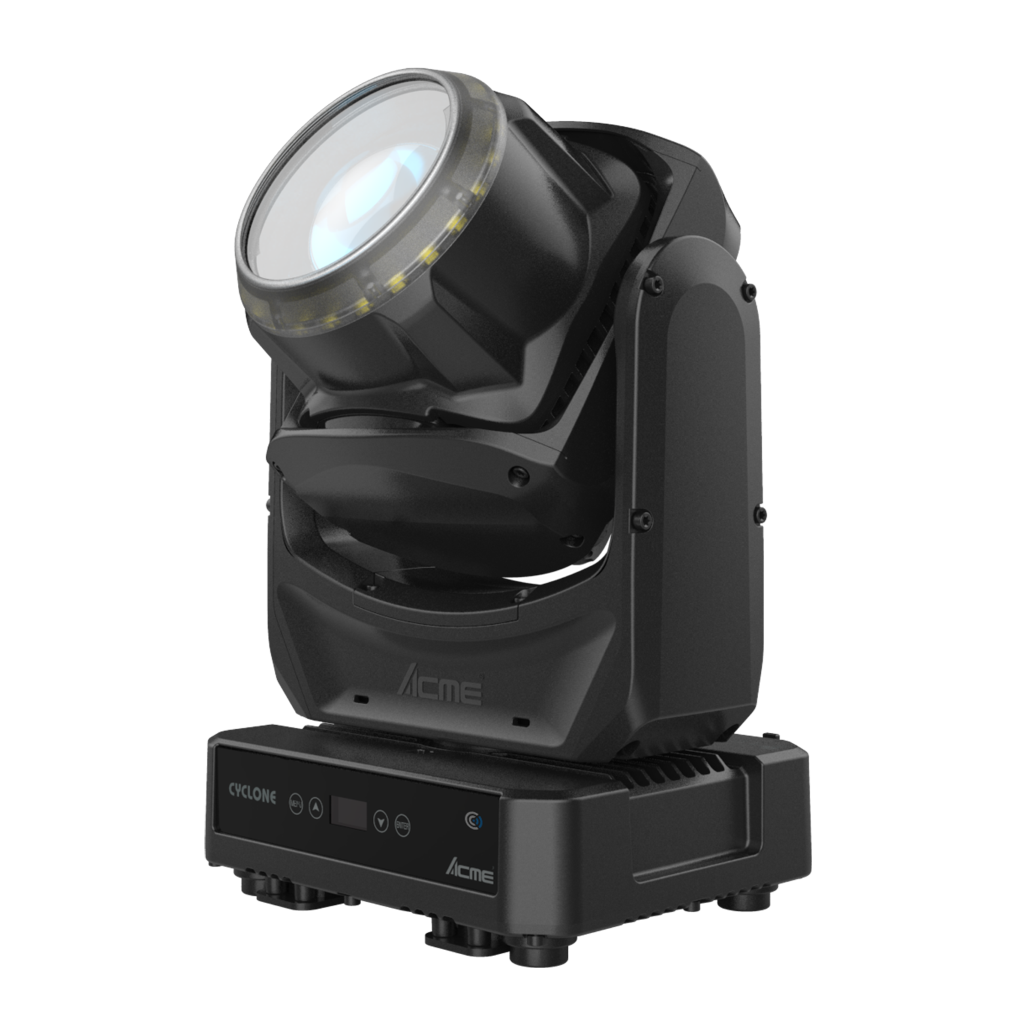

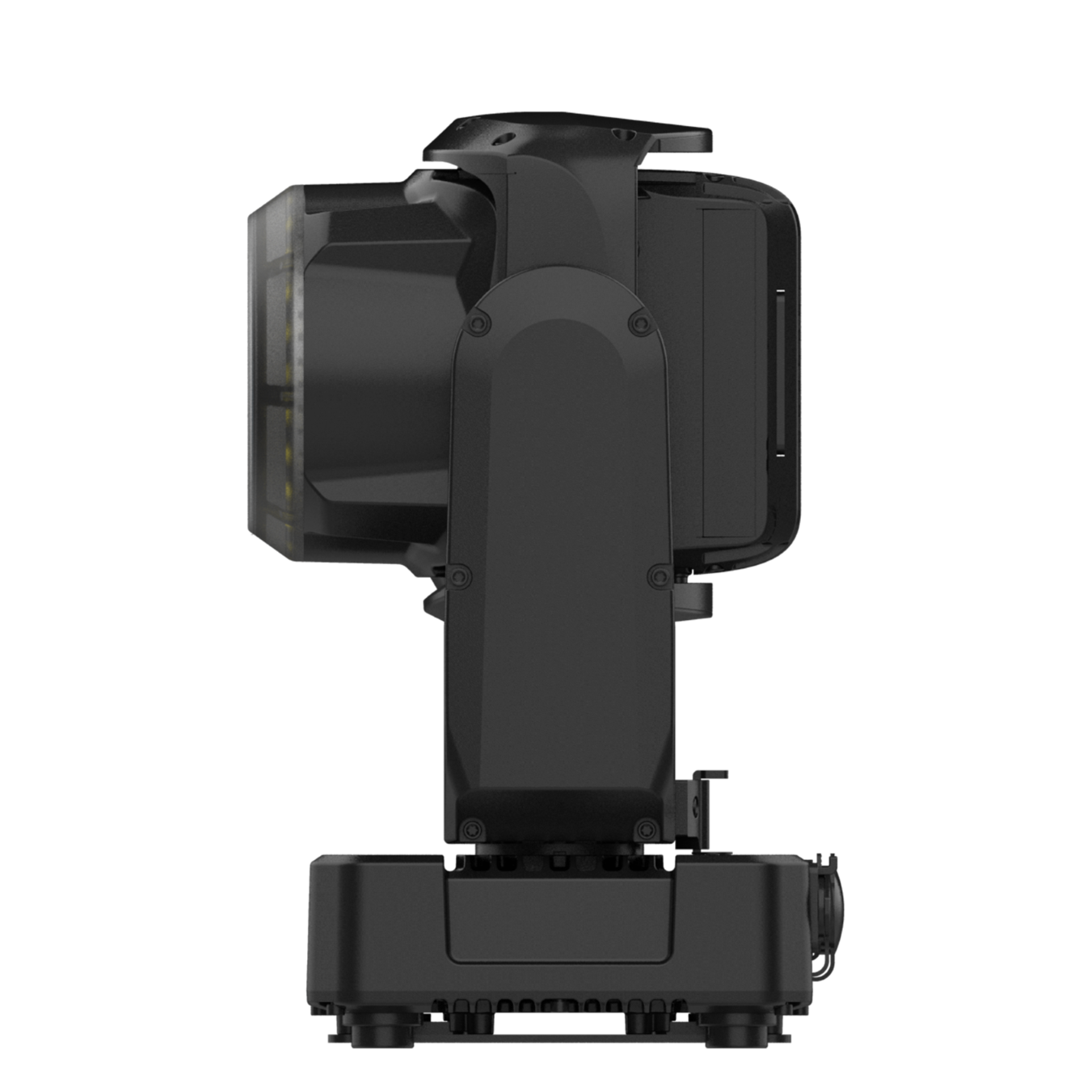

ACME CYCLONE

Unleash a storm of visual energy with the ACME CYCLONE. Inspired by the success of the top-selling TORNADO, the fixture delivers a powerful central beam, a pixel ring, vibrant washes, and infinite motion — all from a single head.

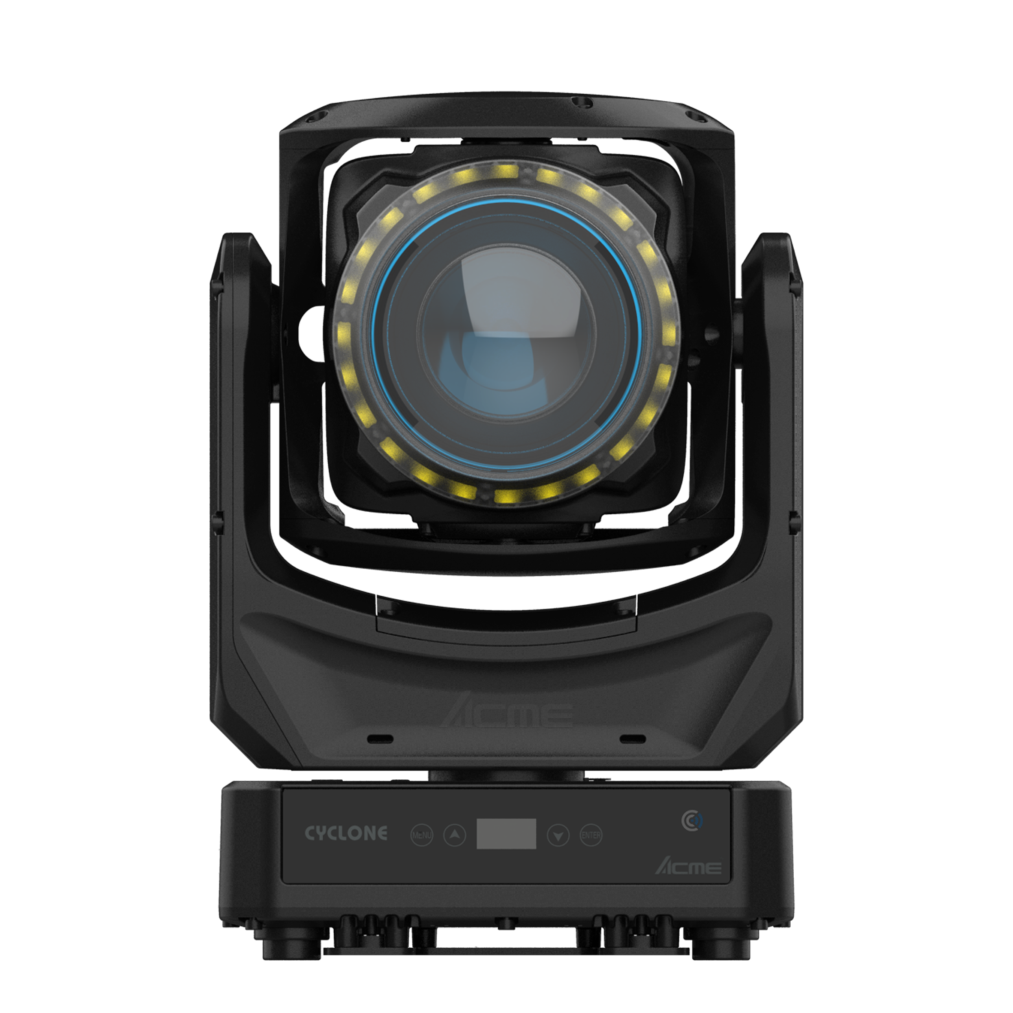

At its core is a 150W RGBL LED engine, delivering 3,600 lumens of bright output and rich, saturated colors. The kaleidoscope effect brings vivid, grid-like textures to the stage, creating layered, dreamlike visuals. Surrounding the center lens is an outer ring of 24, 0.5W RGB LEDs, offering dazzling pixel and high-impact strobe effects.

The fixture provides a fast, smooth zoom for instant transitions from sharp 4° beams to wide, even 30° washes. With three-axis movement, the CYCLONE delivers highly kinetic motion. Its infinite pan enables fast, fluid movement, unlocking even more dynamic effects and greater creative freedom.

Designed to expand your creative palette, the CYCLONE delivers exceptional color mixing and striking macro effects. A variable CTO enables seamless transitions from warm to cool tones, shaping the perfect atmosphere for every scene.

With an IP66 rating, it performs reliably anywhere — from tours and live events to outdoor festivals. Lightweight, powerful, and relentlessly dynamic, the CYCLONE delivers uncompromising performance and high-impact visual effects in a compact package.

分類: Acme Lighting, Acme Lighting

描述

Technical Specifications
Light Source & Photometric Data
Light Source	Beam/Wash (Main Light): 1 x 150W RGBL LED Pixel/Strobe (Outer Circle): 24 x 0.5W RGB LEDs Color Temp: 8,000K \| Rated Life: 20,000 hours (manufacturer spec)
Total Lumen Output	Auto Mode: Beam/Wash 3,600 lm \| Kaleidoscope Effect 4,000 lm Quiet Mode: Beam/Wash 2,800 lm \| Kaleidoscope Effect 3,000 lm Super Quiet Mode: Beam/Wash 2,500 lm \| Kaleidoscope Effect 2,600 lm
Color Rendering & Index	CRI: 82 \| TM-30 Rf: 87, Rg: 100 \| TLCI: 90
Optical System
Angles & Lens	Beam Angle: 4°–30° \| Field Angle: 5°–35° Kaleidoscope Effect: 14°, 24° Frontal Lens Diameter: 110 mm
Pan, Tilt & Roll Movement
Movement & Resolution	Pan: Infinity \| Tilt: 220° \| Roll: 60° (16-bit resolution) Automatic Pan/Tilt position correction, Pan/Tilt lock mechanism
Colors & Performance Features
Color Control	Linear CTO Color Correction (2,500K–8,000K), outstanding color mixing & macro effects
Effects & Acoustics	Variable speed strobe effect, smooth 0–100% dimming (4 user-selectable dimming curves), linear focus system Noise Level (@ 1m): Auto Mode 50 dB(A) \| Quiet Mode 36 dB(A) \| Super Quiet Mode 35 dB(A)
Control & Electrical
Control Protocols & Channels	DMX512, RDM, Art-Net, sACN, NFC 3 DMX Protocol Modes / Channels: 27 / 50 / 58
Display & Firmware	4-touch button control panel with OLED display; firmware upgrade via DMX link
Input Voltage & Power	100–240 Vac, 50/60 Hz \| Power Consumption: 260 W
Connectors	Power: Waterproof power connector in/out Data: 3-pin or 5-pin waterproof XLR, waterproof RJ45 connector
Physical, Packaging & Environment
Fixture Dimensions & Weight	235 x 192 x 363 mm (9.3″ x 7.6″ x 14.3″) \| Weight: 8.5 kg (18.7 lbs)
Packaging Options	Carton (One-pack): 330 x 315 x 520 mm (13.0″ x 12.4″ x 20.5″) \| G.W.: 11.0 kg (24.3 lbs) Flight Case 1 (Standard Six-pack): 1,170 x 580 x 640 mm (46.1″ x 22.8″ x 25.2″) \| G.W.: 119.0 kg (262.4 lbs) Flight Case 2 (North American Eight-pack): 1,220 x 810 x 635 mm (48.0″ x 31.9″ x 25.0″) \| G.W.: 159.5 kg (351.6 lbs)
Operating Environment	Ambient Temp: -20°C to 45°C \| Max Surface Temp: 75°C Protection Rating: IP66
Approvals	CE compliant, UKCA compliant, cETLus compliant

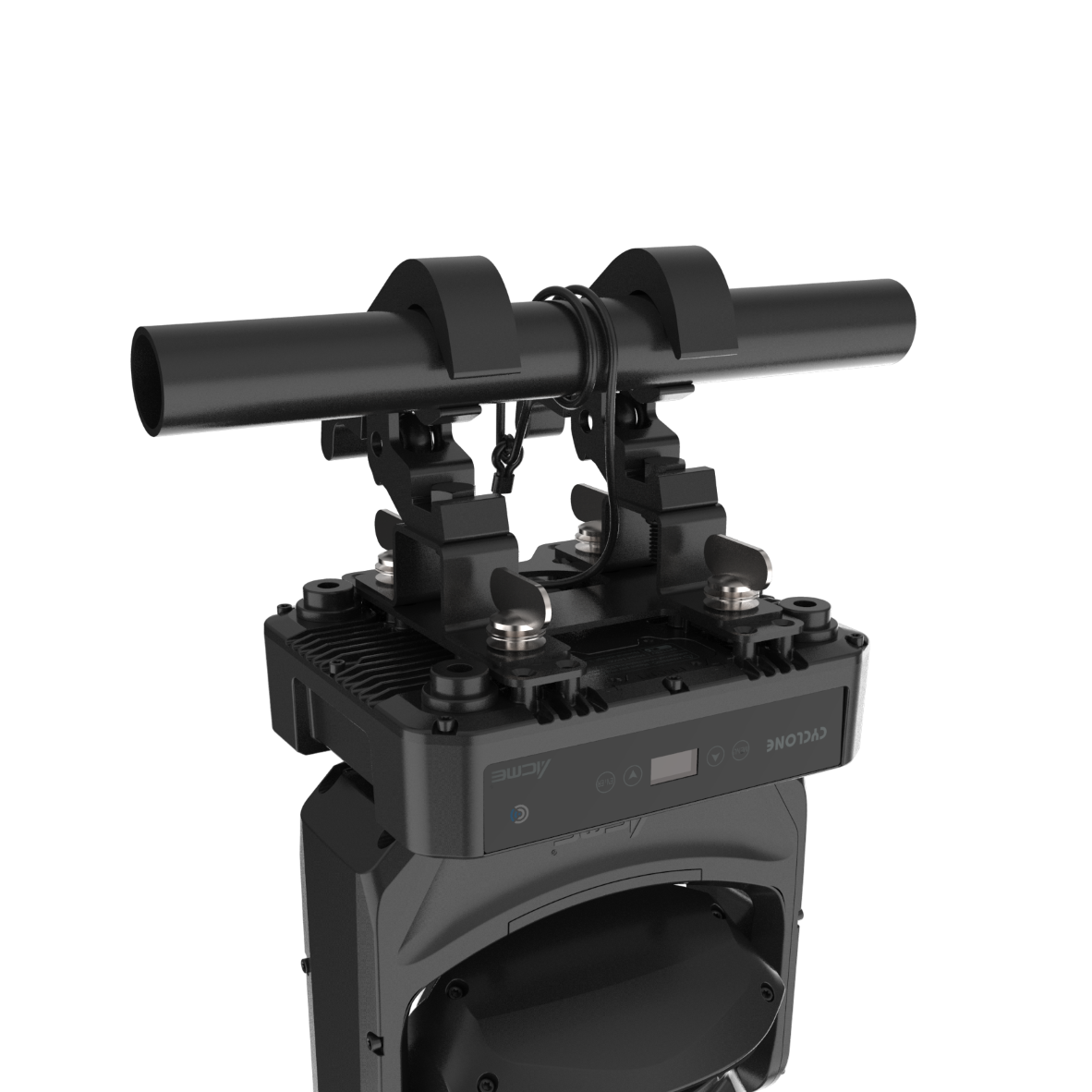

Installation & Included Items	Universal working position (2x omega brackets [3002003002], safety cable point, power cable, QR code on fixture for digital user manual)
