| Technical Specifications | |
|---|---|
| Light Source & Photometric Data | |
| Light Source | 1,500W LED engine (20,000 hours rated life) |
| Color Temperature Output | 6,200K |
| Total Lumen Output | 33,500 lm |
| Color Rendering & Metrics | Ra: ≥ 95 | R9: ≥ 95 | R15: ≥ 95 TLCI: ≥ 95 | TM-30: Rf 91 / Rg 99 |
| Optical System, Pan & Tilt | |
| Zoom Range | 5° – 52° |
| Front Lens Diameter | 180 mm |
| Pan & Tilt Movement | Pan: 540° | Tilt: 270° 16-bit resolution, automatic position correction, mechanical locks |
| Colors, Gobos & Effects | |
| Color Mixing & CTO | Linear CMY color mixing + Linear CTO (2,700K – 6,200K) |
| Color Wheel | 1 wheel with 6 colors + open |
| Static Gobo Wheel | 8 gobos + open (OD: 29.8 mm, Image: 22 mm) |
| Rotating Gobo Wheel | 7 gobos + open (OD: 29.8 mm, Image: 22 mm) |
| Animation Wheel | Bidirectional continuous rotation graphic animation wheel (swappable, water wave & flame effects) |
| Framing System | 4 shutter blades with full blackout & individual movement; ±60° full module rotation |
| Prisms & Frost | Prism: 1 rotating/indexable 4-facet circular prism Frost: 1 combinable light frost filter and 1 combinable medium frost filter |
| Strobe, Dimmer, Iris & Focus | Variable speed strobe, 0–100% dimming (4 curves), motorized linear iris, motorized zoom and focus |
| Control & Electrical | |
| Control Protocols & Channels | DMX512, RDM (4 modes: 22 / 29 / 31 / 38 Channels) |
| Display & Firmware | 4-touch button control panel with LCD display; firmware upgrade via DMX link |
| Input Voltage & Power | 100–240 Vac, 50/60 Hz | Max Power Consumption: 1,555 W |
| Connectors | Power: Power Cord in Data: 3-pin or 5-pin XLR |
| Physical, Packaging & Environment | |
| Fixture Dimensions & Weight | 412 x 308 x 770 mm (16.3″ x 12.1″ x 30.3″) | Weight: 43.0 kg (94.8 lbs) |
| Flight Case Dimensions & Weight | 715 x 595 x 905 mm (28.1″ x 23.4″ x 35.6″) | G.W.: 91.0 kg (200.6 lbs) (One-pack loader case) |
| Carton Dimensions & Weight | 670 x 520 x 750 mm (26.4″ x 20.5″ x 29.5″) | G.W.: 45.0 kg (99.2 lbs) (One-pack loader carton) |
| Operating Environment | Ambient Temp: 0°C to 40°C | Max Surface Temp: 65°C Protection Rating: IP20 |

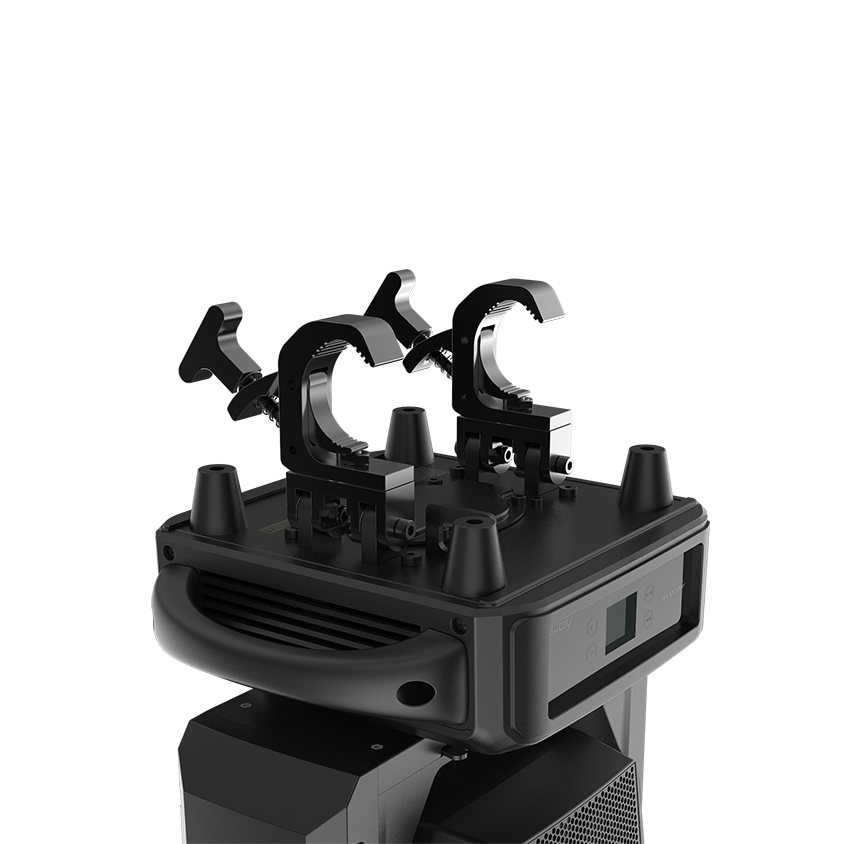

| Installation & Mounts | Universal working position, horizontal or vertical mounting (2x fixed foldable clamps for 50 mm truss included) |
