| Technical Specifications | |
|---|---|
| Light Source & Photometric Data | |
| Light Source | 500W LED engine (20,000 hours rated life) |
| Color Temperature Output | 7,000K |
| Total Lumen Output | Standard Mode (Ra > 70): 16,000 lm HCRI Mode (Ra > 90): 11,500 lm |
| Optical System, Pan & Tilt | |
| Zoom Range | 3° – 50° |
| Front Lens Diameter | 165 mm |
| Pan & Tilt Movement | Pan: 540° | Tilt: 260° 16-bit resolution, automatic position correction, mechanical locks |
| Colors, Gobos & Effects | |
| Color Mixing & CTO | Linear CMY color mixing + Linear CTO (2,700K – 7,000K) |
| Color Wheel | 1 wheel with 7 colors + CRI + open |
| Static Gobo Wheel | 13 gobos + open |
| Rotating Gobo Wheel | 7 gobos + open Slots 1–6: OD 22.5 mm, Image 11 mm Slot 7: OD 22.5 mm |
| Animation Wheel | Bidirectional continuous rotation graphic animation wheel (swappable, water wave effect) |
| Prisms & Frost | Prisms: 2 combinable, indexable, rotating circular prisms (1x 4-facet, 1x 6-facet) Frost: 1 combinable light frost filter and 1 combinable medium frost filter |
| Strobe, Dimmer, Zoom & Focus | Variable speed strobe, 0–100% dimming (4 curves), motorized zoom and focus |
| Control & Electrical | |
| Control Protocols & Channels | DMX512, RDM, Art-Net, sACN (2 modes: 24 / 30 Channels) |
| Display & Firmware | 4-touch button control panel with LCD display; firmware upgrade via DMX link or USB stick |
| Input Voltage & Power | 100–240 Vac, 50/60 Hz | Max Power Consumption: 665 W |
| Connectors | Power: Power connector in/out Data: 3-pin or 5-pin XLR, RJ45 connector, USB connector |
| Physical, Packaging & Environment | |
| Fixture Dimensions & Weight | 364 x 252 x 648 mm (14.3″ x 9.9″ x 25.5″) | Weight: 25.5 kg (56.2 lbs) |
| Flight Case Dimensions & Weight | Case 1: 870 x 580 x 905 mm (34.3″ x 22.8″ x 35.6″) | G.W.: 108.5 kg (239.2 lbs) (Two-pack) Case 2: 890 x 780 x 575 mm (35.0″ x 30.7″ x 22.6″) | G.W.: 98.5 kg (217.2 lbs) (Two-pack) North American Standard: 1,220 x 610 x 905 mm (48.0″ x 24.0″ x 35.6″) | G.W.: 138.7 kg (305.8 lbs) (Two-pack) |
| Carton Dimensions & Weight | 550 x 480 x 655 mm (21.7″ x 18.9″ x 25.8″) | G.W.: 31.0 kg (68.3 lbs) (One-pack loader carton) |
| Operating Environment | Ambient Temp: 0°C to 40°C | Max Surface Temp: 65°C Protection Rating: IP20 |
| Approvals | CE compliant, UKCA compliant, cETLus compliant |

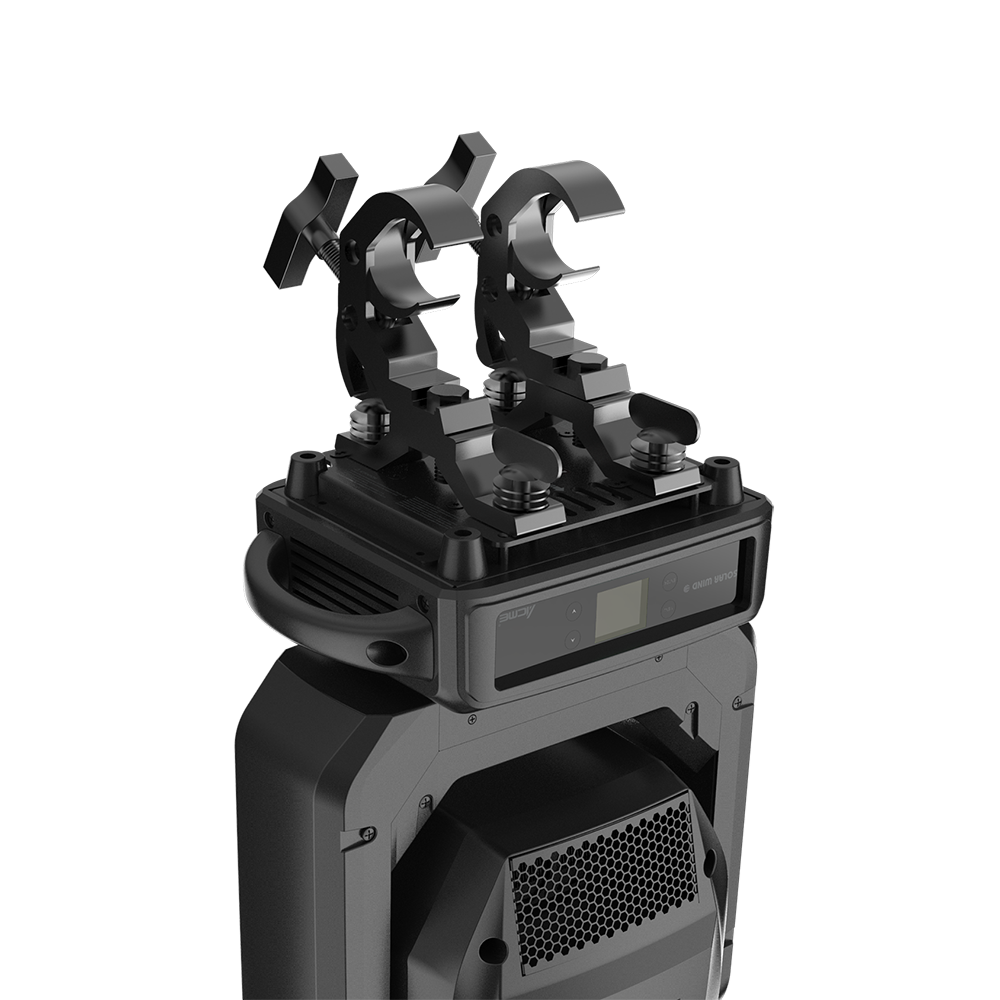

| Installation & Mounts | Universal working position, horizontal or vertical mounting (2x omega brackets included) |
