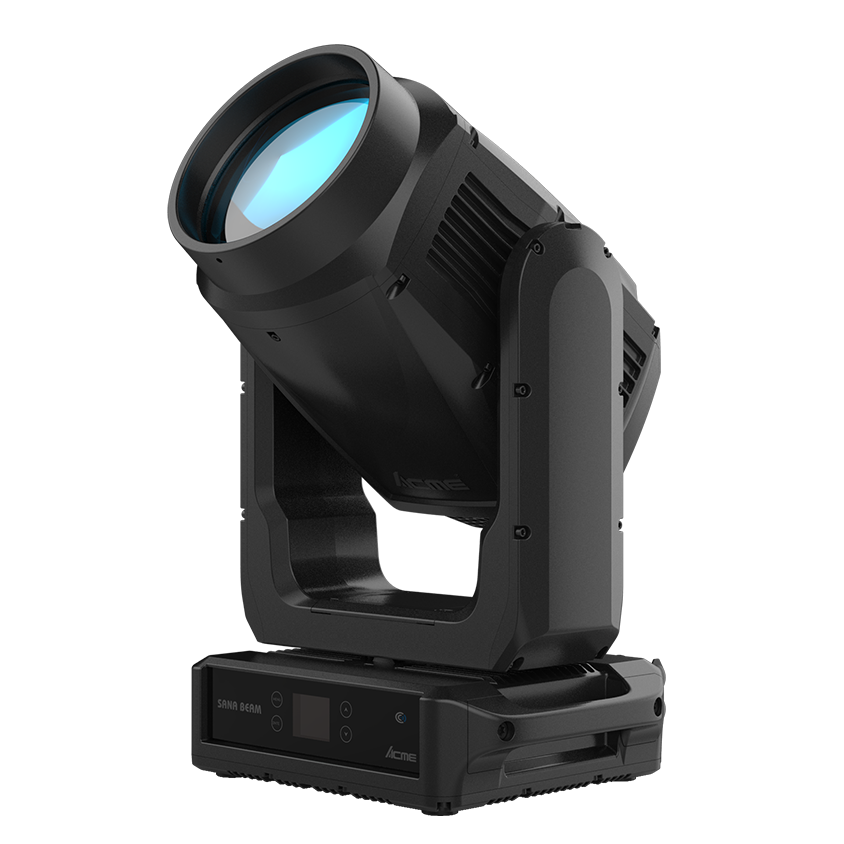

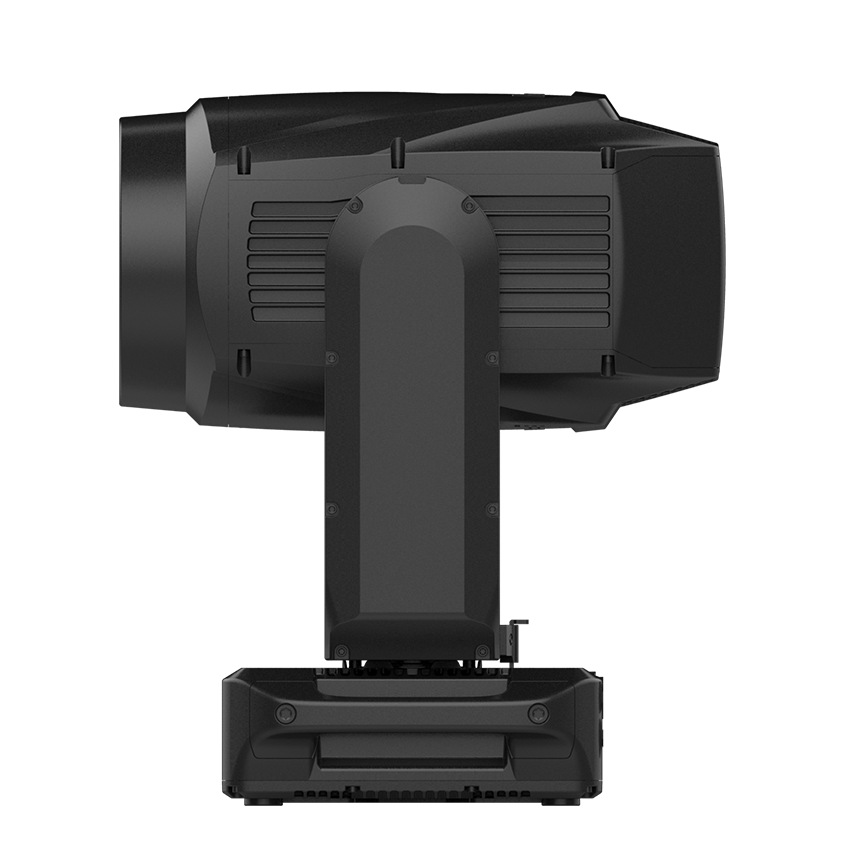

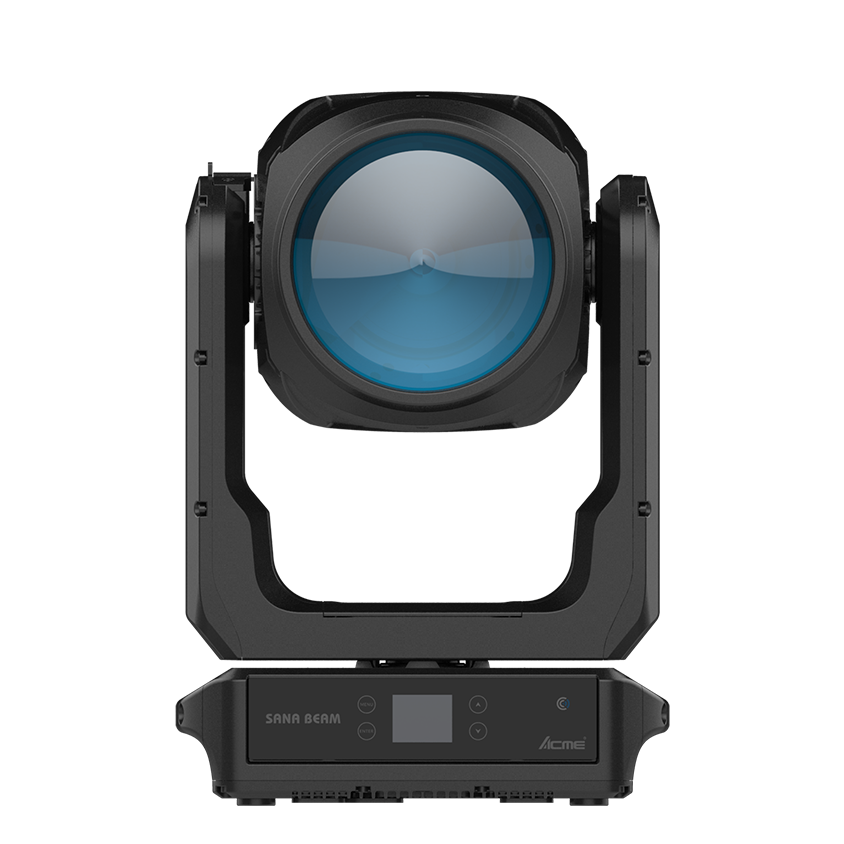

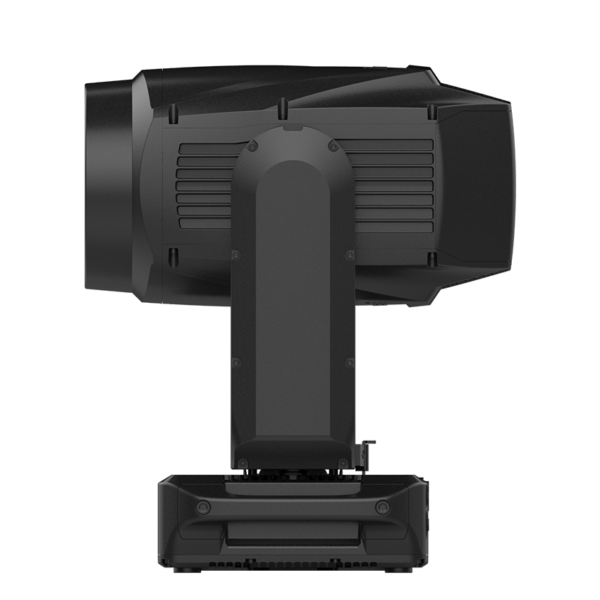

ACME SANA BEAM

The ACME SANA BEAM marks the beginning of the SANA series and sets a new standard in IP66-rated LED beam moving heads. Lightweight yet powerful, the fixture delivers razor-sharp beams, precise control, and infinite motion in a compact design.

Powered by a 330W LED engine, the SANA BEAM delivers a dazzling 5,500-lumen output, projecting intense beams through a large 180 mm frontal lens for unmatched clarity and impact. With an impressive zoom range of 1.9° to 8°, it delivers razor-sharp beams that endlessly cut through the air for a dramatic visual impact.

Its infinite pan and tilt offer fluid motion for bold mid-air visuals, breaking free of conventional movement limits. The fixture features two color wheels (6 colors each), a variable CTO, and linear CMY color mixing, unlocking vivid, expressive palettes suited for any atmosphere.

Effect creativity expands further with a static gobo wheel featuring 17 gobos, and two prisms for multi-layered effects. A frost filter transforms sharp, focused beams into uniform washes, providing versatile lighting options for any environment.

Weighing just 23.8 kg (52.5 lbs), the SANA BEAM delivers uncompromising performance in a lightweight package, empowering lighting designers with the freedom to create without limits.

分類: Acme Lighting, Acme Lighting

描述

Technical Specifications
Light Source & Photometric Data
Light Source	330W LED engine (20,000 hours rated life)
Color Temperature & Intensity	CCT: 7,000K (±200K) \| Peak Intensity: 5,690,000 cd
Total Lumen Output	Auto Mode: 5,500 lm Quiet Mode: 4,700 lm Super Quiet Mode: 3,900 lm
Color Quality Ratings	Standard Mode: Ra ≥ 66 \| TM-30 Rf: 69 \| TM-30 Rg: 91 \| TLCI: 42
Optical System, Pan & Tilt
Zoom Range & Lens	Zoom Range: 1.9° – 8° Front Lens Diameter: 180 mm
Pan & Tilt Movement	Pan: Continuous 360° / Infinity \| Tilt: Continuous 360° / Infinity 16-bit resolution, automatic position correction, mechanical locks
Colors, Gobos & Effects
Color Mixing & CTO	Linear CMY color mixing + Linear CTO (2,700K – 10,000K)
Color Wheels	Wheel 1: 6 colors + open Wheel 2: 6 colors + open
Static Gobo Wheel	17 gobos + open (Gobo Size: OD 113 mm)
Prism & Frost	Prisms: 2 combinable/overlayable rotating & indexable prisms (1x 8-facet circular, 1x 6-facet linear, bidirectional) Frost: 1 frost filter
Strobe, Dimmer & Focus	Variable speed strobe, smooth 0–100% dimming (4 selectable curves), motorized focus, motorized zoom
Control & Electrical
Control Protocols & Channels	DMX512, RDM, Art-Net, sACN, NFC (4 modes: 16 / 27 / 27 / 29 Channels)
Display & Firmware	4-touch button control panel with LCD display; firmware upgrade via DMX link or USB stick
Input Voltage & Power	100–240 Vac, 50/60 Hz \| Max Power Consumption: 465 W
Connectors	Power: Waterproof power connector in/out Data: 3-pin or 5-pin waterproof XLR, waterproof RJ45
Physical, Packaging & Environment
Fixture Dimensions & Weight	332 x 256 x 567 mm (13.1″ x 10.1″ x 22.3″) \| Weight: 23.8 kg (52.5 lbs)
Packaging Options	Flight Case 1 (Two-pack): 820 x 580 x 880 mm (32.3″ x 22.8″ x 34.7″) \| G.W.: 98.0 kg (216.1 lbs) Flight Case 2 (North America Three-pack): 1,220 x 610 x 840 mm (48.0″ x 24.0″ x 33.1″) \| G.W.: 153.6 kg (338.6 lbs) Carton (One-pack): 550 x 455 x 665 mm (21.7″ x 17.9″ x 26.2″) \| G.W.: 30.0 kg (66.1 lbs)
Acoustic Noise Level	Auto Mode: 48 dB(A) @ 1 m Quiet Mode: 43 dB(A) @ 1 m Super Quiet Mode: 38 dB(A) @ 1 m
Operating Environment	Ambient Temp: -20°C to 45°C \| Max Surface Temp: 75°C Protection Rating: IP66
Approvals	CE compliant, UKCA compliant, cETLus compliant

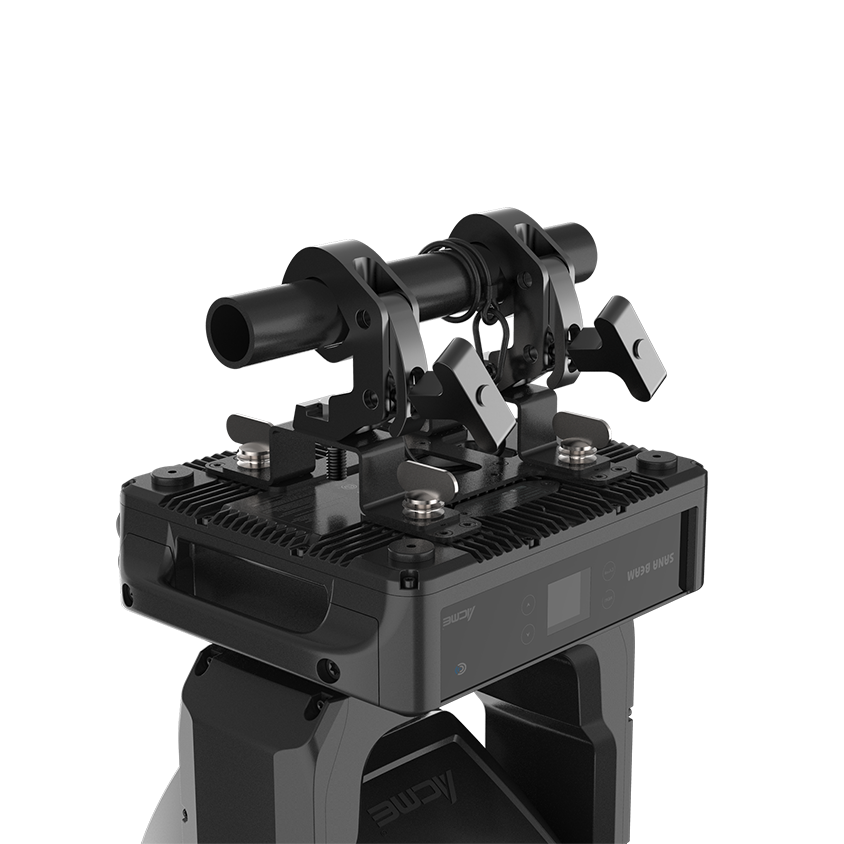

Installation & Included Items	Universal working position (2x omega brackets [3002003003], safety cable point, power cable, and QR code for digital manual)
